artificial Stone Production line/ Stone crushing plant/ aggregate making line

Product Overview

Description

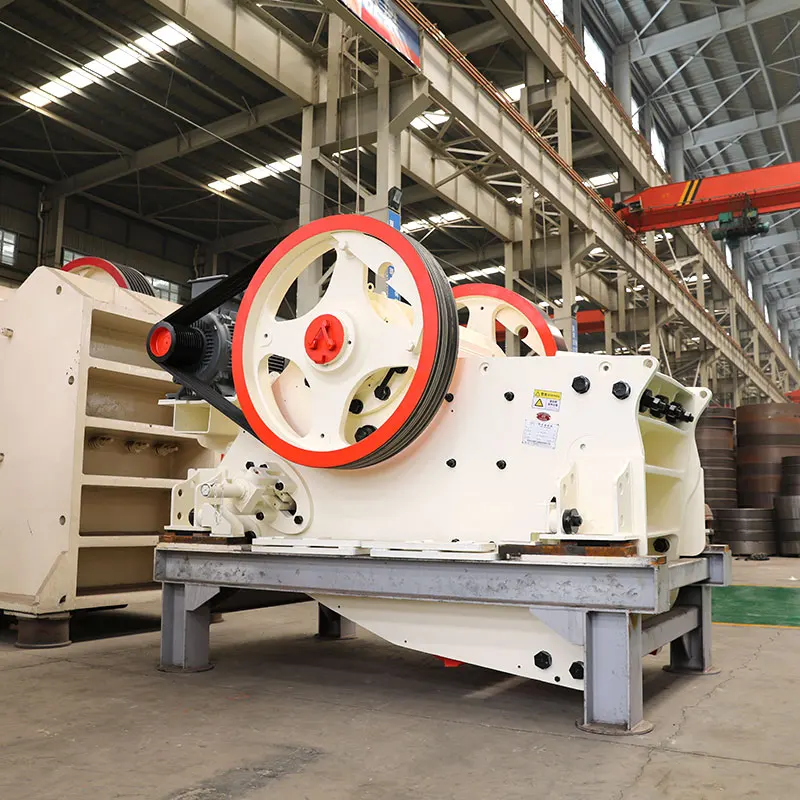

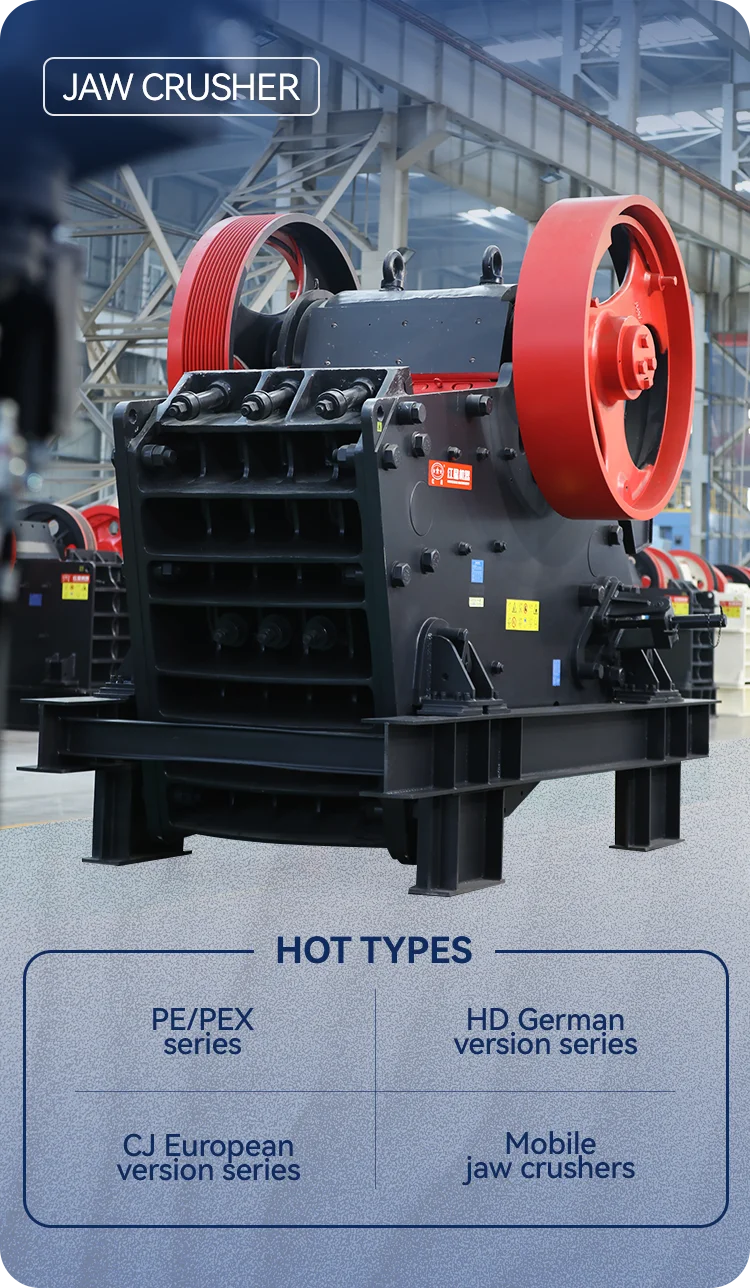

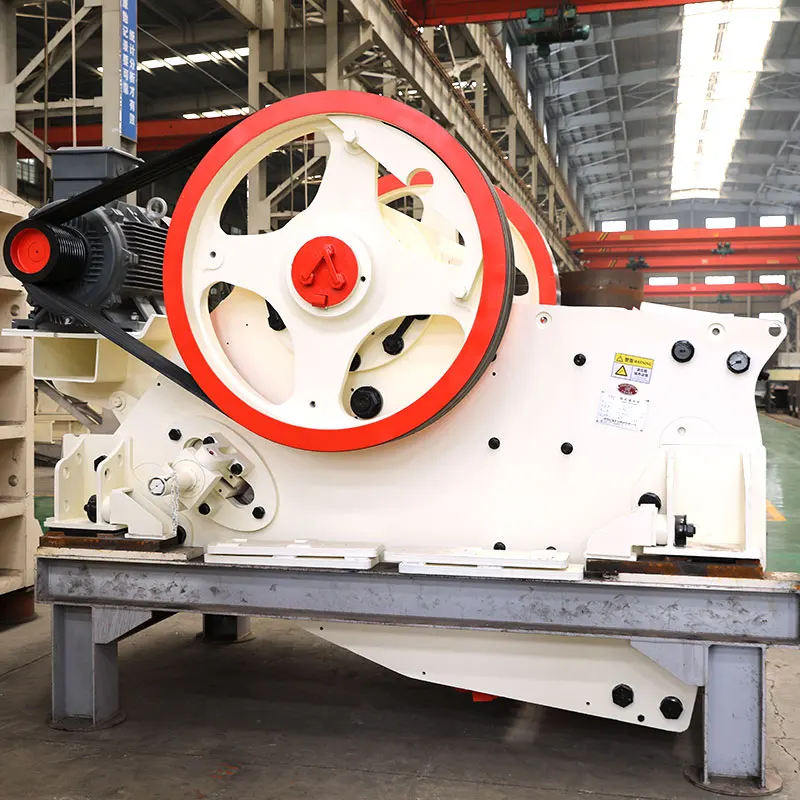

Jaw crusher is a primary crusher that is widely used in crushing circuits, providing better crushing solutions for mining, smelting, building materials, highways, railways, water conservancy, chemical industry and other industries. Our jaw crushers can provide you with an excellent crushing experience with excellent quality and performance.



Applicable Materials





The compression strength of the materials to be crushed is less than 320 MPa.Whether it is metal ores (gold ore, iron ore, etc.), non-metallic ores (quartz, limestone, gypsum, etc.), rocks (granite, basalt, etc.), gangue, concrete, construction waste , glass, or cement clinker, our jaw crushers can easily crush it.



Product Structure

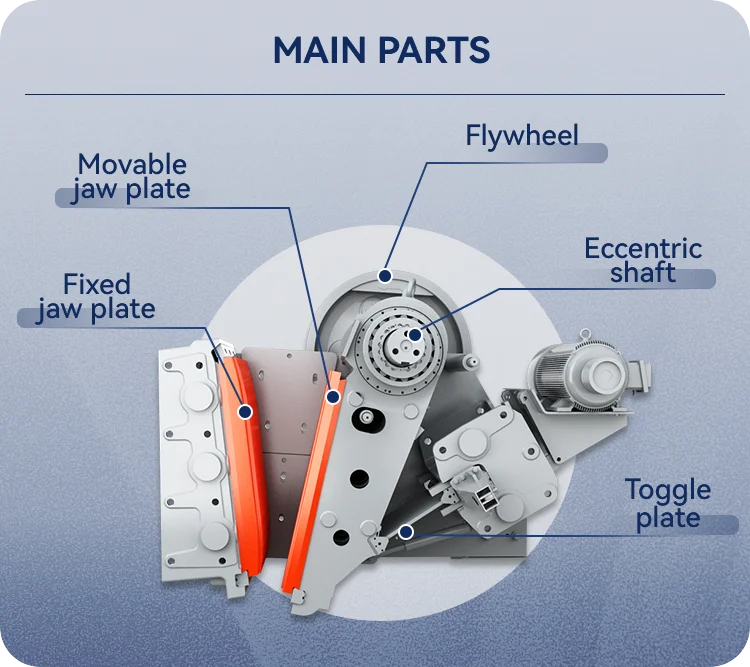

The basic structure of the jaw crusher includes the main frame, fixed jaw plate, movable jaw plate, toggle plate, eccentric shaft, flywheel, etc.

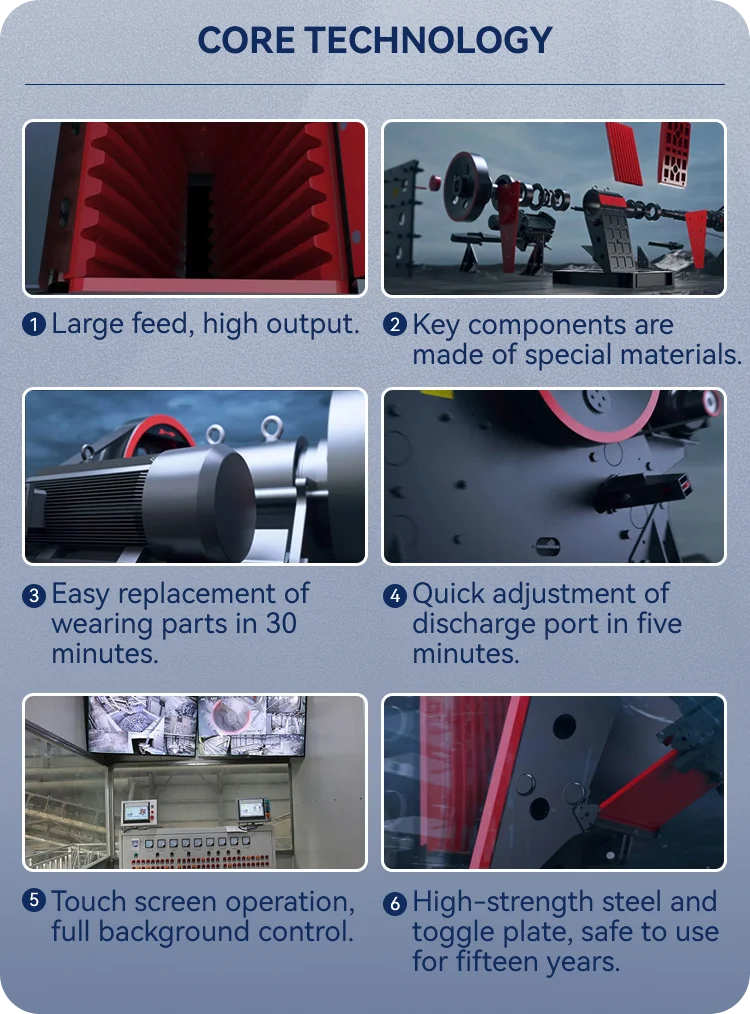

1.We have engineered each component to maximize its performance and service life:



2.The crushing cavity is deep and there are no dead corners, which improves feeding and output.



3.Large crushing ratio and uniform particle size.



4.Welded fixed steel structure, large bearings, and forged spindle make the bearing capacity better.



5.The discharge port can be adjusted within a wide range through gaskets to meet various particle size requirements of customers.



6.Simple structure and special centralized lubrication system makes operation and maintenance easier.



7.The wearing parts jaw plates (one fixed, one movable) are made of wear-resistant materials (high manganese steel, alloy steel, etc.) to extend the service life.



8. Less dust, low noise, and the energy consumption can be reduced by 15%-30%.

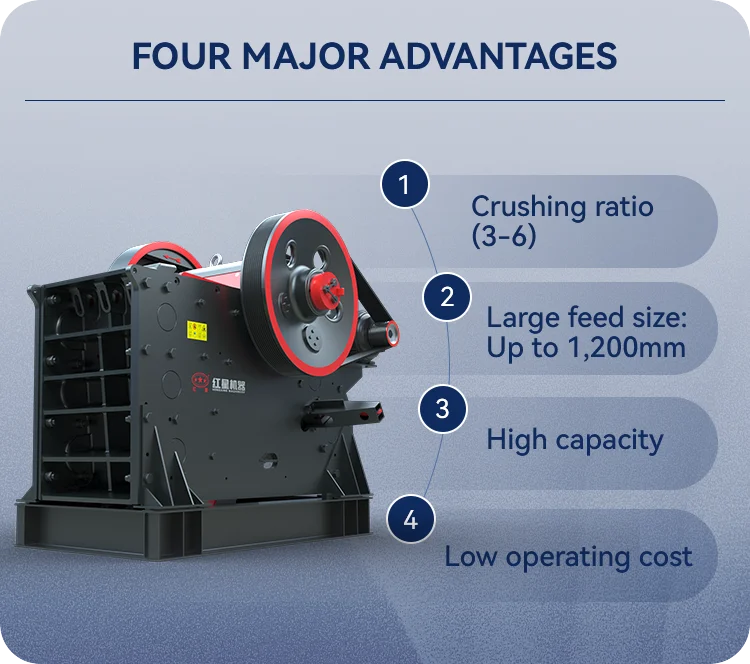

Outstanding Advantages



1. Superior crushing capacity: Large crushing ratio (3-6), uniform output size.



2. Large feed size: Up to 1,200 mm.



3. High capacity: The capacity can reach 1,200 tons/hour, meeting large-scale crushing needs.



4. Low operating cost: The simple structure and optimized performance ensure the increase of output and productivity, and also reduce the cost.

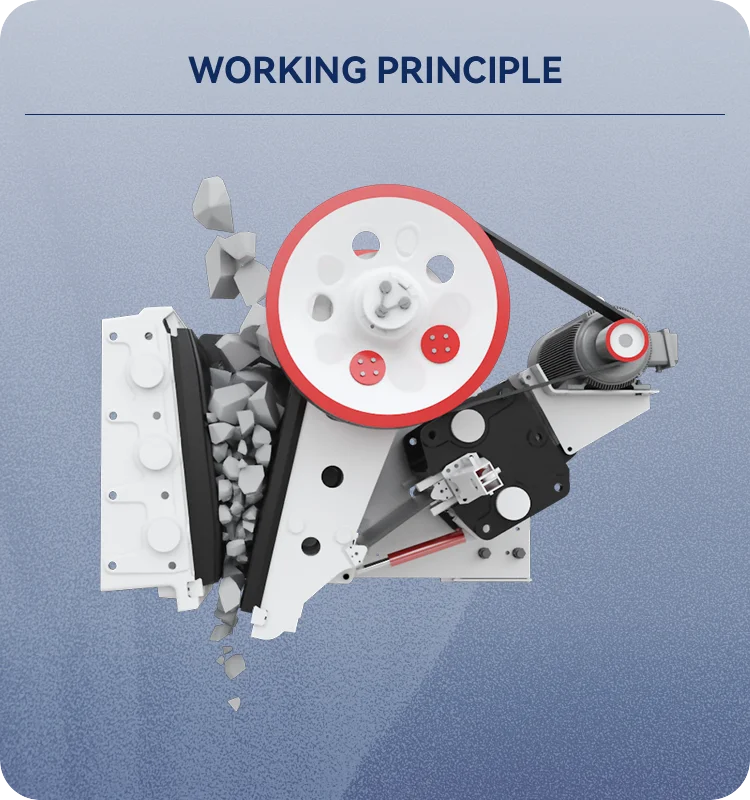

The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be crushed in crusher to reach the crushing target. When the movable jaw is down, the angle between the fixed jaw and movable jaw becomes smaller. The crushed materials are discharged from the lower outlet of the jaw crusher cavity.







Model	Max.Feeding size (mm)	Adjustment range of discharge port (mm)	Capacity(t/h)	Power (kw)	Dimensions(L×W×H) (mm)
PE 250×400	210	20-70	5-21	6P   15	1100×1032×1285
PE 400×600	340	40-100	16-64	6P   30	1623×1736×1615
PE 500×750	425	50-100	40-110	6P   55	1920×1850×1920
PE 600×750	500	150-200	80-240	6P   55	2020×1850×1920
PE 600×900	500	65-160	50-160	6P   55	2530×1900×2340
PE 750×1060	630	80-180	110-320	8P   110	2680×2380×2785
PE 900×1200	750	100-200	220-380	8P   110	3470×2876×3330
PE1200×1500	1020	150-350	400-1000	8P   160-245	4850×3220×3680
PE1500×1800	1200	220-350	500-1200	8P   280-380	5160×3660×4248
PEX 250×1000	210	25-60	16-52	6P   30	1580×2006×1390
PEX 250×1200	210	25-60	20-61	6P   37	1780×2214×1430
PEX 300×1300	250	20-90	16-105	6P   55	2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.









Henan Zhongde Mining Machinery Co., Ltd was founded in 1982 in Zhengzhou, Henan, the capital of Chinese machinery manufacturing. The company is large in scale and has four major production bases with a total area of 500,000 square meters, of which standardized heavy industry plants cover an area of 360,000 square meters, providing advanced and reliable infrastructure for production.





Our company focuses on the development and production of mining machinery, including crushers, mills, beneficiation equipment, briquette machines, rotary kilns and other products, which are widely used in mining, chemical industry, construction, coal, ceramics, and other industries. With excellent quality and professional solutions, it has won the trust of customers around the world.







Our Services



1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.



2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.



3. We visit customers regularly to provide lifelong service and technical support.



4. Except for wearing parts, we provide one-year warranty, long-term supply of spare parts, and two-year maintenance of major parts if used correctly.





Quality Control



1. Our equipment holds ISO 9001, CE, and GOST certifications and all equipment undergoes pre-wiring, assembled, and factory tested at our manufacturing facility.



2. We take a test on each machine before delivery.





FAQs



How to get the best price for equipment?

• We are the direct manfacturer, so we can offer you the lowest price than the market price.


• The price of the machine can be given the largest discount based on quantity.

Our payment term?

• Paypal, T/T, L/C, and Western Union are all available.


• 30% deposit in T/T advance, 70% balance before shipment.


• We take photos of finished products before delivery.

Delivery time?

• Streamlined production allows for prompt delivery of most products within 6-8 weeks.


• The delivery time will be based on the machine type, selected shipping method, and parts availability.


• We take photos of finished products before delivery.

Packaging?

• The equipment is wrapped in plastic film before packaging to avoid moisture at sea.

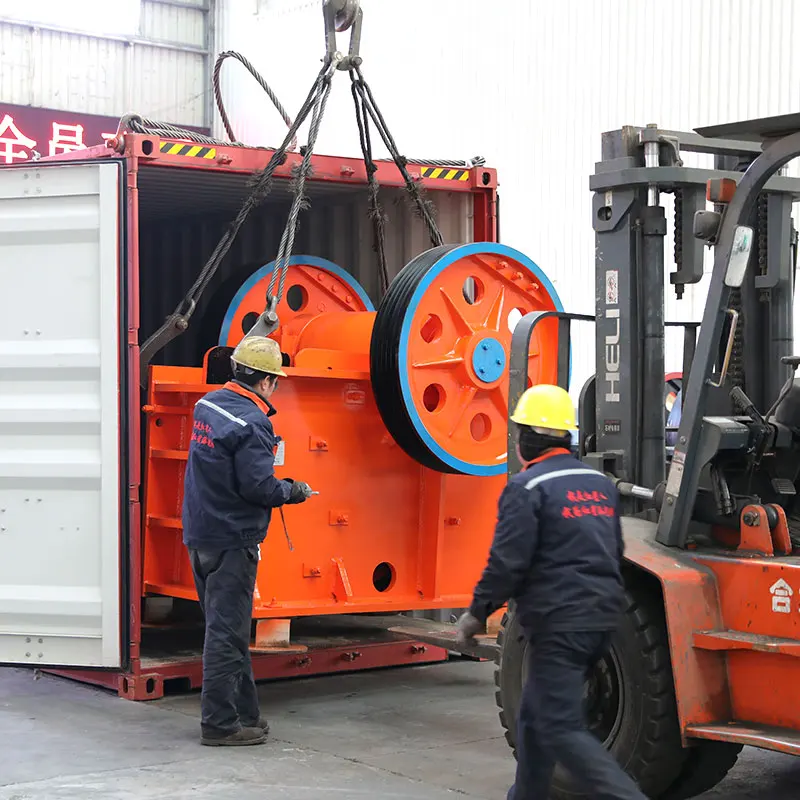

• Bare machines are packed in export containers.


• The motors and small parts are packed in waterproof, sealed, and sturdy wooden cases.

Transportation?

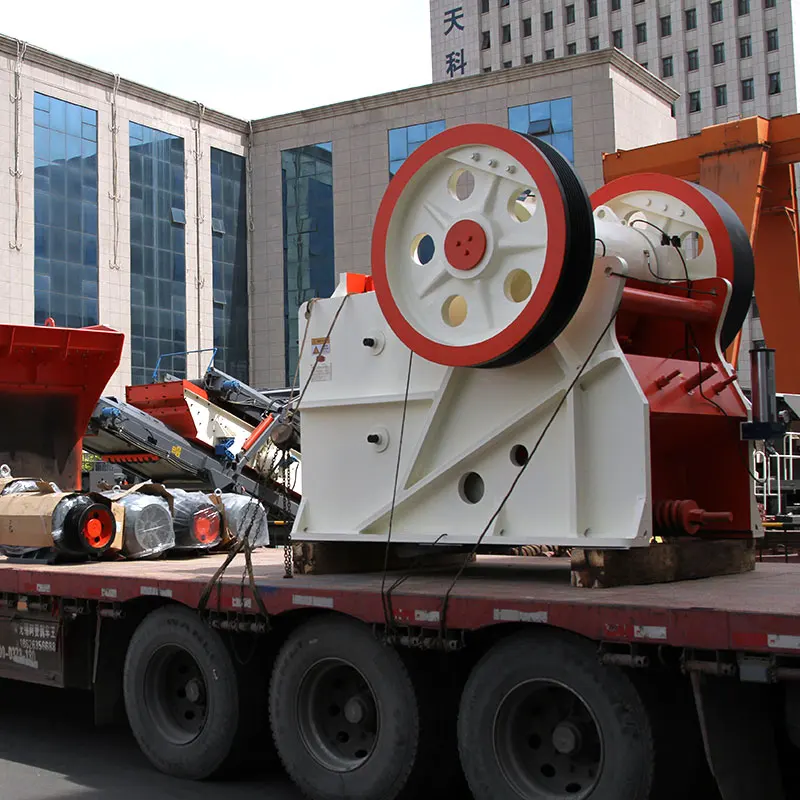

• Standard container or bulk cargo transportation.


• Sea transportation, air transportation, land transportation, according to customer requirements.


• Complete shipping options and best services at lowest prices are provided: MSC, APL, COSCO, OOCL, CSCL, MSC, MSK, KLINE, etc.


• Seaports in normal use: Qingdao, Tianjin, Shanghai.


• We promise that your goods will be delivered to the destination promptly and safely, and will remind you before the ship arrives.





If you need quality machinery with the latest technology, best prices and fastest delivery, our company is your answer. You are welcome to visit our company and workshop, we sincerely look forward to cooperating with you.
