Wire harness flame retardant heat shrink tube
- Category: Wiring Harness >>>
- Supplier: Guangzhou,Kehong,Electric,Co.,Ltd.
Share on:
Product Overview
Description

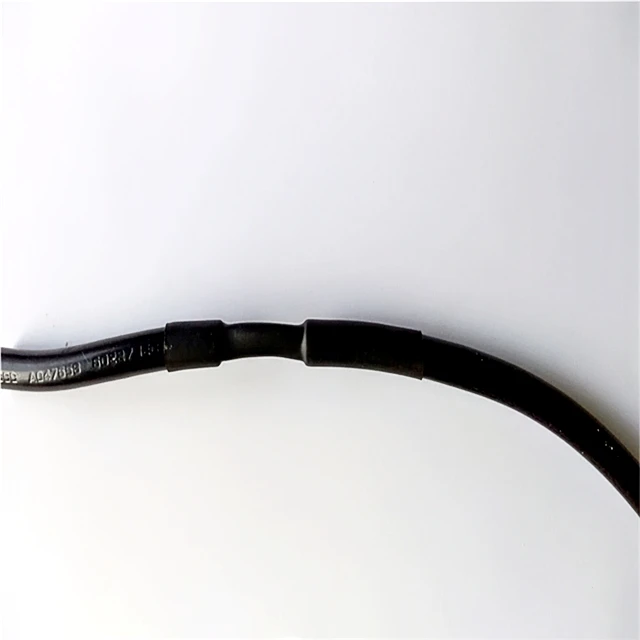

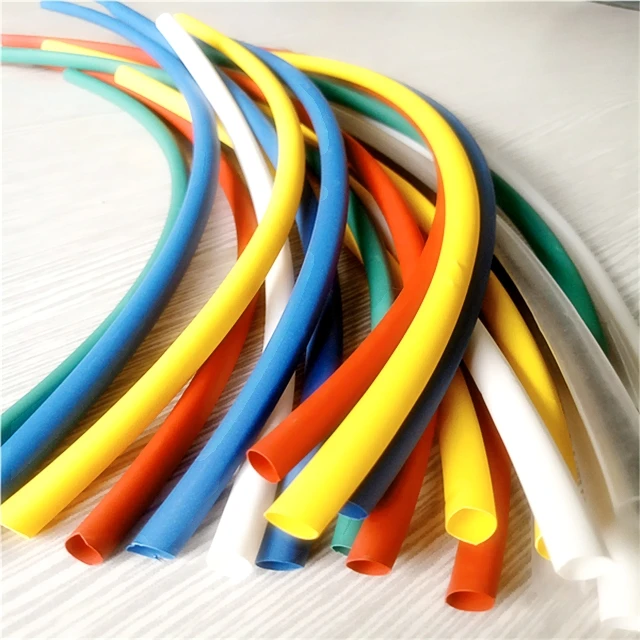

Wire harness flame retardant heat shrink tube
Model: A-2(NH)
1) Application
A-2 (NH) is a tube without halogen, low smoking flame-retardant irradiated cross linking polyolefin heat-shrinkable tubing, which contains no added halogens, and exhibits excellent fire safety characteristics combined with low evolution of acid gases, while retaining good mechanical and fluid resistance properties.
2) Features/Benefits
·Shrink ratio: 2:1.
·Flexible, flame-retardant.
·Low smoking, no added halogens.
·Low evolution of acid gases.
Conform to European RoHS environmental directive.
3) Operating Temperature Range
Operating temperature range: -55℃~125℃
Minimum shrink temperature: 70℃
Minimum full recovery temperature: 110℃
4) Standards/Approvals
UL224, 125℃600V VW-1
UL Approval
5) Product sizes
Metric size
Size(mm) | As supplied(mm) | After recovery (mm) | Standard length (m/spool) | ||
Inside diameter | Wall thickness | Inside diameter(max.) | Wall thickness(min.) | ||
φ0.8 | 1.0±0.2 | 0.15±0.05 | 0.50 | 0.25 | 200 |
φ1.0 | 1.5±0.3 | 0.20±0.05 | 0.60 | 0.33 | 200 |
φ1.5 | 2.0±0.3 | 0.20±0.05 | 0.75 | 0.36 | 200 |
φ2.0 | 2.5±0.3 | 0.20±0.05 | 1.00 | 0.44 | 200 |
φ2.5 | 3.0±0.3 | 0.25±0.05 | 1.25 | 0.44 | 200 |
φ3.0 | 3.5±0.3 | 0.25±0.05 | 1.50 | 0.44 | 200 |
φ3.5 | 4.0±0.3 | 0.25±0.05 | 1.75 | 0.44 | 200 |
φ4.0 | 4.5±0.3 | 0.25±0.05 | 2.00 | 0.44 | 200 |
φ4.5 | 5.0±0.3 | 0.25±0.05 | 2.25 | 0.44 | 200 |
φ5.0 | 5.5±0.3 | 0.25±0.05 | 2.50 | 0.56 | 100 |
φ6.0 | 6.5±0.3 | 0.28±0.05 | 3.00 | 0.56 | 100 |
φ7.0 | 7.6±0.3 | 0.30±0.06 | 3.50 | 0.56 | 100 |
φ8.0 | 8.6±0.3 | 0.30±0.06 | 4.00 | 0.56 | 100 |
φ9.0 | 9.6±0.3 | 0.30±0.06 | 4.50 | 0.56 | 100 |
φ10.0 | 10.7±0.4 | 0.30±0.06 | 5.00 | 0.56 | 100 |
φ11.0 | 11.7±0.4 | 0.30±0.06 | 5.50 | 0.56 | 100 |
φ12.0 | 12.7±0.4 | 0.30±0.06 | 6.00 | 0.56 | 100 |
φ13.0 | 13.7±0.4 | 0.35±0.07 | 6.50 | 0.69 | 100 |
φ14.0 | 14.7±0.4 | 0.35±0.07 | 7.00 | 0.69 | 100 |
φ15.0 | 15.7±0.5 | 0.35±0.07 | 7.50 | 0.69 | 100 |
φ16.0 | 16.7±0.5 | 0.35±0.07 | 8.00 | 0.69 | 100 |
φ18.0 | 19.0±0.5 | 0.40±0.10 | 9.00 | 0.77 | 100 |
φ20.0 | 21.0±0.5 | 0.40±0.10 | 10.00 | 0.77 | 50 |
φ22.0 | 23.0±0.5 | 0.40±0.10 | 11.00 | 0.77 | 50 |
φ25.0 | 26.0±1.0 | 0.45±0.10 | 12.50 | 0.87 | 50 |
φ28.0 | 29.0±1.0 | 0.45±0.10 | 14.00 | 0.87 | 50 |
φ30.0 | 31.5±1.0 | 0.45±0.10 | 15.00 | 0.87 | 50 |
φ35.0 | 36.5±1.0 | 0.50±0.10 | 17.50 | 0.97 | 50 |
φ40.0 | 41.5±1.0 | 0.50±0.10 | 20.00 | 0.97 | 50 |
φ50.0 | 51.5±1.0 | 0.55±0.10 | 25.00 | 0.97 | 50 |
Company Information
KeHong Enterprises Co Ltd is specializes in heat shrinkable technology and manufacture, Headquarter in Hong kong, with factory in GuangZhou and Shenzhen City.
Our factories have obtained the certification of ISO 9001, and main insulation material tubes have UL224 certification of ISO 9001, and main insulation material tubes have UL224 cetification, SGS approval, and meet ROHS standard.
KEHONG is one of electrical insulation suppliers, which is able to provide consistent professional, experienced and efficient product service. If you are unable to find a proper tubing or sleeve from our existing products to meet your equirement, please do not hesitate to provide us with your further more detail requirements. Our technical team will do the best to satisfy your requirements with our products.
