High quality and good price for DC motor fan 12V and 24V blowing(push) and suction(pull) KLNF274F 10 inch from China factory

Product Overview

Description

Keao DC motor fans are all CE certificated, and our raw materials all meet ROHS standard, so you can rest assured the quality from us

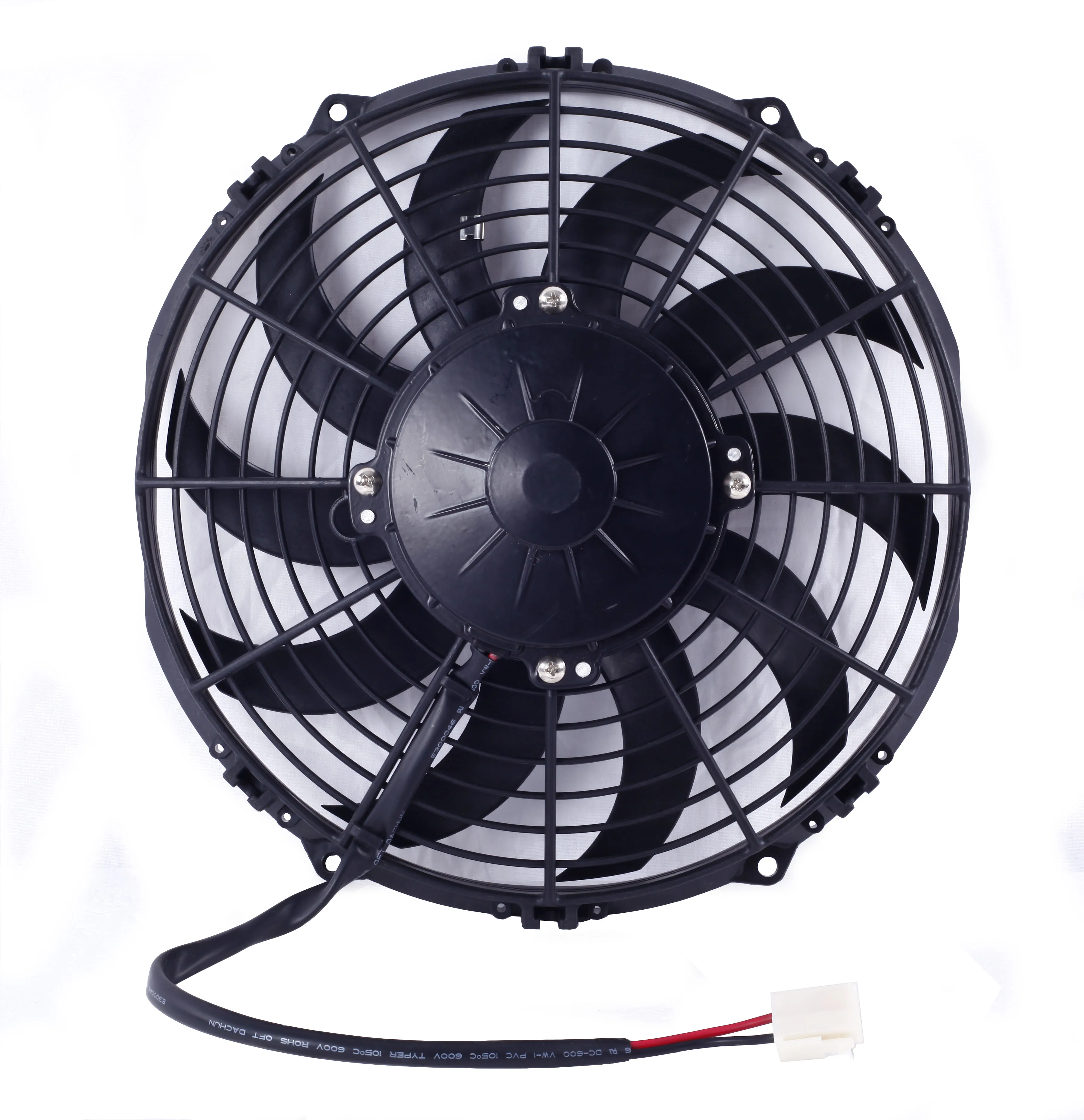

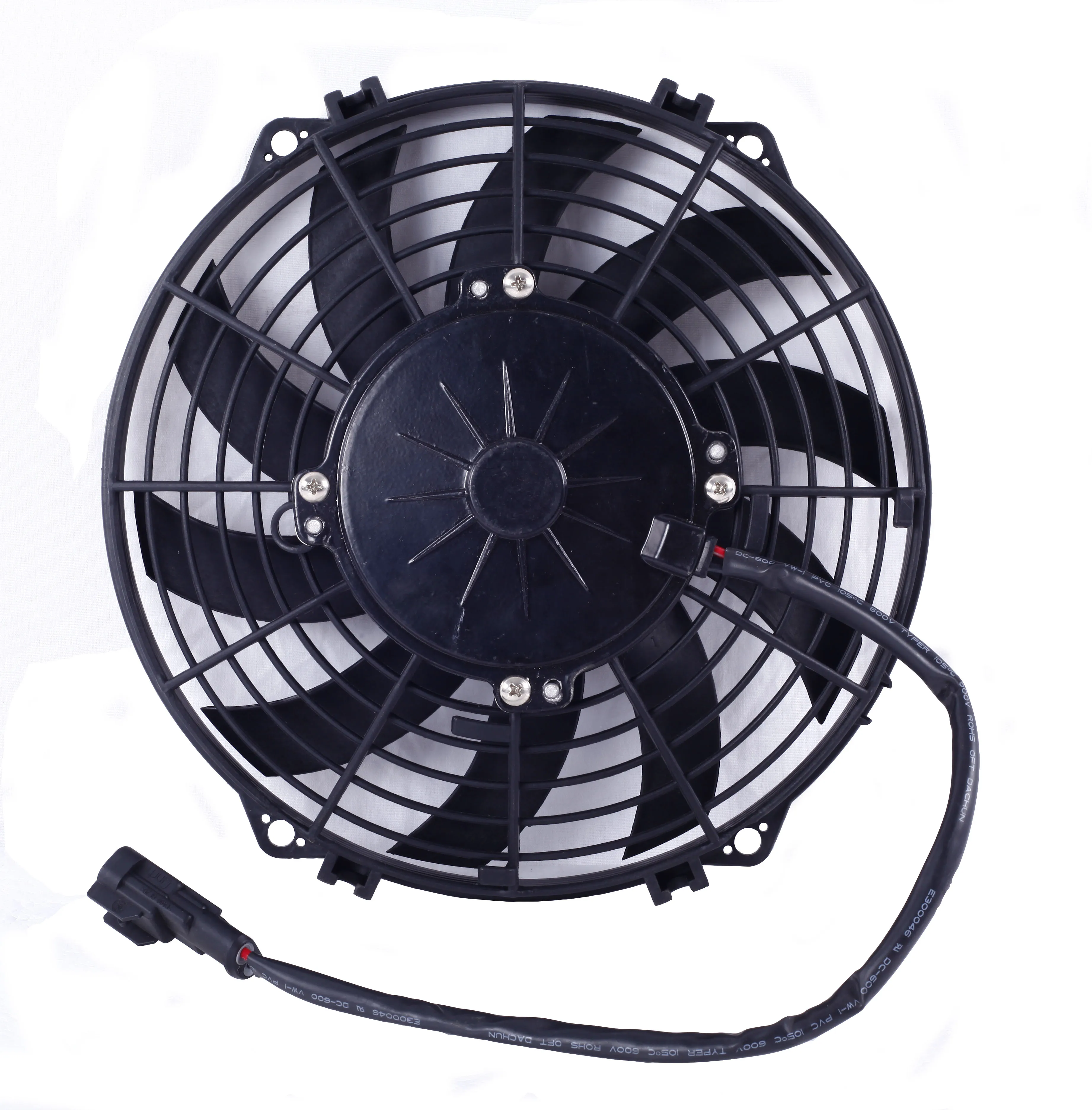

specfication of Keao DC motor fan -KLNF274F (Suction type, Blowing type is also available)

  a)Voltage:24V/12V

  b)Current:5A

   C)Static pressure:100 pa

    d)Air flow:900 m3/h

    e)Speed:3200rpm

    f)  Operation temperature:-25C~85C
   g) Lifespan: 6000hours.
   h) Insulation class: B



Available for blowing type and suction type.



We are available for brushless type and brush type.  The working life for bursh fan: 6000 hours, Brushless type motor fans: 20,000h.
.
Custom dimension and color is available.
.

Since 2002, Keao has been committed to producing high quality 12V/24V DC fans and blowers, most of our exported products are used for various bus air conditioning systems, and replacing SPAL, DENSO fans in after service (fixing) market.



Bus cooling axial fan used for YUTONG   KINGLONG buses

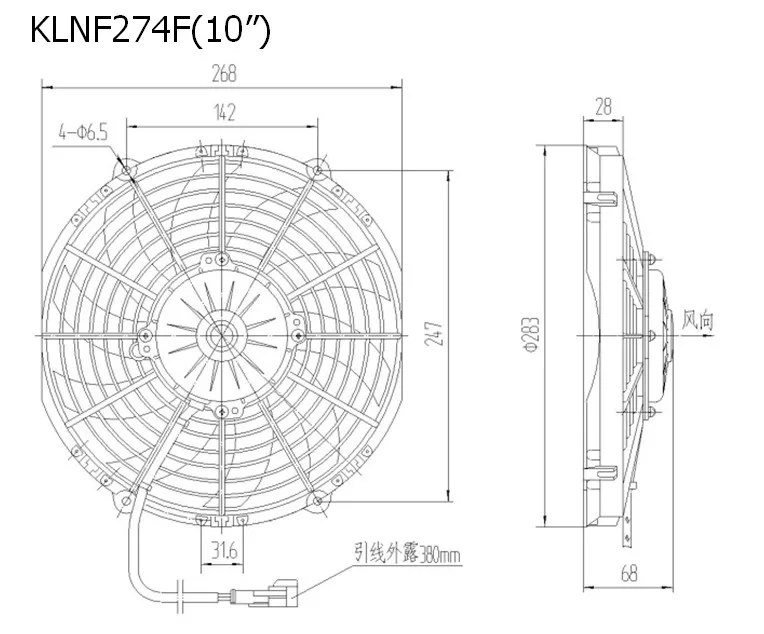

Part NO.	KLNF274F
Name	Condenser Fan
Place of Origin	Guangdong, China
Voltage	DC24V
Current	≤5A
Speed	≥3200±150rpm
Static pressure	100pa
Air Flow	900m3/h
Direction of air	Pull/suction
Warranty	13 months
Life Time	≥6000 hrs
Packing	10 pcs/carton
