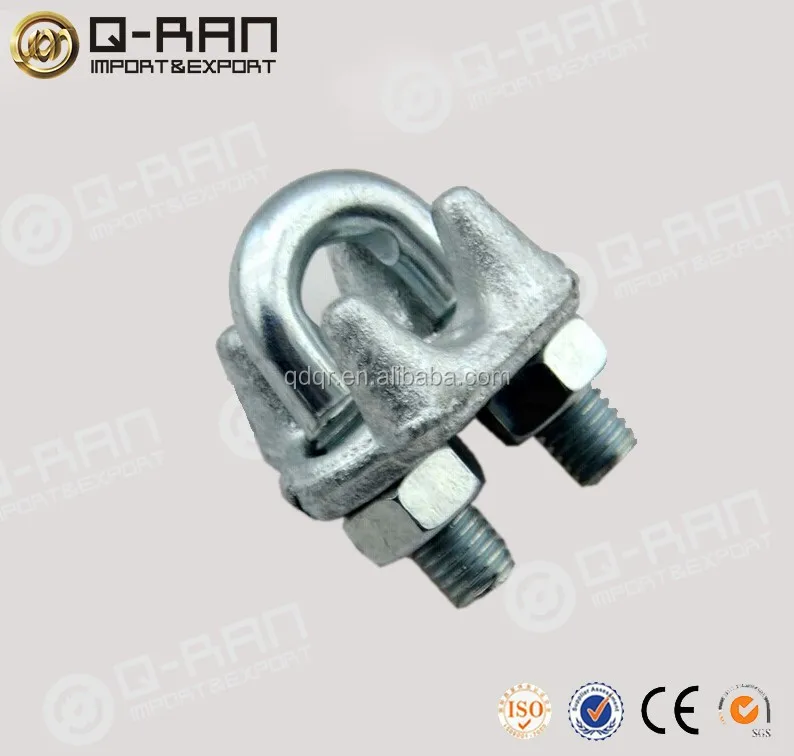

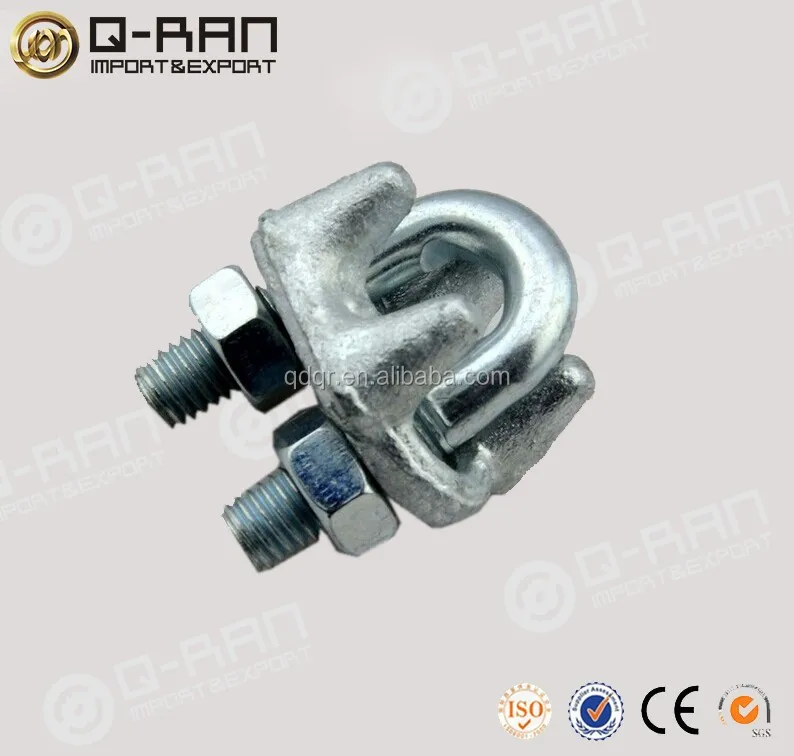

Rigging Hardware China Experienced Wire Rope Clip Manufacturer
Product Description
Bulldog Clip
Product Name
China Experienced Wire Rope Clip Manufacturer Rigging Hardware Bulldog Clip
Place of Origin
Shandong,China
Brand Name
Q-RAN
Model Number
U.S.Type
Technology
Drop Forged
Material
Crbon Steel
Surface
Galvanized
Size
1/8 to 3-1/2(in)
Delivery
Within 30 Days
Payment Term
L/C,T/T
Using for
Lifting
SIZE(IN)
DIMENSIONS(IN)
WEIGHT PER
100(LBS)
A
B
C
D
E
G
H
*1/8
0.22
0.72
0.44
0.47
0.37
0.81
0.99
6
*3/16
0.25
0.97
0.56
0.56
0.50
0.94
1.18
10
1/4
0.31
1.03
0.50
0.75
0.66
1.19
1.43
19
5/16
0.38
1.38
0.75
0.88
0.73
1.31
1.66
28
3/8
0.44
1.50
0.75
1.00
0.91
1.63
1.94
48
7/16
0.50
1.88
1.00
1.19
1.13
1.91
2.28
78
1/2
0.50
1.88
1.00
1.19
1.13
1.91
2.28
80
9/16
0.56
2.25
1.25
1.31
1.34
2.06
2.50
109
5/8
0.56
2.25
1.25
1.31
1.34
2.06
2.50
110
3/4
0.62
2.75
1.44
1.50
1.39
2.25
2.84
142
7/8
0.75
3.12
1.62
1.75
1.58
2.44
3.16
212
1
0.75
3.50
1.81
1.88
1.77
2.63
3.47
252
1-1/8
0.75
3.88
2.00
2.00
1.91
2.81
3.59
283
1-1/4
0.88
4.44
2.22
2.31
2.17
3.13
4.13
438
1-3/8
0.88
4.44
2.22
2.38
2.31
3.13
4.19
442
1-1/2
0.88
4.94
2.38
2.59
2.44
3.41
4.44
544
1-5/8
1.00
5.31
2.62
2.75
2.66
3.63
4.75
704
1-3/4
1.13
5.75
2.75
3.06
2.92
3.81
5.24
934
2
1.25
6.44
3.00
3.38
3.28
4.44
5.88
1300
2-1/4
1.25
7.13
3.19
3.38
3.19
4.56
6.38
1600
2-1/2
1.25
7.69
3.44
4.13
3.69
4.05
6.63
1900
**2-3/4
1.25
8.31
3.56
4.38
4.88
5.00
6.88
2300
3
1.50
9.19
3.88
4.75
4.44
5.31
7.61
3100
**3-1/2
1.50
10.75
4.50
5.50
6.00
6.19
8.38
4000
Bulldog Clip
Processing:
Applications:
Packaging & Shipping
Bulldog Clip
Product name
China Experienced Wire Rope Clip Manufacturer Rigging Hardware Bulldog Clip
Packing details
Gunny bags and steel pallet
Port
Qingdao,Shanghai,Tianjin
Delivery
Within 30 Days
Our Services
Why choose us?
High quality products
Raw materials
Professional staffs
Skillful workers
Powerful teams
We follow up from material preparation to delivery,profession in shipping,fast delivery,packed well in container.Specifications and marks can be produced according to the customers's requirements.SO,click the mouse to make an order to us.
Company Information
Our company has advanced production equipment and technical force, the main production of forging, card head, American malleable steel clamping head, 741 galvanized malleable clip, A type galvanized malleable clip, ring screw, nut, DIN582 DIN580, rings and other precision forging. Products are exported to Southeast Asia, Europe, American, Japan, South Korea, Hongkong, Taiwan and other twenty countries and regions. Since the product into the market, by the vast numbers of users and trust.
Fast delivery in short time,best quality of our products,first class in our service,the more you order,the cheaper you got.
