12V high power driverless cob led 7W15W20W 25W50W DC cob led chip 110v 220vhigh power driverless cob led
- Category: >>>
- Supplier: Zhongshan Alight Optoelectronic Industry Commerce Co. Ltd.
Share on (60248955215):
Product Overview
Description

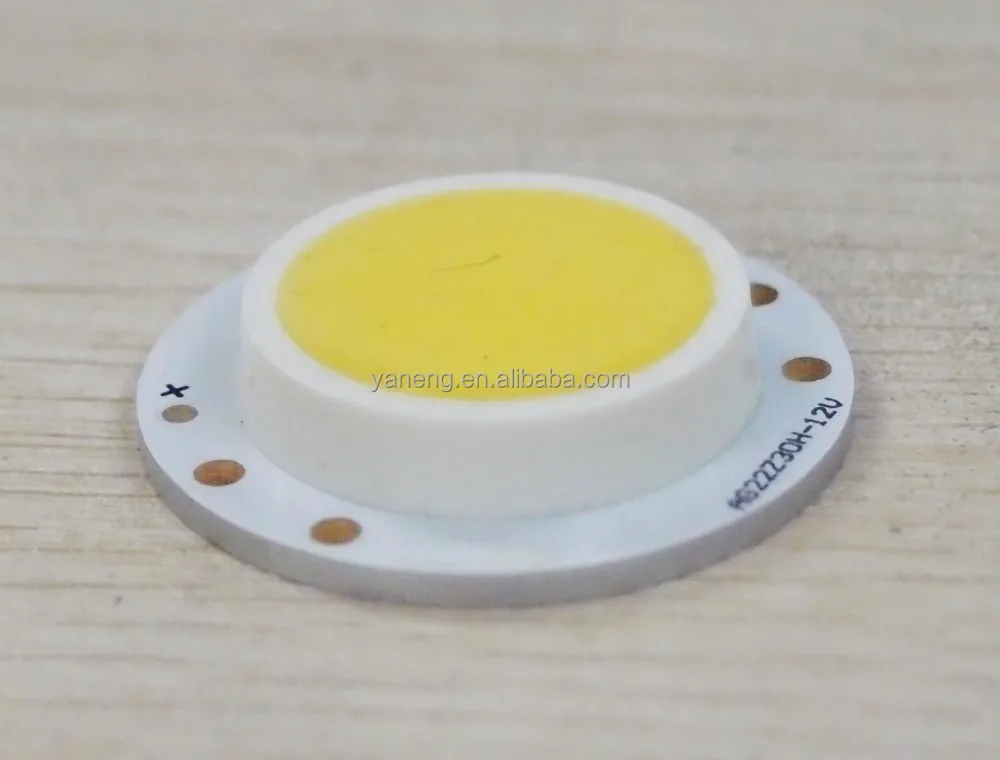

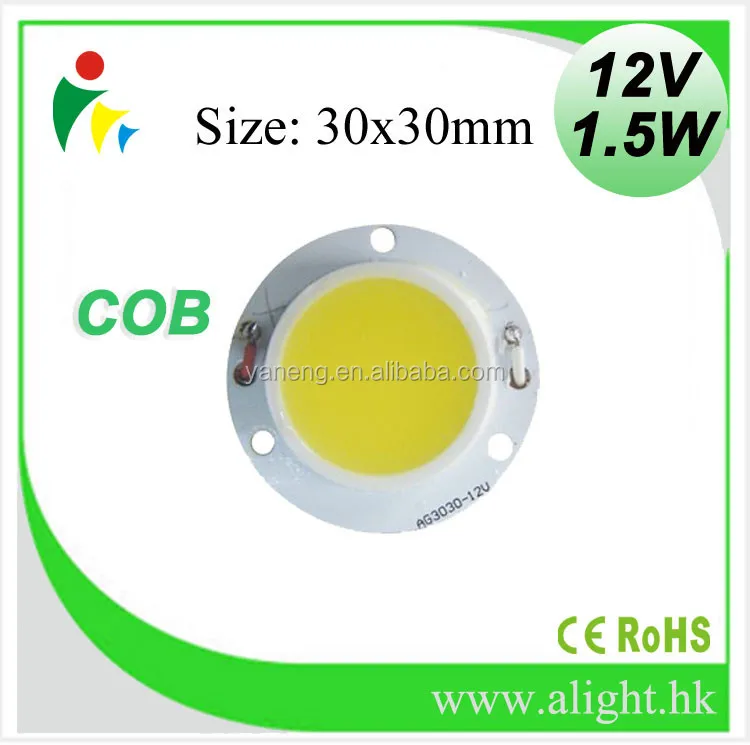

120lm/w 1.5W 12V DC COB LED Module
Product Description
l Device Selection Guid
Part No. | Chip | Lens color | |
Material | Emitting color | ||
AG22A15H-12V | InGaN | White | Yellow Diffused |
l Parameter

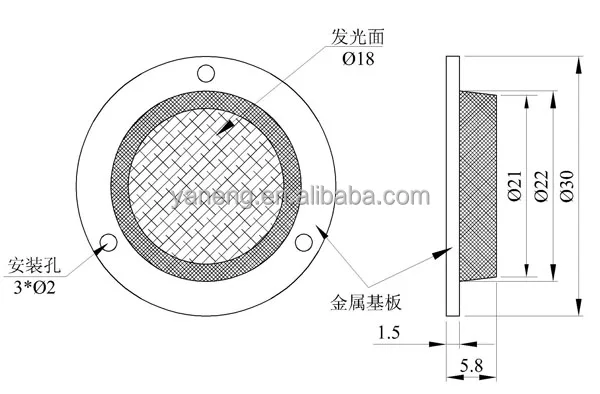

item no | lighting area(mm) | PCB type | lighting source type | color temperature range(K) |
AG22A15H-12V | Dia22 | Aluminium | upper lighting | 2700~8000 |
l Optical Characteristics
Symbol | Parameter | Min | Type | Max | Unit |
If | Operating current | - | 125 | - | mA |
Vf | Forward Voltage | 12 | 12 | 12.8 | V |
D | Luminous Intensity | 100 | 150 | - | Lm |
Tc | Color temperature | - | 6500 | - | K |
Ra | color rendering index | 75 | 80 | - |
|
l Absolute maximum ratings
Symbol | Parameter | Min | Type | Max | Unit |
P | power dissipation | - | 1.5 | - | W |
To | junction temperature | -20 | - | 65 | °C |
Tstg | storage temperature range | -30 | - | 85 | °C |
Rth | thermal resistance | - | 0.25 | - | °C/W |
Note: the condition of the test result data in the diagram above is Tc=25 degree ,the product of Light Panel with color temperature is 5000k.
Caution
Led light panel needs to work with heat sink, control board temperature should be less than 65℃
Fill heat conducting pastes between LED light panel base board and heat sink
Connect power according polarity mark + and -
Description:
The White source color devices are made with InGaN on sapphire White Light Emitting Diode.

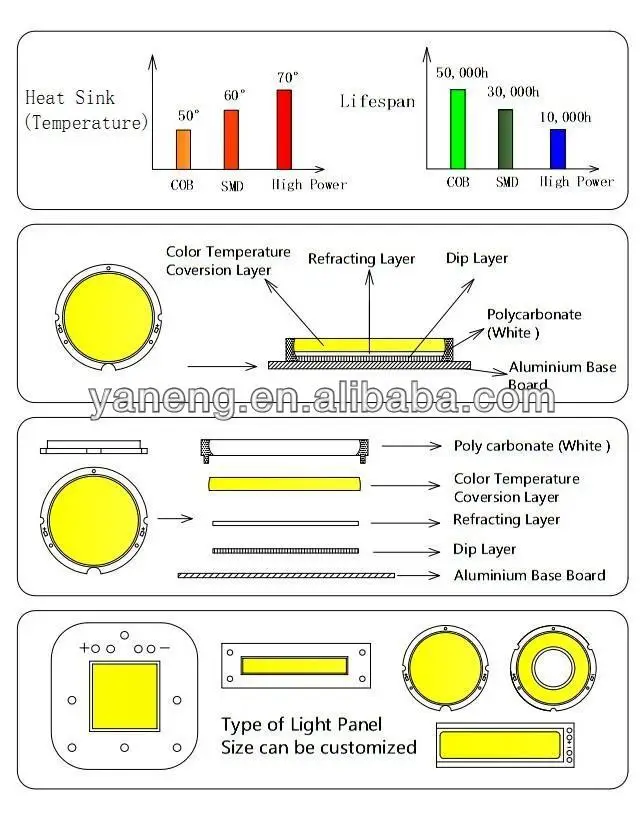

About Alight COB LEDs:
Specification:
* Waltage: 1W-100W be available.
* Apply low constant current driver, Voltage: 3V DC-66V DC
* Color Temperature:2700k--8000k
* Light Color: white/red/green/blue(RGB) for each item.
* Light characteristic: very uniform, durative, stedy, no glare, no sharp dot lights, no double images, handsome looks, very suitable for indoor lighting
* Shape and Size: long, round, square and any other shape and size according to your application.
* Encapsulation Technology and Design Copyrights reserved, passed CE& RoSH and ISO 9001 :2000 certification,
OEM: COB LED light panel size and parameter can be customized according to your product application.
COB LEDs with 3 years warranty.
OEM Watt, Voltage and size as you need.
Packaging & Shipping
Shipment
You can choose to ship by Fedex, DHL, Ocean or Air according to your need.
By express: DHL, UPS, FEDEX.
We will search the most economical and reliable shipping company to transport the goods safely.
By air: when your order is more than 100kg which will be more economical than express.
By sea: when your order is large quantity, we can help you to deliver the goods by sea.
Company Information
Alight Optoelectronic Industry Commerce Co., Ltd. founded in 2001, located in Xiaolan Town , Zhongshan City, Guangdong Province. It is earliest LED encapsulate factory in Zhongshan City.
In 2007, we cooperated with Semiconductor Research 13th Institute of China Electronics Technology Group and begin the research on new LED light panel encapsulate technology.
Since 2008, we adopted our patent Chip-on-Board encapsulation LED panels in industrial and commercial illumination field. We R&D successfully different types of COB LED lamps to replace traditional incandescent bulb,fluorescent lamp, compact fluorescent energy-saving lamp, high voltage sodium lamp etc.
In the future, we will continue to leverage the support from the Semiconductor Research 13th Institute, innovative products and with COB panel as the light sources, continue research and develop high efficiency, energy-saving, high quality and low price LED semiconductor lighting products, devote ourselves to Green Earth
Our Services
1) Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM, and your costumed lighting we can help you to design and put into produce.
3) Distributorship are offered for your unique design and some our current models.
4) Protecting your selling areas, idea of design and all your private information.
Tips:
1.Price term: EXW.
2. Payment: Paypal for samples, West Union, T/T ( 30% before producing and balanced 70% against BL)
3. Warranty: 2 years.
4. Lead Time: 15-30 working days after the orders are confirmed.
5. Transportation: express, air or sea.
6. Valid period: 30 days.
Contact
Contact Person: Christine Alight
Skype: live:alightled
Email: alightled (at) hotmail.com
Whatsapp/Mobil: +86-15917248074
If you are interested in our product, please contact me freely.
Will get back to you within 24 hours.
