1.Low noise&Easy operate 2.High efficiency&Full automatic 3.Intelligent control 4.High quality 5.Economical and Practical
Product Description

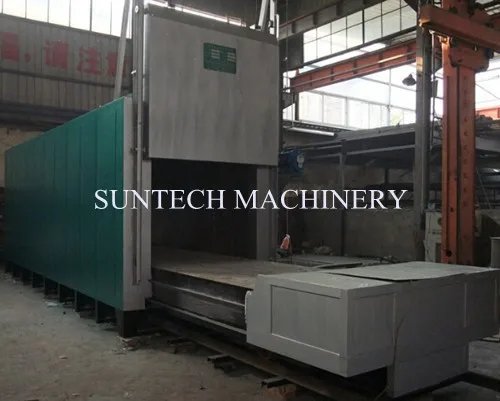

It’s a cyclical heat treatment equipment, including furnace pot, charging trolley, vacuum pump and temperature controlling system. With Max. operating temperature of 900℃, it’s mostly applied to vacuum annealing of various metals. Working together with controlling system, this equipment is able to automatically command the heating temperature, and in/out of trolley.
Casing is a firm frame welded by shape steel and high-quality steel plate. Side and back columns employ 8# U-steel.

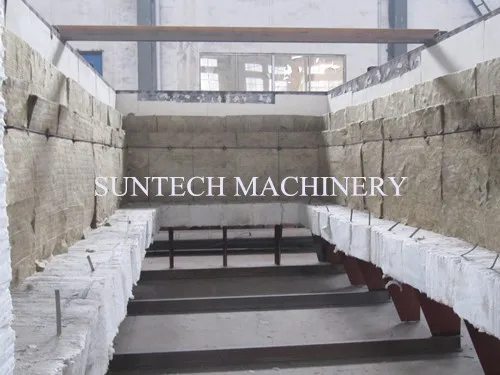

Whole lining is built completely by qualified refractory fibers, and mounted scientifically by stainless round steels.
Heating elements: they are produced in shape of waves, made from high temperature resistance alloy of FeCrAl (0Cr25Al5).
Skype ID: pamela.wxh
Main technical parameters
Model Number
Inside size(mm*mm*mm)
Rated power(KW)
Rated temperature(℃)
Loading(T)
Material
RT-80-6
L2100*W1700*H1400
80
600
2-3
Copper or aluminum wires
RT-90-6
L2800*W1400*H1400
90
600
3
RT-130-6
L3600*W2100*H1400
130
600
4-5
RT-235-9
L9000*W1200*H800
235
950
6-8
High carbon steel or alloy
RT-280-9
L9300*W1200*H1000
280
950
12-15
RT-480-9
L10000*W1600*H1500
480
950
20-30
Skype ID: pamela.wxh
Skype ID: pamela.wxh
Skype ID: pamela.wxh
Packaging & Shipping
We can pack it by pallet, or according to the customers' specific requirements.
Our Services
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes: (1) Correct operating mode (2) Correct maintenance way (3) Remove simple proble All the products of our company have already been widely used in metal products area.
Any doubt Please contact us.
Company Information
All the products of our company are manufactured according eo the national industry standard, enterprise standard and advanced international group standard, and have already been widely used in metal products area.
FAQ
If you have any interest in our machines, please feel free to contact with us.
