Factory direct price Cheap High Efficiency YB156P36 140W 12V Poly crystalline solar panel pv panel CE ISO90012000
- Category: >>>
- Supplier: Jiaxing Winbright New Energy Co. Ltd. [Zhejiang China]Jiaxing
Share on (60249395503):
Product Overview
Description
YB156P36-140W 12V Winbright Poly crystalline solar panel pv panel paneles solares Full energy High Efficiency CE ISO90012000
Product Description
140W 12V Poly solar panel datasheet:
| YB156P36-140W | |||
| TEM NO | YB156P36-140W | ||
| MONO/POLY | POLY | ||
| Maximum power (Wp) | 140Wp | ||
| Maximum power voltage (V) | 18.00 | ||
| Maximum power current (A) | 7.78 | ||
| Open circuit voltage (V) | 21.60 | ||
| Short circuit current (A) | 9.00 | ||
| Cell Efficiency (%) | 15.98% | ||
| Number of cells (Pcs) | 36(4*9) | ||
| Size of cell (mm) | 156*145 | ||
| Size of module (mm) | 1370×680×35mm | ||
| Maximum system voltage (V) | 1000V | ||
| Temperature coefficients of Isc (%) | + 0.1/ °C | ||
| Temperature coefficients of Voc (%) | -0.38/ °C | ||
| Temperature coefficients of Pm (%) | -0.47/ °C | ||
| Temperature coefficients of Im (%) | +0.1/ °C | ||
| Temperature coefficients of Vm (%) | -0.38/ °C | ||
| Temperature Range | `-40C------+85C | ||
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) | ||
| Allowable Hail Load | steel ball fall down from 1m height | ||
| Weight per piece (kg) | 11.5 | ||
| Junction Box Type | PV-JB001( TUV ) | ||
| Connectors and Cables Type | With TUV certificate | ||
| Length of Cables (mm) | 900mm | ||
| Output tolerance (%) | ±5% | ||
| Frame (Material, Corners, etc.) | Aluminum | ||
| Standard Test Conditions | 1000W/m2 AM1.5 25’C | ||
| Warranty | 2 years product warranty and 25years 80% of power | ||
| FF (%) | ≥72% | ||
More Mono crystalline solar panels you may interest
(Click it to check the spec.)
Poly crystalline solar panel you may interest

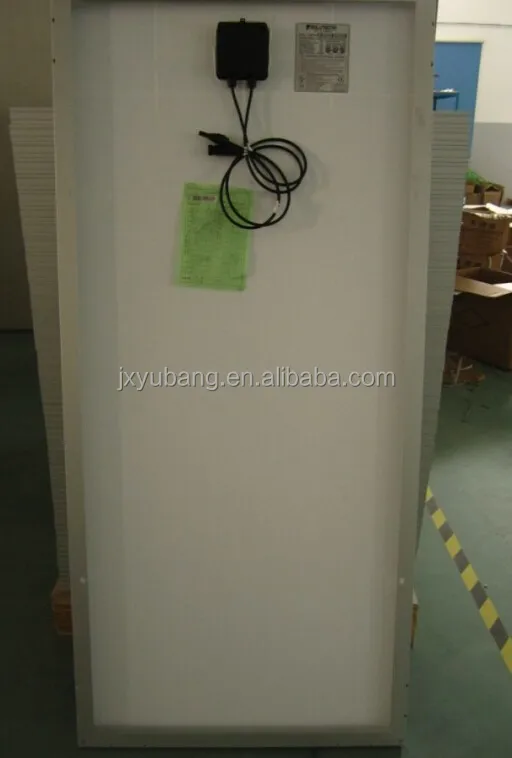

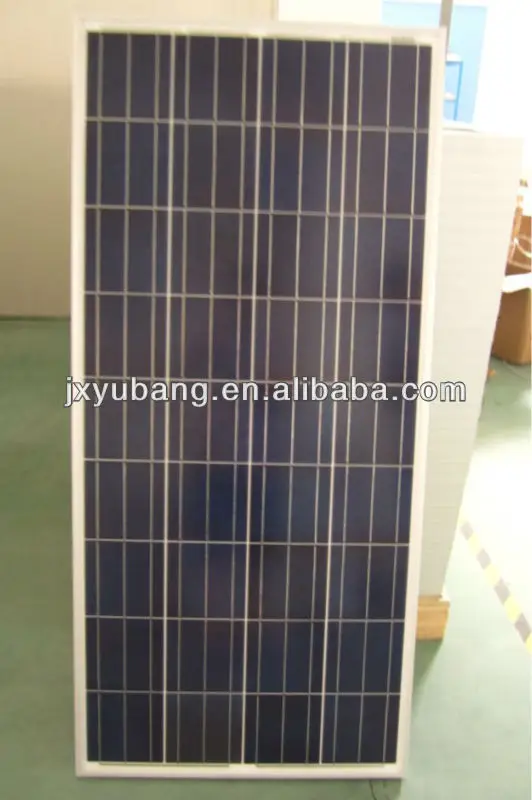

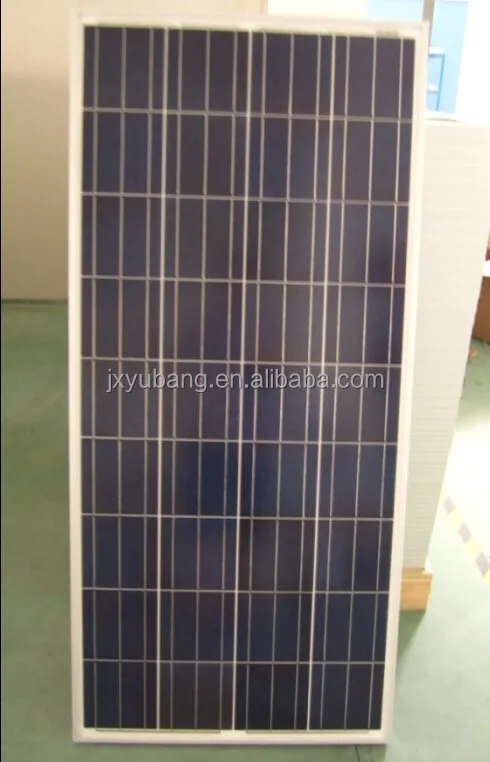

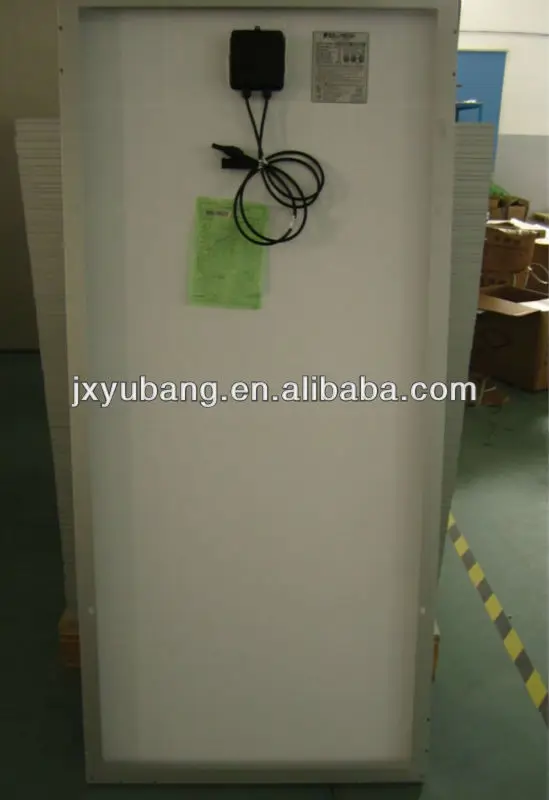

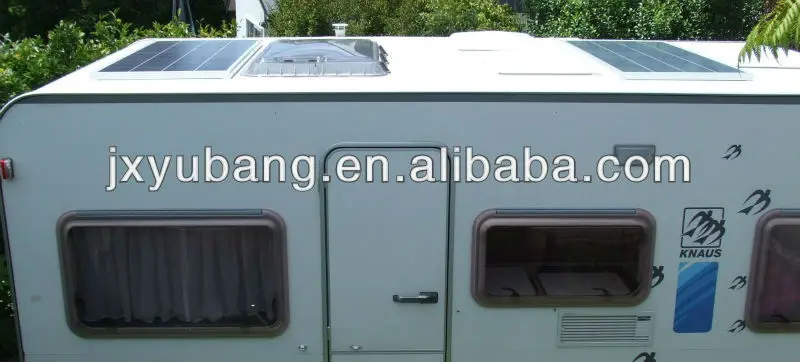

Photo of YB156P36-140W
Full Energy,High Efficiency panels.
Guarantee 25 Years more Lifetime.
Welcome to Test Our Quality solar panels.

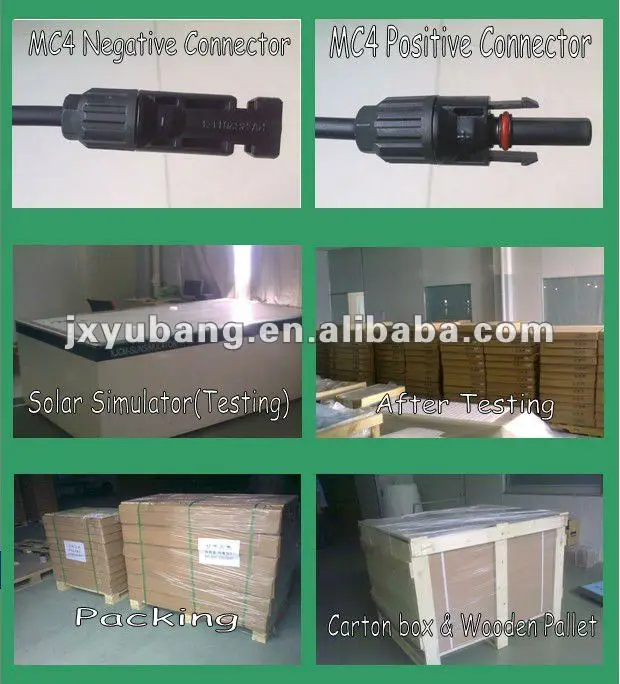

Packaging & Shipping
