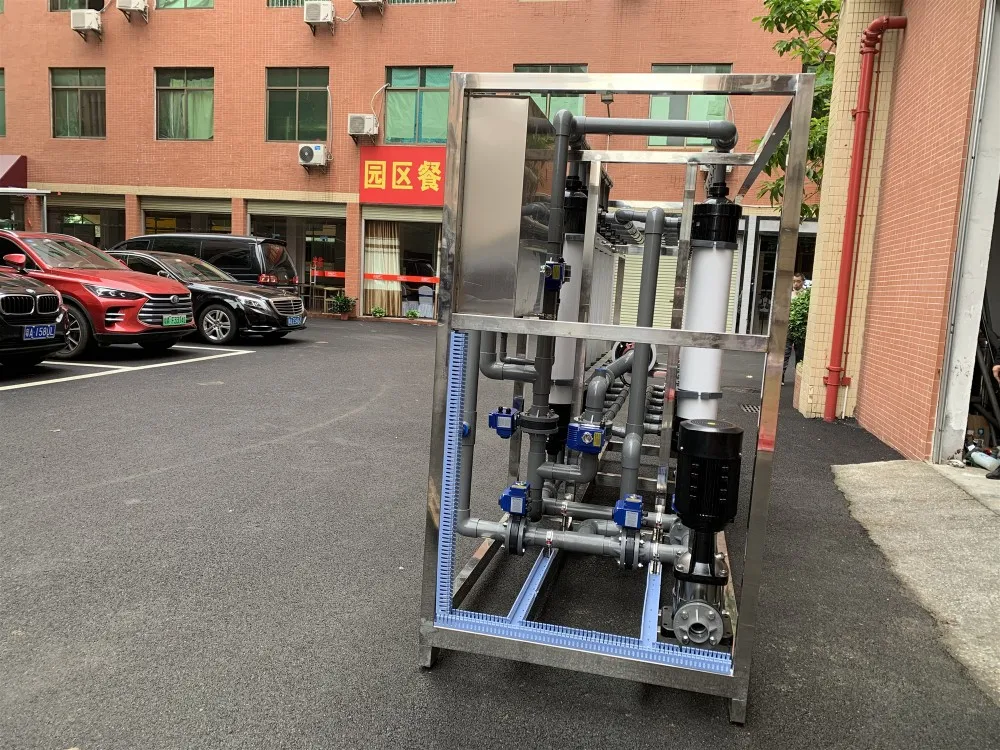

40,000L/H Backwash Water Pump Ultra filtration UF System Ultrafiltration Drinking Mineral Water Filtration Treatment Plant
- Category: >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (60249684072):
Product Overview
Description
Product Description
40,000L/H Backwash Water Pump Ultra filtration UF System Ultrafiltration Drinking Mineral Water Filtration Treatment Plant
What is Ultrafiltration system?
Ultrafiltration (UF) is the most widely used membrane separation technology. It is mainly used for the separation of macromolecular substances in solution. It has excellent effects on turbidity reduction, sterilization and separation, concentration and purification of macromolecular substances. In the field of water treatment, it can be used to remove colloids, particles, bacteria, viruses, heat sources and macromolecular organics in the water to purify the water. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane.
What's the working principle of Ultrafiltration membrane?
Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic, bacterium, virus, colloid and non-ion suspended solid.
What's the working principle of Ultrafiltration membrane?
Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic, bacterium, virus, colloid and non-ion suspended solid.
Advantages of our ultrafiltration/UF system
1. Advanced and famous ultrafiltration membrane element
2. High recovery rate of the system
3. No phase transformation in the process
4. Low energy consumption, short production cycle and low equipment operation
5. Small area, simple operation and maintenance, low labor intensity
6. The hygienic of the site is clean
7. The control system can be designed according to the user's specific requirements
1. Advanced and famous ultrafiltration membrane element
2. High recovery rate of the system
3. No phase transformation in the process
4. Low energy consumption, short production cycle and low equipment operation
5. Small area, simple operation and maintenance, low labor intensity
6. The hygienic of the site is clean
7. The control system can be designed according to the user's specific requirements

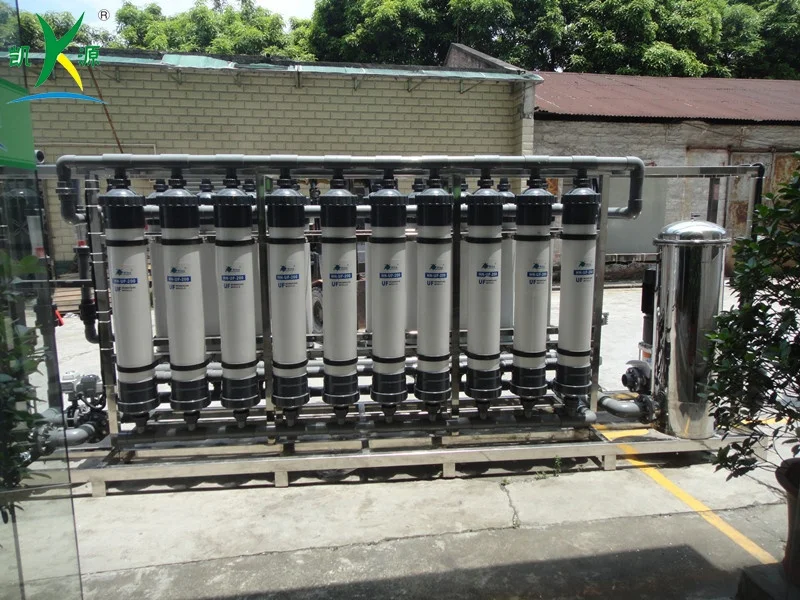

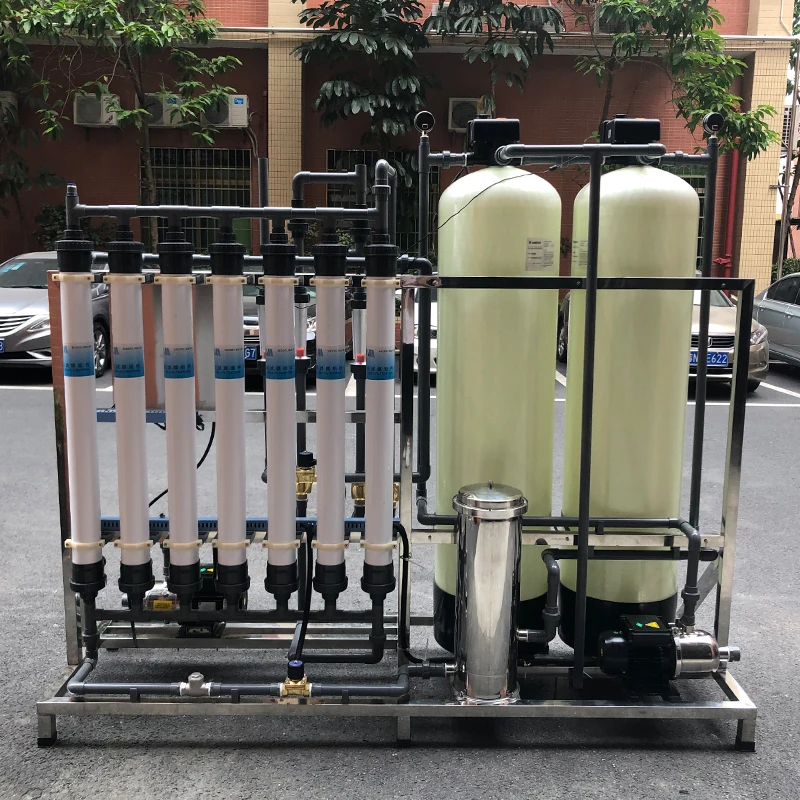

21T/H UF system
1. Voltage: AC220V-380V, 50Hz/60Hz, 1 or 3ph
2. Pretreatment:
2. Pretreatment:
a. Quartz sand filter
b. Activated carbon filter
c. Security pp filter
Optional Components :
A. Regulating wheels
B. PLC and Touch Screen
C. RO system
D. PH adjustment anti-scale
E. Automatic cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank
B. PLC and Touch Screen
C. RO system
D. PH adjustment anti-scale
E. Automatic cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank

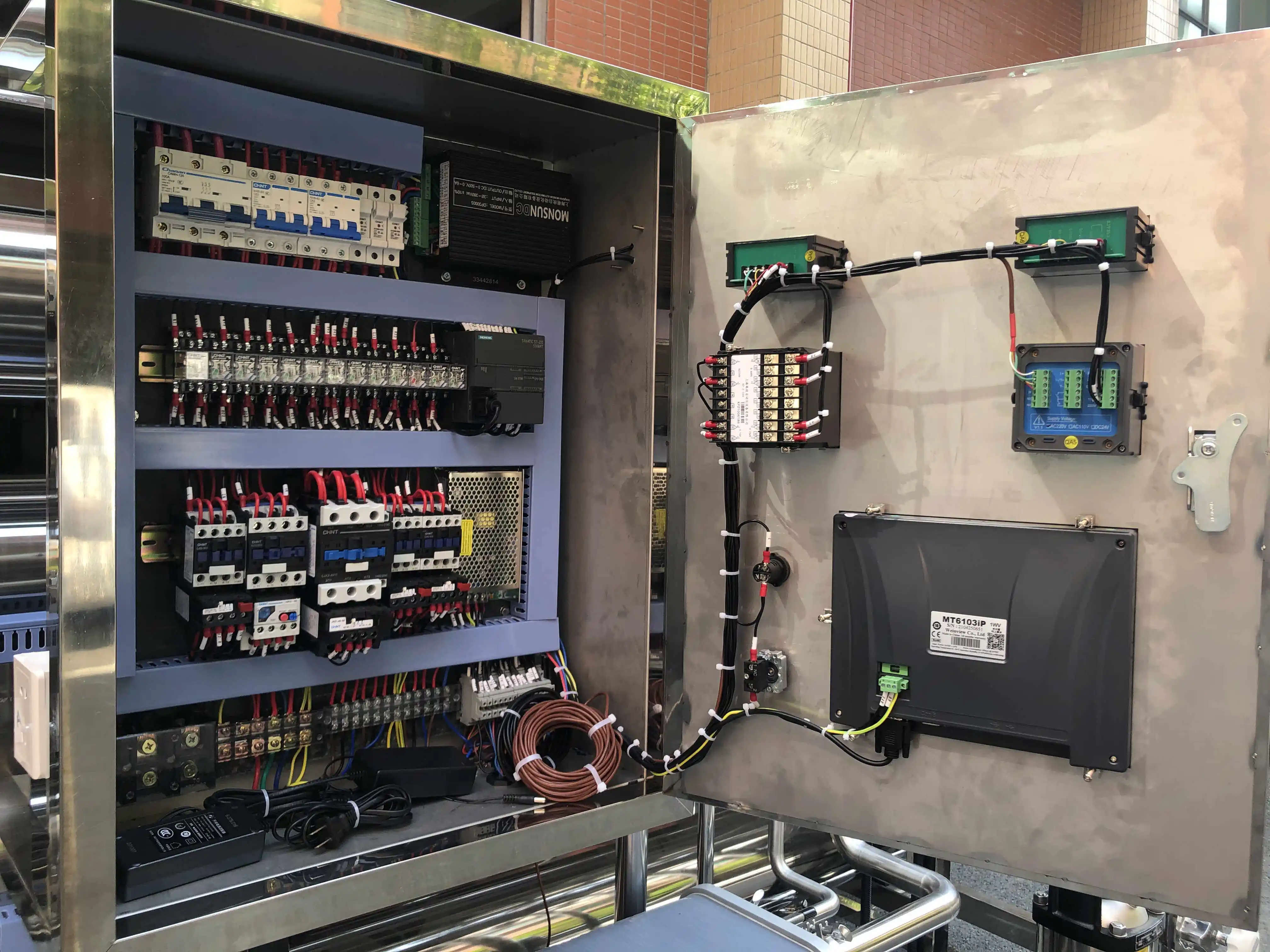

Electric control box
PLC(Programmable Logic Controller):Design the progaram as requirements if you need.
For the electric control system, air switch ,fuse and thermal relay etc., When the raw water pump or high pressure pump overheat, relay will stop. So it can protect water pumps from damage.
Production Capacity of Ultrafiltration system :100LPH-100TPH

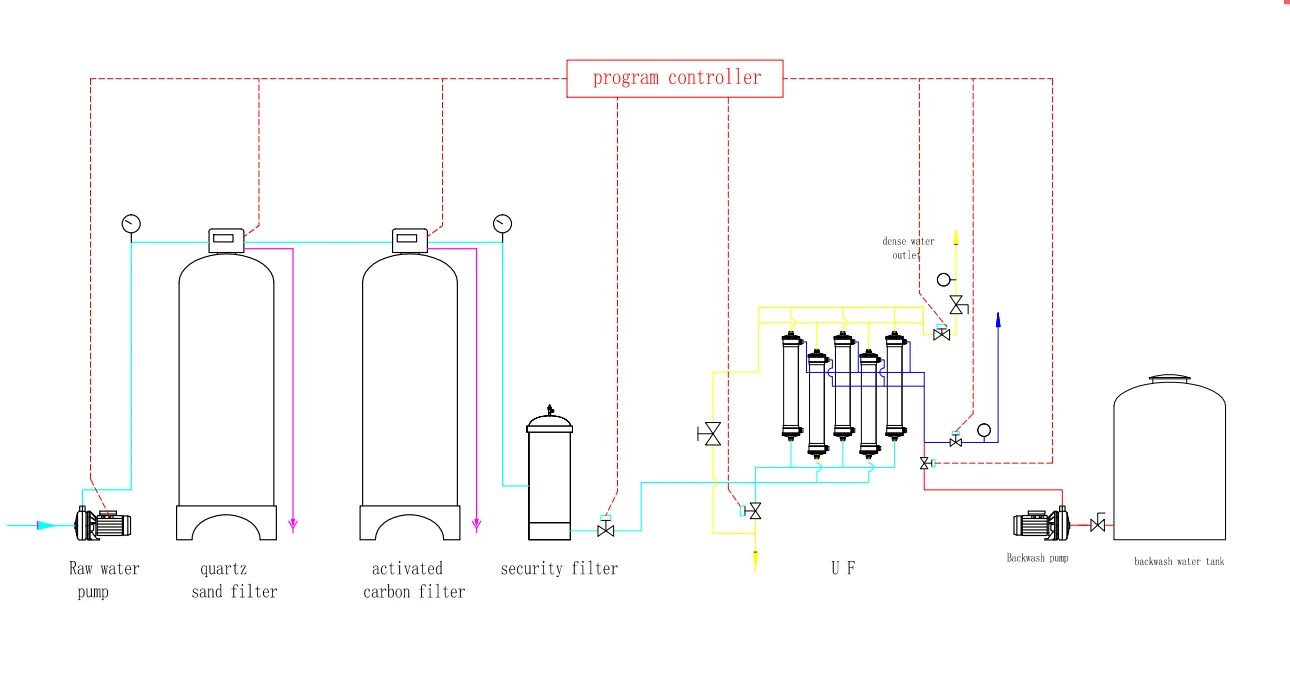

Working process of UF Purification System: Raw water→ Raw water tanks(provided by buyer) →Raw water pumps →Quartz sand filter→ Activated carbon filter →5μm security filter→Ultrafiltration device → Pure water tank(provided by buyer) →Water supply point | ||||||||
Specified configuration （Each part is optional, for reference) | ||||||
Item | Material/Model | Brand | Function | |||
Raw water pump | SS304/SS316 | Lingxiao/CNP/Grundfos/ Danfoss | Provide pressure for raw water | |||
Quartz sand filter | FRP/SUS-304/SS316 | China | Get rid of turbidity, suspended matter, colloid, etc. | |||
Activated carbon filter | FRP/SUS-304/SS316 | China | Remove the color, free chloride, organic matter, absorb odor, smell, etc... to make clear water | |||
Anti scalant chemical dosing system /water softener(optional) | FRP/SUS-304/SS316 | China | Remove Calcium ion(Ca2+) and magnesium ion(Mg2+) of removing hardness from water. | |||
Security filter | SS304 1mircon/5mircon | China | Block impurities greater than 5micron(1micron) | |||
UF membrane | UFc90AL | China | remove particles, colloids, organic impurities, bacteria, heat source and harmful substances etc. | |||
UV Sterilzier(Optional) | Based on capacity | China | Kill 99% bacterial (For drinking directly) | |||
Ozone Genernator(Optional) | Based on capacity | China | Kill 99%bacterial and keep 2hours.(For making bottled water) | |||
CIP Washing system(optional) | including washing tank and pump | China | Membranes maintenance | |||
Solenoid valves, gauges,switch.. | China | Cooper/SUS-304/SUS-316 | To protect the machine under operation | |||
Electronic control | China | PLC Program control system | including Water conductivity monitor, AC contactor, Air switch, indicator light, knob switch, electrical miscellaneous... PH meter and thermometer is optional. | |||
Component:
There are several kinds of consumables you need to replace regularly. (40,000LPH)
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. PP Filter cartridge: replaced about every 1 month , 20" x 5um
e. UF membrane: replaced about every 1year
We suggest you buy 1- 2 years consumption of PP filter cartridges together with machine.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. PP Filter cartridge: replaced about every 1 month , 20" x 5um
e. UF membrane: replaced about every 1year
We suggest you buy 1- 2 years consumption of PP filter cartridges together with machine.
Because these PP filter cartridges need to replace every month to avoid bacterial breeding on its surface.
Application field
1. Dairy, fruit juice, vegetable juice and other clear, concentrated.
2. Animals and plants (aloe, mangosteen, tea, etc.) effective ingredients extraction.
3. Soybean protein, oligosaccharides, isoflavones and other extraction, concentration.
4. Antibiotics, amino acids, VC and other fermentation broth purification, concentration.
5. Chinese medicine (Bupleurum, Salvia, Scutellaria, etc.) injection of active ingredients purification, separation.
6. Polysaccharides (Ganoderma lucidum, Grifola frondosa, mushrooms, etc.) material purification, concentration.
7. Fluorescent whitening agent desalination, concentration.
8. Electrophore paint recovery and water reuse.
9. PVA of textile desizing wastewater reuse.
2. Animals and plants (aloe, mangosteen, tea, etc.) effective ingredients extraction.
3. Soybean protein, oligosaccharides, isoflavones and other extraction, concentration.
4. Antibiotics, amino acids, VC and other fermentation broth purification, concentration.
5. Chinese medicine (Bupleurum, Salvia, Scutellaria, etc.) injection of active ingredients purification, separation.
6. Polysaccharides (Ganoderma lucidum, Grifola frondosa, mushrooms, etc.) material purification, concentration.
7. Fluorescent whitening agent desalination, concentration.
8. Electrophore paint recovery and water reuse.
9. PVA of textile desizing wastewater reuse.
Our Company

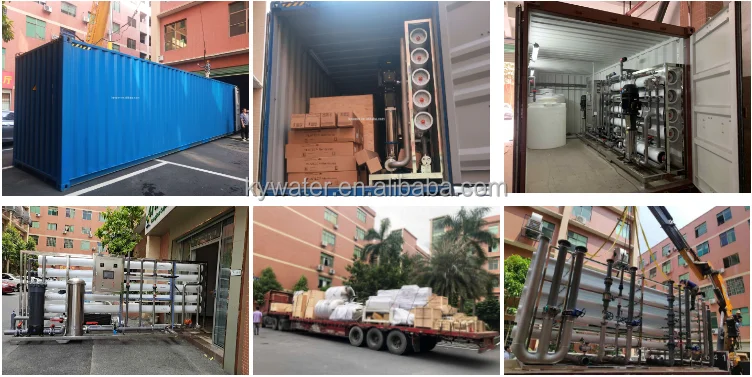

Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). we will pack it according to customers special request. | |
Manual Operation | ||
Manual Operation and video | we will send the Manual operation and installation video together with machine.The machine is finished in our factory. You just install easily according to the video and Manual operation. | |
