double blade sliding table sawmill circular table saw wood cutting circular saw mill

Product Overview

Description

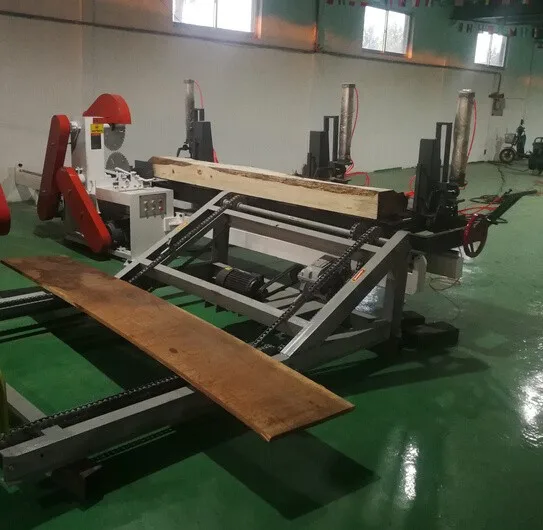

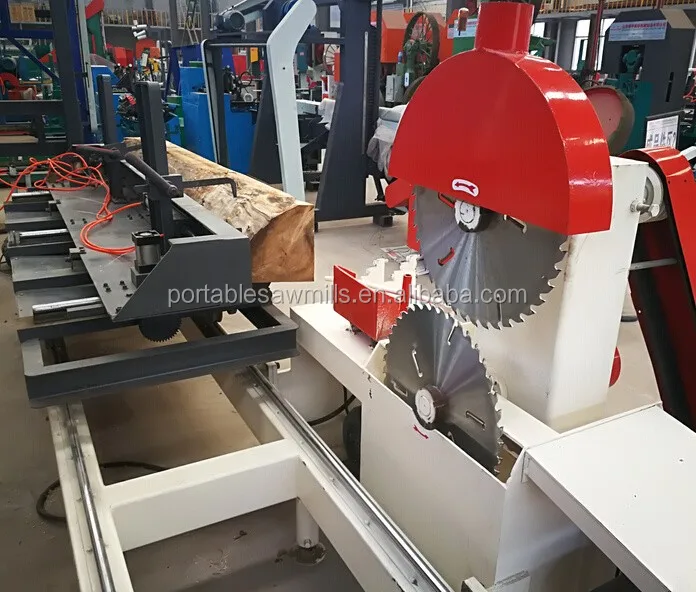

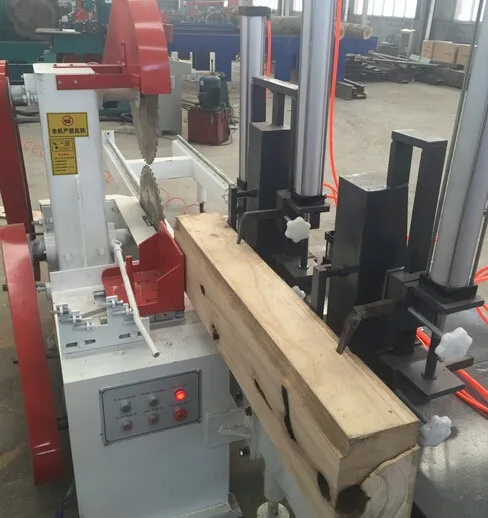

Round Log Sliding Table Sawmill

The round log can slitting naturally,slitting totally,can sawing round wood to square timber.

The circular saw blade can avoid band saw blade bending,or dig hole on wood.

The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.

The production capacity is more than 4 timers than band sawmill.

The specification is adjustable,Convenient to move the running rule,accuracy.

The track use linear guideway,accuracy,no error,wear resistent.

The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.



Technical Parameter	TT1500	TT2500	TT3000
Max Sawing Wood Diameter	400mm	400mm	400mm
Max Sawing Wood Length	1500mm	2500mm	3000mm
Saw Blade Diameter	500mm	500mm	500mm
Motor Power	7.5KW*2	7.5KW*2	7.5KW*2
Rail Length	3000mm	5000mm	5800mm
Wood Fasten Model	Pneumatic	Pneumatic	Pneumatic
Carriage Rail Model	Linear Axis	Linear Axis	Linear Axis

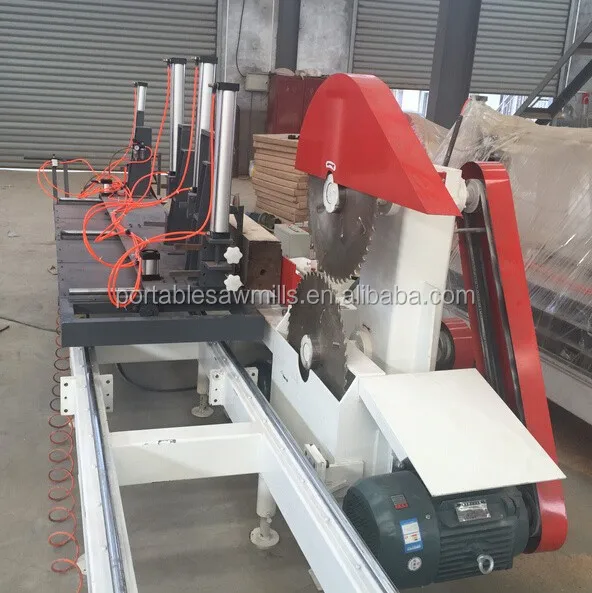

 Electric Power Round Log Table Sawmill

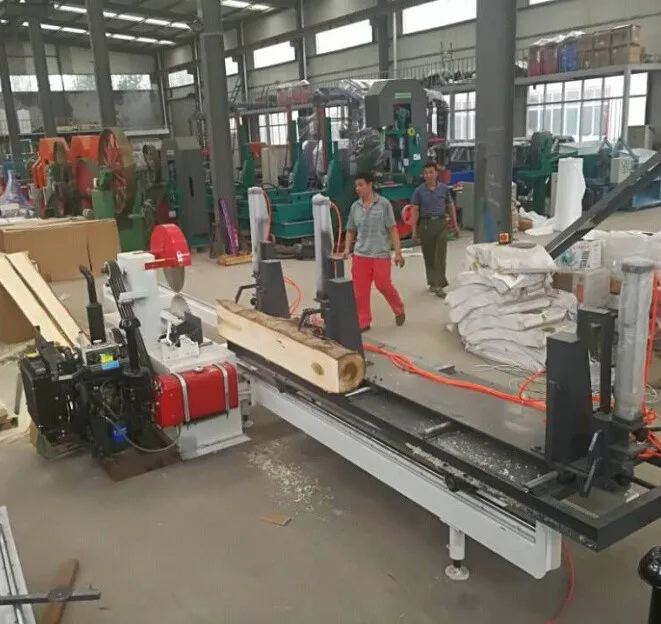

Diesel Power Round Log Sliding Table Sawmill
