5W 30pcs led light magnetic long gooseneck led industrial sewing machine lamp

Product Overview

Description

Specification

1:CE,CCC,ROHS Approval

2:1years warranty

3:Samples are ready

4:30pcs LED energy-saving to 90%

5:Built-in reflection film to increase brightness.

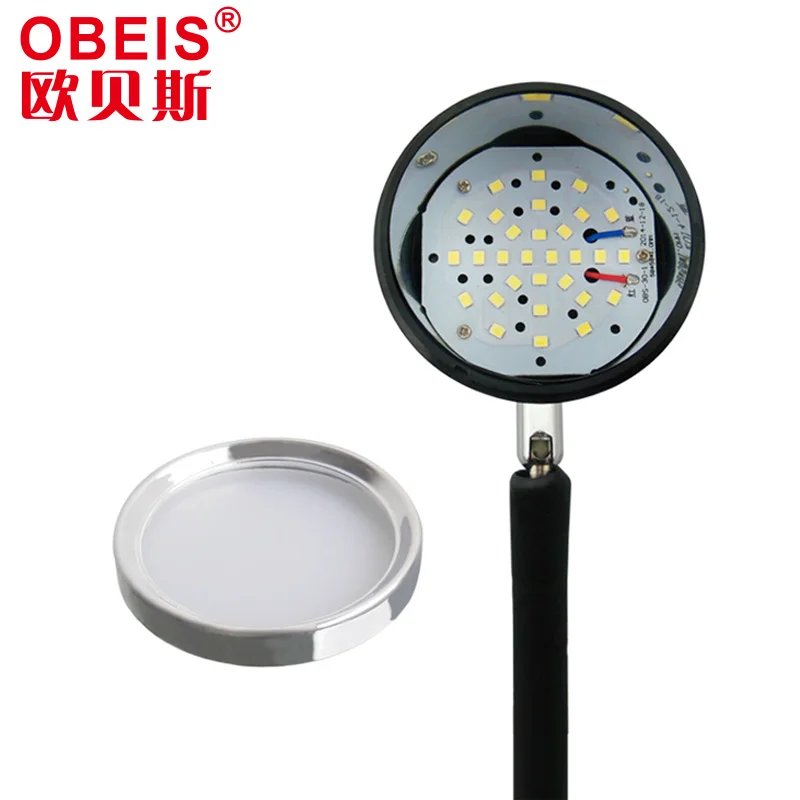

6:Acrylic cover to protect LED from dust and oil.

7:Good quality PCB,and with small holes at the back of lamp head,easy heat radiating.

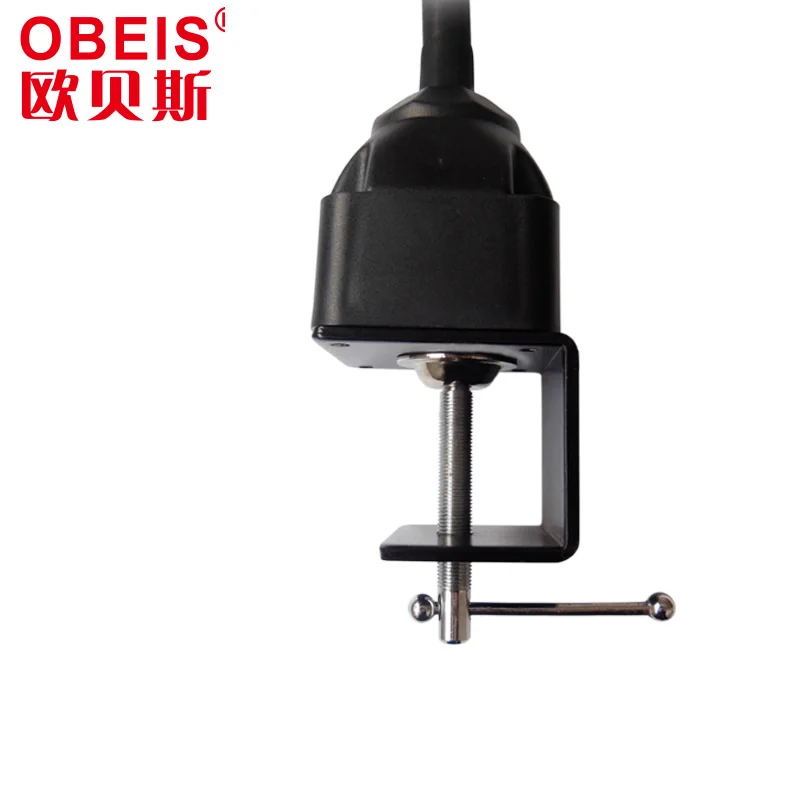

8:"G" Clamp can be 4cm maximum





                                 www.obeisled.com



Product Specification

MODEL	OBS-830G	Frequency	50HZ/60HZ
Power	5W	Output Current(DC)	300mA
LED Amount	30pcs	LED Chip	SMD2835 10*23ML
Color Temperature	6000-6500K	Dimension-Base	83*23*16mm
Environmental Temperature	-40+50C	Dimension-Power -Box	36*28mm
Lifespan	50000H	Fixed Mode	G Clamp
Rated Voltage	AC110V-250V	Brightness Dimmable	3 levels





We would like to recommand you choose the lamp with reflection film.

The lamp without film and led chip can be customized!

Connetion is optional:Chinese CCC Plugs,UL/CSA Plugs,Germany VDE                                                      Plugs,Motor Switch.



Notice:

1:The lamp head can’ t be rotated at 360 degree.

2:Please contrarotate the acrylic cover .

3:3 levels dimmable brightness.  On/Off is switch and for dimming.

   First level, press on one time.

   Second level,press on/off totally 3times.

  Third level,press the on/off 10 times.



The effect would be like as belows,CRI is 83-85.

Will mainly work on the footwear machine.

European customers have placed order already.



















                                                                       Contact us now !
