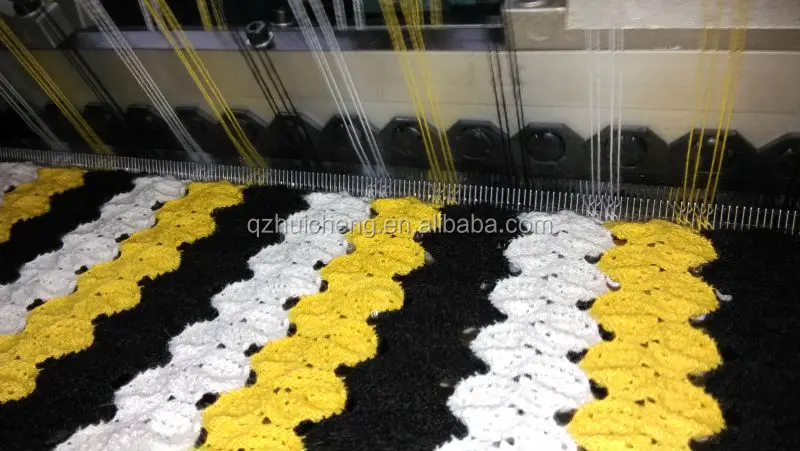

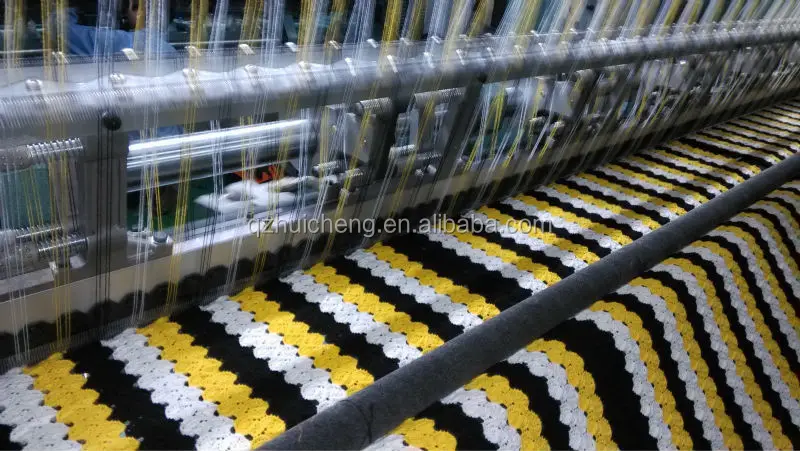

Spring Bearded Needle Tricot Knitting Machine With EL System and Cut Presser

Share on (60250428236):


Price:RUB 4,831,261.50 - RUB 6,317,803.50

Quantity:


Product Overview

Description



High Lights of  K2 Spring Bearded Needle Tricot Knitting Machine With EL System and Cut Presser

  • 4 shafts E-positive yarn feeding system: Set the yarn feeding parameters through PC touch screen (equipped with the servo motors from Japanese brands)
  • 3 guide bars EL: Pattern processes can be input through USB, active and saved with PLC (equipped with the servo motors from Japanese brands)
  • Equipped with embedded needles
  • Main motor frequency conversion, CVT
  • Touch screen operation
  • Standard: Q/HCZZ001-2007
  • Suitable products: Fashion shell fabric, Mesh fabric






Technical Specification of  K2 Spring Bearded Needle Tricot Knitting Machine With EL System and Cut Presser

  • Needle-type: Bearded needle
  • Machine gauge: E12 E14
  • Products width allowance: 168"
  • Number of guide bars: 3
  • Method of warp let-off: E-positive, customized beaming parameters (EBC)
  • Beam size: 21”
  • Flange Diameter: φ356
  • Shaft Diameter: φ102
  • Aperture: φ70
  • Beam Width: 356
  • Density tuning method: Digital controlled, PC touch screen operation (EBA)
  • Braiding method: EL, digital controlled presser
  • Main shaft speed: 700 RPM (frequency control)
  • Main motor: 2.2 KW
  • Yarn feeding motor: 0.5 KW×2 pieces
  • Shogging motor: 0.75 KW×4 pieces
  • Outline dimension:
  • 168”: 5500mm (Length) x 2200 mm (wide) x 2600mm (height)
  • Total weight: Approximately 3500 Kg
