Product Overview

Description

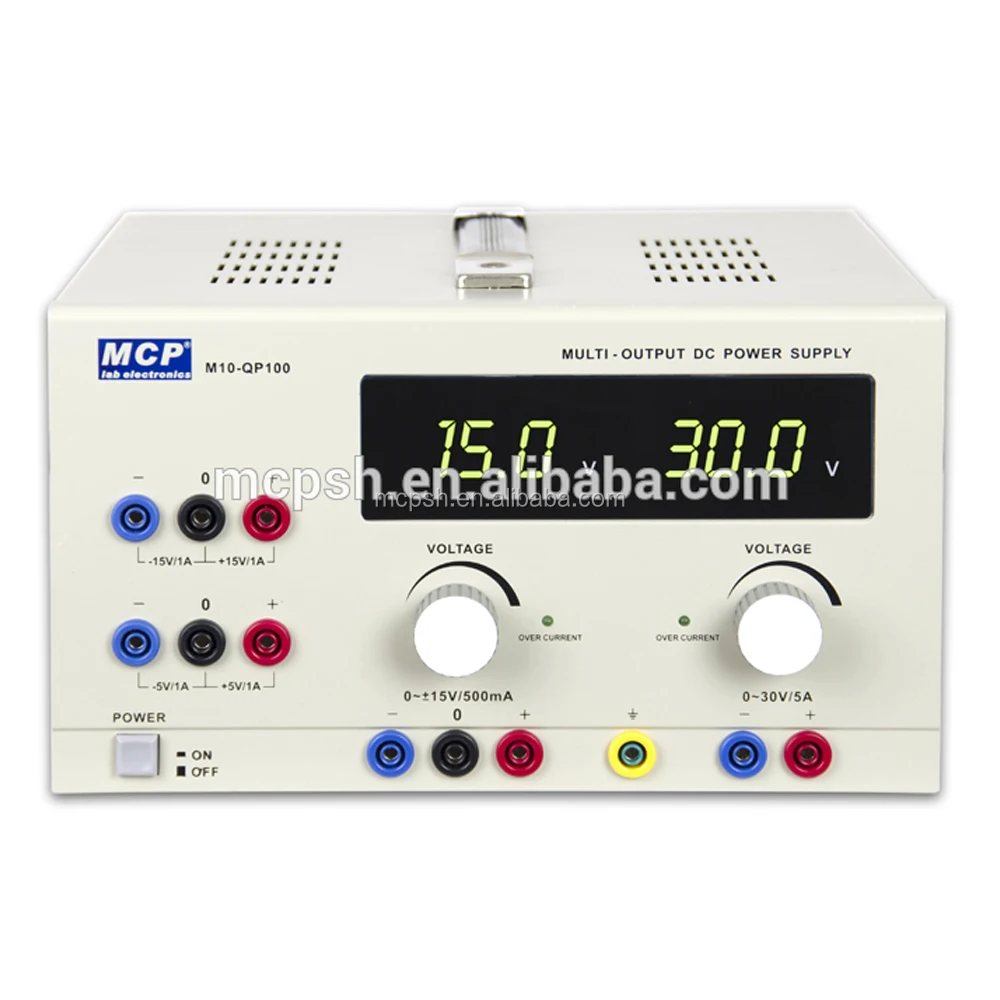

MCP M10-QP100 multi output dc power supply



Features

.Quad independent DC outputs
.Two adjustable outputs and two fixed outputs
.Two LED to indicate the adjustable outputs' voltage
.Three symmetric outputs
.Over current proteciton on each output





Specifications
.Output1:
.Output Voltage: 0~30V
.Output Current: Max. 5A
.Line Regulation: 0.01%+3mV
.Load Regulation : 0.01%+4mV
.Ripple & Noise: 1mV
.Display Accuracy: Voltmeter ±(0.2%Rdg+2digits)

.Output2:
.Output Voltage: 0~±15V
.Output Current: Max. 500mA
.Line Regulation: 0.01%+3mV
.Load Regulation : 0.01%+4mV
.Ripple & Noise: 1mV
.Display Accuracy: Voltmeter ±(0.2%Rdg+2digits)

.Output3:
.Output Voltage: ±15V
.Output Current: Max. 1A
.Line Regulation: 1%
.Load Regulation : 1%
.Ripple & Noise: 5mV

.Output4:
.Output Voltage: ±5V
.Output Current: Max. 1A
.Line Regulation: 1%
.Load Regulation : 1.5%
.Ripple & Noise: 2.5mV

.Input Voltage: 110~127VAC±10% 60Hz, 220~240VAC±10% 50Hz, Switchable
.Dimensions: 260(W)×160(H)×340(D)mm
.Weight: 8kg
