Инженерная промышленность MAG MIG сварочный аппарат, сертификат сварки
- Category: MIG Welders >>>
- Supplier: Chengdu Huayuan Electric Equipment Co. Ltd.
Share on (60251382001):
Product Overview
Description
Products Description

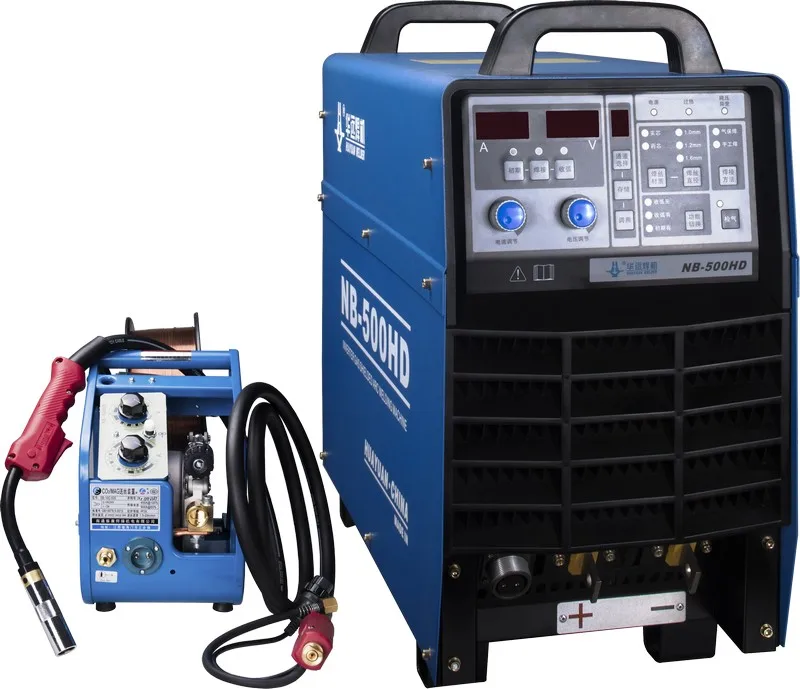

Inverter Gas Shield Arc Welding Machine
Digital
100% Duty Cycle
Suitable For Heavy Industry.

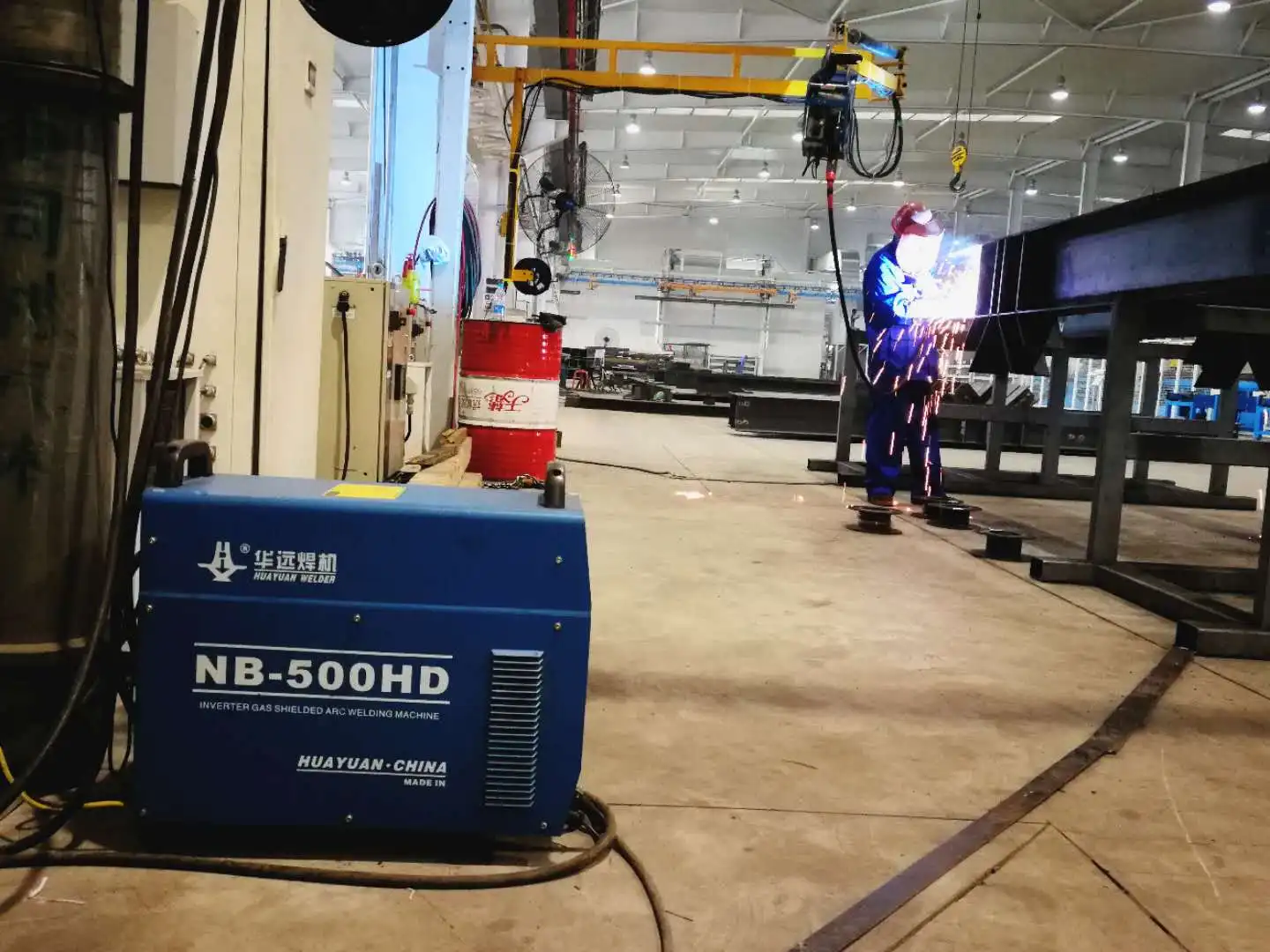

Application
Widely used for instruction,such as building instruction,shipyard etc.
Suitable for carbon steel and its alloy,stainless stell,copper and its alloy etc.
Product Detail
Digital Technology
Good Preset Welding Parameters and Stable Welding Performance.
100% Duty Cyle
Suitable for Heavy Industry.

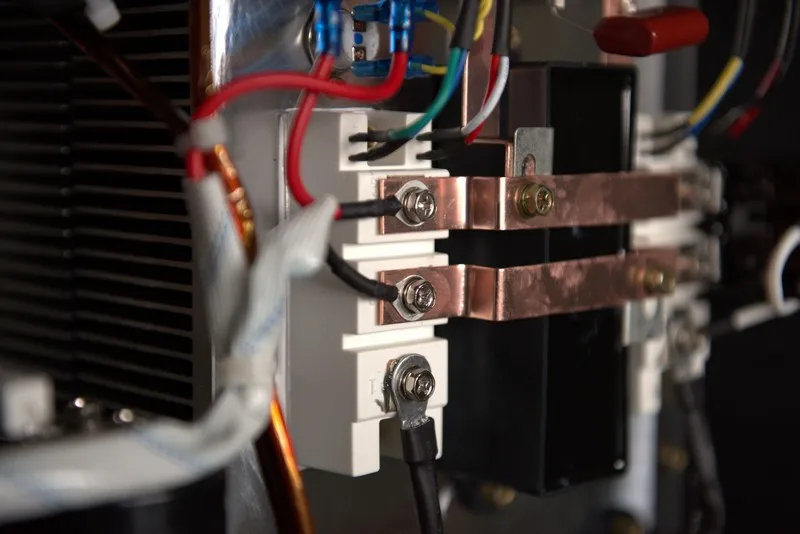

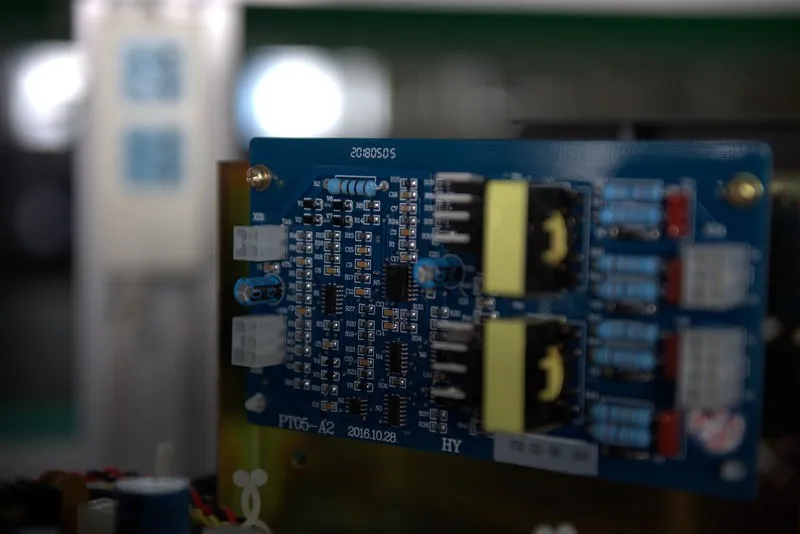

Adopt Good Components
Stable performance and low failure rate.

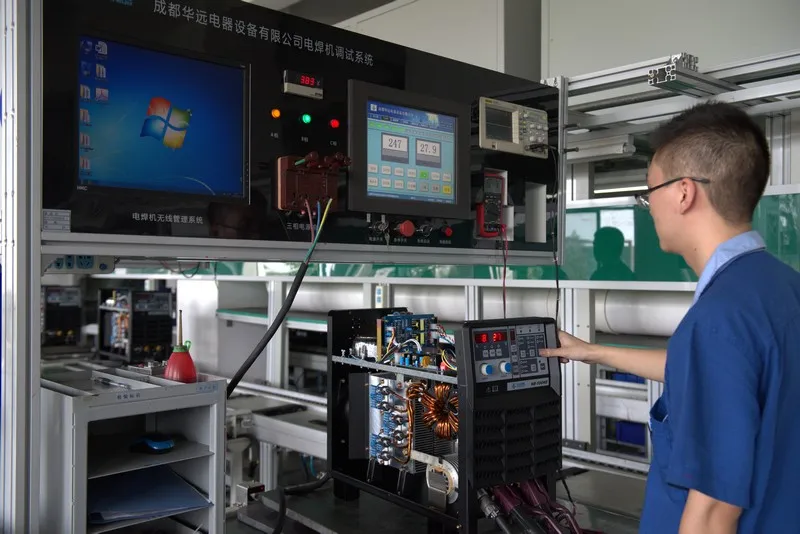

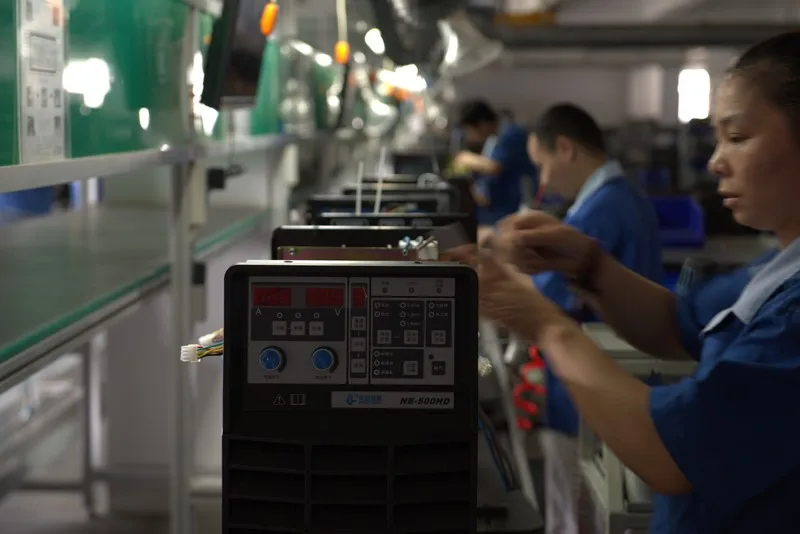

Comprehensive Quality Inspection 1
Comprehensive Quality Inspection 2
Comprehensive Quality Inspection 3
Specification
Item | Unit | Model | ||||
NB-350HD | NB-500HD | NB-630HD | ||||
Input Power | V/Hz | 3-380 (15% Up and Down ) 50/60 | ||||
Rated Input Capacity | kVA | 19 | 26 | 35 | ||
Rated Input Current | A | 27 | 38 | 55 | ||
Rated Output Current | A | 350 | 500 | 630 | ||
Rated Output Voltage | V | 31.5 | 39 | 44 | ||
Rated Open Voltage | V | 74 | 82 | 80 | ||
Rated Duty Cycle | - | 100% | ||||
Efficiency | - | 89% | ||||
Power Factor | - | 0.75 | 0.9 | |||
Output Current Adjust Range | A | 40-350 | 60-500 | 60-630 | ||
Output Voltage Adjust Range | V | 14-40 | 16-50 | 16-50 | ||
Wire Feed Adjust Range | m/min | 1.3-20 | ||||
Suited Wire Diameter | mm | 0.8/1.0/1.2 | 1.0/1.2/1.6 | 1.0/1.2/1.3 | ||
Cooling Mode | - | Air Cooling | ||||
Insulation Grade | - | F | ||||
Ingress Protection | - | IP21S | ||||
Dimension(L*W*H) | mm | 570*290*560 | 640*290*560 | 640*290*560 | ||
Net Weight | Kg | 32 | 37 | 42 | ||
Standard Accessories

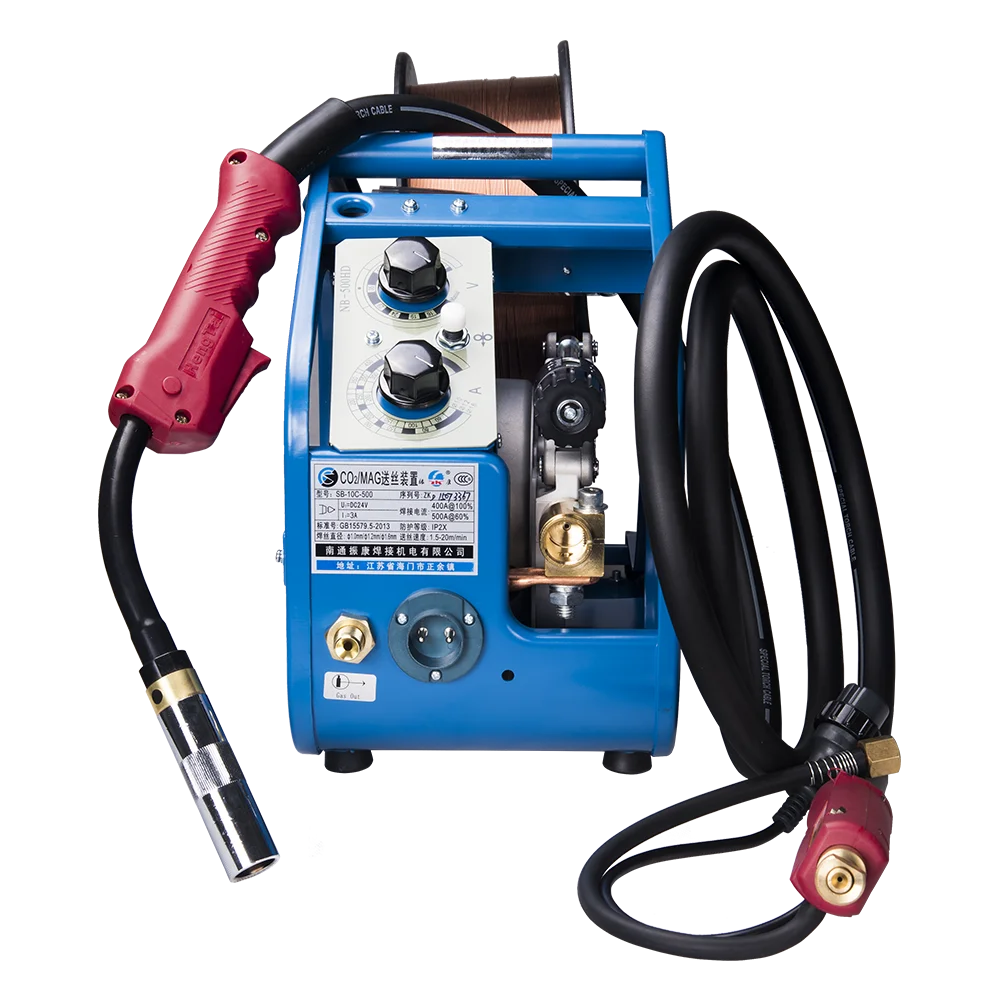

Wire Feeder, 10m Composite cable,Torch(3m)
Gas Regulator

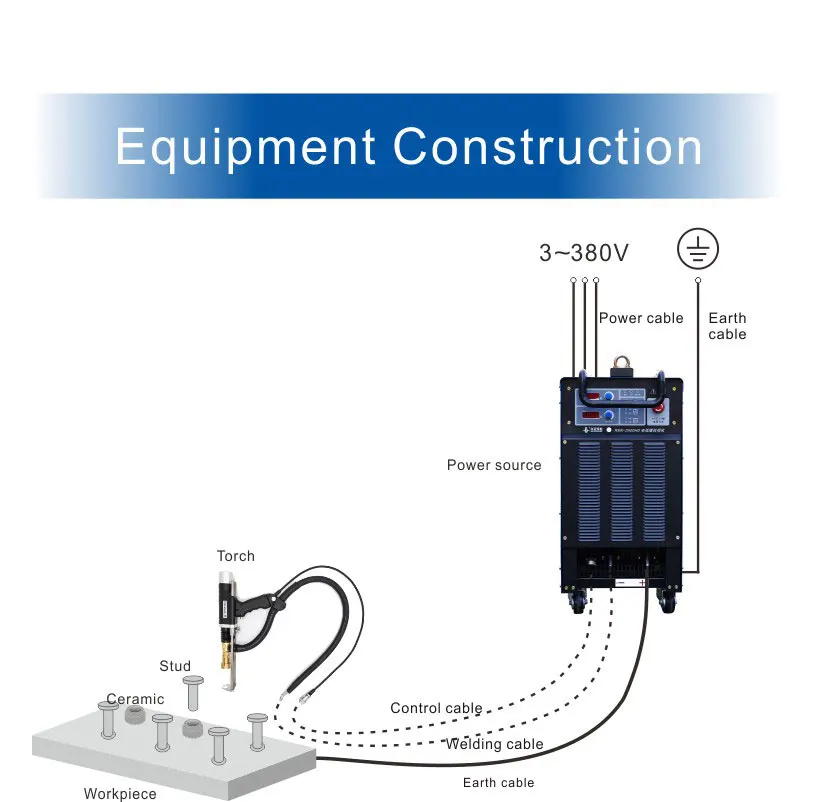

Equipment Construction
