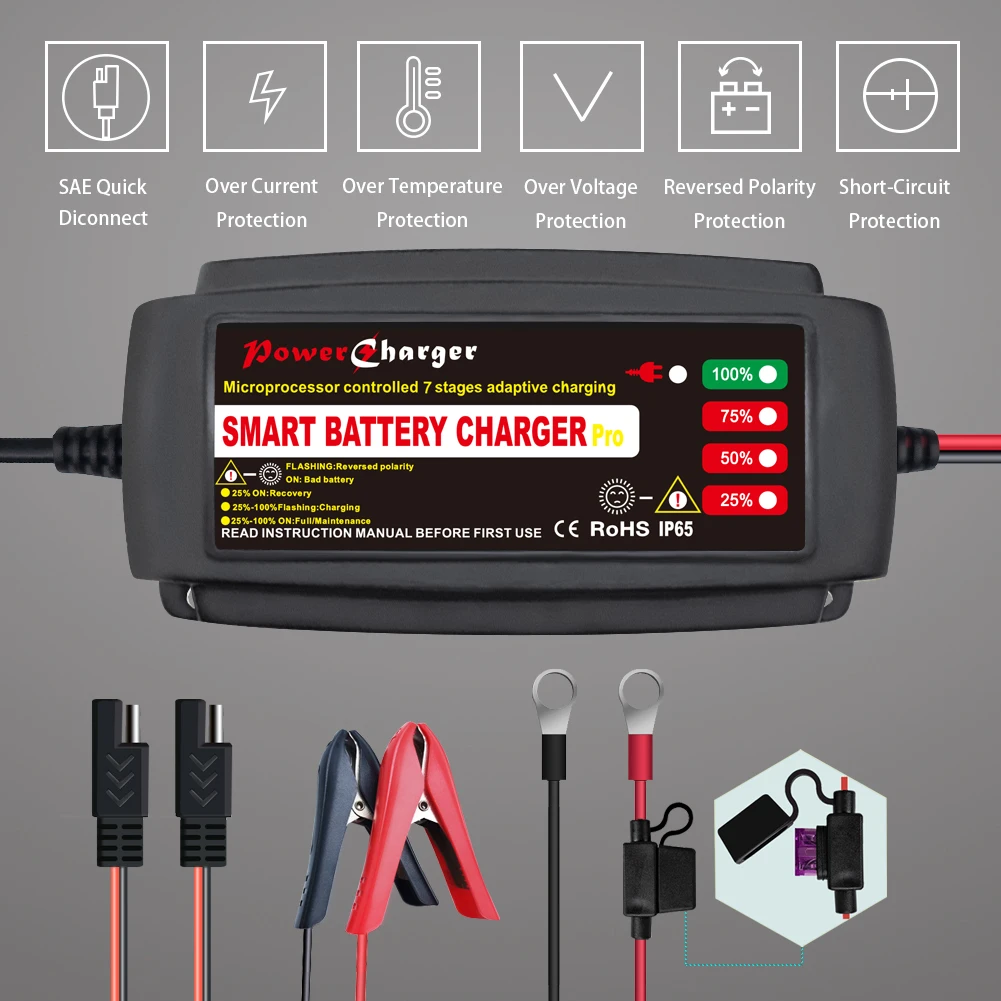

EPA1205 12V 5A sealed lead acid battery charger
- Category: >>>
- Supplier: Shenzhen Everpower Electronics Co. Ltd.
Share on (60251729360):
Product Overview
Description
Product Description
Fetures:
(1)AC100-240V input for worldwide used with wall mount plug US,EU,UK,AU Suit battery:
(2)Perfect for charging all lead acid 12V batteries AGM,GEL,WET.
(3)Fully automatic 7 stages charging process by MCU controlled
(4)4Leds indicator for battery charging 25%-100%,An independent failure indicator
(5)Adaptive charging mode,Maintaining the deep cycle battery
(6)Protections: Short circuit/OVP/OCP/
(2)Perfect for charging all lead acid 12V batteries AGM,GEL,WET.
(3)Fully automatic 7 stages charging process by MCU controlled
(4)4Leds indicator for battery charging 25%-100%,An independent failure indicator
(5)Adaptive charging mode,Maintaining the deep cycle battery
(6)Protections: Short circuit/OVP/OCP/
Overload/Polarity reversed/Bad battery
(7)100% full load and burn-in test
(8)High efficiency,long life and high reliability
(7)100% full load and burn-in test
(8)High efficiency,long life and high reliability

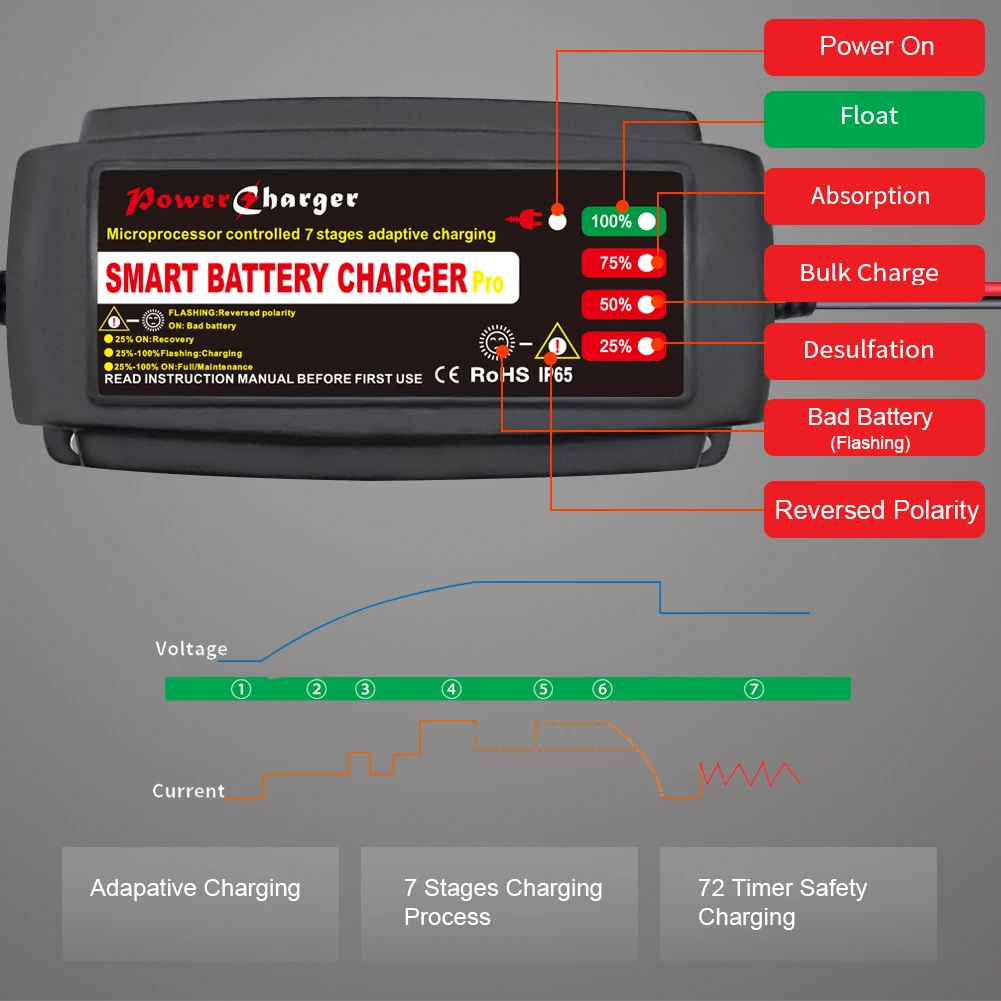

7-Stages Charging Process:
1. Initialization
2. Soft start
3. Adaptive Charging
4. Desulphation
The Desulphation stage may break down sulphation that occurs in batteries that have been left flat for extended periods of time,returning them back to full charge. sulphation occurs when lead-sulphate hardens and clogs up the battery cells.
5. Bulk (Constant Current)
Bulk mode charges the battery at the maximum rate (constant current) putting a large amount of power into the battery in a short amount of time. This stage will charge the battery to approximately 80%, until the voltage reaches 14.5 volts for 12V charger
6. Absorption (Constant Voltage)
The charge rate slows down so the battery can absorb more power and reach 100% charge. The voltage remains at a constant 14.5 volts for 12V charger while the current is gradually reduced until no more power can be added without over-charging the battery.
7. Float
The Float stage maintains the battery at 100% charge without overcharging or damaging the battery. This means the charger can be left connected to the battery indefinitely.
2. Soft start
3. Adaptive Charging
4. Desulphation
The Desulphation stage may break down sulphation that occurs in batteries that have been left flat for extended periods of time,returning them back to full charge. sulphation occurs when lead-sulphate hardens and clogs up the battery cells.
5. Bulk (Constant Current)
Bulk mode charges the battery at the maximum rate (constant current) putting a large amount of power into the battery in a short amount of time. This stage will charge the battery to approximately 80%, until the voltage reaches 14.5 volts for 12V charger
6. Absorption (Constant Voltage)
The charge rate slows down so the battery can absorb more power and reach 100% charge. The voltage remains at a constant 14.5 volts for 12V charger while the current is gradually reduced until no more power can be added without over-charging the battery.
7. Float
The Float stage maintains the battery at 100% charge without overcharging or damaging the battery. This means the charger can be left connected to the battery indefinitely.
Safety protections:
* Over Voltage protection
* Short Circuit protection
* Polarity error protection
* Over power protection
* Over Voltage protection
* Short Circuit protection
* Polarity error protection
* Over power protection
Warning:
* Charge 12V Lead acid rechargeable battery only.
* Don't expose the product to rain or humidity to prevent from electric shock.
* It is normal if the product gets slightly hot when using.
* Keep the product out of children's reach.
* Don't remove the cover to prevent from being electric shocked
* Charge 12V Lead acid rechargeable battery only.
* Don't expose the product to rain or humidity to prevent from electric shock.
* It is normal if the product gets slightly hot when using.
* Keep the product out of children's reach.
* Don't remove the cover to prevent from being electric shocked

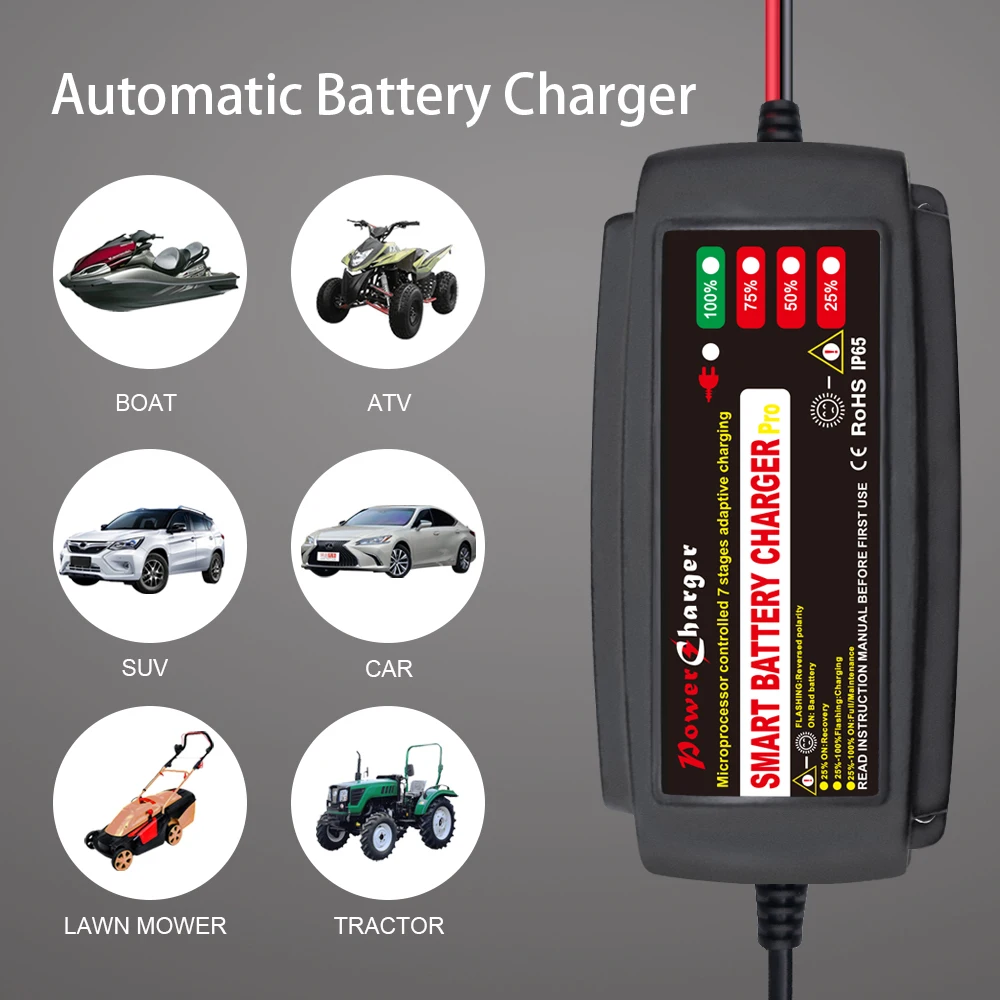

WIDELY APPLICATION
Charge fully drained 12V Pb/SLA/GEL/AGM/VRLA/sealed lead-acid batteries and WET/FLOODED for maintenance,including lawn
mower,boat,car, electric vehicle, electric tools, ride-on toys
Charge fully drained 12V Pb/SLA/GEL/AGM/VRLA/sealed lead-acid batteries and WET/FLOODED for maintenance,including lawn
mower,boat,car, electric vehicle, electric tools, ride-on toys
Product Specification
Model | EPA1205 |
Input Voltage | AC 100~240V 50/60HZ |
Output voltage | 13.8V |
Output current | 5A |
Protection | OVP/OCP/Short circuit |
Charge mode | Auto 7 stages |
Charging end | Float Charing |
Certificate | CE FCC ROHS PSE RCM |
Color | Black; Red ; Blue ; Gray |
Charge manage | Microprocessor Controlled |
Warranty | 18 Months |
