Tobee Effluent Handling
$12,600
50m3/h Submersible Pump Price
- Category: >>>
- Supplier: Baoding Milestone Import And Export Co. Ltd.
Share on (60252509264):
Product Overview
Description

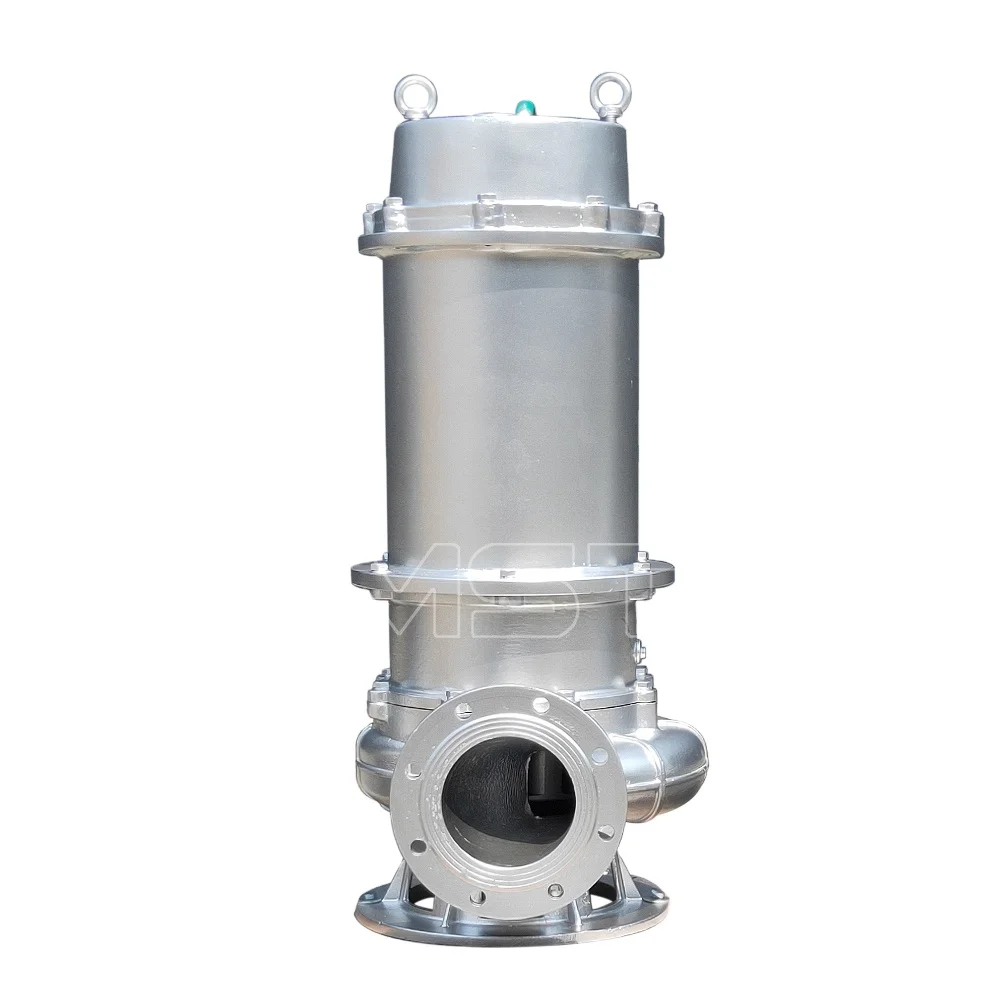

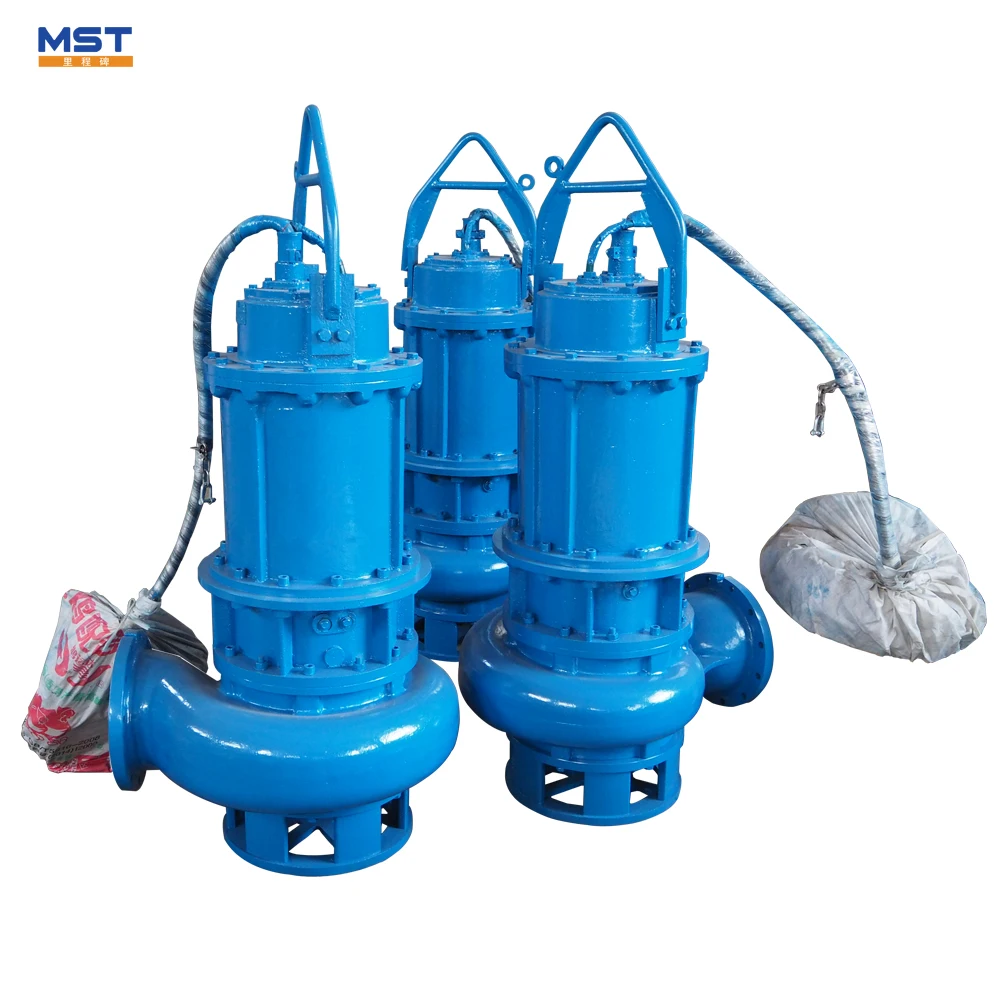

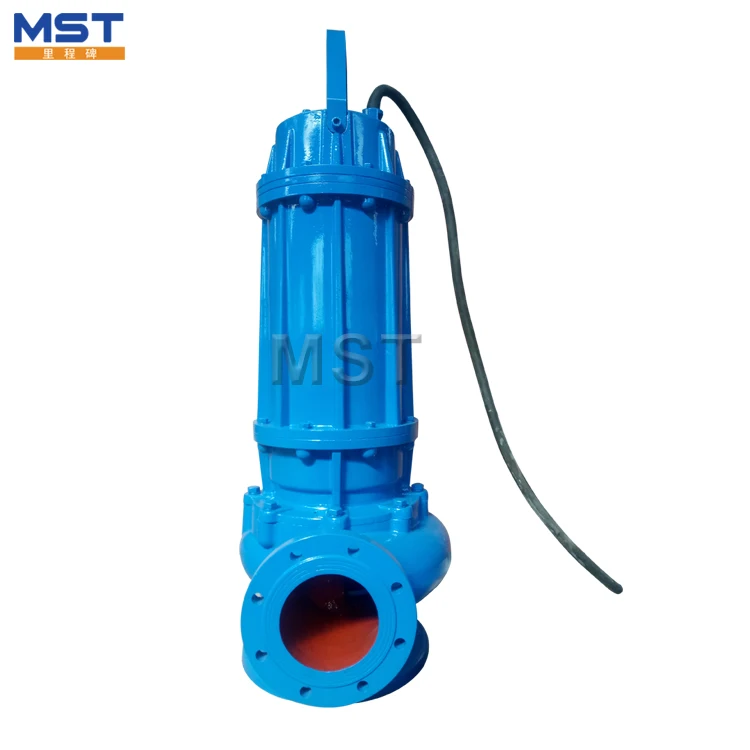

50m3/h Submersible Pump Price
Product Description
General Information:
Competitive cast iron submersible pump price are electro submersible centrifugal pumps designed for pumping waste water, effluent ans solids laden water in municipal, industrial, mining and civil construction applications.
:
- Large flow non-clog hydraulic components, which greatly improve the passing capacity
of waste water
- Double channel series mechanical seal made of hard anticorrosive tungsten carbide,
which is durable and wear resistant
- Built in cooling system allows operation when motor is submerged or above water level.
- Fixed automatic coupling installation or movable installation available
Work conditions:
1. The temperature of medium does not exceed 60 degrees.
2. The weight of medium is between 1 ~ 1.3kg/dm³.
3 . The ph value of medium is between 5 ~ 9. The pump is made of cast iron, can not be used in pumping highly corrosive liquid.
4. When the water pump works, the motor part exposed surface shall not exceed 1/2.
Construction drawing

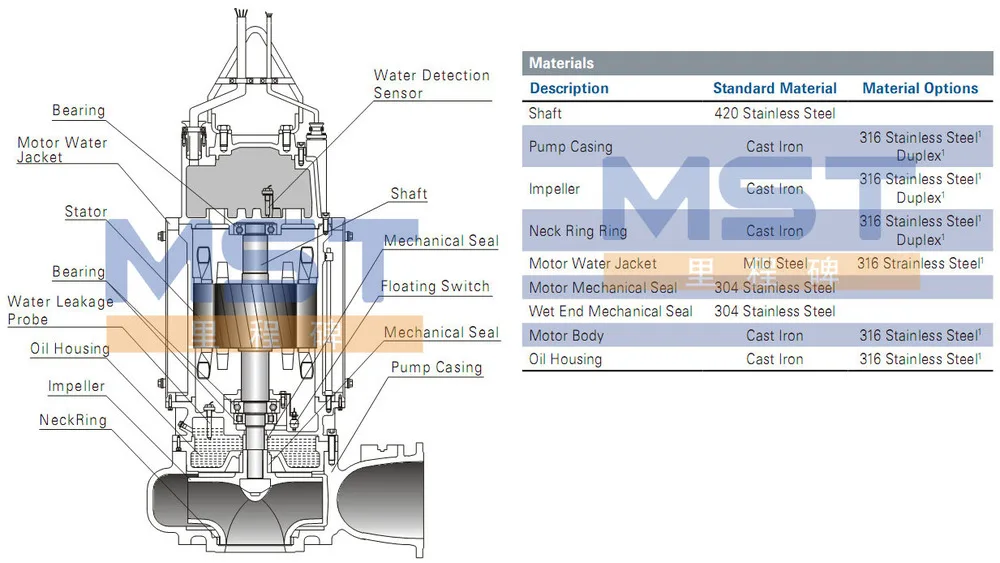

Structure drawing of submersible pump:
Applications of submersible pump :
1.Waste water drainage in factories and industries.
2.Drainage system for municipal sewage plant
3.Waste water drainage in residential area.
4.Flood system drainage
5.Waste water drainage in hospitals and hotels
6.Municipal facilities and construction area
7.Exploration and mining equipments
8.Pump for biomass pool and agriculture irrigation

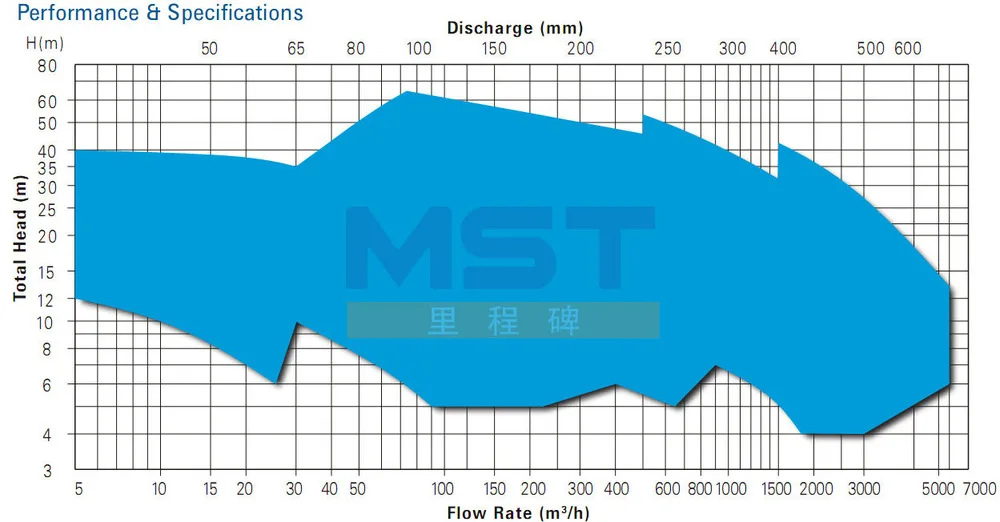

Performance Curves:

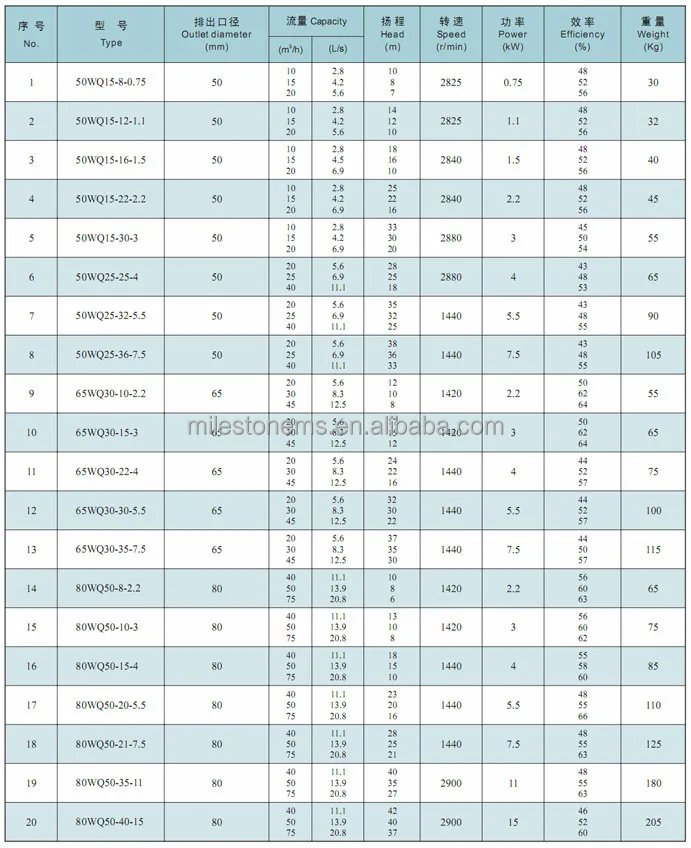

Pump Performance Data

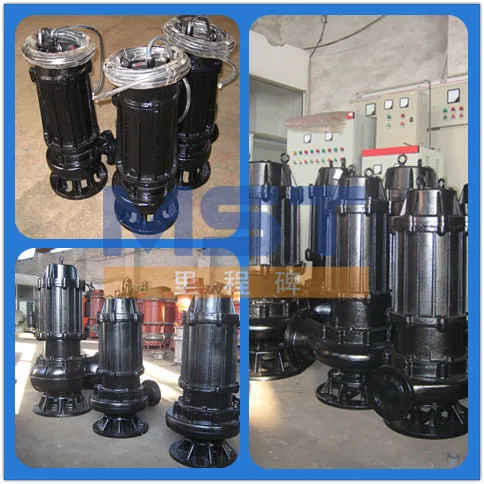

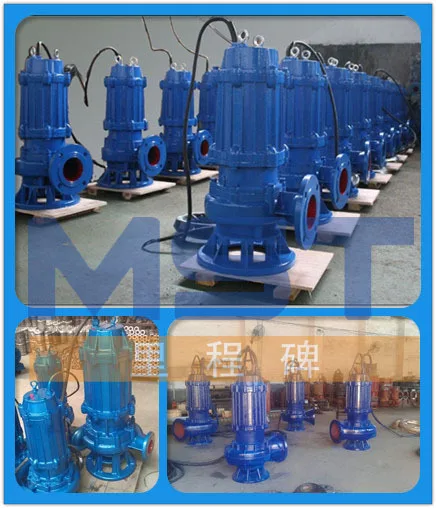

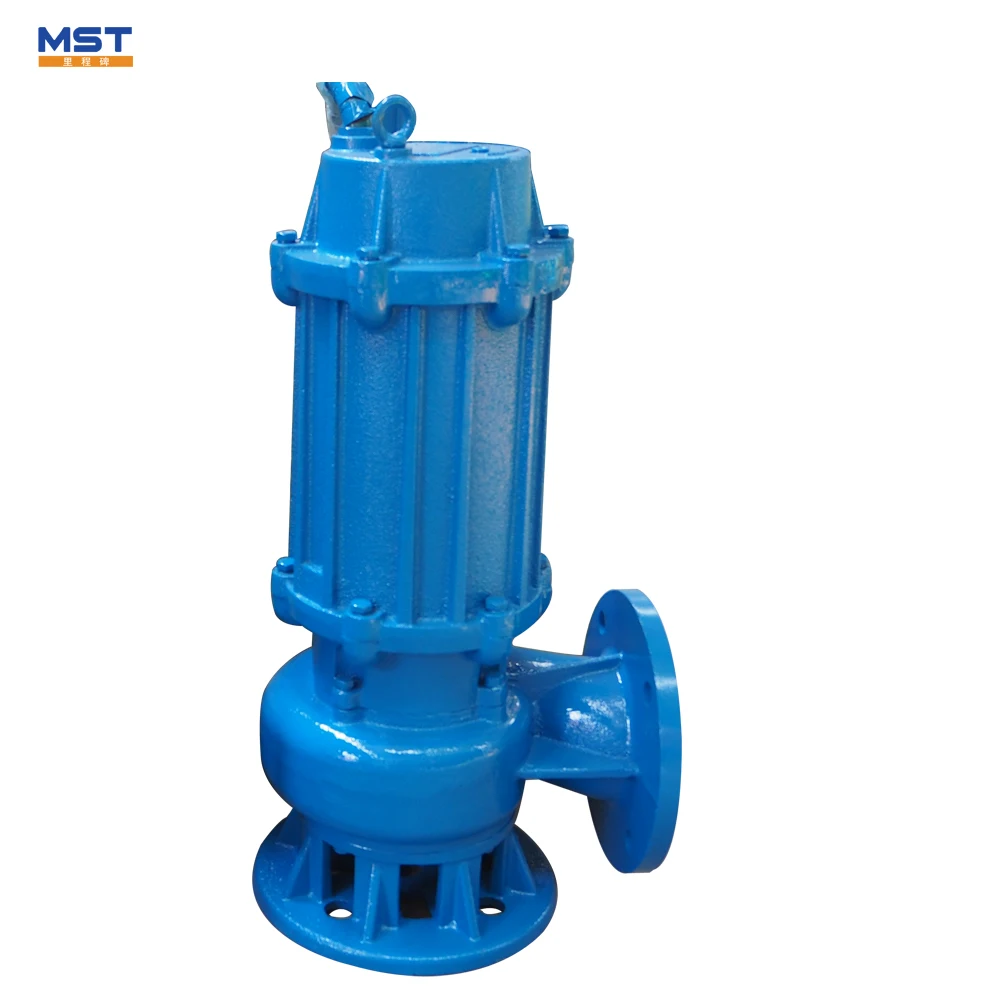

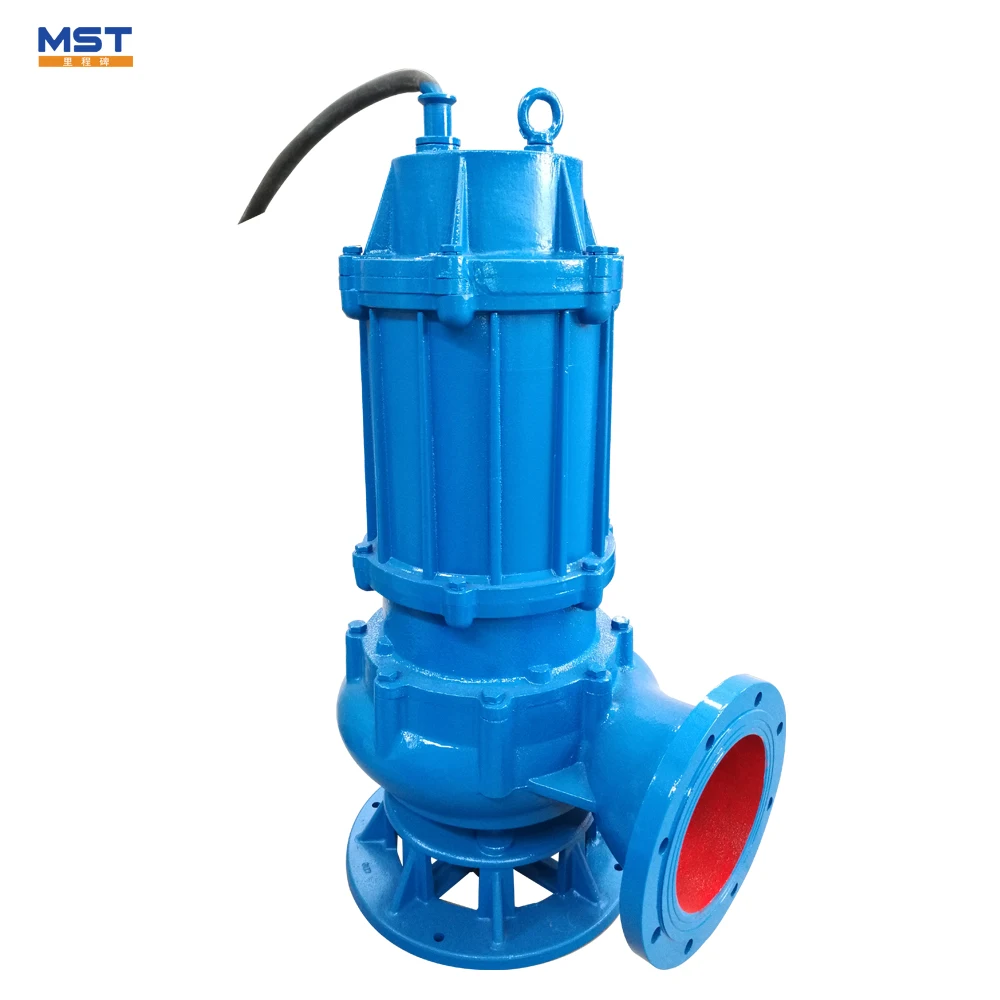

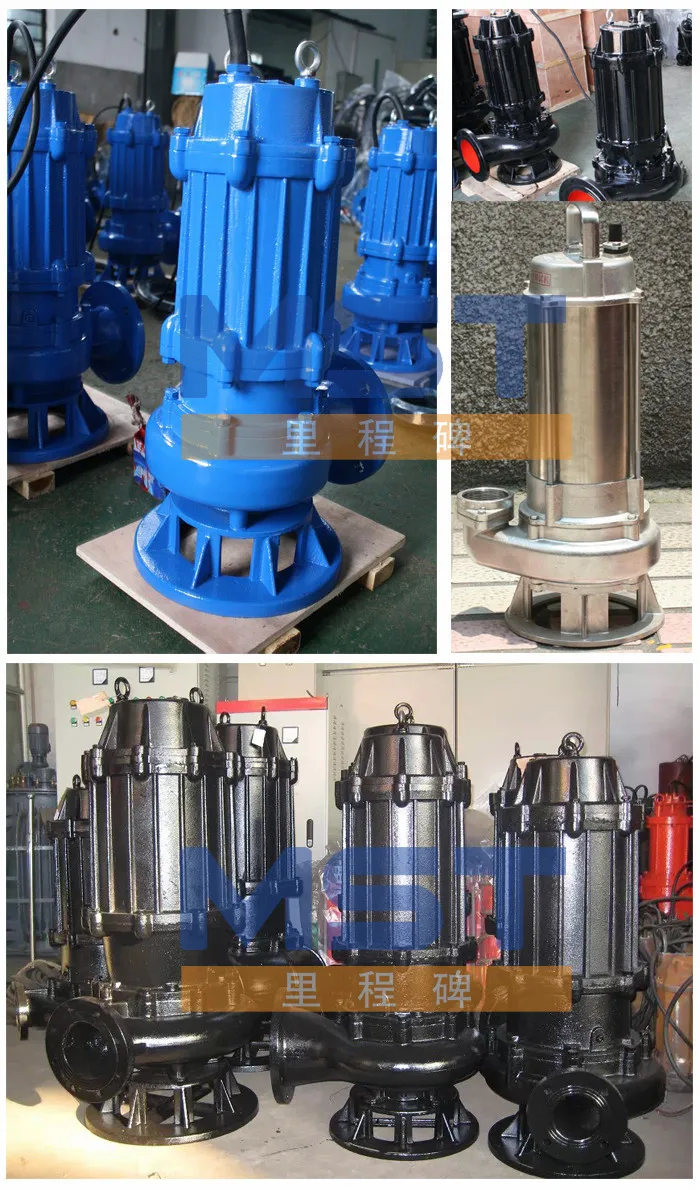

Pump for reference:
Packaging & Shipping
Packaging & Shipping :
Company Information

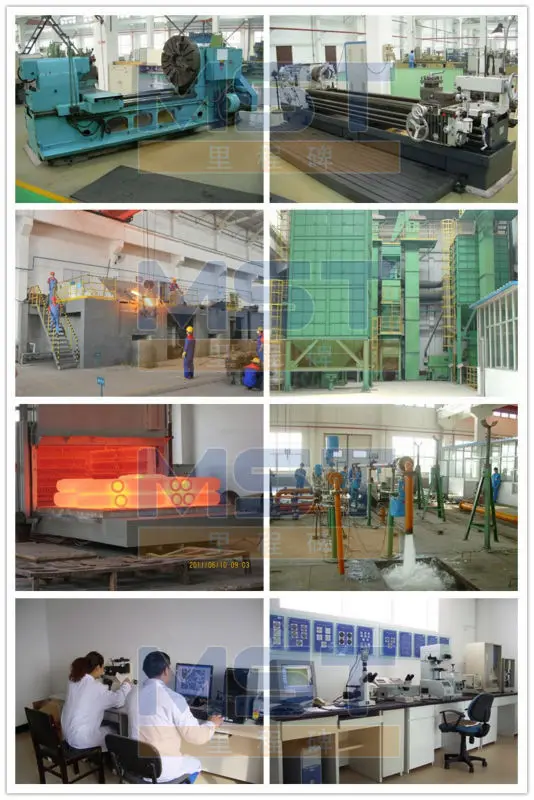

Our factory profile
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Scene of pump exhibition
FAQ
Q:What is your product range?
A:centrifugal pump and conveyor belt.Centrifugal pump includes slurry pump,gravel pump,clean water pump,sewage pump,chemical pump,self-priming pump and diesel engine pump .Conveyor belts includes sidewall conveyor belt,flat conveyor belt and heat resistant conveyor belt.
Q:What’s is your MOQ,payment term and lead time?
A:MOQ for centrifugal pump is 1 set ,MOQ for conveyor belt is 100cbm.Pyment Term:T/T,L/C,Western Union,Paypal and Trade Assurance.Lead Time:in general 7 working days for slurry pump,15working days for water .
Q:What information should I let you know if I want to get a quotation?
A:Pump capacity,pump head,medium temperature,pump material,quantity,if possible,please also provide the pump model you are using now.price will be calculated as per the pump model,if not ,we will recommend relevant product for reference.
Q:If I put a bigger motor on my pump,will it pump more?
A:No.The anount of water and the pressure(head)that a centrifugal pump produces is related to the rotational speed,impeller diameter and size of the impeller vanes.
Q:Do you impact the finished product?
A:Yes,each batch of production and finished product will be quality checked strictly before delivering ,testing report or video can be sent to clients for reference.
Q:How do you ship the finished product?
A:By sea.By air.By international express.
