bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer
We are bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer :
1. Double Compressor Water Cooled Screw Chiller Manufacturer Industrial Chiller for Thermoforming.
2.Condenser,evaporator units are used in efficient heat transfer tubes,the host selection of imported and efficient hermetic scroll compressor,has a compact structure,small size,light weight,small installation location, and many other advantages.
3.Microcomputer program controller,carry conditioning units start and stop according to load changes,more energy-efficient.
4.A compressor coil current is too high to protect the pump current is too high,cold water flow switch,cold water temperature is too low protection,high temperature protection,compressor overload protection,start and stop frequently to protect,abnormal voltage protection,high and low voltage protection and other protection.
5.We are bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer .
bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer :Water cooled screw chiller for plastic processing working diagram
bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer :Water cooled screw chiller for plastic processing specifications
Specifications
Model
DNC-460WDH
nominal cooling capacity
kcal/h
197800
Kw
460
Max power consumption
kw
102
Full load
Amp
89
power source
3PH - 380V/415V - 50HZ /60NZ
3PH -200V/220 - 50HZ /60NZ
refrigerant
type
R22/R407c/134a/404A/410A
control
external balance of thermal expansion valve
compressor
type
Semi-hermetic screw
Start mode
Y-DLTA
Capacity control
0-25-50-75-100
power
kw
51×2
condenser
type
Low wind noise external rotor fan or aluminum axial fan
coolant flow
m3/h
97
coolant flow
m3/h
42
inlet and outlet connection(BSP)
inch
6
evaporator
type
Dry shell and tube /Stainless steel plate evaporate
coolant flow
m3/h
79
Coolant resistance
KPa
40
inlet and outlet connection(BSP)
inch
5
safety devices
Over load relay for compressor ,over-current protection,high and low pressure protection,over-temperature protection,traffic protection, three-phase error protection relay, coolant level switch, flow switch
dimension
mm
2950*810*1750
Machinery weight
kg
2450
Run Weight
kg
2960
Notes:1.Cooling capacity is based on:chiller water inlet and outlet water temperature of 12℃/7℃,the cooling water inlet and outlet water temperature of 30℃/35℃
2.Scope of work:chilled water temperature range:5℃to35℃;chiller water out of the water temperature:3℃to8℃
The cooling water temperature range:18-30 ℃;cooling water inlet and outlet temperature different:3.5℃ to 10 ℃
The above can be customized according to customer requirements to produce
Specification dimension above are subject to change without notice
Detailed Images

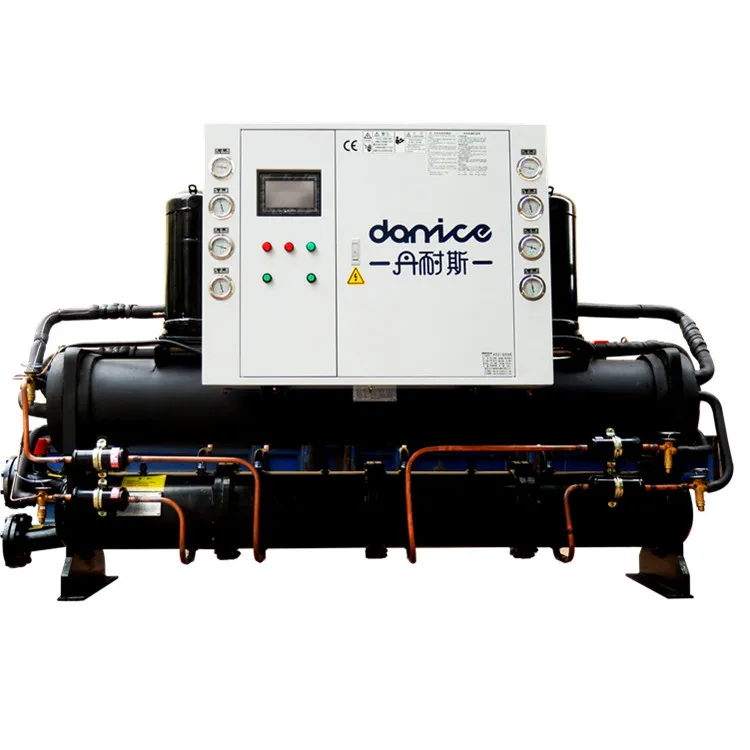

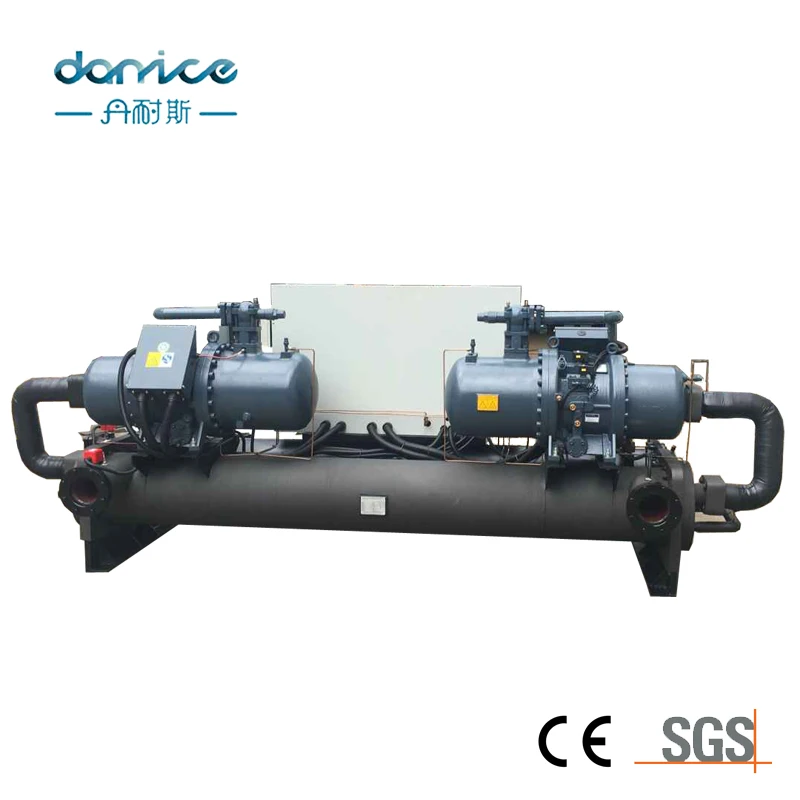

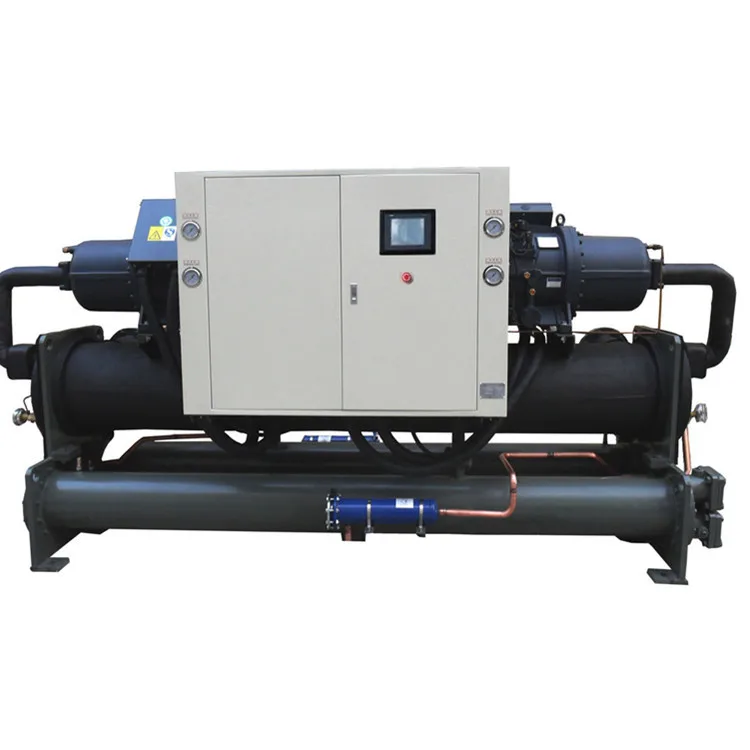

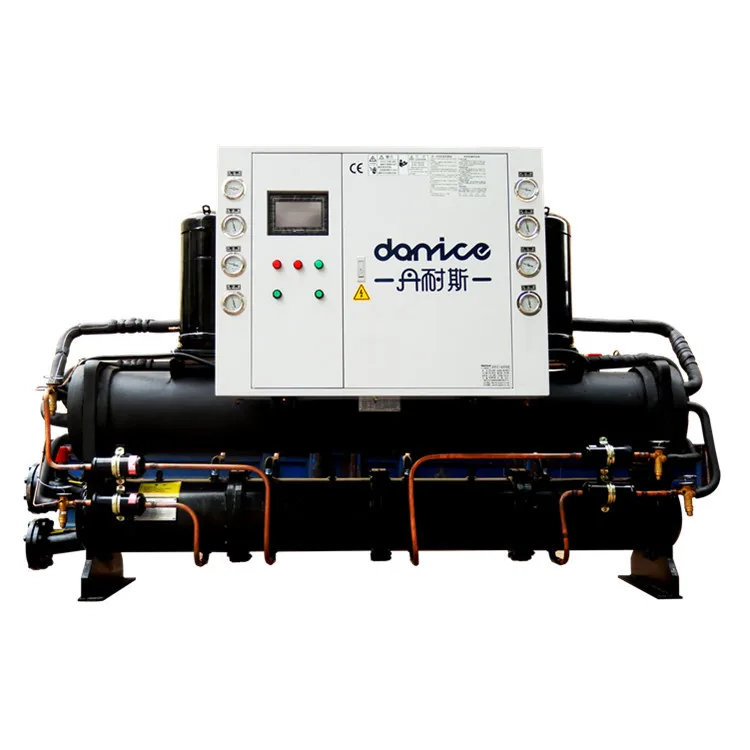

bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer : Water cooled screw chiller details ,finished products and applications.
Packaging & Shipping
bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer :Water cooled screw chiller packaging and shipping.
Our Services
bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer :Our services.
1. Prompt delivery with high quality goods. 2. Provide free parts if the original one is damaged by our mistake.
3. If it is caused by improper use of customers,we can also provide parts to the cost price. 4. If any problems with our products, we will handle within 24h.
Company Information
bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer :Our company informations.
As an enterprise that concentrates on research and development, production and sales, we gain rich experience both on the production of products and the application of technology in the past ten years of dealing with Refrigeration Industry. For the past few years, in order to satisfy the need of the fast development of the market, we have brought in a variety of advanced precision machinery equipments, such as CNC punch press, CNC bending machine and numerically controlled lathe. We successively set up the Engineering Department, the Technology Department, the Quality Department, the Production Department, the Finance Department, the Sales Department, and After-sales Service Department.
In order to solve the problems in delivery and after-sales service, we established After-sales Service Networks in Shanghai, Beijing, Zhejiang, Guangxi, Sichuan, Dalian, Chongqing, Jinan and other areas. Our products of superior quality sell well all over the world, and we offer excellent after-service. Therefore, we are highly praised by our customers.
We fully implement Customer First, and will constantly strive to research and develop more competitive products, establishing the development policy based on quality and service, and establishing long-term friendly relationship in the cooperation with customers.
Customers
bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer :Our customers.
Certifications
bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer :Our certifications.
FAQ
bar chiller Double Compressor Water Cooled Screw Chiller Manufacturer :FAQ
1.How to choose a proper Chiller?
Tip1.The cooling capacity.
Tip2.The inlet and outlet water temperature,and the environment temperature.
Tip3.The power.
Tip4.The rifrigeration you need.
Tip5.Other special requirments.
2.If the cooling capacity of Chiller bigger is better?
No.
The use of cooling capacity too large,will not only result in the waste of resources,but also the machine itself will produce more noise,therefore we must choose a appropriate chiller.
