rebar double head bender

Product Overview

Description

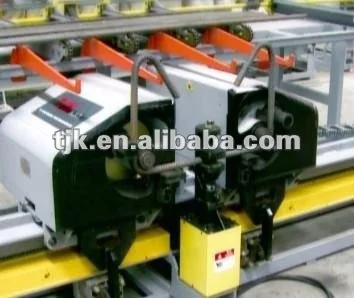

 the double header machine

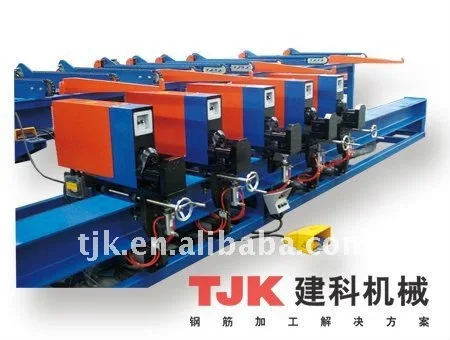

       the five header machine



 Products Introduction : The device has a working unit in the same time to bend over, bending the

host while the two/five work has greatly enhanced efficiency, capable of carrying 5 tons of raw

materials, greatly reduce the manual labor intensity



CHARACTERISTIC



1,Import PLC and touchable screen.

2,Central soft rebar lock.

3,Heaf-treated plate to be wearable.

4,Bending shaft controlled by servo.motor

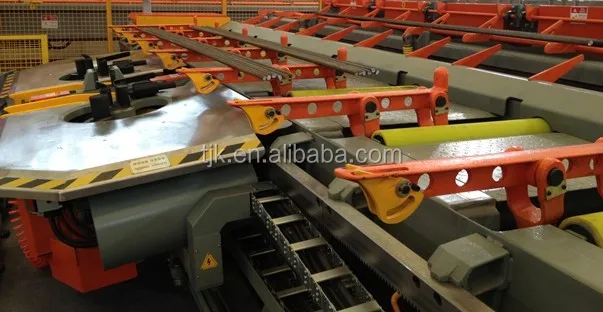

5,Mobile bending unit and automatic gauge system.

6,High strength rail for long life.

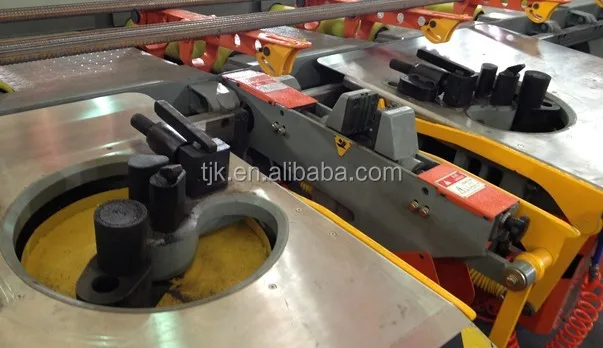

7,Bending & clamping unit to enhance precision.

8,Extensible shaft to bend rebar in bi-direction.

9,Heavy loading shift for large batch material.

10,More rebars bended in one time.

11,Large storage capacity dan save more than 100 geometric graphics.

12,More angle in one loop.

13,Control systems: SIEMENS, MITSUBISHI, PANASONIC.



TECHNICAL DATA



Model	G2L23	G2L25
Installed power	14	8
Installed voltage	380v 50hz	380v 50hz
Average electric consumption	6	4
Bender moving speed	0.5-1	0.5-1
Pressed air	0.6	0.6
Min.bending side length	ø10,520	ø10,440
	ø32,580	ø25,440
Max. bending side length	180	180
	-120	-120
Min.bending side length	60	60
Bending direction	Bi-direction	Bi-direction
Speed control	CNC	CNC
Bar size	10.12.14.16.20. 22.25.28.32	10.10.14.16.18.25
Nos.to be. sheared	7.6.5.4.3.2.1.1	7.6.5.4.3.1
Overall dimension	11500*2230*1600	9500*2080*1342

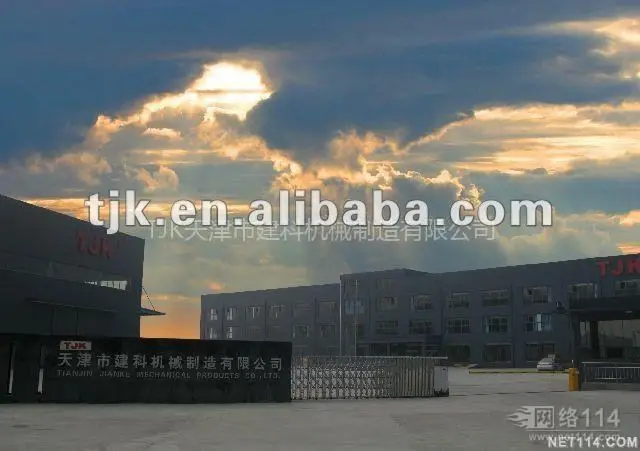

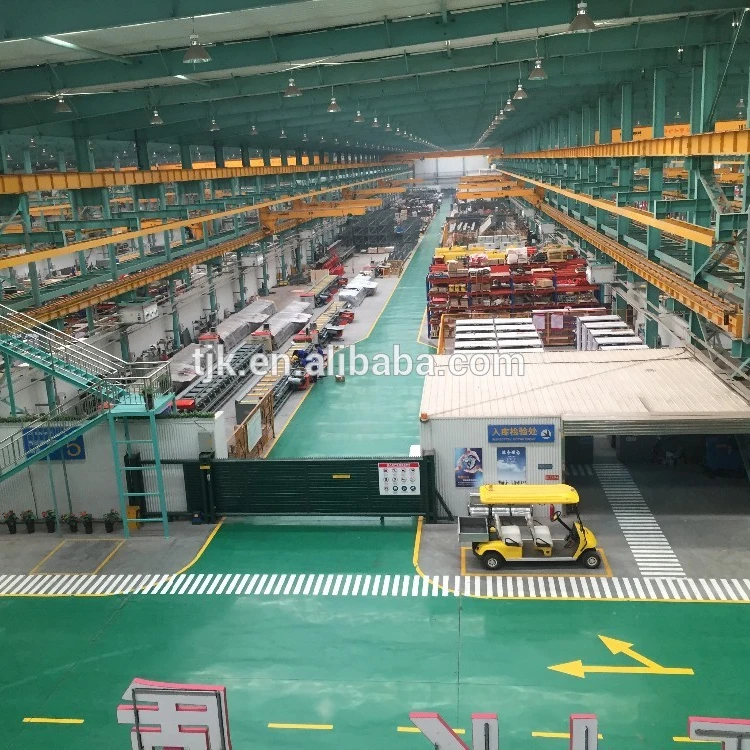

 TJK Machinery(TIANJIN) Co.,Ltd. is Chinese largest manufacturer in

 inforcing steel and wire processing machinery ,which has passed quality certification of ISO9001-2000 system ,TUV and CE certification. The company owns independent intellectual rights registered over 300 technical patents, which have further strengthened TJK leading position in reinforcement processing industry.



if you are  saterested in our goods ,pls contact us without any heasitation
