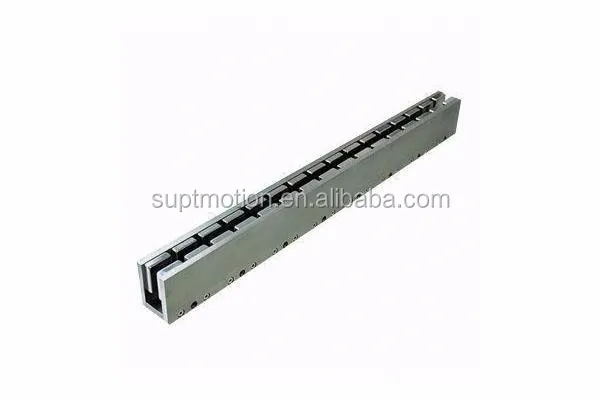

Robot motor direct drive linear ironless motor
- Category: >>>
- Supplier: Suzhou Unite Precision Machinery Technology Co. Ltd.
Share on (60252632937):
Product Overview
Description
direct drive motor:
Our Services
Almost any requirement can be successfully fulfilled
Satisfactory after-sales service
Product range
Product Description
| B Series--MLCB(Dynamic) MLFB(Stator) | |||||||
| Model/Par | MLCB-0040-075-00 | MLCB-0080-135-00 | MLCB-0145-255-00 | ||||
| Peak force(Fp) | N | 120 | 240 | 435 | |||
| Peak current(lp) | Amps | 4.9 | 4.8 | 4.45 | |||
| Continuous force(Fc) | N | 40 | 80 | 145 | |||
| Continuous current(lc) | Amps | 1.65 | 1.6 | 1.48 | |||
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 8.4 | 12.1 | 16.3 | |||
| Constant Thrust(L-L)(Kf) | N/Amps | 24.6 | 49.5 | 97.5 | |||
| Back EMF constant(L-L)(Kb) | V/m/sec | 14.2 | 28.6 | 56.3 | |||
| Electrical constant(Te) | ms | 0.3 | 0.3 | 0.3 | |||
| Resistance(L-L)(R) | @25℃Ω | 5.6 | 11.2 | 23.4 | |||
| Inductance(L-L)(l) | mh | 1.8 | 3.78 | 7.5 | |||
| Heat transfer coefficient(Rth) | ℃/W | *3.2 | *1.86 | **0.95 | |||
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 | |||
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 | |||
| Mover weight | Kg | 0.28 | 0.49 | 0.97 | |||
Packaging & Shipping
Main port:Shanghai/Shenzhen/Guangzhou or as require.
Leading time:Normally goods can be ready within in 7days.
Express company:DHL,TNT,UPS,FEDEX,etc.
