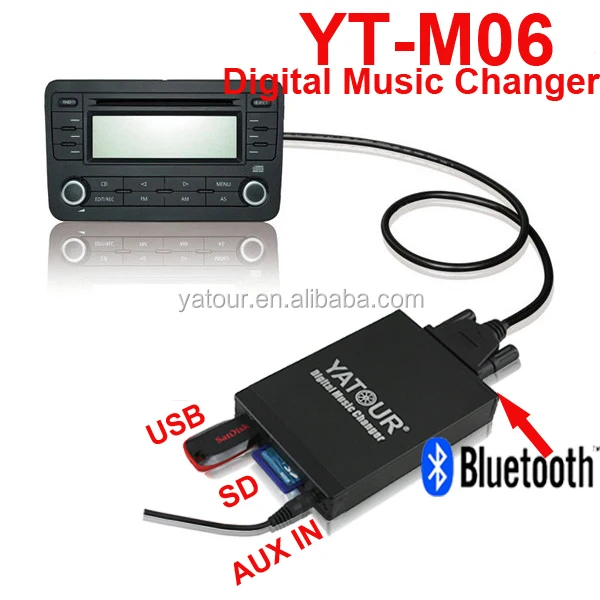

Автомобильный аксессуар для радио, поддержка sd карты/usb/3,5 мм aux mp3

Product Overview

Description

car radio upgrade accessory support sd card/usb/3.5mm aux mp3

* Features:

* Support USB / SD / AUX IN;

* Deliver Original CD quality sound through CD Changer port ;

* Plug and Play ;

* Direct controls from car radio panel ;

* Supports last position memory(LPM) ;

* Able to work together with original Mechanical Disc Box, arbitrary switch playing allowed;

* Optional Bluetooth function support.



 Specifications :

Voltage input:11v~14.6v DC	Operational current: 200mA
Standby current : 3mA	Operating Temperature : -35 °C~+85 °C
DAC resolution : 20bit	Total harmonic distortion : 0.05%
SN ratio : 90dB	Frequency response : 20Hz-20KHZ





Compatible car :

Toyota / BMW / Peugeot / Citroen / Ford / Suzuki / Volvo / Nissan / Mecedez /

Smart /Fiat / Alfa / Opel / Lancia / Scion / Lexus / Honda / Acura / VW / Skoda /

Audi / Lamborghini / Mazda / Hyundai / Kia / Mitsubisi / Outlander...etc



Retrofit Audio :

Sony / Alpine / Clarion / Pioneer / Panasonic / Sanyo / Blaupunkt...etc





* Installation Diagram :

This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.

Note :  Mp3 / CDC Swith cable is optional , available for some vehicles only.





*How to save music into folders :

1. Name folders as CD01 ,CD02 ,CD03...etc

2. The naming of songs is unrestricted .

3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .

4. Support mp3 / wma .



Below is showing example .





* Accessories:

 *Package:

• Standard packing box : 210 x 150 x 60 mm

• Half-size packing box : 150 x 105 x 60 mm

• Module weight : 90g

• Gross weight : 220g~400g .
