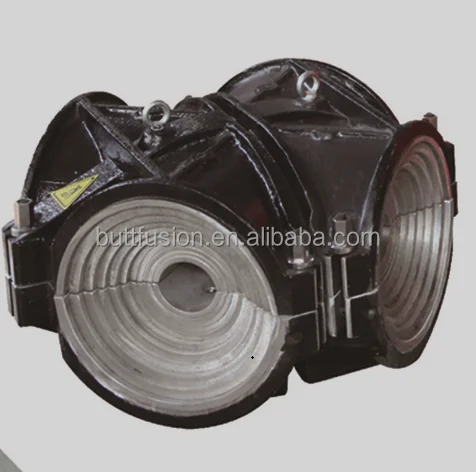

SHG315 CNC PE pipe workshop fitting welding machine

Product Overview

Description

CNC SHG315 workshop fitting welding machine, hdpe pipe fitting fabricate machine, PE elbow/bend, cross, tee machine



Application and features :

♦ Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
♦ Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
♦ Removable PTFE coated heating plate
♦ Low starting pressure and high reliable seal structure
♦ CNC control with data logger and printer .









The main parameters:







Model		SHG315
Pipe sizes (mm)		90,110,125,140,160,180,200,225,250,280,315
Application		0~90°Elbow, tee, cross, 45° and 60° wyes(optional parts should be used)
Heating plate Max. Temp.		270°C
Temp. deviation in surface (170~250°C)		<±7°C
Pressure adjustable ranges		0~16MPa
Working voltage		380V,50Hz
Heating plate power		5KW
Hydraulic unit power		1.5 KW
Planing tool power		0.75 KW
Total power		7.25 KW
Weight		760KG(not include optional parts )
Packing	Cases	4 Plywood Cases
	Volume	3.1 CBM





Optional parts:

♦ Special clamps for welding flange stub
♦ Special clamps for short spigot fitting

♦Special clamps for welding Y shape (45° and 60 °) fittings
