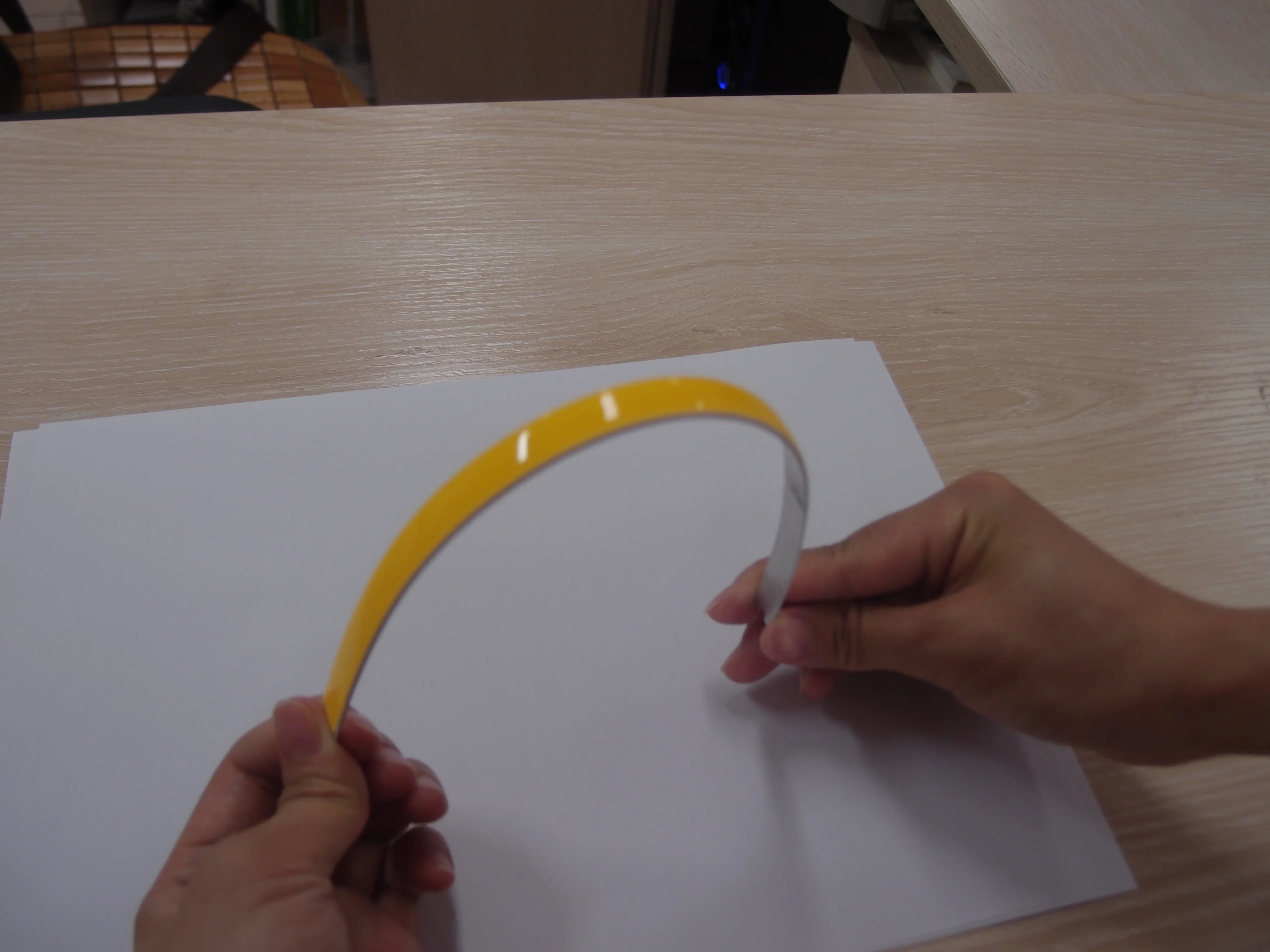

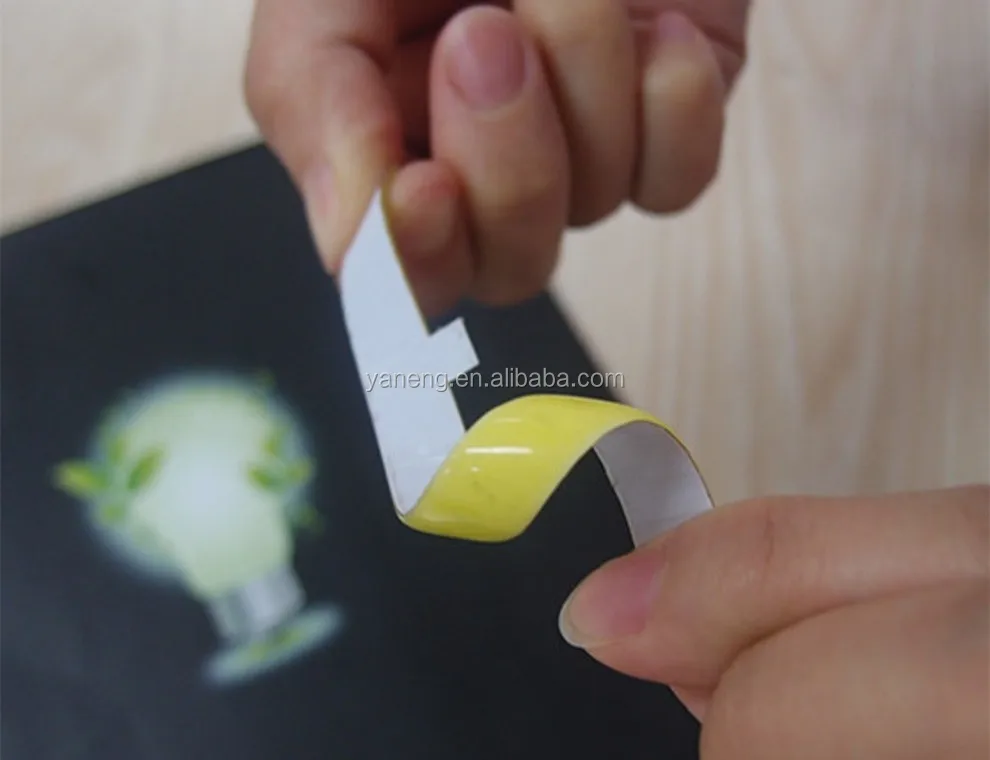

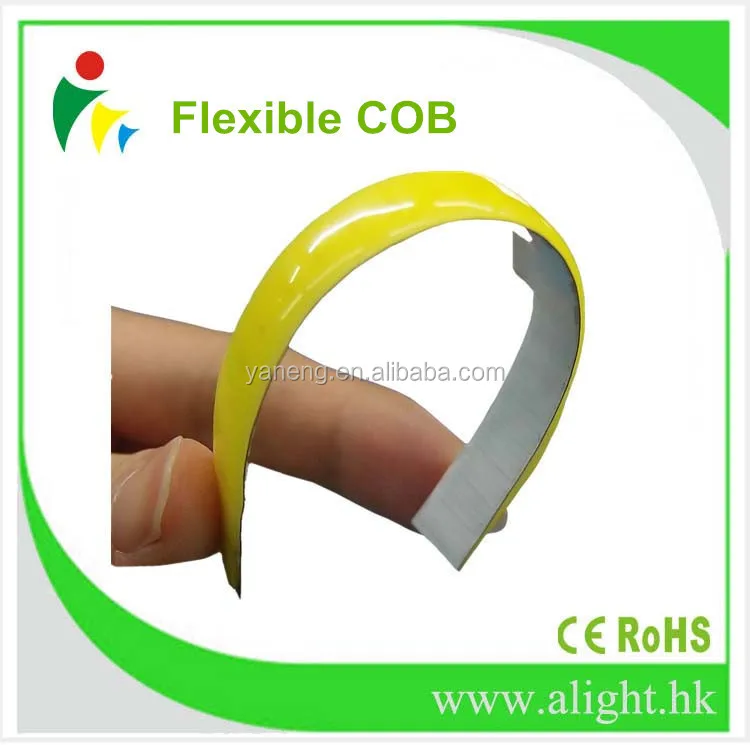

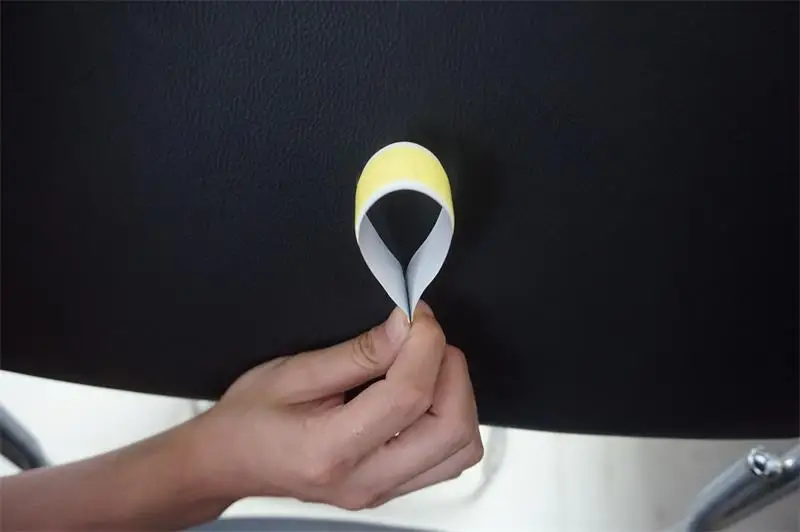

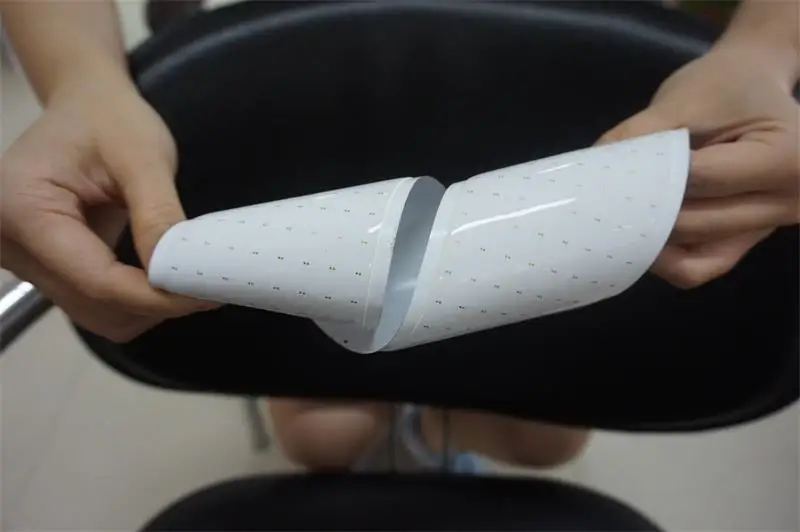

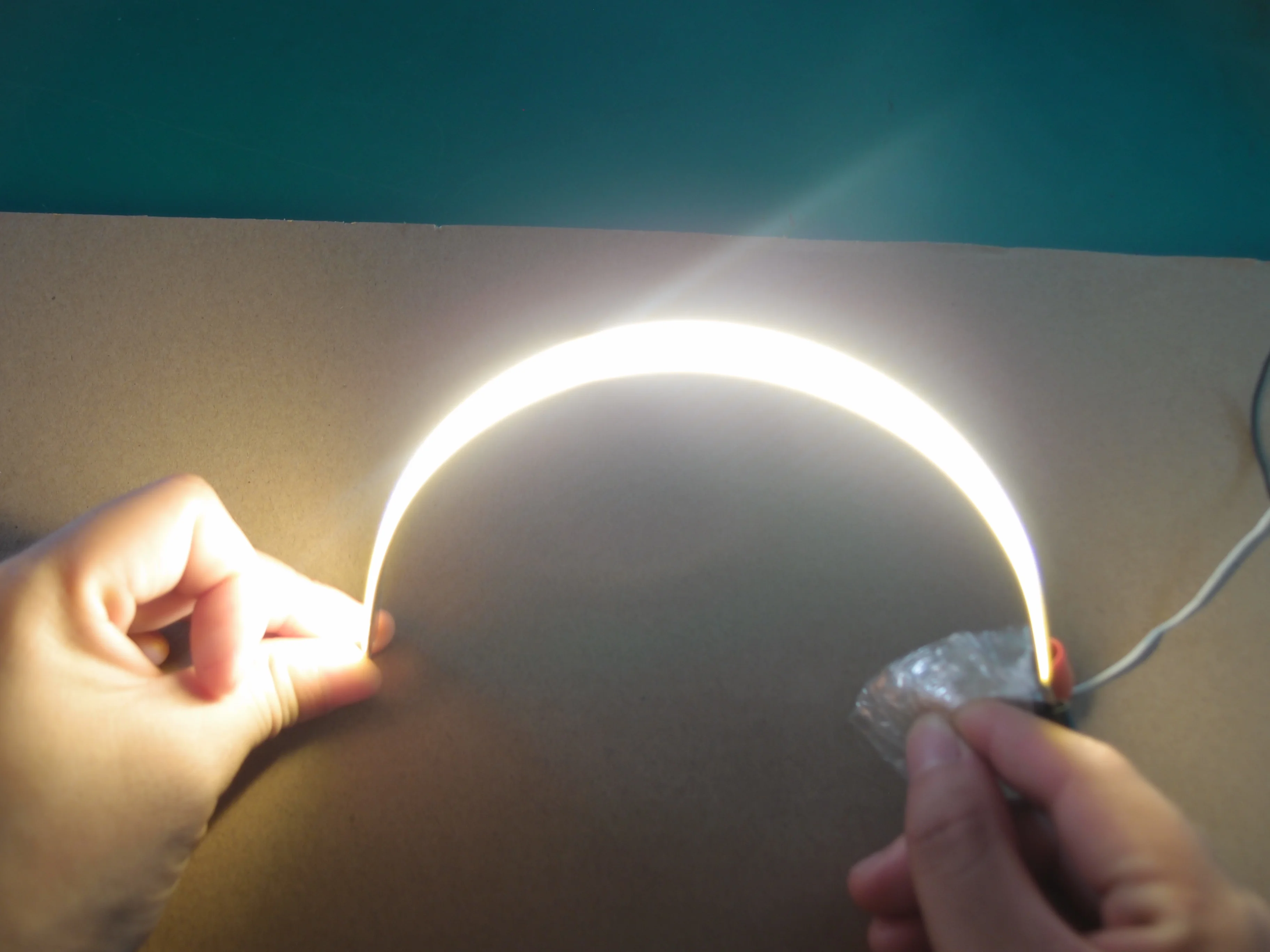

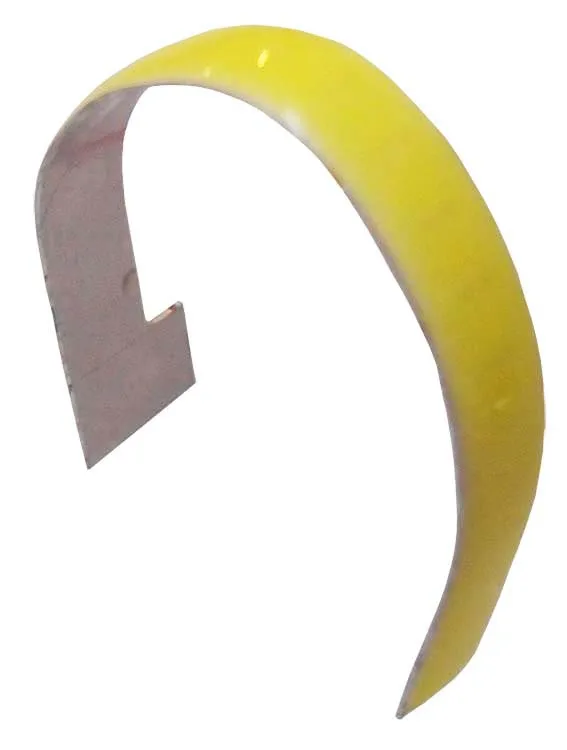

COB Lighting design and custom solutions Customized Cob Led With 5W Flexible LED

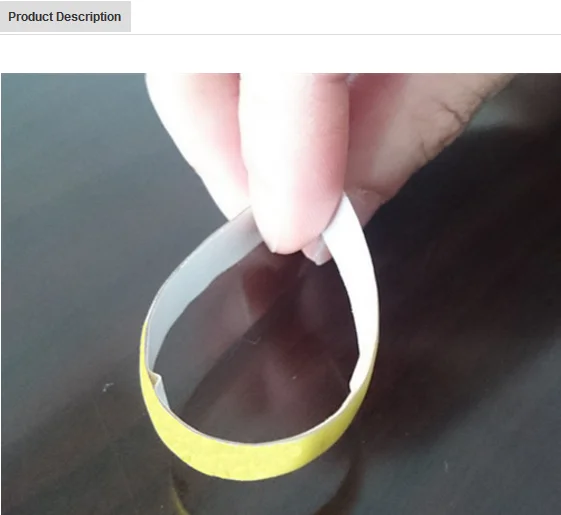

Product Description
l Device Selection Guide
Part No.
Chip
Lens color
Material
Emitting color
AL-FL105x9P50-3V
InGaN
White
Yellow Diffused
l Parameter
item no
lighting area(mm)
pcb type
lighting source type
color temperature range(K)
AL-FL105x9P50-3V
105.5×9
Copper Foil
upper lighting
2700~6500
l Optical Characteristics
Symbol
Parameter
Min
Type
Max
Unit
If
Operating current
-
1500
-
mA
Vf
Forward Voltage
2.5
3
3.5
V
Φ
Luminous Intensity
500
Lm
Tc
Color temperature
-
6500
-
K
Ra
color rendering index
75
80
-
l Absolute maximum rateings
Symbol
Parameter
min
type
max
unit
P
power dissipation
-
5-8
-
W
To
junction temperature
-40
-
65
℃
Tstg
storage temperature range
-40
-
85
℃
Rth
thermal resistance
-
0.6
-
℃/W
Note: the condition of the test result data in the diagram above is Tc=25 degree ,the product of Light Panel with color temperature is 5000k.
Effciency:80-90lm/w;
99.99% gold wire
Power: 5W
Operating current:1500mA
Luminous Intensity: 410LM
CRI: >80
Working Voltage: 3-3.5V (can design)
Pure copper base
View angle: 160 degrees
Cool white(warm/nature/cold)
Specifications
New generation COB (Chip on Board) characteristic:no glare, no shaow, high efficient, good heat dissipation and long lifespan
About Alight COB LEDs:
Specification:
* Waltage: 1W-100W be available.
* Apply low constant current driver, Voltage:3V DC-66V DC
* Color Temperature:2700k--8000k
* Light Color: white/red/green/blue(RGB) for each item.
* Light characteristic: very uniform, durative, stedy, no glare, no sharp dot lights, no double images, handsome looks, very suitable for indoor lighting
* Shape and Size: long, round, square and any other shape and size according to your application.
* Encapsulation Technology and Design Copyrights reserved, passed CE& RoSH and ISO 9001 :2000 certification,
OEM: COB LED light panel size and parameter can be customized according to your product application.
Packaging & Shipping
Package: white box + big carton, or customized.
Shipment
You can choose to ship by Fedex, DHL, Ocean or Air according to your need.
By express: DHL, UPS, FEDEX.
We will search the most economical and reliable shipping company to transport the goods safely.
By air: when your order is more than 100kg which will be more economical than express.
By sea: when your order is large quantity, we can help you to deliver the goods by sea.
FAQ
Trade terms:
1. TT 30% before producing and balanced 70% against BL.
2. Delivery time: 2-3 days for sample, within 30 days for normal order.
3. Freight charge offered based on your request.
