FPT15 I Portable surge generator
- Category: Other Circuit Protection >>>
- Supplier: Fatech Electronic (Foshan) Co. Ltd.
Share on (60253065168):
Product Overview
Description

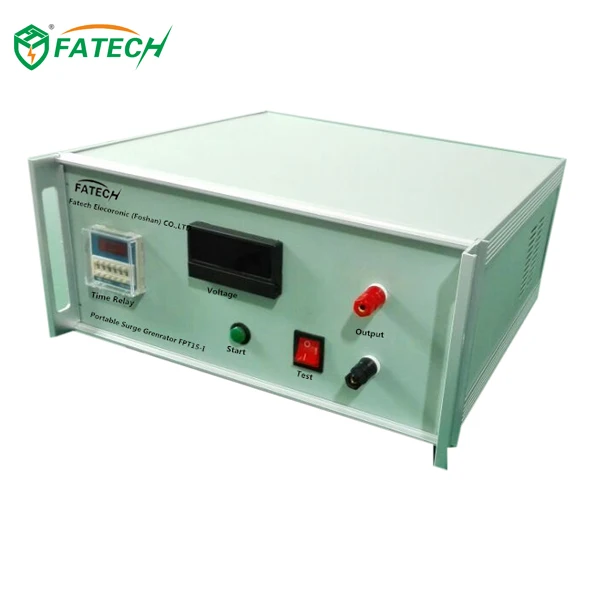

1. Portable Surge Generator FPT15-I
-Portable design, for on-site testing.
-Max. discharge current 2.5kA.
-Realized one-key operation of charging and discharging.
-220Vac power input.
-Max. discharge current 2.5kA.
-Realized one-key operation of charging and discharging.
-220Vac power input.
FPT15-I Portable surge generator is designed for on-site testing of surge protective device and lightning strike counter.
The surge generator is able to release max. discharge current 2.5kA, realized one-key operation of charging and discharging.Press the green “Start” button, the surge generator starts charging, the relay starts counting time until the device stop charging, while discharging. When time relay’s indication light off, the test end.

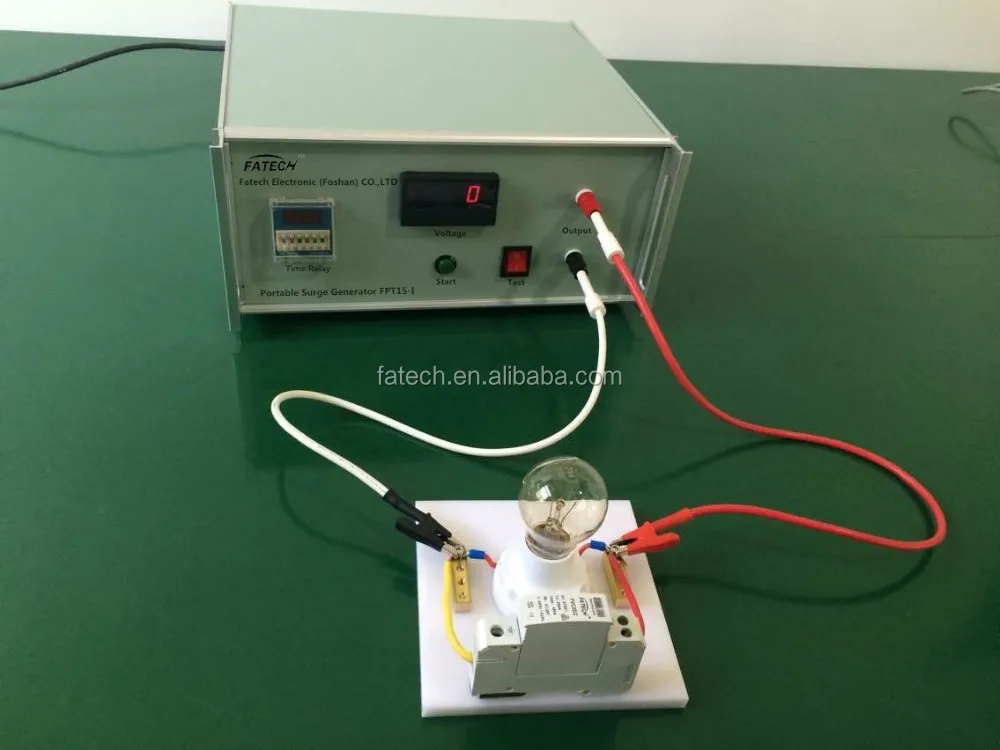

2. Surge protective device function stimulating testing by surge generator

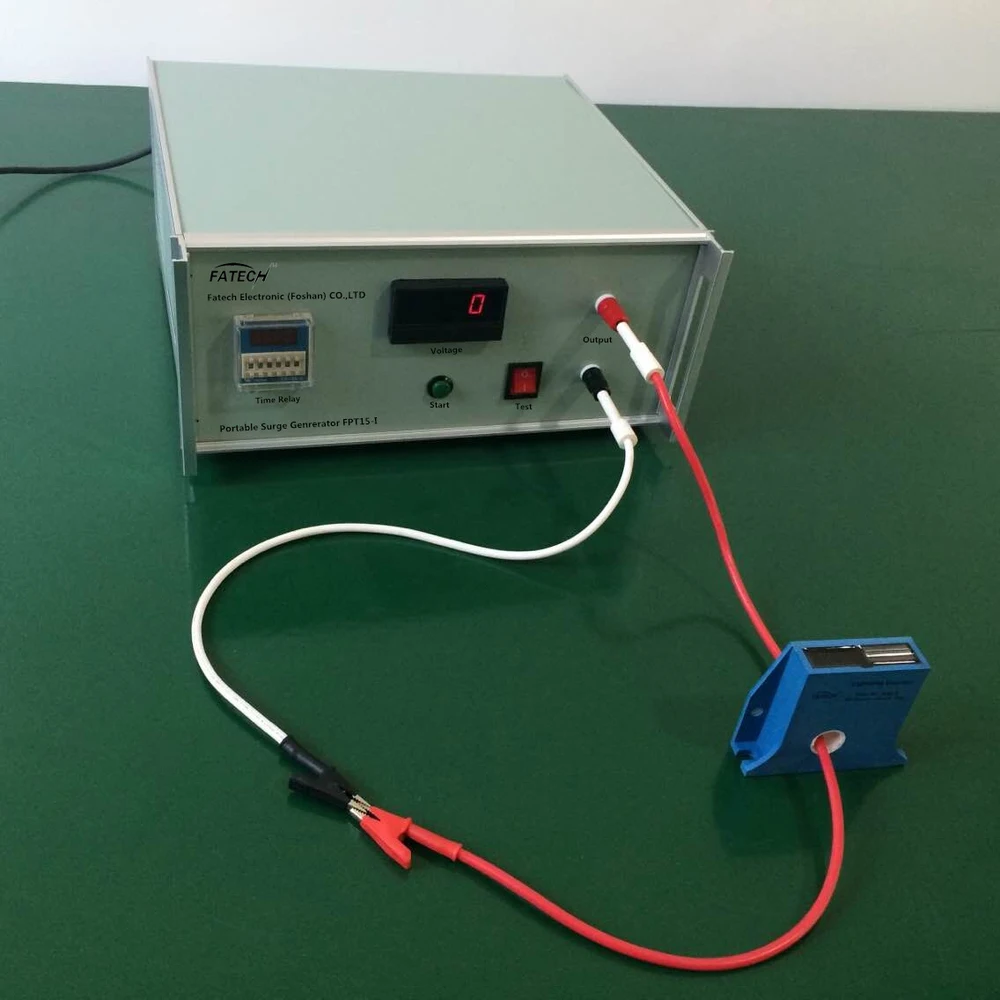

3. Lightning strike counter testing:
4. Electrical parameters:
1. General | ||
Dimension(L*W*D) | 360*345*160mm | |
Weight | 11kg | |
Case Material | steel | |
Operation Temp | 0℃~40℃ | |
Operation Humidity | <=75% | |
Storage Temp | -10℃~50℃ | |
Power Supply | 220V AC | |
2 Technical data | ||
Allowable Tolerance of Impulse Current | Front time | 8μS±10% |
Time to half value | 20μS±10% | |
Surge current | 2500A | |
Over-impulse range | <20% | |
Max Charging Voltage | 1100V | |
Power consumption | 50W | |
Charging Voltage Display | 4 Digital LED display | |
 |  |  |  |
| Lightning Rods & Surge Counters |
Company Information
FATECH ELECTRONIC CO., LTD., is located in Guangdong Provincial New Light Production Base, CHINA, which is a professional manufacturer on R&D and producing on lightning and surge protection devices. Our company gathered all kinds of high-skillled personnels, including authority technical experts and professionals, and excellent technicians with more than 10 years experience. Wide range of lighting & surge protection products assured you a one stop shopping location for all your need and professional technical support,warmly welcome your visit and audit our factory.
Workshop
Fatech has gathered authority technical experts and professionals as technical advisers and 50% production workers have more than 5 years working experience of surge protection products. Also we established an advanced independent test center with variety of testing equipmet, including reliability testing laboratory, environmental aging testing laboratory, release testing laboratory.
Exhibition
FATECH have strong sales team, our surge protection device are sold to many countries around the world. mainly in Europe, Asia, Latin-America, and Middle East. We would like to cooperate with global customers and help you success in your market.
Certifications
FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.
