Product Overview
Description

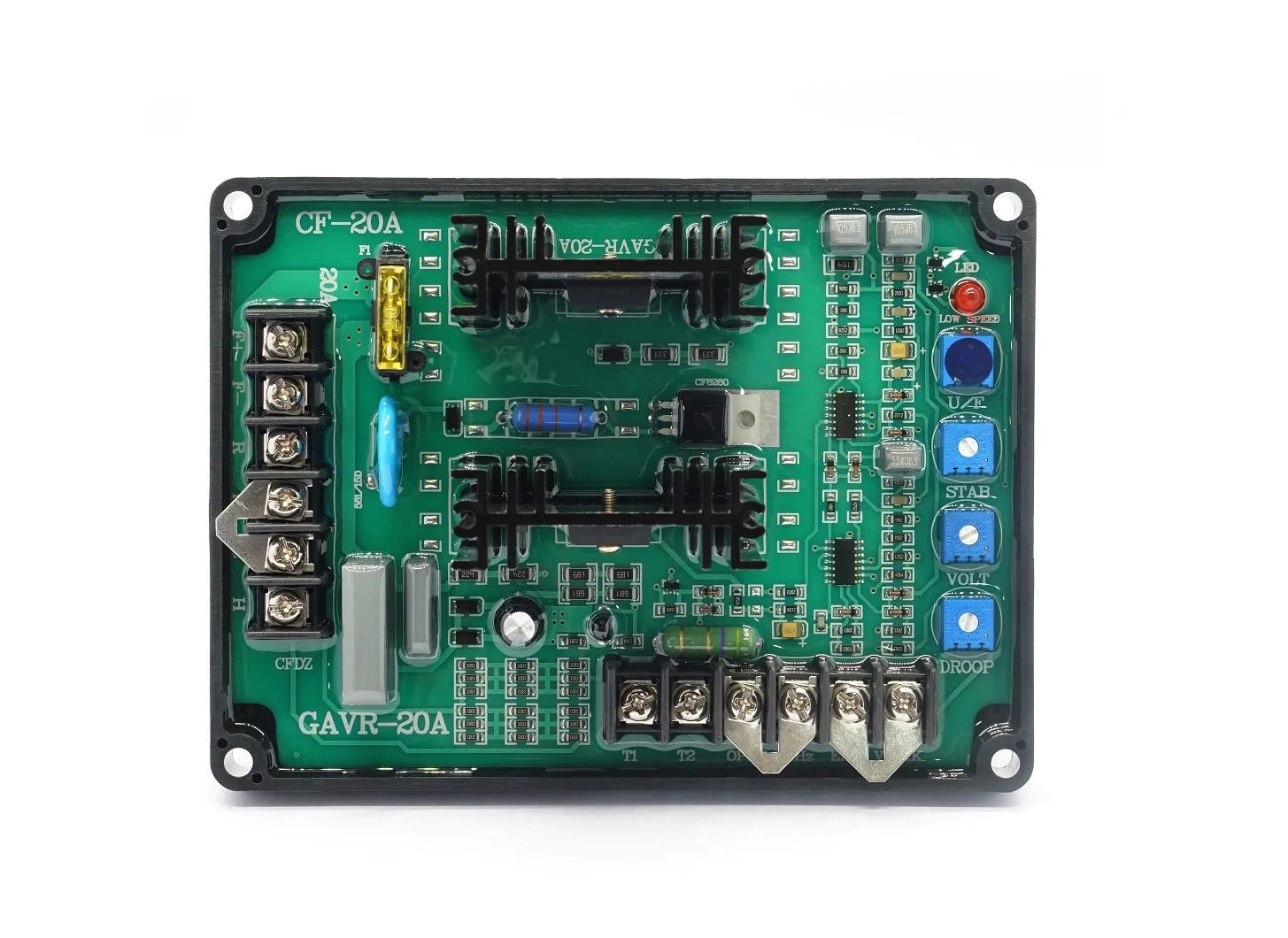

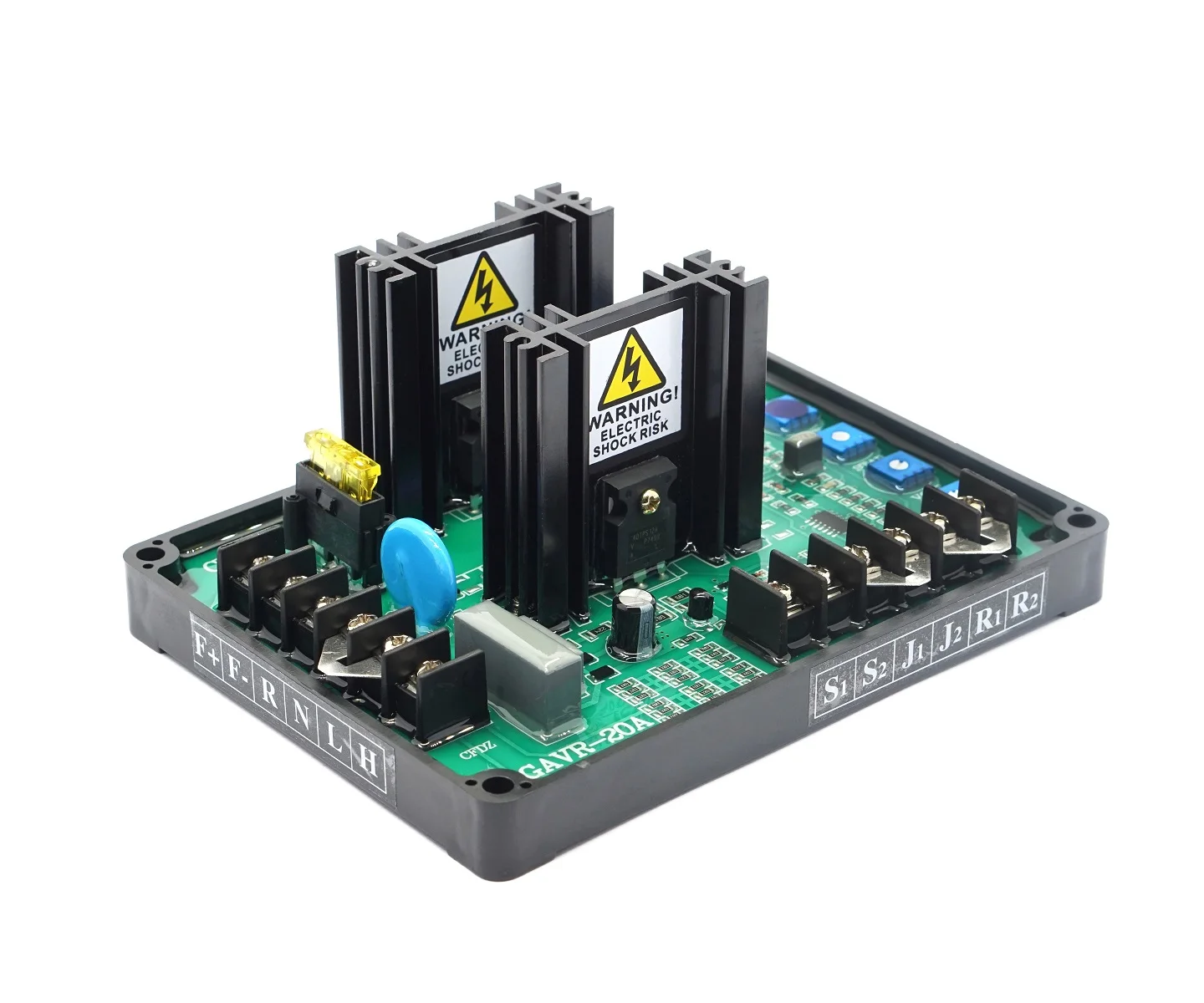

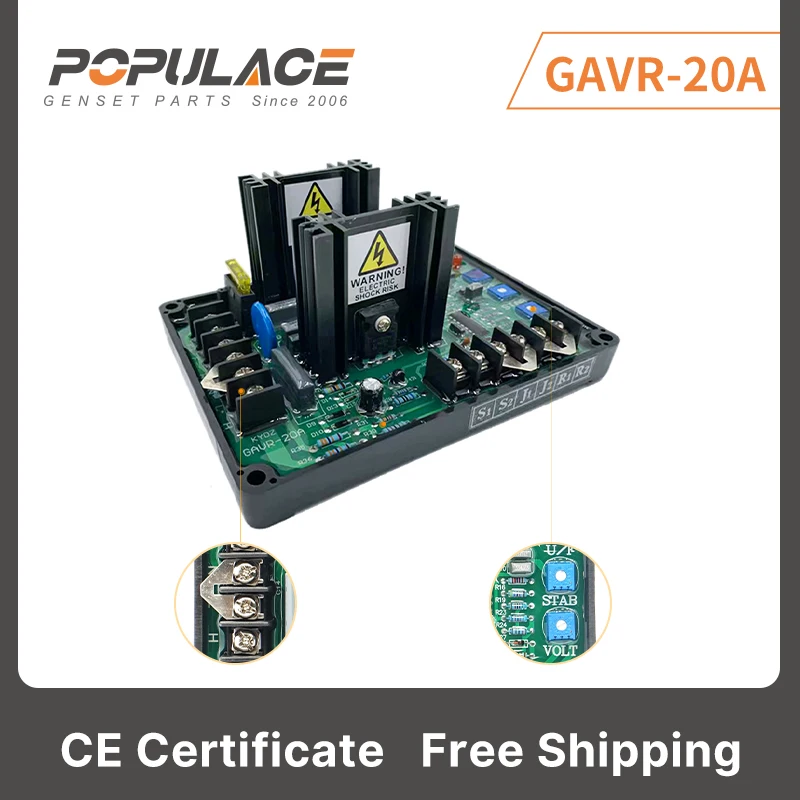

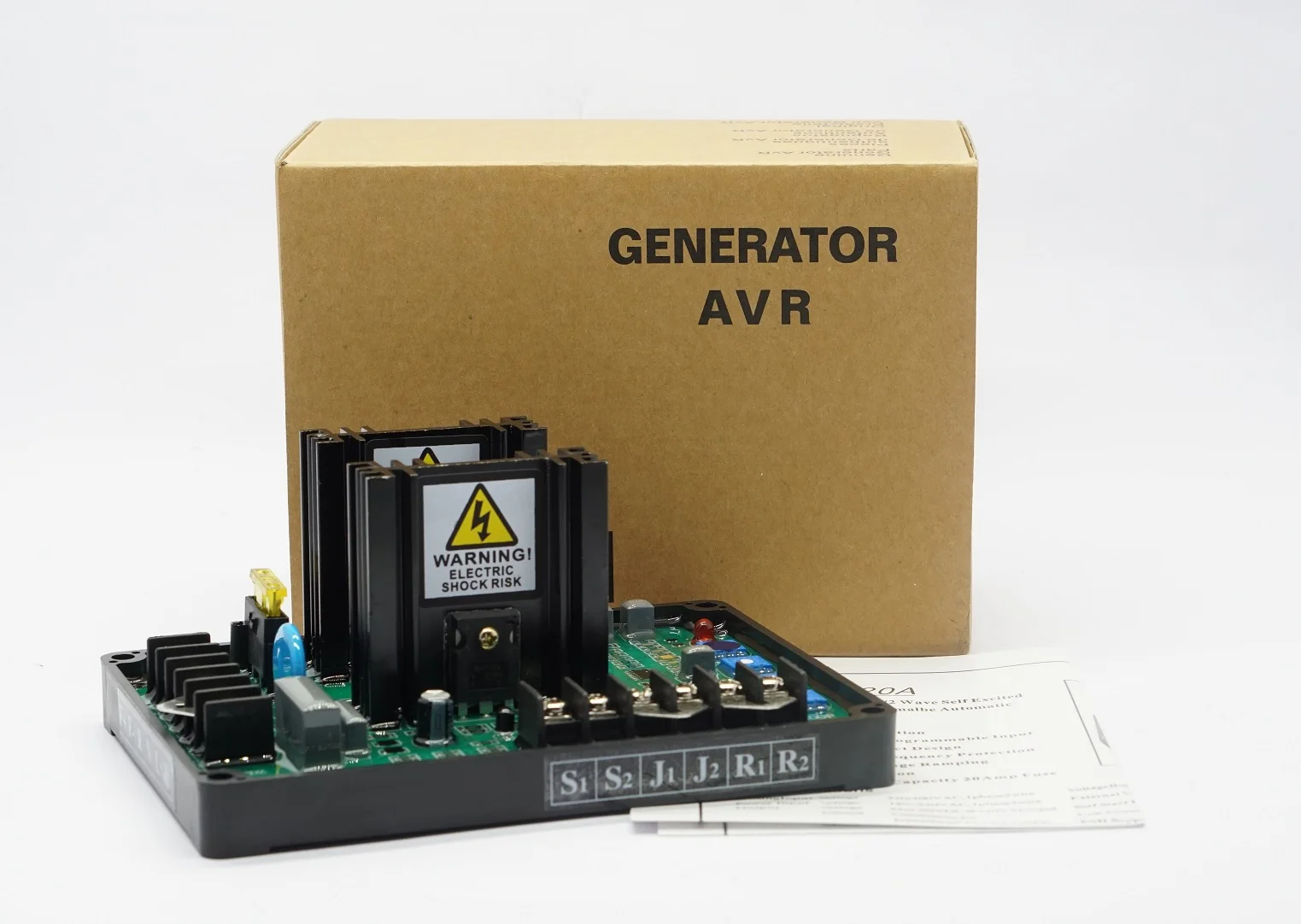

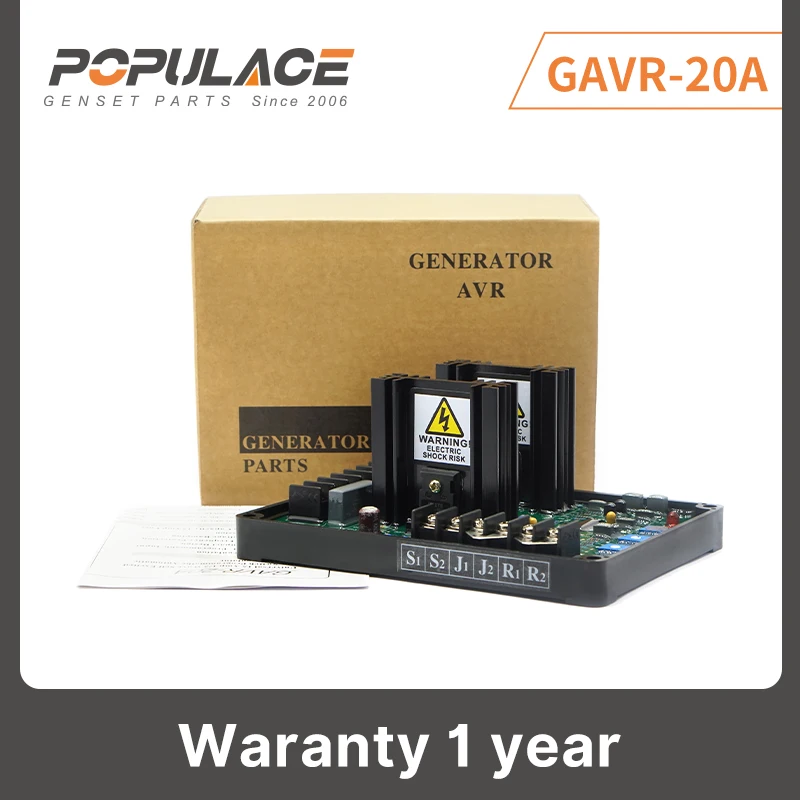

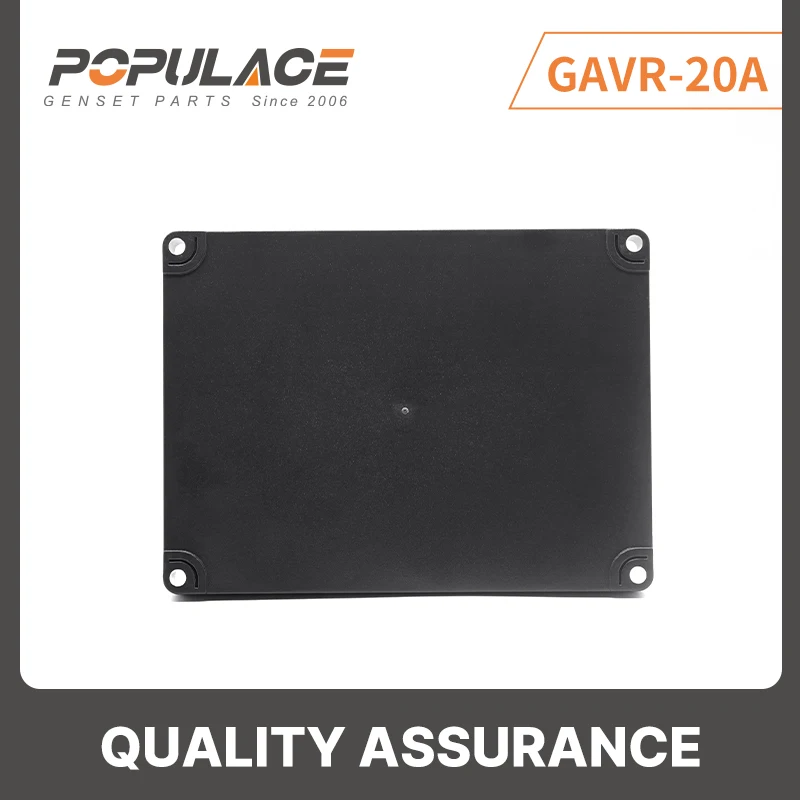

Populace High Quality Generator AVR GAVR-20A
forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry
includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the
AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output
voltage with load regulations of +/- 1.5%
Specification Parameter | ||||||||
Model | GAVR-20A | |||||||
Sensing Input Voltage | 220/400VAC,1phase 2wire | |||||||
Power Input Voltage | 180~240VAC, 1phase 2wire | |||||||
Voltage Max.90VDC@240VAC input | ||||||||
Current Continuous 6A | ||||||||
Intermittent 15A for 10SEE | ||||||||
Resistance Min.10Ω Max 100Ω | ||||||||
Voltage Build-up | esidualvolts at AVR teminal >5VAC | |||||||
External Volts Adjustment | +/-7%with 1KΩ 1watt trimmer | |||||||
Unit Power Dissipation | Max.8Watt | |||||||
Under Frequency Protection | 60Hz system presets knee point at 57Hz | |||||||
Factory Settings | 50Hz system presets knee point at 47Hz | |||||||
