direct sell double head metal round pipe bar chamfering machine manufacture
Product Description
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
main parameter
Model | DEF-FA/52 | DEF-FA/80 | DEF-FA/120 |
motor | 1.5KW*2 | 1.5KW*2 | 1.5KW*2 |
Compressed air | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Tool bit | 1 standard tool bit range 9.52-50.8mm | 1 standard tool bit range 9.52-50.8mm | 1 standard tool bit range 9.52-50.8mm |
Working length | A type 80-550mm | A type 80-550mm | A type 80-550mm |
| B type 80-1000mm | B type 80-1000mm | B type 80-1000mm |
| C type 18-100mm | C type 18-100mm | C type 18-100mm |
Standard fittings | 1.one standard tool bit 2. one group of clamping fixture | 1.one standard tool bit 2. one group of clamping fixture |
|
Special fitting | Different Size clamping fixture | Different Size clamping fixture | Different Size clamping fixture |
weight | 1400kg | 1400kg | 1400kg |
size(mm) | 2000x1300x1100mm | 2100x1300x1200mm | 2100x1300x1200mm |

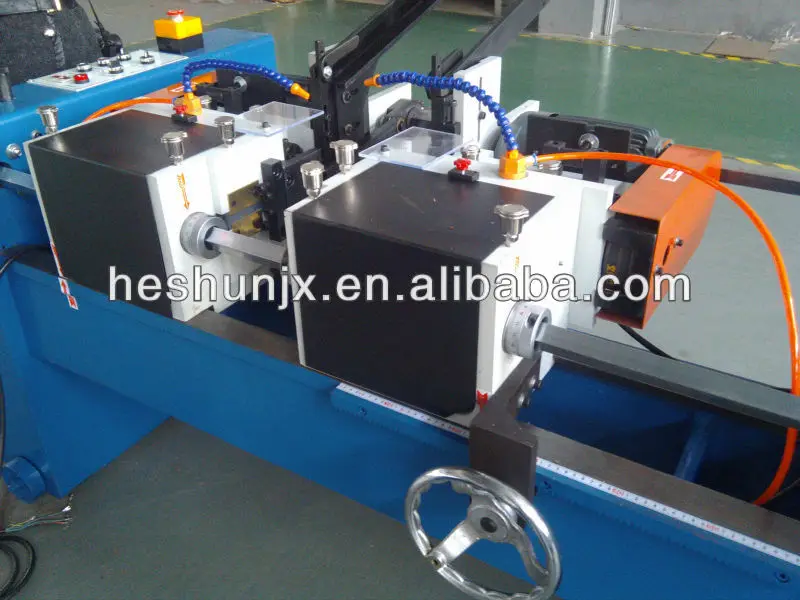

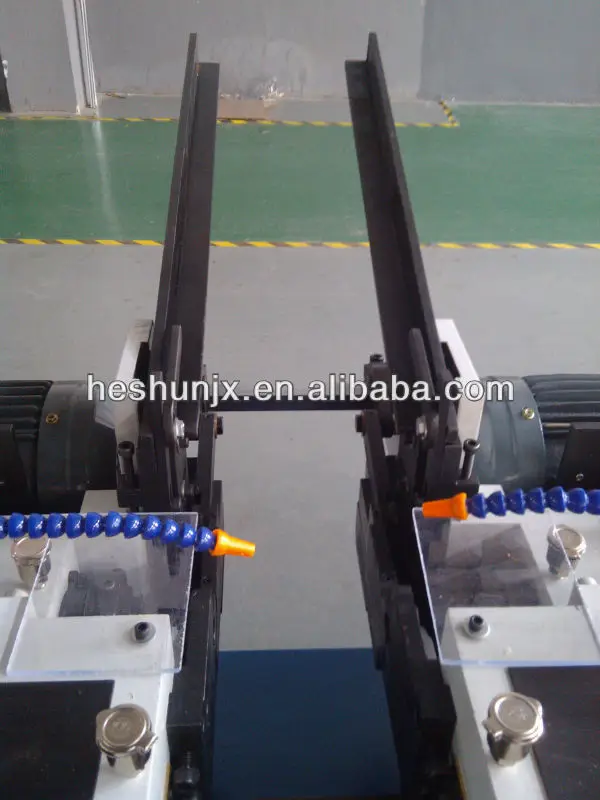

product show
