Product Overview

Description

Laboratory fume cupboards industrial exhaust hood laboratory layout

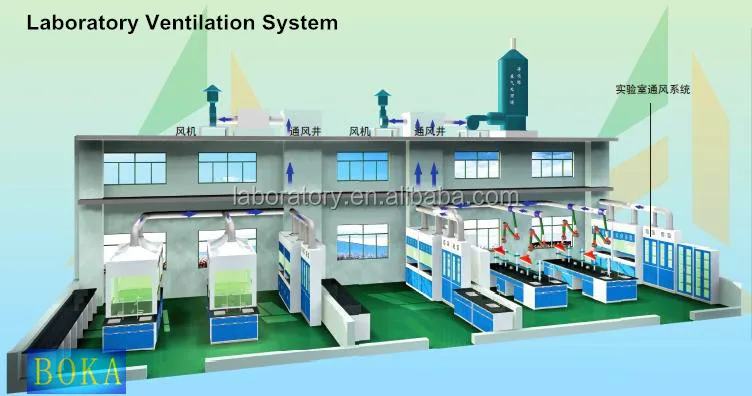

Laboratory fume hood ventilation system



Lab supply air is engineered to meet designed air changes per hour.Good sash management is critical to a balanced and efficient lab system.Lab exhaust air is filtered by a carbon HEPA filter module to remove 99.99% of fumes and contaminates.Exhaust is next processed by the tubular centrifugal fan and safely propelled away from the building.



Specifications

Product Name	Laboratory fume cupboards industrial exhaust hood laboratory layout
Dimension	1200/1500/1800*800*2350mm
Color	Customer optional
Frame structure	standard 60 ×40 ×1.5mm square steel tube spraying epoxy  powder coating. other request by customer is available.
Cabinet body	using 1.0mm minimum thickness of cold-rolled steel ,coated with special chemical resistant epoxy sandblast powder coat for improved corrosion resistance.
Worktop	epoxy resin/phenolic resin/stainless steel/granite/marble for your option .
Inner Liner	constructed from compact laminate .it is a high temperature and high pressure decorativeplates,waterproof,resistant to moisture,resistant to impact,abrasion,acidcorrosion,heatresistance,it can prevent the accumulation of contaminants and keep gas,mist flow discharge.
Baffle	made of compact laminate.control the direction of air flow ,reduce reflux or whirlpool.
Sash	the sash slides smoothly in a vertical manner.It is made of at least 6mm thick clear tempered glass to protect the user while providing excellent visibility.
Lighting	with no less than 300 Lux 30W fluorescent lamp
Control Panel	used to control the start and stop of the fume hood,LCDdisplay,can be manually controlled to fan,lightand volume.
Accessory	water faucet and sink,gas valve,electric socket and others is available.





Product Description

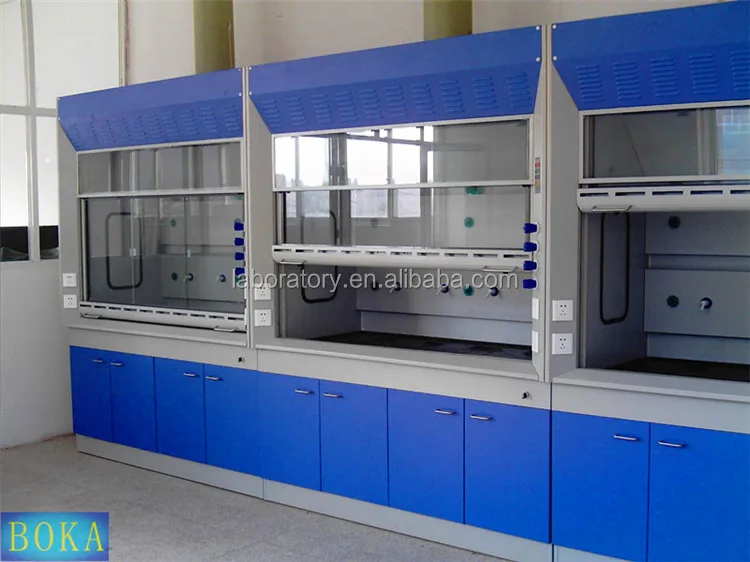

BOKA supplies C frame structure products combinning flexibility with durability.To keep pace with upgrade of laboratory instruments and experimental contact.BOKA has been improving the design and style of its products unceasingly.
