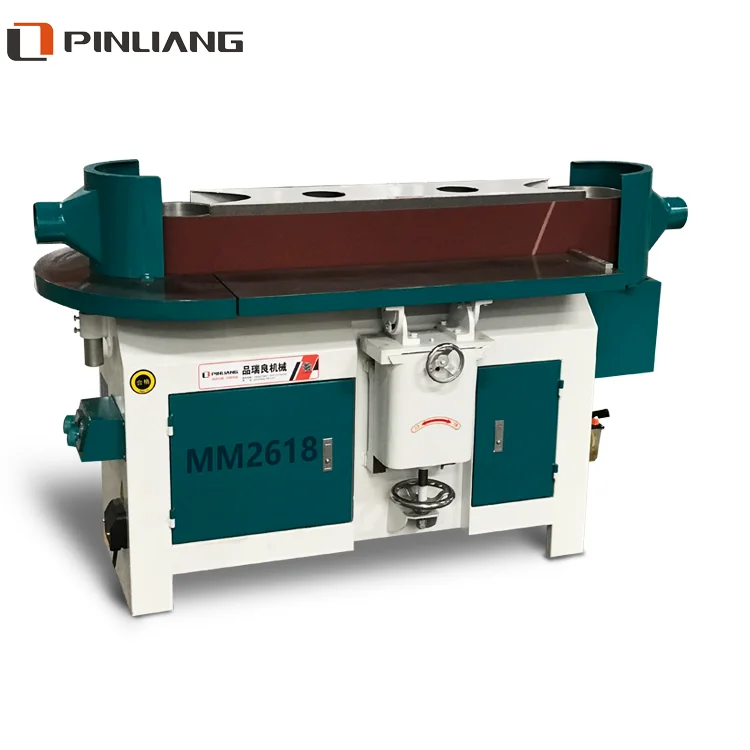

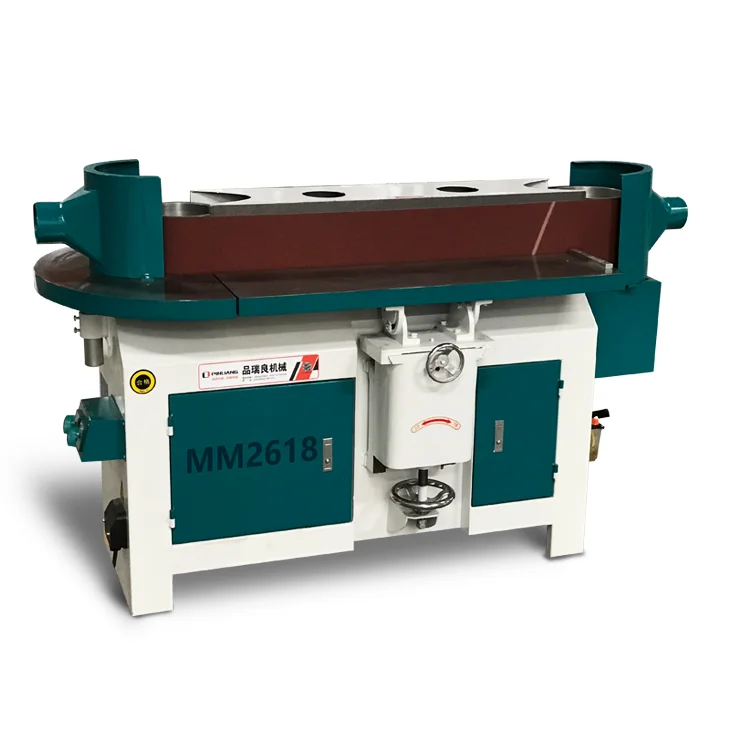

MM2617/MM2028 Shocking Edge Sander Machinery Horizontal Sanding Machine
- Category: >>>
- Supplier: Foshan Pinruiliang Machinery Co. Ltd.
Share on (60253600810):
Product Overview
Description
Product Description
Product Application
Vertical Dynamic Sanding Machine make the wood surface sanding, smooth.
SPECIFICATIONS FOR MM2617 / MM2028 VERTICAL DYNAMIC SANDING MACHINE | ||||||||
Detail Info. | MM2617 | MM2028 | ||||||
Sanding Belt Linear Speed | 9m/sec | Belt Circumference | 2900*280mm | |||||
Spindle Speed | 1420r/min | Belt Line Speed | 1000r/min | |||||
Sanding Belt Size | 3120*170mm | Belt Up and Down Travle | 30mm | |||||
Oscillation Motor Power | 4kw | Total Motor Power | 4.75kw | |||||
Oscillation Motor Power | 0.025kw | Dimensions | 1750*800*1150mm | |||||
Dust Outlet Dia. | dia. 100mm*2c | |||||||
Overall size | 1800*620*100mm | |||||||
Main Features
1) Simple structure , easy in installation and maintation.
2) Adopting good quality components in pneumatic parts , electric parts and operation parts.
3) Button control the die opening and closing.
4) Running in a high speed, pls connection to dust collector and to reduce wood dust.
5) This machine no need connect the air conveyor.
Detailed Images
Machine Parts

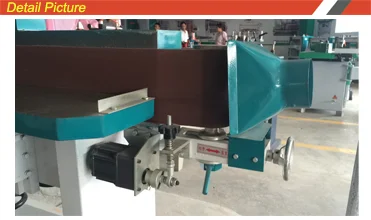

Name: Motor Power
Feature: Adopt gear motor with eccentric screw, make main shaft swinging, so as to realize abrasive belt at work move up and down, makes the workpiece can fully contact with abrasive belt, sanding effect is better.
Main Features

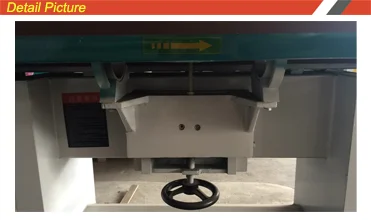

Name: Lifting plate castings
Feature: Operation platform, using the lifting plate, suitable for different thickness of the workpiece processing, the other half moon makes the operation of the machine platform can support structure Angle, cant take the artifacts that can be applied to processing.
Machine Parts

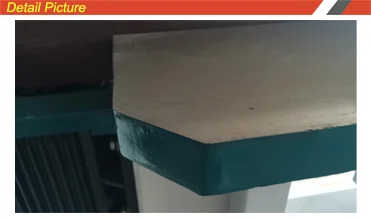

Name: The casting surface
Feature: With cast mesa, can maintain the stability of the work
Main Features

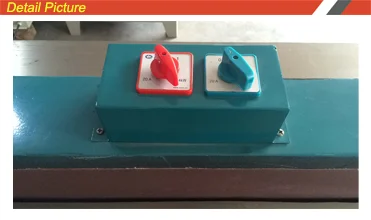

Name: Start Button
Feature: The simple rotary switch, easy to operate, and improve efficiency
Please Contact me
Based on this machine, there are still many details and features that are not explained. Please contact the customer service staff for details, and you can enjoy more discounts.Packing & Delivery
Size | 1800*620*1000mm | ||||
Weight | 200kgs | ||||
Size | 1800*620*1000mm | ||||
Weight | 200kgs | ||||
FAQ
Questions and Answers:
1. How to make an order?
You can order online by Alibaba, Or Email us your details, and we will contact you immediately and help you proceed with the orders.
2. Where is your factory?
Our factory is located in Foshan which is a famous city for producing the machine. It's about one and a half hour from Guangzhou Baiyun International Airport to our factory. Welcome to visit our factory any time. We can pick you up at the airport or Guangzhou hotels.
3. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.
4. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.
5. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.
6. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.
7. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.
8. What payment do you accept?
Normally we can provide TT, LC, PAYPAL, ESCROW, WESTERN UNION ect. Any other ideas, please contact us for better support.
