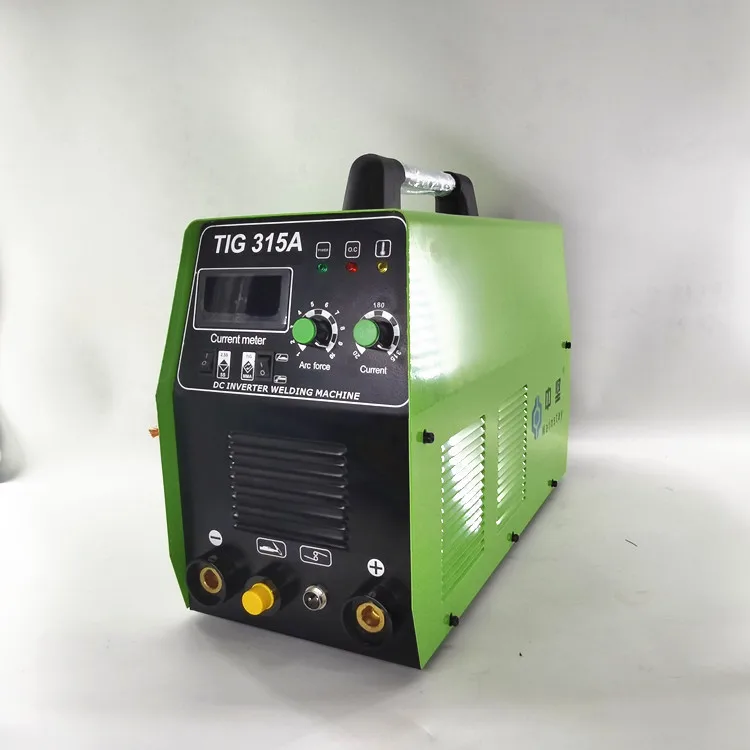

HF dc arc tig315 stainless steel welding machine supplier of mainstay
- Category: >>>
- Supplier: Huizhou Mainstay Electronic Co. Ltd.
Share on (60253661316):
Product Overview
Description
Product Description
HF dc arc tig315 stainless steel welding machine supplier of mainstay
Function And Features: tig315 stainless steel laser welding machine
1.Advance MOS inverter technology ,compact ,portable,high effective and low consumption .energy saving.
2.Anti-stick, thermostatic control ,fan cooled,Carrying strap and handle .
3.Hot start,arc force,overload protection .
4.HF(high frequency )ARC -starting .
5.Applicable for welding of all kinds of ferrous metalsmith such as low carbon steel,medium carbon steel and alloy steel ect.

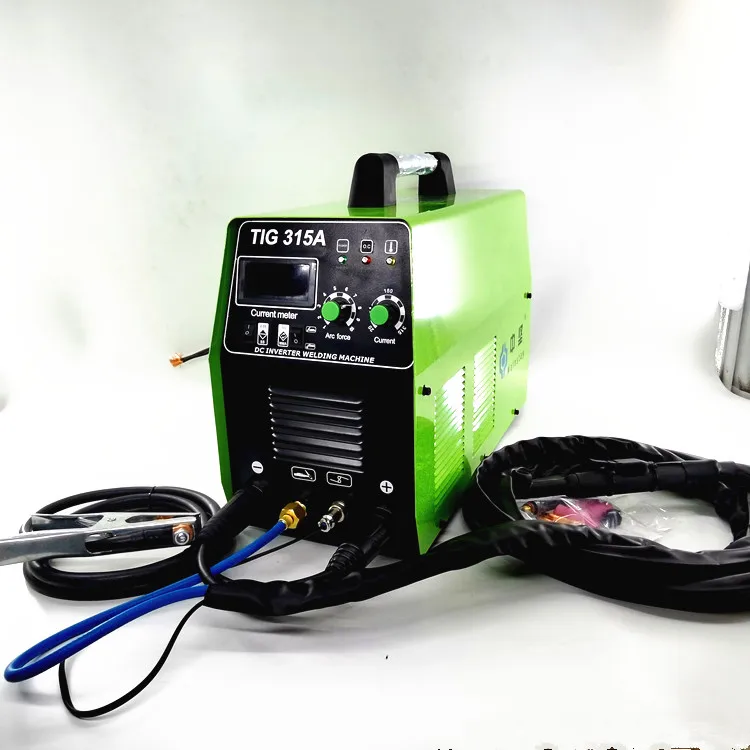

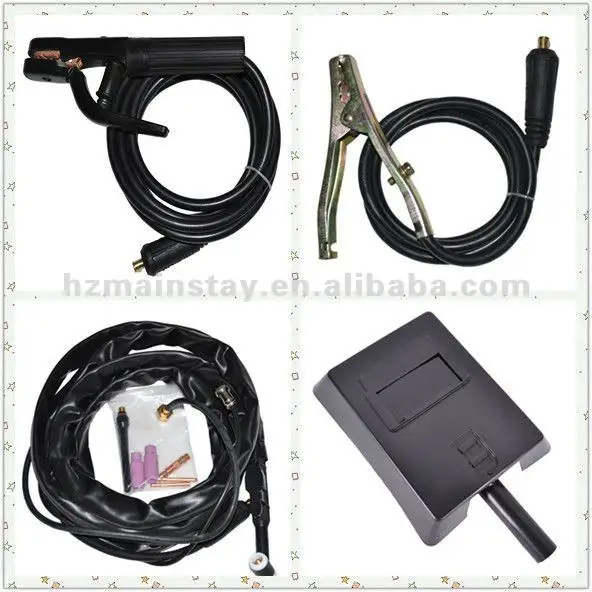

Standard Accessories: tig315 stainless steel welding machine
4M WP-26 torch+2M earth clamp
Main Technical Parameters: tig315 stainless steel welding machine
| ITEMS | UNIT | TIG315 |
| INPUT POWER VOLTAGE | V | AC380±10% |
| FREQUENCR | Hz | 50/60 |
| RATED INPUT CAPACITY | KVA | 12.8 |
| RATED OUTPUT VOLTAGE | V | 32.6 |
| OUTPUT CURRENT ADJUSTMENT RANGE | A | 10-315 |
| NO-LOAD VOLTAGE | V | 70 |
| NO-LOAD LOSS | W | 60 |
| RATED DUTY CYCLE | % | 60 |
| ARC START MODE | HIGH FREQUENCY | |
| OUTER CIVERING PROTECTION RANK | IP21S | |
| OVERALL DIENSION | MM | 540x205x305 |
| WEIGHT | KG | 15 |
