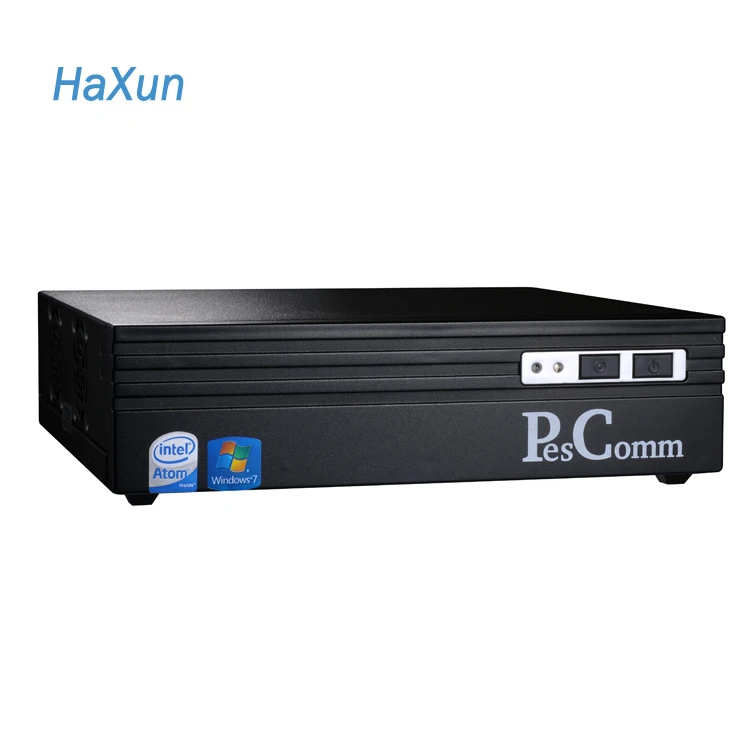

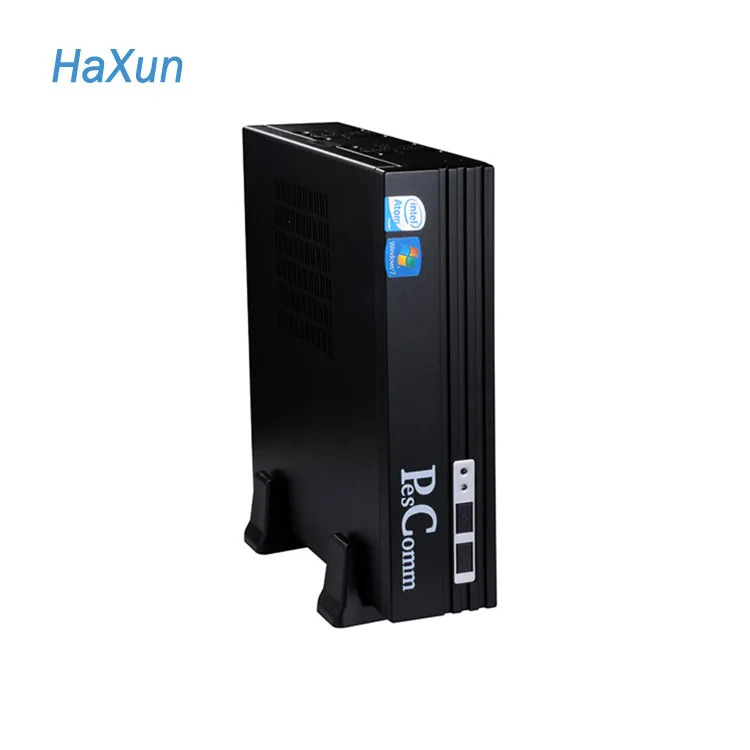

Small mini pc computer with J1900 quad cores could upgrade to core i3, i5, i7

Product Overview

Description

We are computer hardware developer and Manufacturer, IT Solution provider, Develop and produce Embedded Motherboard, Panel PC, Mini PC etc

•CPU: Support Atom, Celeron, Haswell, Broadwell i3 i5 i7 Series.

•Storage: mSATA SSD+HDD up to 2TB

•Memory: 2GB to 16GB

•Expand:

        2 x Gigabites Lan Ports

        MINI PCI-E Port, Support 3G/4G, WIFI

•Input Voltage: 12V DC

Main Board	•Intel® Atom™ D2550 Dual Core processor, 1.86GHz •Intel®J1900 Four Core processor, 2.0GHz • Intel® Core™ i3/i5/i7 Series
Main Memory	•1 x DDR3 SO-DIMM socket, support up to 8GB DDR3 1333/800 SDRAM
Storage	• 1 x mSATA SSD+1 x 2.5" SATA HDD drive bay
Lan	•Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan
Audio	•Realtek ALC662
Watchdog Timer	•255 levels, 0~255 sec
BIOS	•AMI 16MB DPI Flash ROM
Expansion	•2 x Mini-PCIe socket onboard •Default: support optional Wi-Fi module •Option: support 3G module
I/O Interface-Front	• Power on/ off switch

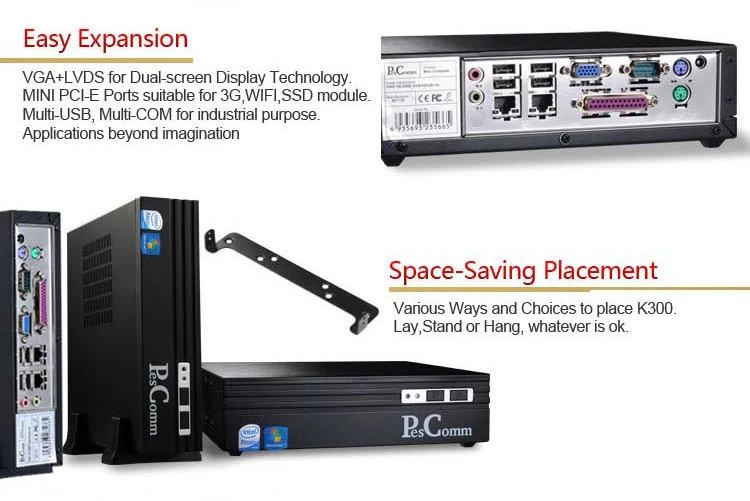

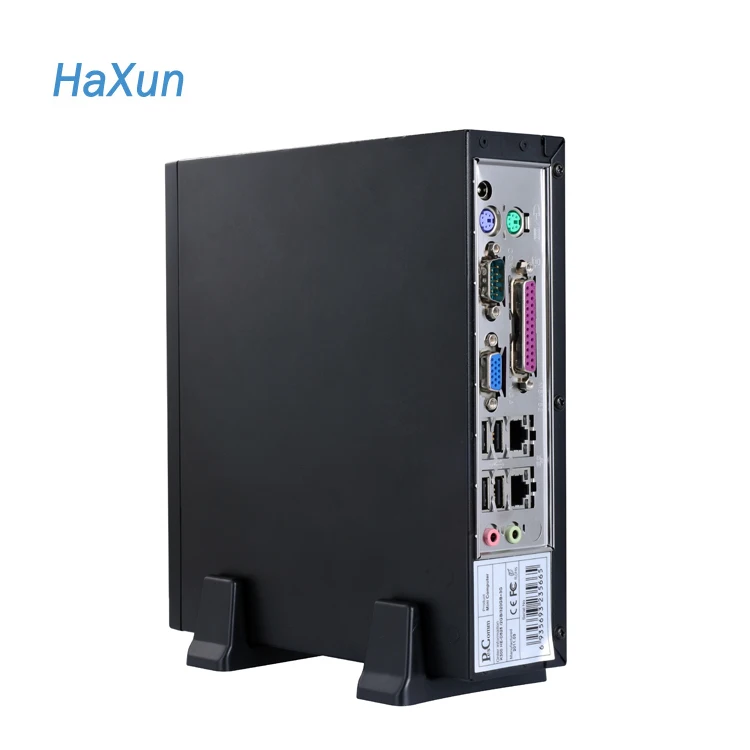

I/O Interface-Rear	•4 x USB 2.0 •2x COM •1 x RJ45 or 2 x RJ45 •1 x VGA •1 x MIC-in •1 x Headphone •1 x DC IN •1x Parallel(LPT) •1x PS/2
Power Requirements	•12V DC IN
Dimensions	210*56*200mm
Construction	•Metal+ABS





A: Yes, we can support OEM/ODM service.The process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.

2, Q: What is your MOQ?
A: MOQ= 1 piece

3, Q: What is the lead time for industrial panel pc?
A: 3-5 working days for the sample,15-25 working days for a large quantity.

4, Q: Do you have aftersales services?
A: Yes, we can provide after -sales services, once you have any questions, you can consult with our hardware engineers.

5.Q: What payment method do you accept?
A: L/C, T/T, Western Union, PayPal and Alibaba Trade Assurance so on.

6,Q:Are you manufacturer?
A: yes, we are Computer Hardware developer and Manufacturer, IT Solutions Provider, our factory located in Shenzhen .
