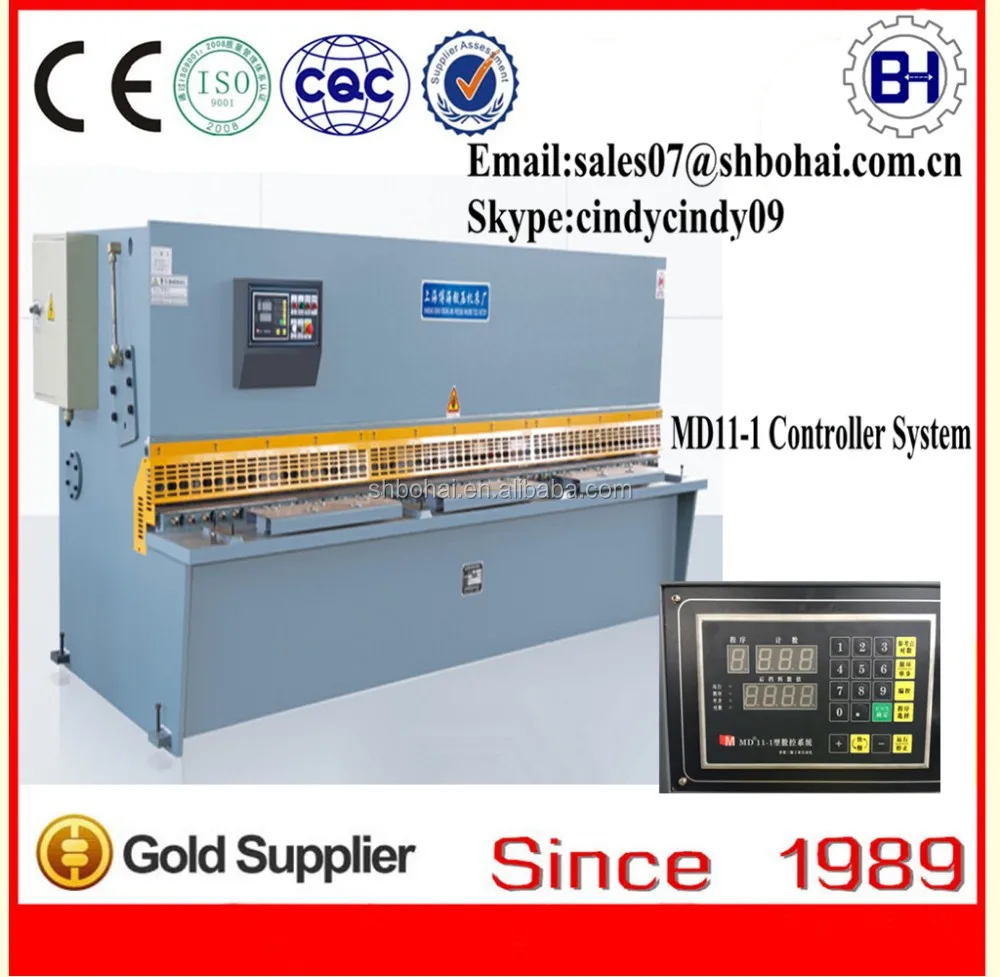

HYDRAULIC CNC CUTTING MACHINE/PLATE CUTTER/METAL SHEARING MACHINE/QC12K/Y 12*4000
- Category: >>>
- Supplier: Shanghai Bohai Machinery Manufacturing Co. Ltd.
Share on (60254013202):
Product Overview
Description
Technical Files
Model: HYDRAULIC CNC CUTTING MACHINE/PLATE CUTTER/METAL SHEARING MACHINE /QC12K/Y - 12*4000
Blade Gap Adjust Handwheel
| Integrated Hydraulic Valves
| MD11-1 controller
|
ACME Screw 30°TREZ
| Motorised Backgauge
| Electrical Components
|
Shear Blade
| Finger Guard & Ball Transfer Table
| Foot Pedal
|
Technical Data
The above date is just for your reference.if there is any disaccord please refer to actual adate.
Characteristic and feature
lAssisting blade pedestal on worktable is convenient for micro adjustment.
lRolling material support ball is provided on worktable, convenient operation.
lUsing stepless adjusting structure to regulate the gap of blades, adapt to different thickness and materials.
lThe adoption of four-side edge shearing blade prolongs the service life of blade.
lRegulating shearing process not only increases the production efficiency but also achieve the function of segment shearing.
lIt is provided with counting function for shearing to decrease the numerous artifical counting.
Hydraulic system
lAdvanced hydraulic integrated system is employed and the pipeline connection is minimized, to ensure the system reliability and safety.
lIt is consisted of some pressure feed cylinders installed at support board in front of machine frame. Pressure head press down against the pull force of stress spring, press plate tightly. After finishing cutting, the cylinders are reset by the pull force of stress spring. The pressure is bigger as thicker as the thickness of plate.
Back gauge
Back gauge is fixed on up-cut board, pendulum up and down as up-cut board. Adjust back gauge by 0.55Kw motor, reduce speed through gear, and drive by control rod. Brake down the button “+” (or”-”), can adjust gauge to front or back. When mechanic adjustment cannot get the necessity valve, turn hand-wheel to demanding value, the adjustment of back gauge is convenient and reliability. When the length of cutting plate is longer than the max distance of back gauge, remove the back gauge to the least place, lift up the board by the incline surface of support frame, and can cut any length of plate.
MD11-1 Functions
·Using servo-control technology
·Electrically operated rear bumper material and previous slide automatic positioning
·Entire Chinese operation contact surface,direct-viewing simple
·The multi-channel proced ure moves auto matically,procedure and procedure step link
·Keeps off the material to make conc essions automatically
·Programmable 10 jobs
·Stroke counter function
·Retract function
·Power off Memorization
·X-axis Software Limitation
·Inch/MM
Company Profile
As the parent company of Shanghai Wanjiao Machine Tools Co.,Ltd and Maanshan Huayu Machine Tools Co., ltd,BOHAI owns one of the the most contemporary production plants in the industry in China.
The main pruducts of the company are guillotine shears,hydraulic swing beam guillotine shears,hydraulic plate bending machine and other complete set of forging equipment,various type of toolings and cutters,spare parts for machine tools etc.Three different ISO certified factories producing different product families employ 300 employees.
In order to offer customer solutions and further develop patents, the BOHAI R&D center opened in 2000. Now, there are fifteen engineers serve for the R & D center.
Designed and engineered with modern technology, Bohai products are equipped with high quality and proven readily available components.
Established in 1989, Bohai has vast experience in building and supplying high quality products. With over 60,000 machines delivered worldwide, Bohai has earned a reputation as a supplier of innovative “value oriented” solutions.
We promise solemnly:BoHai honor,is our each person’s honor,only hard work,in order ro maintain the honor,enterprises can develop continuously,continue to grow together with customers,will be rooted in the integration of resources of the world back to the world,is the ultimate goal of BoHai enterprises.
Our company will grasp the opportunity,gather large number of talented people,increase competitive power in the science and technology of products,accelerate enterprise development and provide higher quality products and service for our new and old customers.
