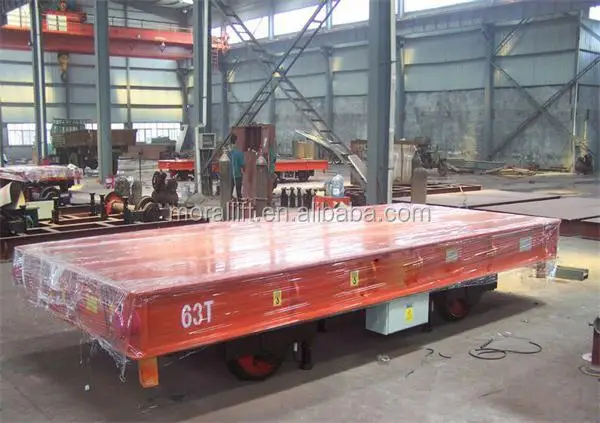

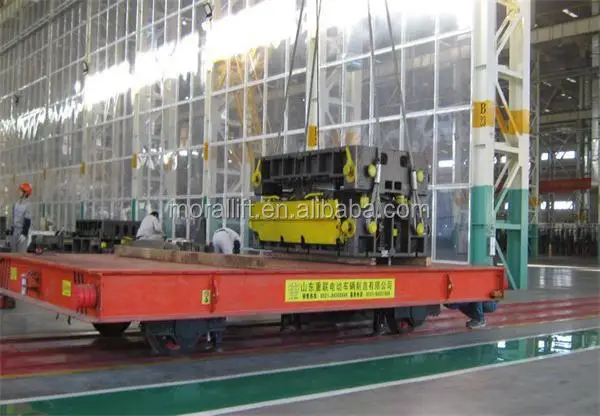

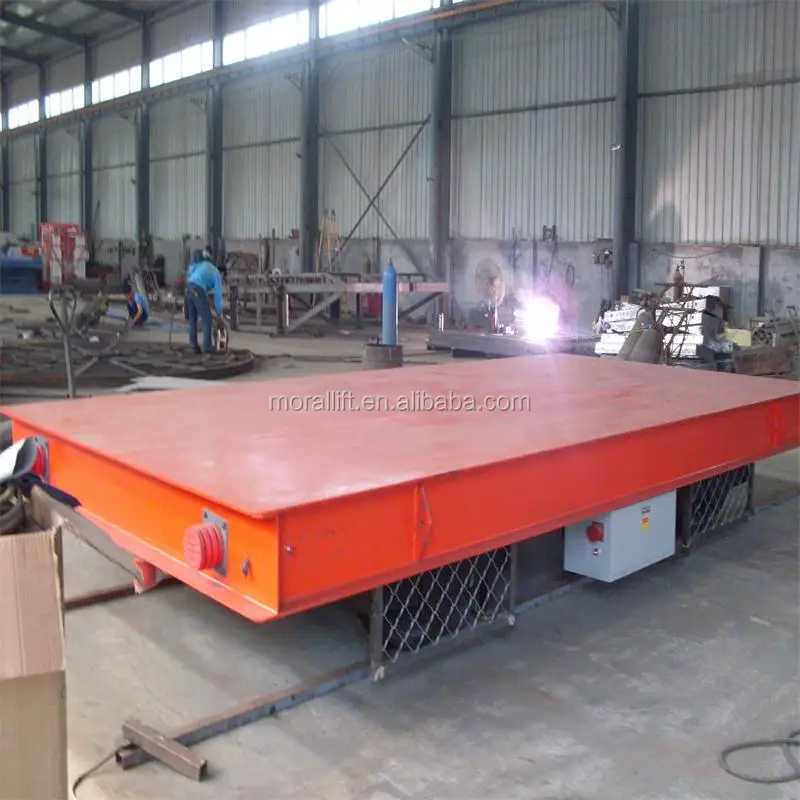

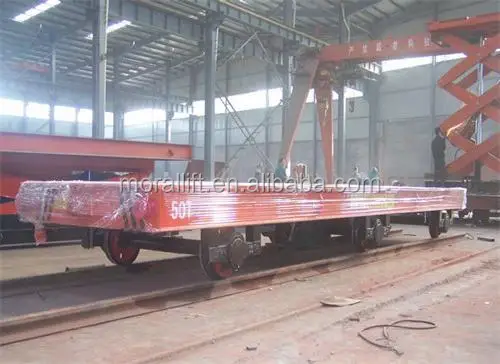

steel coil handling large table electric flat bed rail transfer car

Product Overview

Description

       steel coil handling large table electric flat bed rail transfer car



  KPD type low voltage rail transfer cart is a low-voltage electric power supply rail flat car, its working principle is to control blood pressure through the ground system, the 380V power supply (three-phase or single phase) voltage down to 36V safe voltage. Fed to the conductor rail (flat as both conductor rail tracks of moving vehicles), the conductive device by the flat car sent the car will be low voltage step-up transformer, step-up to 380V in order to drag the three-phase or single-phase capacitor motors, Flat Car driver to run



Low voltage rail transfer cart ues of not only security, but not afraid of



hot, not afraid to drop it, without prejudice to the cross transport, easy to implement remote control and



automation, can be in the corners, circular trail running, and appropriately increase the number of



step down transformer can not flat car to run away from the restrictions, to the factory floor to great



transport convenience.



 KPX railway battery flat car

Product description:

1.KPX railway battery flat car is powered by the storage battery. It is a kind of transport vehicles indoor.The batteries supply electricity to the DC motor through the electrical control system. Then the reducer drives the wheels of the flat carts start, stop, go forward and backward, and the speed can be adjusted at the same time. The professional charger can give electricity to the battery when the battery is no power.



2.KPX series battery railway flat car the DC rechargeable battery. It has many characteristics, such as simple structure, easy operation, carrying capacity and so on. Besides, it can be used in special occasions without power and transport for long distance.



3.This series car can be widely used in machinery factories, warehouses and metallurgical plants as a workshop transport or with the crane transport heavy loads over cross.



4. It mainly includes car frame, brushless DC motor, reducer, wheel, storage battery, charger, etc.It also can be used in the ferry condition and flammable, explosive environment and the hydraulic lifting device can be installed on the flat carts. This kind of heavy duty electric flat car for shipbuilding is suitable to be used in the long running distance transportation and low using frequency











Working principle







The batteries supply electricity to the DC motor through the electrical control system. Then the



reducer drives the wheels of the flat carts start, stop, go forward and backward, and the speed



can be adjusted at the same time. The professional charger can give electricity to the battery.















Technical parameter



Model	KPX-50
Rated Load(t)	50Ton
Table Size(mm)	3600*2000*500
Wheel Base(mm)	2600
Rail Gauge(mm)	1435
Wheel Diameter(mm)	300
Wheel Quantity	4
Ground Clearance(mm)	50
Running Speed(m/min)	0-25
Motor Power	1.6
Battery Capacity(Ah)	160
Battery Voltage(V)	48
Running Time When Full Load	4.8
Running Distance for One Charge(Km)	7.2
Max Wheel Load(KN)	42.6
Reference Weight(t)	4.2
Recommended Rail Model	P18
