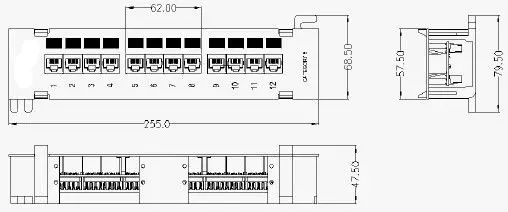

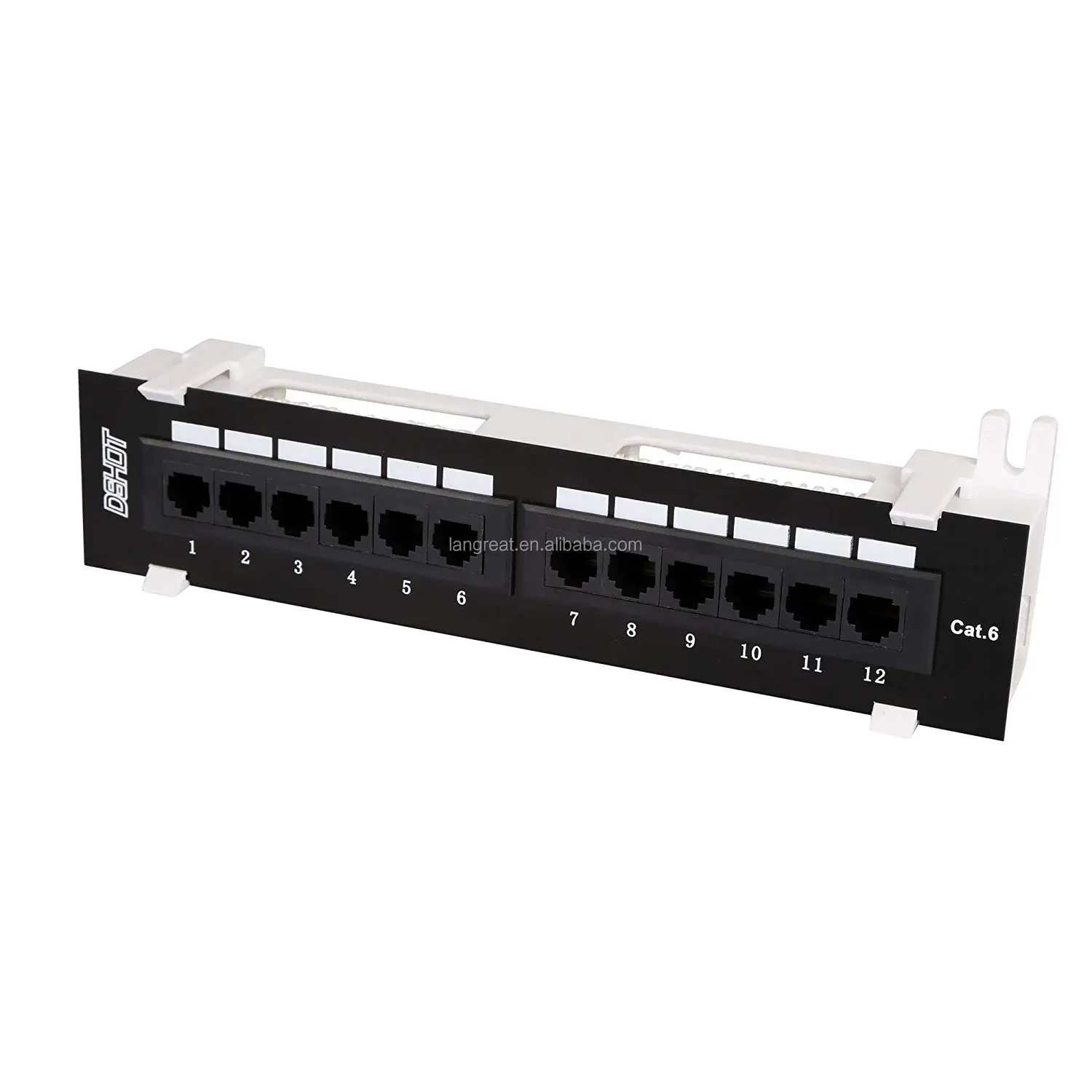

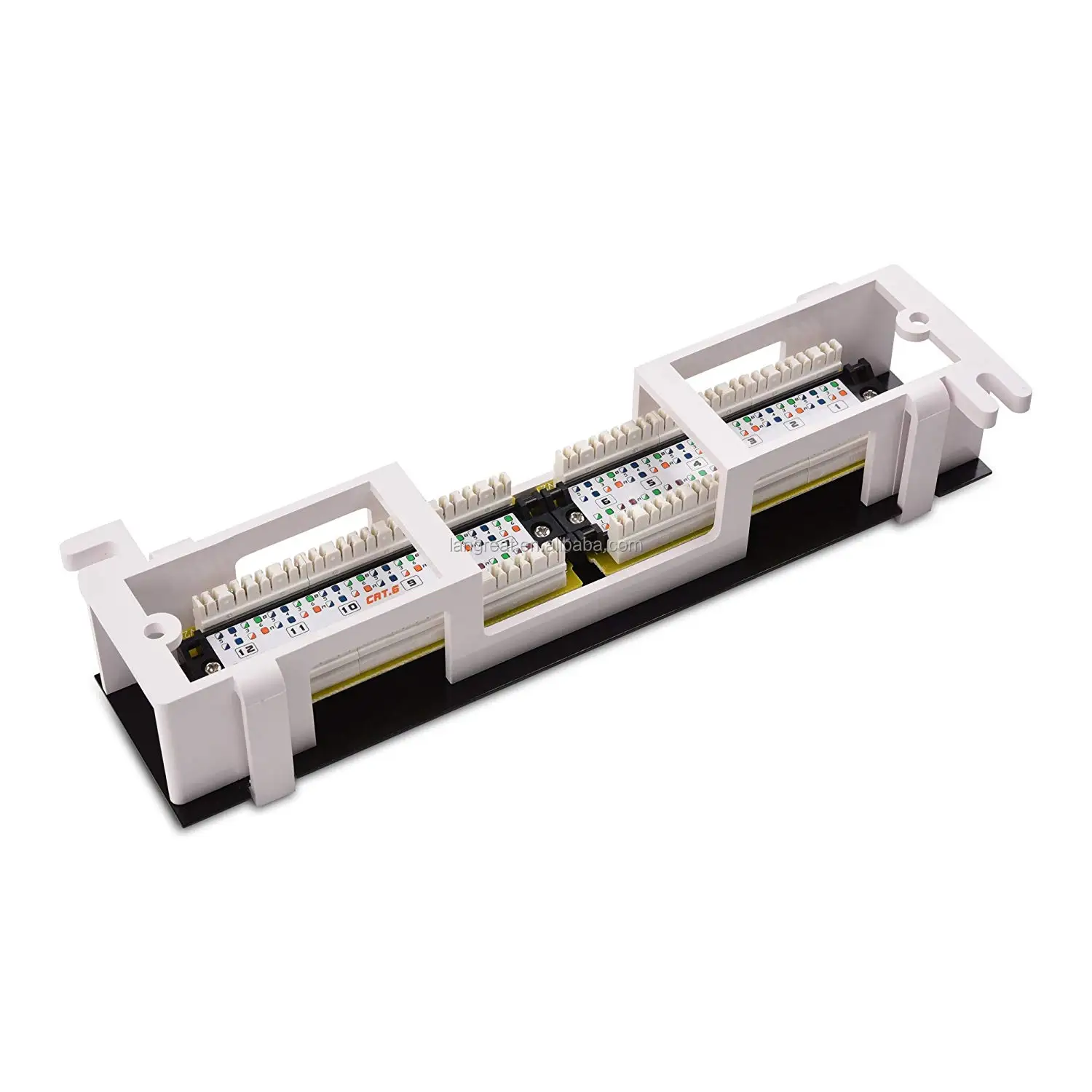

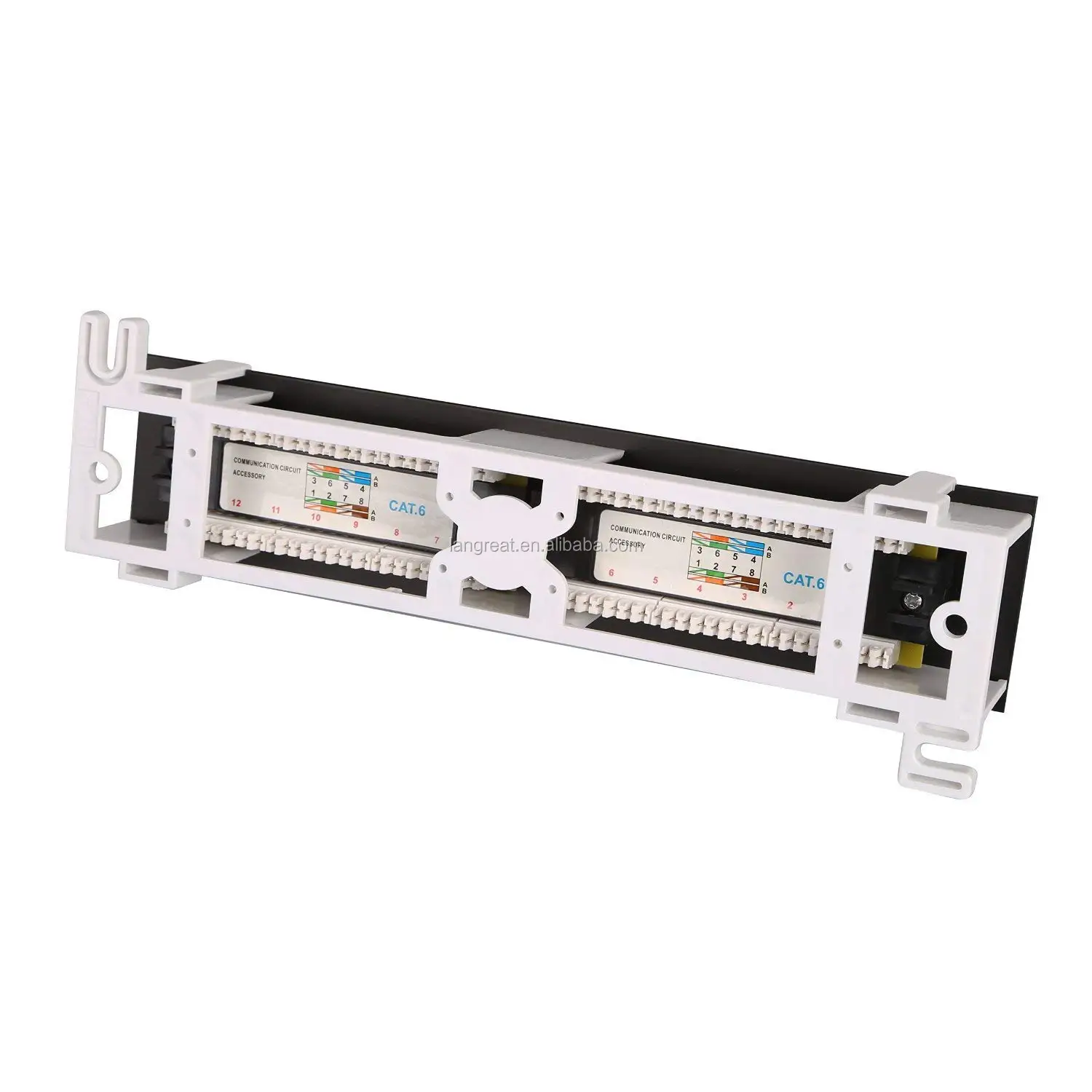

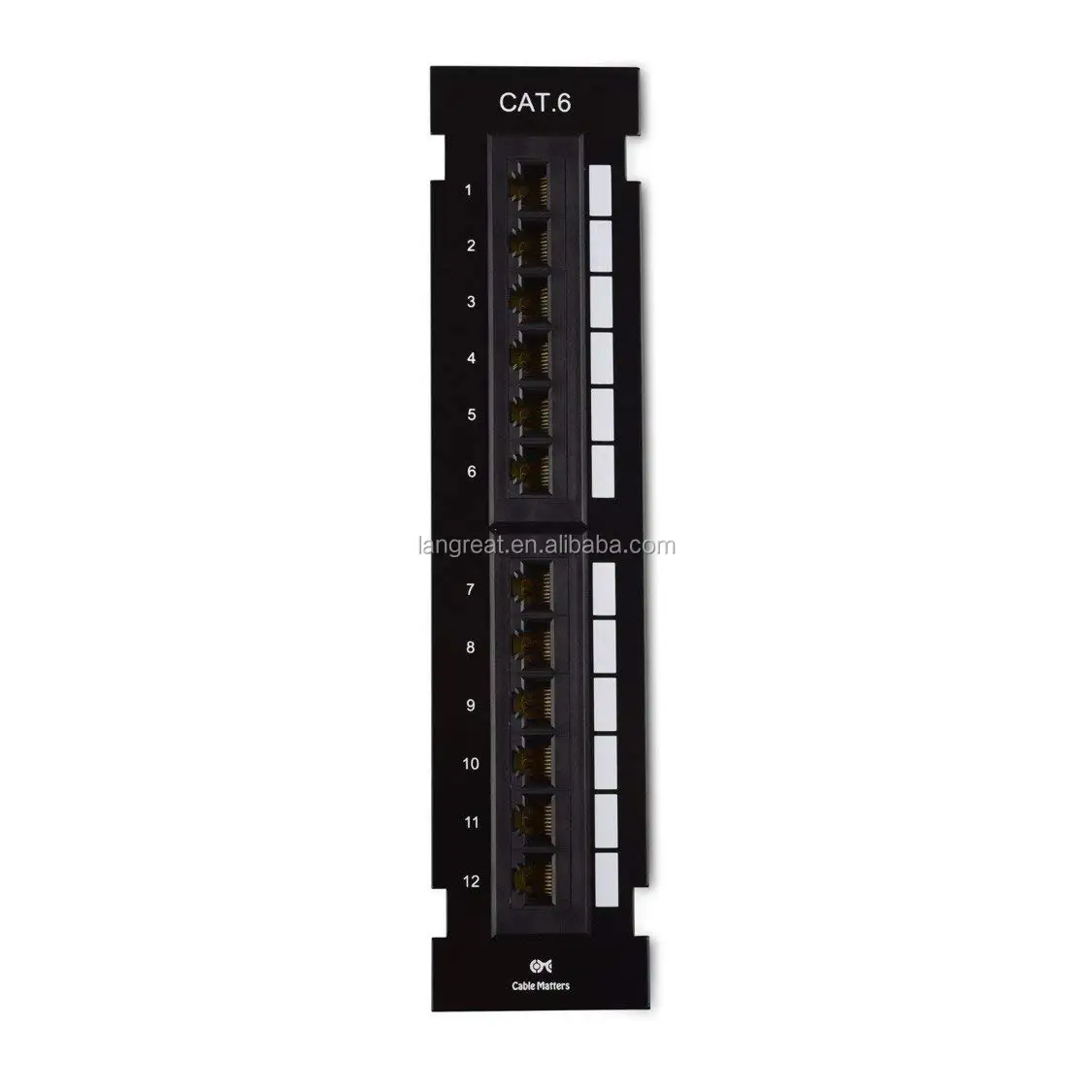

Патч панель настенная cat6 cat5e cat6a utp, 12 портов с 89Dbracket

Cat5e utp 12 port patch panel wall mount type

Main Description of The Product:
1. 12 ports patch panel, Cat.5e UTP type. The structure of each port of this patch
     panel is same which makes sure that the performance of each port is consistent.
2. According to the standard of ISO/IEC 11801:2000 CLASS D and ANSI/TIA/EIA/568B
     Cat.5e standard. T568A punching sequence and T568B punching sequence are both
     compatible. Fitting for horizontal distribution in the equipments room and
     equipments connecting.
3. Connecting: FCC port for Cat.5e UTP patch cord and IDC for horizontal distribution
     cables.
4. Compatibility: Compatible for UTP Cat.5e general cable distribution systems.
5. IDC: 110 type or dual use type for your choice.

Technique Characteristics:
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Shielding shell
     of the RJ45 jack: Brass housing with nicket-plated; IDC clip: Tinned phosphor
     bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports
     inserting duration: 750 times.
4. Cabling sequence: T568A & B.
5. Punching tool: Standard 110 tool for 110 IDC, Standard LSA tool for LSA IDC.
6. Testing condition of transmitting capability: 100MHz
