2015 BEST BUY!! High efficiency 8 ohm 900W 15 inch Neodymium speaker
- Category: >>>
- Supplier: Guangzhou Panyu District Shiji Hiwell Audio Equipment Factory
Share on (60254496100):
Product Overview
Description
Product Description
Guangzhou Hiwell Audio Equipment Factory
--Professional audio woofers, drivers and OEM designs.
Model: 15HW123A
Features:
High efficiency 98.2dB SPL, 8 OHms neodymium 4.18% ,Die cast Aluminum Frame
75.5mm 3 inch fibreglass inside-outside copper voice coil Til Former
Triple-roll surround and corrugated straight cone geometry
Re=5.1 Low distortion
Extremely Light Weigth of 5Kgs
Optimal for compact 2 or 3 way pa loudspeaker system
| Specifications | ||
| Nominal Diameter | 390/15 | mm/inch |
| Nominal Impedance | 8 | Ohm |
| Minimum Impedance | 6.4 | Ohm |
| Power handling | ||
| (50-500Hz) | ||
| Nominall | 450 | Watts |
| Continuous Program | 900 | Watts |
| Sensitivity (1W/1m)3 | 98.2 | dB |
| Frequency Range | 37-3000 | Hz |
| Voice Coil Diameter | 75.5/3 | mm/inch |
| Winding Material | SV | |
| Former Marerial | Til | |
| Winding Depth | 14 | mm |
| Magnetic Gap Depth | 9 | mm |
| Flux density | 1.2 | T |
| Thiele-Small parameters4 | ||
| Fs | 37 | Hz |
| Re | 5.1 | Ohm |
| Qes | 0.329 | |
| Qms | 5.26 | |
| Qts | 0.31 | |
| Vas | 277.809 | mM3 |
| η0 | 4.18 | % |
| X max | +/-5 | mm |
| X mech | +/-20 | mm |
| Mms | 80.15 | g |
| BL | 17 | T.m |
| Le | 33.67 | mH |
| Sd | 92.4 | mM2 |
| CMS | 229.141 | uM/N |

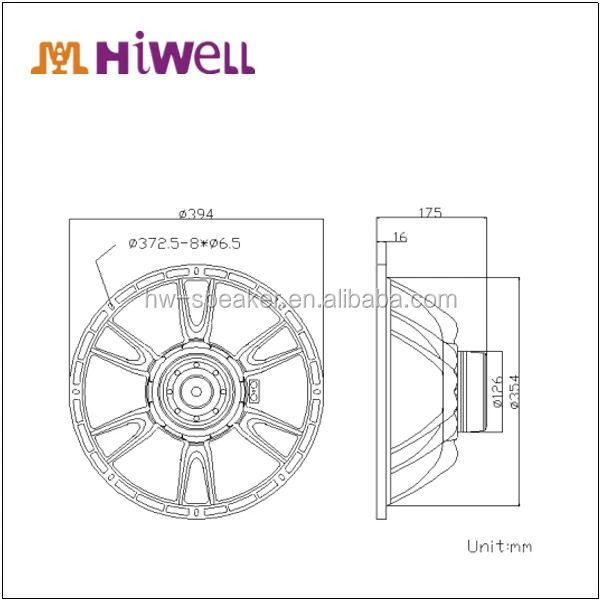

| Mounting and Shipping Information | ||
| Blot Circle Diameter | 372.5-8*6.5 | mm |
| Overall Diameter | 394 | mm |
| Baffie Cutout Diameter | 354 | mm |
| Depth | 175 | mm |
| Flang and Gasket Tickness | 16 | mm |
| Net Weight | 5 | Kg |
| Shipping Weight | 6 | Kg |
| Shipping BOX | 400*400*210 | mm |
| Magnet size | 74*15*10 | |
Packaging & Shipping
Shipping information:
1.Sample order: Send by air (DHL or EMS service)
Delivery time: 10-15 days after full payment
2. Production order: Send by sea
Delivery time: 25 days after 30% of payment.
