0.7mm thick Stainless steel kitchen hood

Product Overview

Description

Aisen Range hood----198KN



Material	SS304 / SS430  (0.7mm thickness)
Air Flow	760m3/hr  (450CFM)
Motor Input power(W)	170W
Switch control	S1 5 button push button switch
Glass	6mm  tempered glass
Noise(db)	≤65 dbA
Air outlet	150 mm
Chimney height	404+404mm

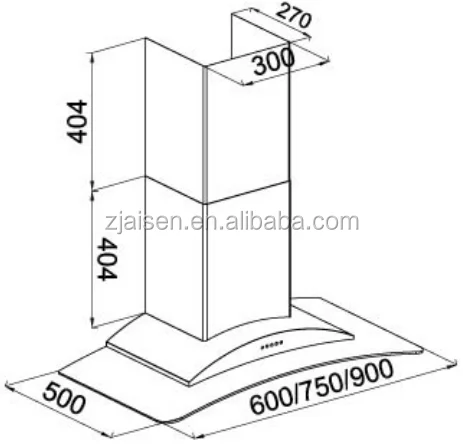

Drawing







Details:

(1)0.7mm thick #430 or #304 stainless steel raw material

Our stainless steel is  0.7mm , not 0.6mm or 0.5mm



(2)170W Full sealed aluminum motor

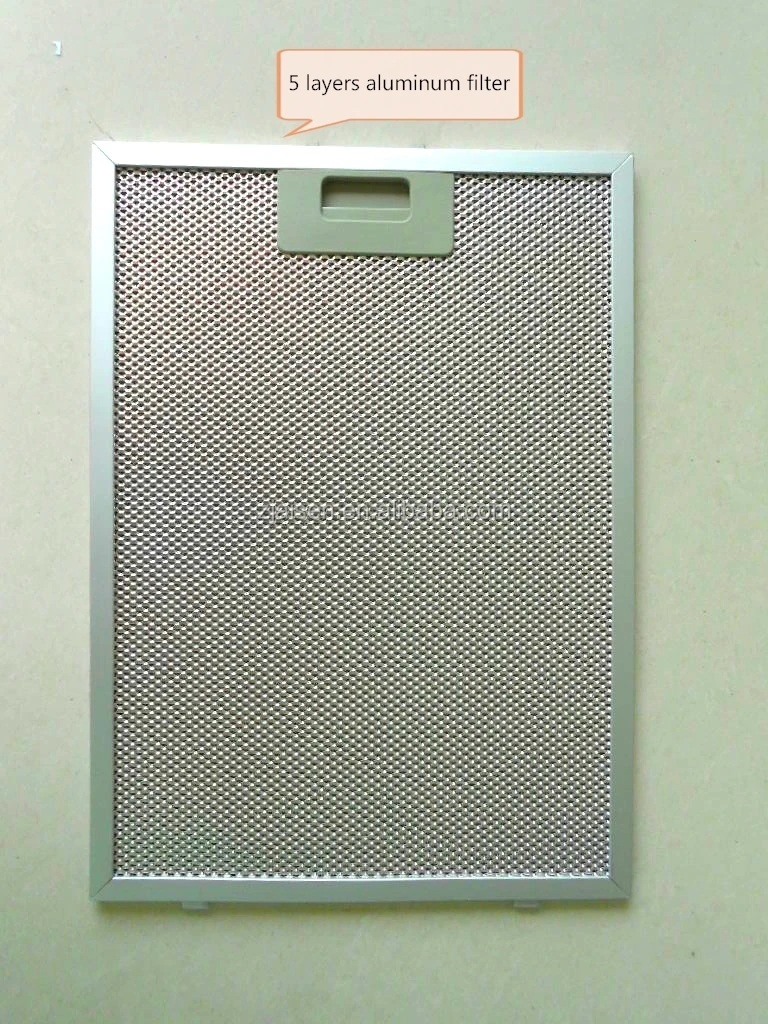

(3)5 layers aluminum filter

Our aluminum filter is up to 5 layers not  3 layers or even less 2 layers.

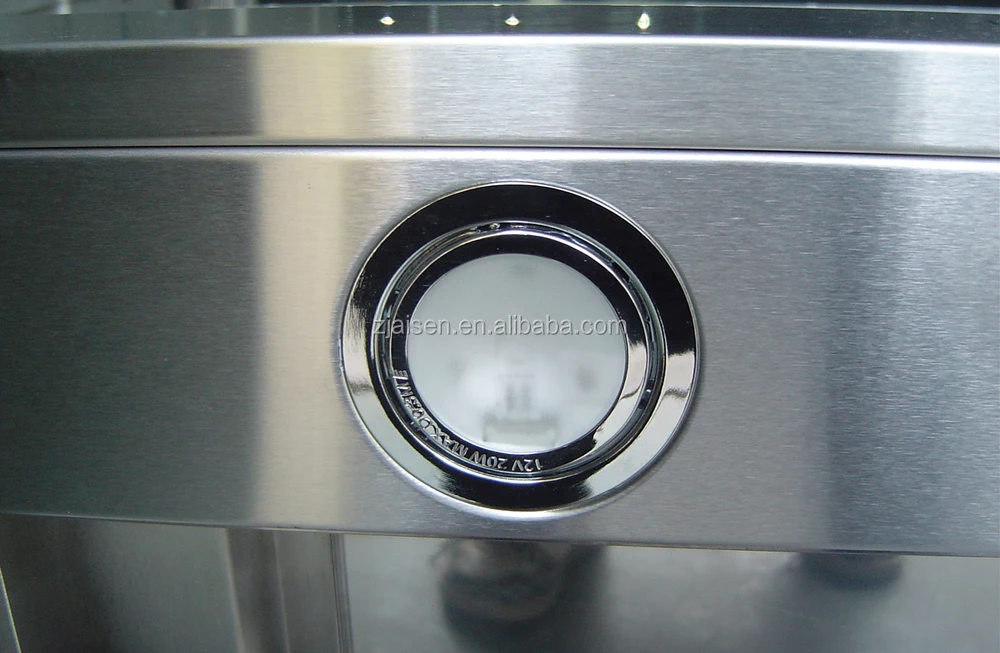

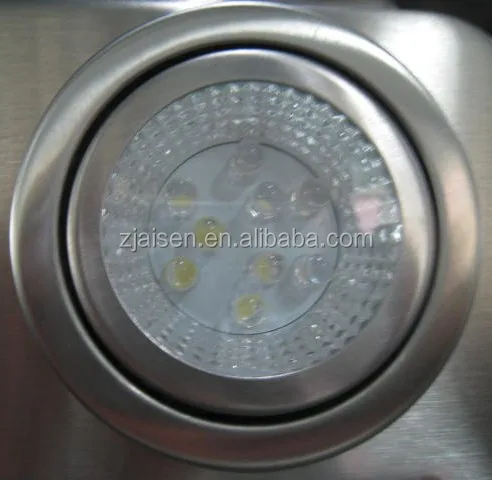

(4)Halogen lamps:20W *2 or 2W*2 LED lights

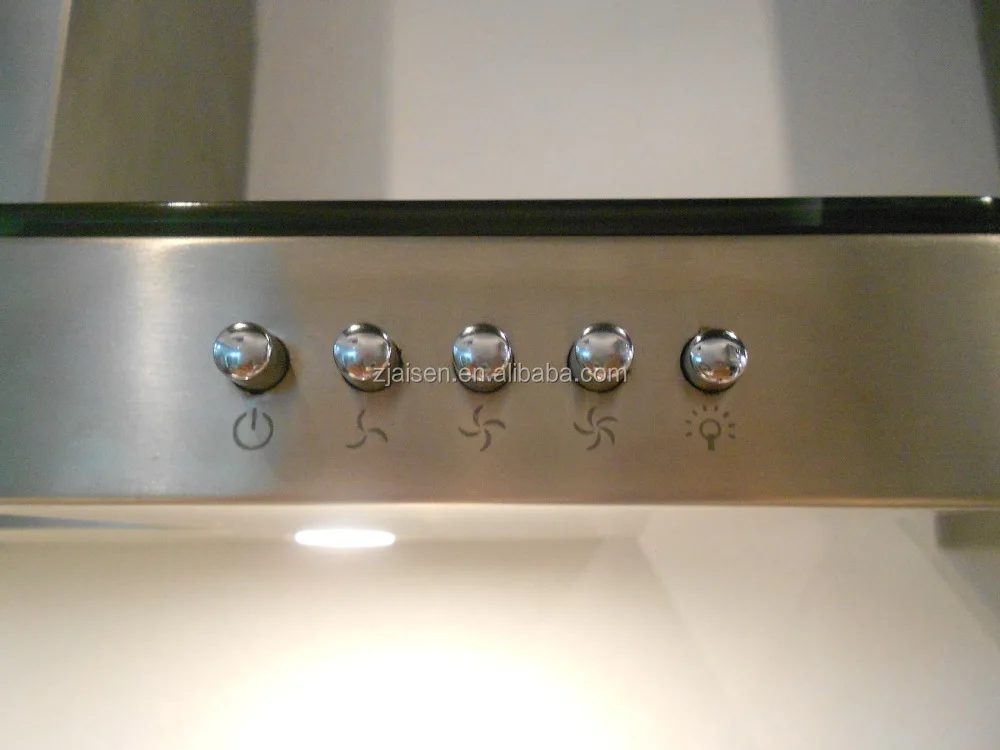

(5)   S1 5 button push button switch , you can choose other switch.

(6)404+404mm chimney height---two sections



(7)6mm tempered glass or 8mm



(8)Packing ways:Plastic bag+foam+5 layers corrugated carton



(9)Aisen company photos





(10)Aisen certifcate--CE/CB/GS/ETL/SAA





 (11)Loading information

Hood Width	600mm	750mm	900mm
GW/NW   (KGS)	--	22/19	23/20
Packing size   (cm)	--	81*43*57	96*45*66
20'GP Loading	--	139 PCS	119 PCS
40'GP Loading	--	288 PCS	240 PCS
40'HQ Loading	--	328 PCS	340PCS
MOQ	1*20GP



 (12)Installation for wall mounted hood



(13)Trouble Shooting
