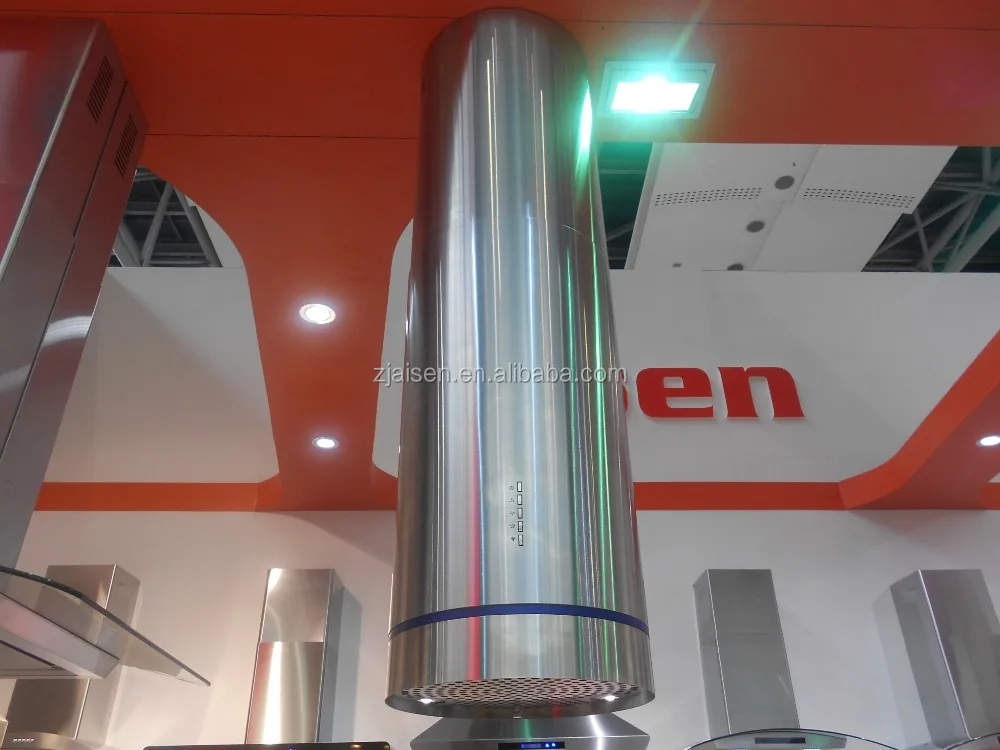

C Cylinder island Range hood

Product Overview

Description

Aisen Island Range hood----H553



Material	SS304 / SS430  (0.7mm thickness)
Air Flow	760m3/hr  (450CFM)
Motor Input power(W)	170W
Switch control	Sensor touch switch
Glass	4mm tempered glass
Filter	5 layers aluminum filter
Noise(db)	≤65 dbA
Air outlet	150 mm
Chimney height	495+495mm

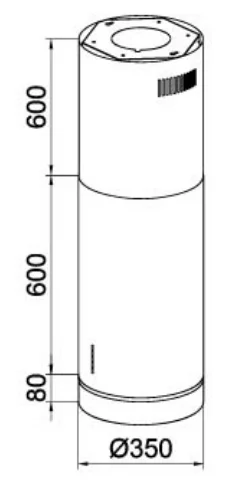

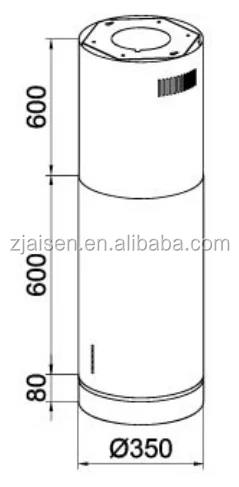

Drawing





Details:

(1)0.7mm thick #430 or #304 stainless steel raw material

Our stainless steel is more than 0.7mm,not like other factory use 0.6mm even less than 0.5mm stainless steel.



(2)170W Full sealed aluminum motor

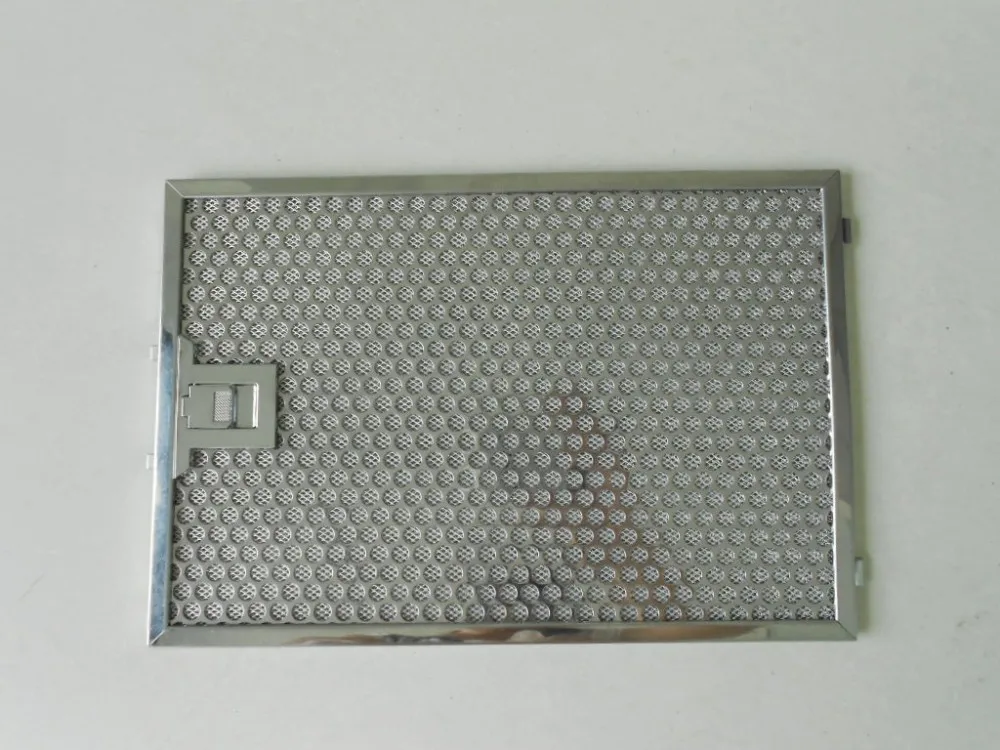

(3) Aluminum+Stainless steel filter

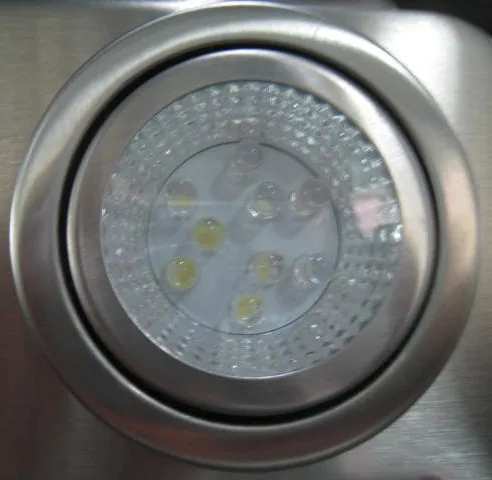

(4) LED lamp:3W *3

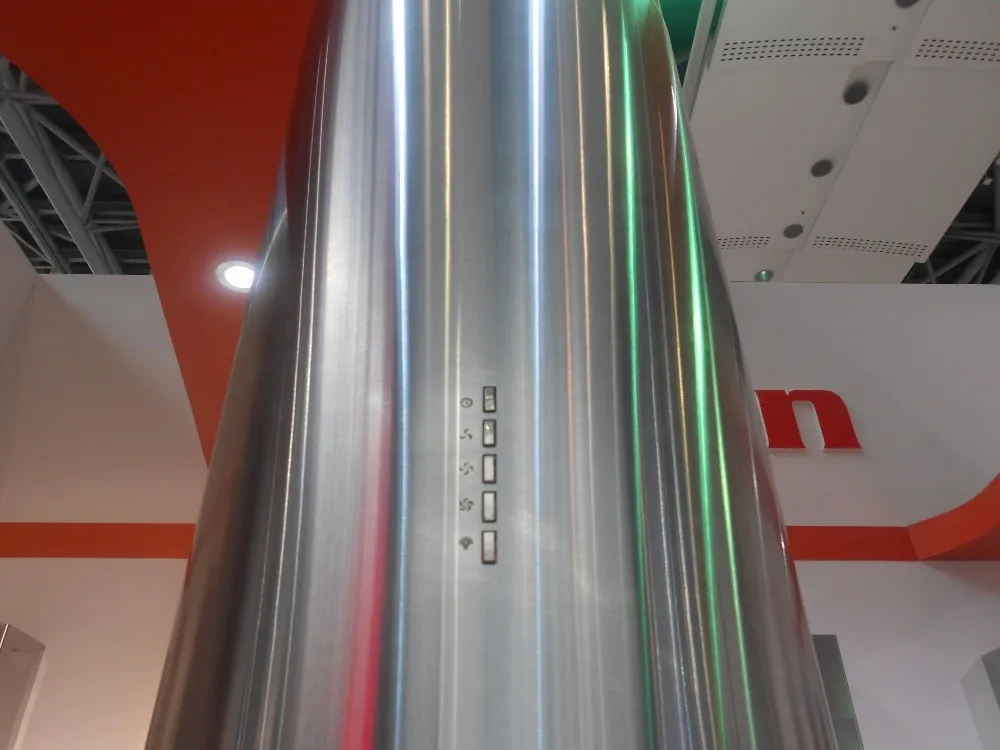

(5) Square Push button switch

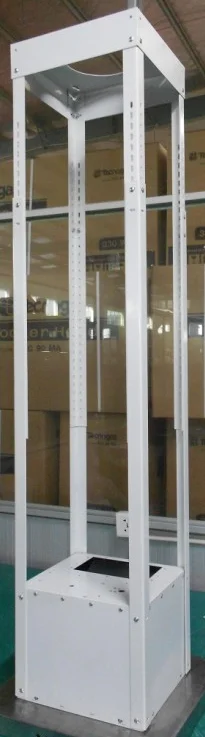

(6)600+600mm chimney height---two sections include lifting frame

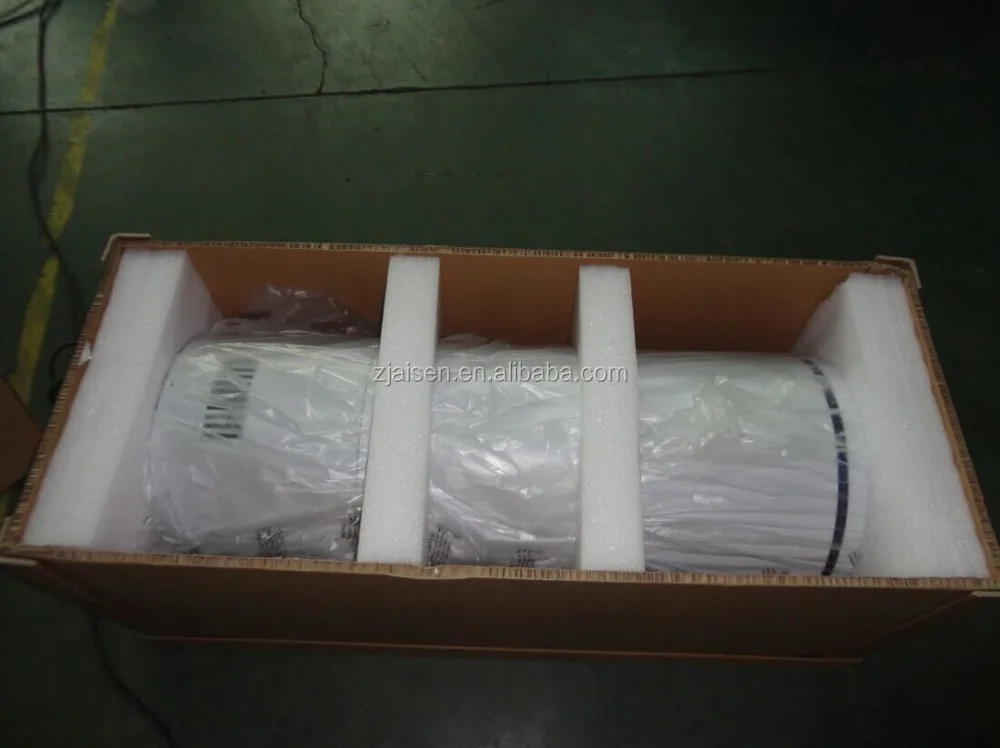

(7)Packing ways:Plastic bag+foam+5 layers corrugated carton



(8)Aisen company photos





(9)Aisen certifcate--CE/CB/GS/ETL/SAA





 (10)Loading information

Hood Width	600mm	750mm	900mm
GW/NW   (KGS)	21/17	23/21	32/28
Packing size   (cm)	66*38*57	81*38*57	96*45*60
20'GP Loading	201 PCS	167 PCS	110 PCS
40'GP Loading	420 PCS	344 PCS	223 PCS
40'HQ Loading	457 PCS	372 PCS	240 PCS
MOQ	1*20GP

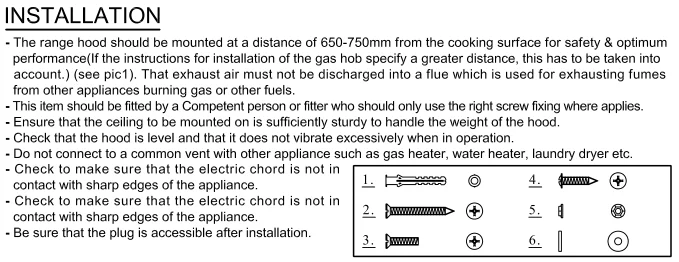

(11)Installation for island hood



(12)Trouble Shooting



Problem	Reason	Action
Can not function	No electrical supply	Check that the plug is connected. Check that the main switch is turned on.
Poor air flow	Aluminum grease filters clogged	Clean the filters and replace when dry.
	Charcoal grease filters clogged	Replace charcoal filters with new sets.
No air flow	Butterfly valve jammed	Contact technician.
Motor cuts after a few minutes	High temperature safely device activated	The hood is installed too near the cooking stove. The kitchen is not suffciently ventilated.
Strong cooking smell	Charcoal filters not installed	In re-circulating mode,charcoal filters must be installed.
