USC80Plus Medical Pregnancy OB/GYN Abdomen Fetal Portable Diagnostic Ultrasound Machine for Sale
Click Products, You will find more solutions.

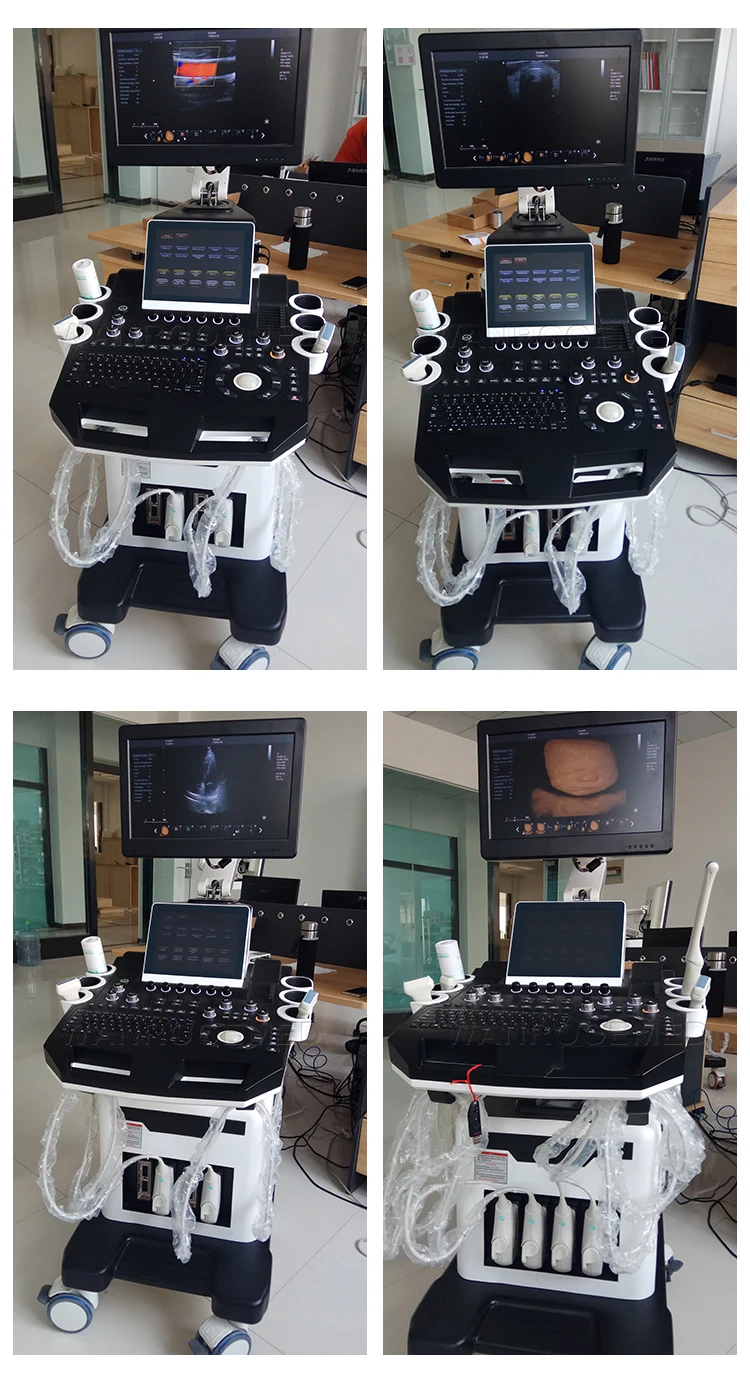

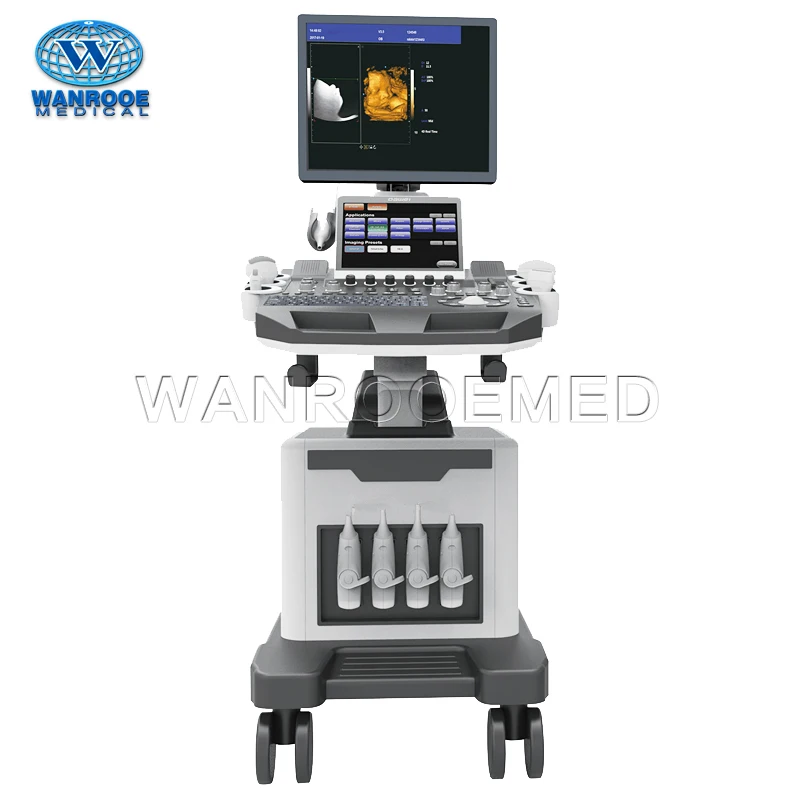

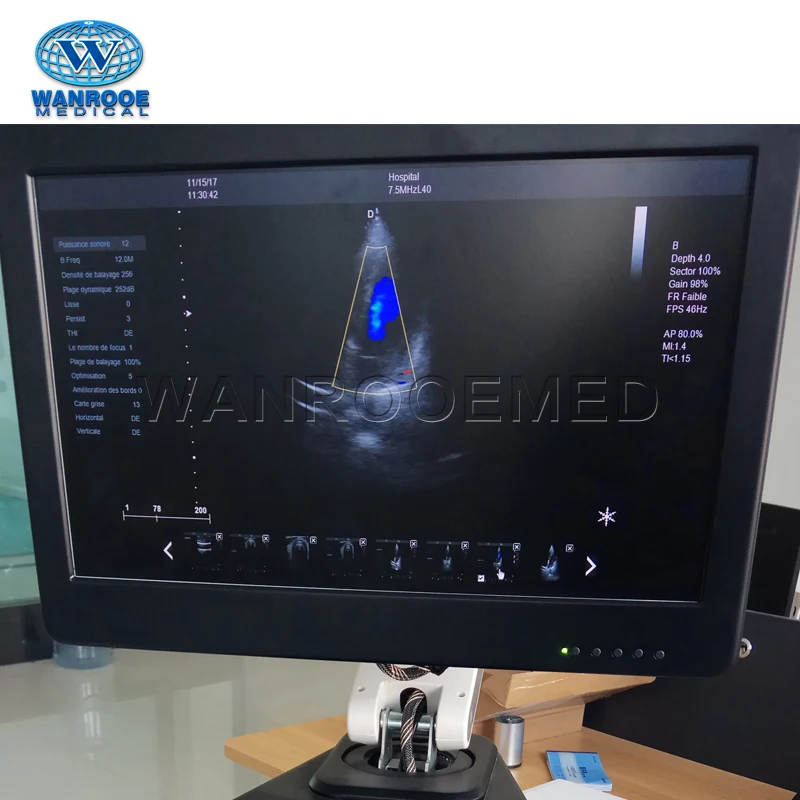

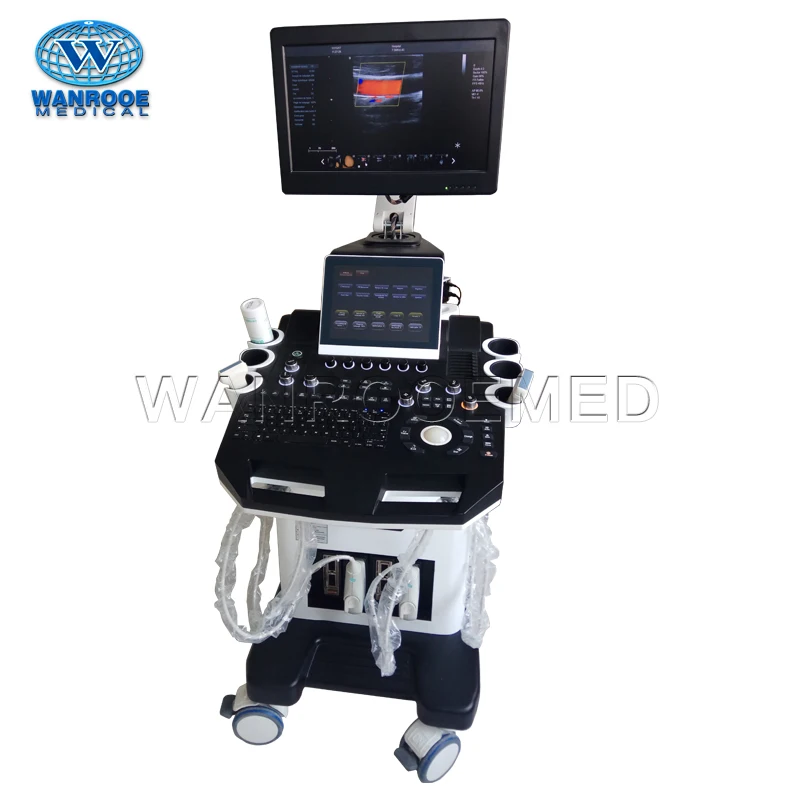

A new generation of ull-body application economic color doppler machine, inherited a unique imaging technology and clinical features, its excellent image performance,comprehensive features and intelligent design, to meet a wide range of clinicaldiagnostic needs and improve diagnostic confidence.Compact and agile trolley design,with 19' LED medical monitor,4 probe connectors, Multi language interface including English,Spanish,French,Russian, Arabic, Vitetnamese,Portuguese,remove the language problem during usage, increase doctors' workefficiency.
Probe frequency range:
3.5MHZ convex probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
6.5MHZ trans-vaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0Mhz
3.0MHZ Phased array probe: 2.0, 3.0, 3.5, 4.0, 5.0Mhz
7.5MHZ High frequency Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0Mhz
Volume probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
Micro-convex probe R11: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0 Mhz
Micro-convex probe R20: 5.0, 6.0, 6.5, 7.5, 9.0Mhz
Btw suggest UST70 Ultrasound Machine,USC900 4d Ultrasound,USRKU10 Veterinary Ultrasound,US500 Ultrasound Scanner for reference, which are one of the top sales products in the past 2018.
And we have hospital and clinic project solution package, support you complete purchasing job. If any interest, welcome consult details

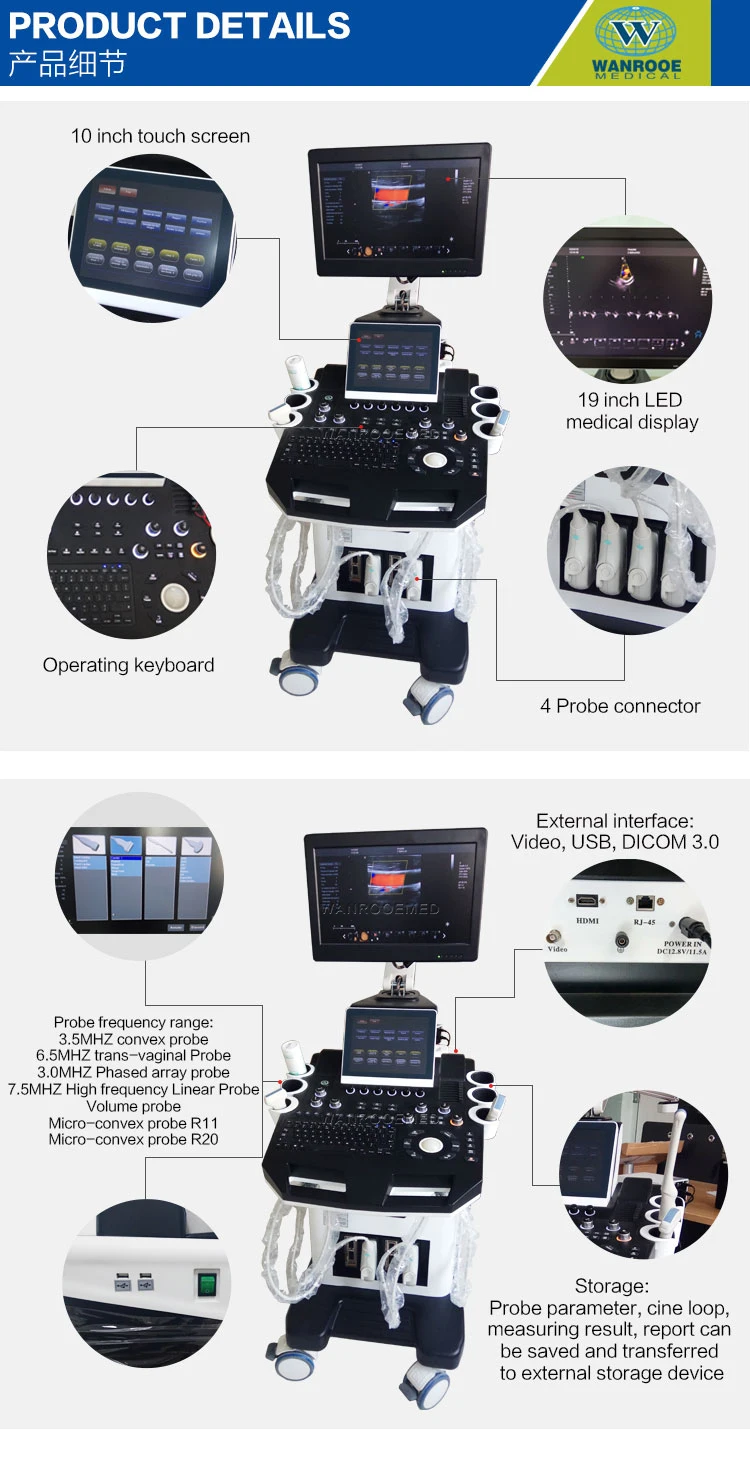

Display | 19 inch LED medical display,10 inch touch screen |
Probe connector | 4 |
Operation interface | English (more languages as option) |
Display mode | B,B+B,4B,B+M,M,C,PW,CW,4D,B/C,B/C/PW,B/PW |
Focus | 4 segments |
Body mark | ≥57 |
Image processing | Up/Down, Left/Right, Angular variation, Reverse |
Measurement | Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed. |
Application | Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight. |
Character display | Date, time, name, sex, age, doctor, hospital, annotation (full screen character editing) |
Cine loop | ≥ 1200 frames, continuous playback or view one by one. |
Storage | Probe parameter, cine loop, measuring result, report can be saved and transferred to external storage device |
Gray scale | 256 levels |
Puncture guide | Available |
Gravel positioning | Available |
Dynamic range | 0-270dB |
TGC control | 8 segments |
Pre-processing | Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on. |
Post-processing | Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pu lse repetition frequency) and so on. |
Blind zone | ≤4mm |
Max display depth | 320mm |
Geometric accuracy | horizontal ≤ 5%, vertical ≤ 5% |
Resolution | lateral ≤ 2mm, axial ≤ 1mm |

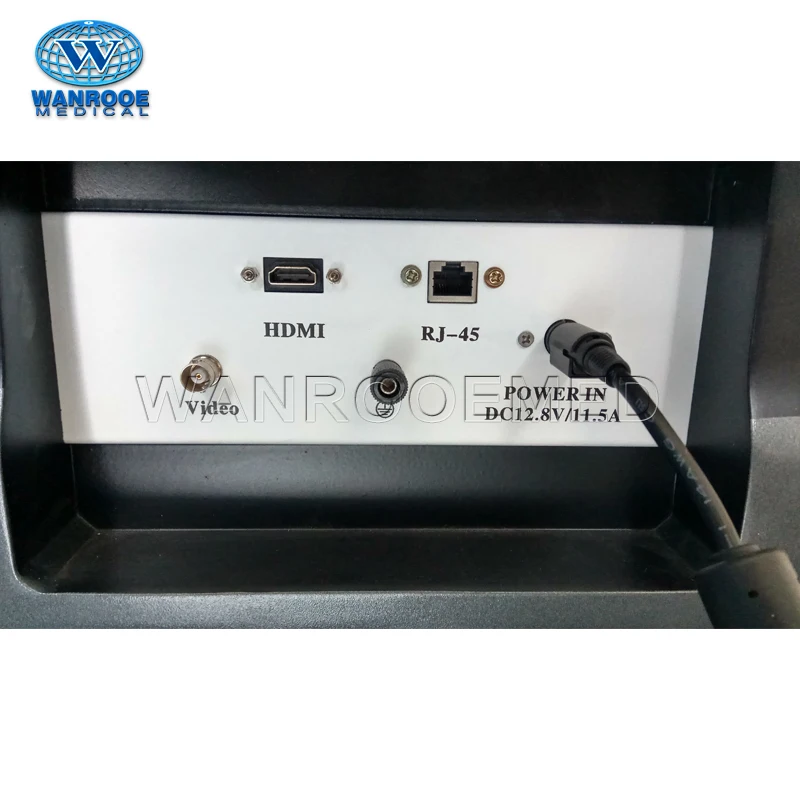

External interface | Video, USB, DICOM 3.0 |
Display magnification | 16 kinds |
Frame rate | 5-1016fps |
Scanning range | 5% - 100% |
Gain adjustment | Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15 |
Image optimization | 6 level adjustable |
Smoothing | 8 level adjustable |
Edge enhancement | 8 level adjustable |
PRF | 16 level adjustable |
Gray scale curve | 16 level adjustable |
Acoustical power | 15 level adjustable |
Hard Disc Storage | 120G |
FAQ
Q1: Are you trading company or manufacturer?

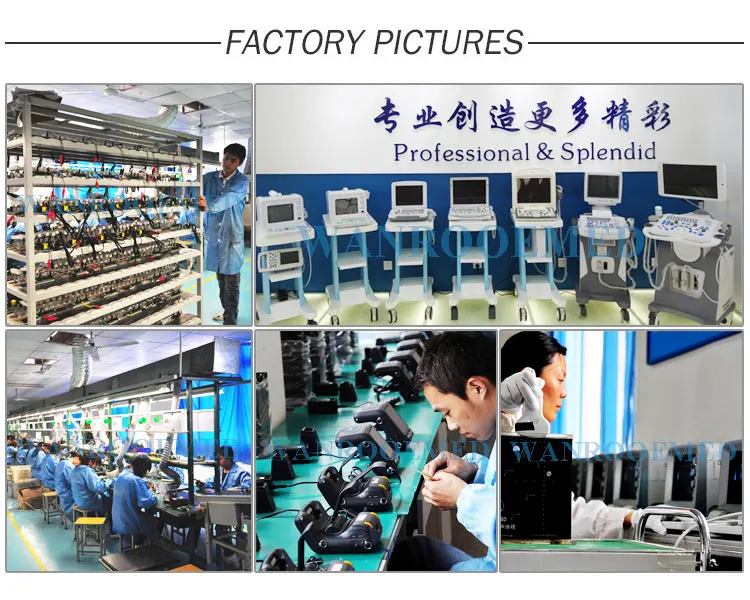

A: We are factory which has over 20 years' manufacturing experience.
Q2: What's the MOQ?
A: 1 set.
Q3: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
Q4: Can you send samples?
A: Yes, samples can be sent for your evaluation.
Q5: What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
Payment terms: Trade assurance, T/T, L/C, Western Union...
Trade terms: EXW, FOB, CIF, DDU...
Q6: Where's your general loading port?
A: Shanghai port for LCL and Zhangjiagang Port for FCL, or as your demand.
Q7: Can you do OEM?
A: Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.
Q8: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9. For tenders, whether you can provide all necessary documents.
A. Yes. We win a lot of tenders by providing complete documents and helped our customers.
Q10: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in 1 warranty year.
Secondly, our after-sales department will periodically follow up customers.
Q11: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.
