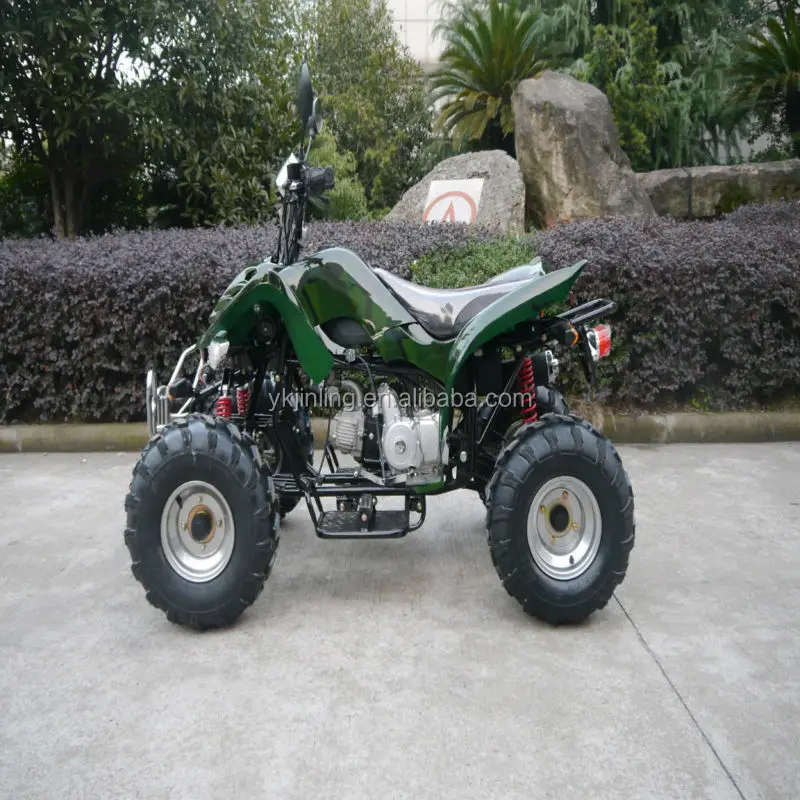

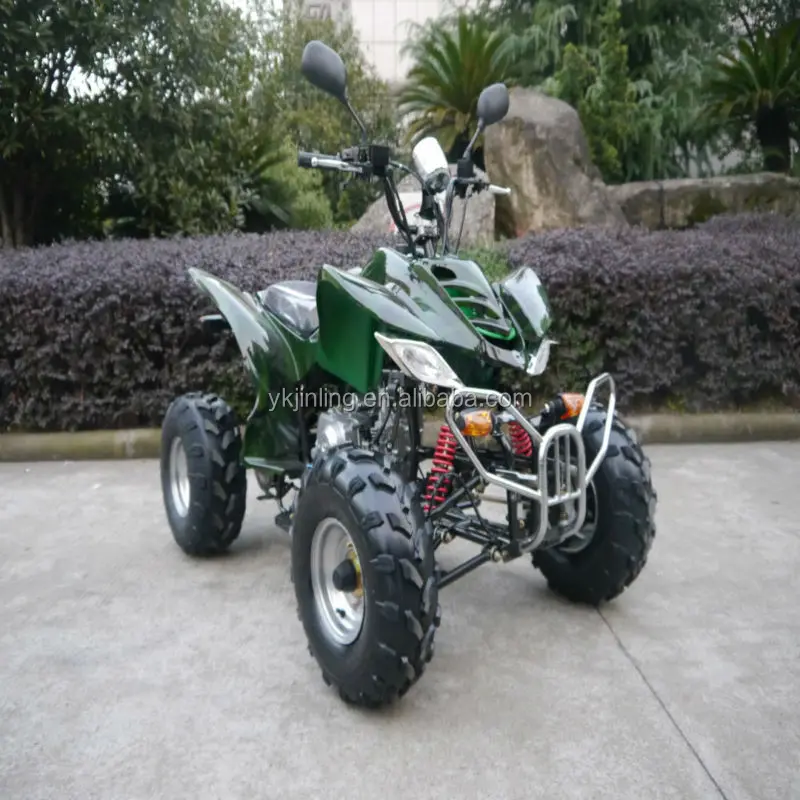

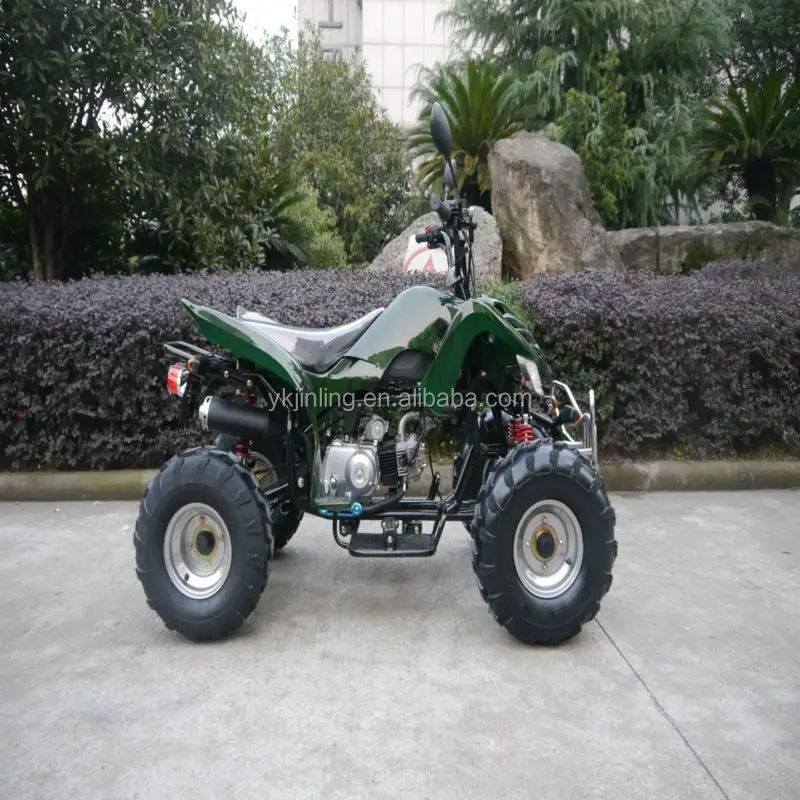

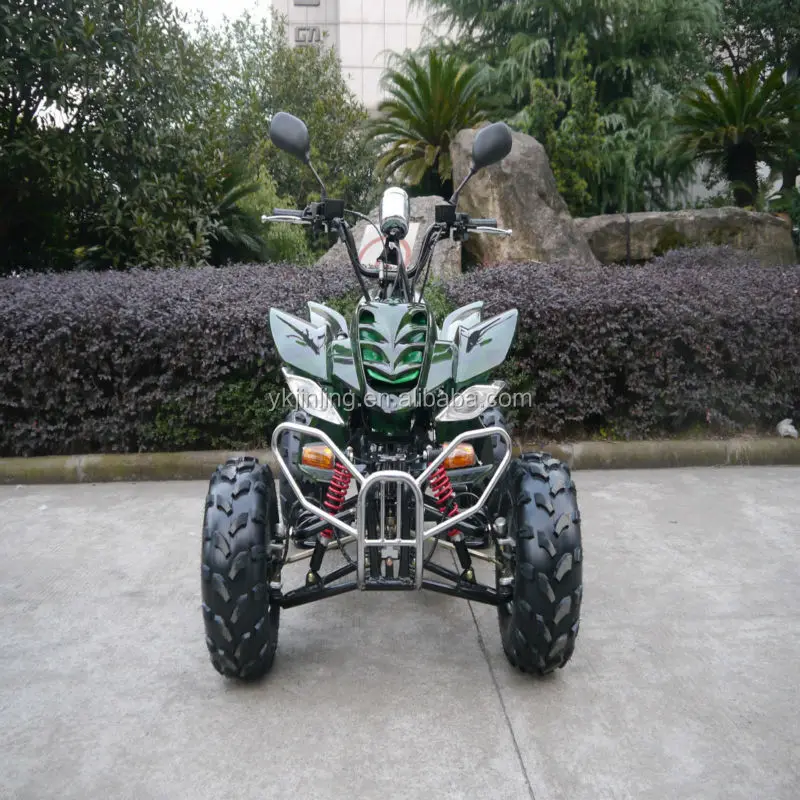

JLA 13 08 200cc atv street легальный 250cc atv 3 колеса, оптовая продажа в Дубае с воздушным охлаждением

Share on (60255164625):


Price:

Quantity:


Product Overview

Description



Recommend Products




Product Description




IDENTIFICATION
1.Model No.
JLA-13-08-8-200
ENGINE
2.Cylinder
Single
3.Cooled System
Air
4.Engine Stroke
4 Stroke
5.Bore*Stroke(mm)
61*64.7mm
6.Displacement(ml)
200cc
7.Max.power(kw/rpm)
7.5kw/6500rpm
8.Max.torque(n.m/rpm)
10.5N.m/5000rpm
TRANSMISSION
9.Transmission Type
Automatic
10.Primary Drive(Rear Wheel)
Chain 4x2
11.Reverse
yes
12.Max Speed(km/h)
>70
WHEEL
13.Front wheel
19x7-8
14.Rear wheel
18x9.5-8
BRAKE SYSTEM
15.Front brake
Drum
16.Rear brake
Disc
TECHINCAL SPECIFICATIONS
17.Product Dimensions(mm)
1580x880x950
18Ground Clearance(mm)
100
19.Wheelbase(mm)
1000
20..gross weight(kg)
173
21. net weight(kgs)
158
22.Fuel Capacity(L)
4.5
SEAT
23.Seat Height(mm)
750
COLOR
24.Standard Color
Red/Yellow/Blue/Green/Black/White
25.Optional Color
Green camo,Yellow camo,Snow Camo,Metallic,Carbon
LOADING
26.Packing Size(mm)
1450*840*750
27.Quantity
20FT:33PCS, 40HQ:66PC




If you want to know more information, You can click on "Send" to contact us.
In the same time, you can visit on our website: https://ykjinling.en.alibaba.com
