braided sleeve cable management in multi color

 expandable braided cable sleeve/ LS  PET braided expandable sleeving

Adantages:

1.Excellent softness,easy bending,can be loose to close,easy to operation,The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

2.good scalability,elasticity and abrasion resistance, Expandable, Suitable for constructing and protecting cable harnesses or tidying cable looms.

3.It offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables.

4.The special open structure allows to be installed after other components, for example copper terminals and

connectors.

5. A strong resilience protects wires and cables and meanwhile provides exceptional abrasion and flame resistance.

6. It offers durable abrasion resistance in a wide range of industrial applications.

7. Totally expanded the sleeving can reach at least one point five times than the initial dimension.Sleeve expands to allow the cables to pass through and then automatically shrinks back.

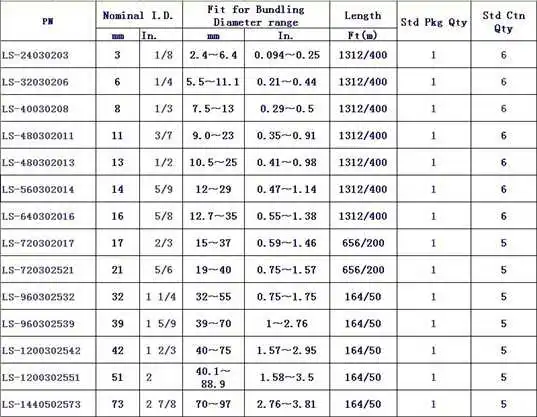

8. Multiple sizes and lengths available - identify via the sizing guide below and then select your required sizes and length via the drop down boxes above.

 Specifications

1.Easy to install
2.Light weight, and flexible
3.High tensile strength
4.Abrasion resistant
5.Flame resistant



Fast Specificaiton:



1)High Density PP Cotton sleeve

2)Reduce harness weight

3)Easy access for breakouts

4)Highly flexible and durable

5) –60°C~+125°C

6)Extreme abrasion resistance

7)Resistants common chemicals

8)Heavy duty and flexible

9)Superior cut, and abrasion resistance

10)Super strength and abrasion resistance

Name	braided expandable sleeving
Type	Insulation sleeve
Material	PP cotton, Polyphenylene

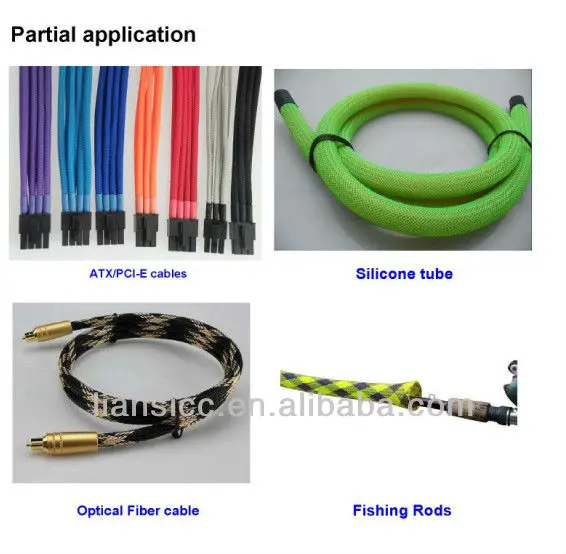

Application	Automotive,railways,Minitary,Aerospace,wires,hoses
Color
Sample	samples in small quantity & available in the warehouse can be sent to you free

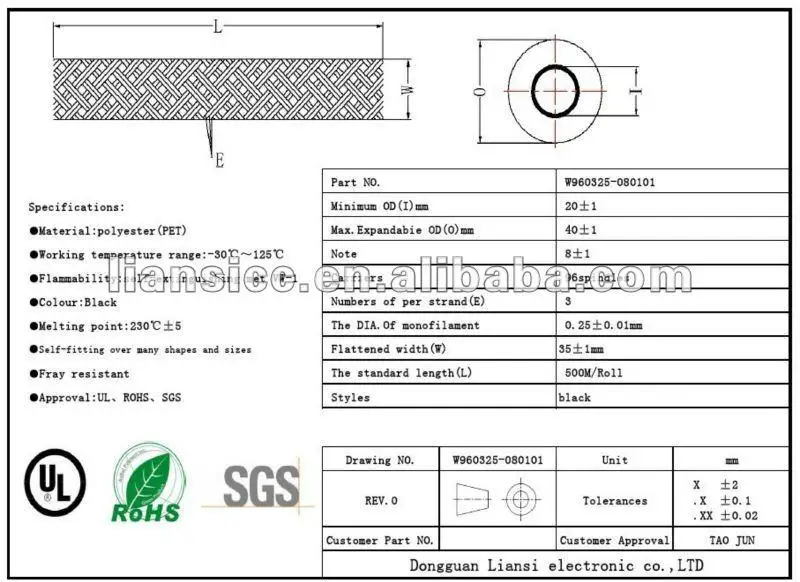

Specification sheet
Standard
Drawing

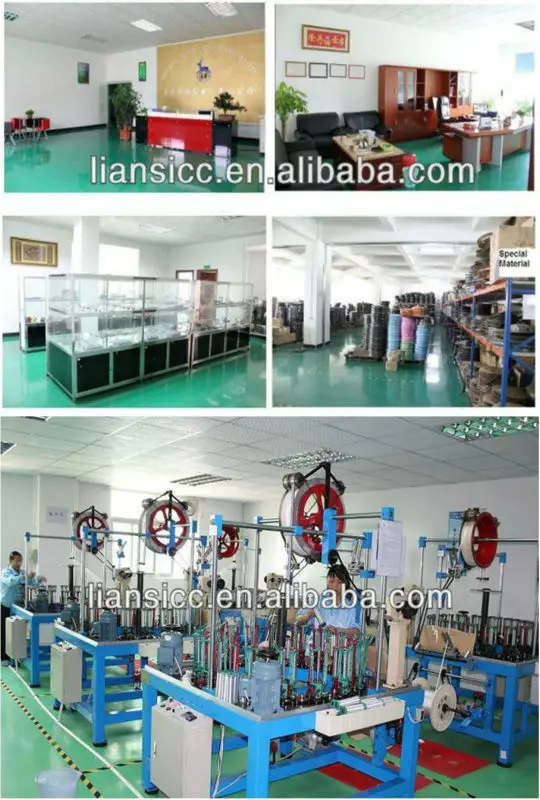

Factory Picture
Package
Payment  terms	Paypal,T/T,L/C,Alipay,Western Union
Express



1. Pls contact  suppliar to make sure all details(Including products status,marterial,certification,Unit Price,Product Status, Leading time,Freight) before place an order.

2.We do everything we can think of to provide you with product images,specification and ordering infomation you need,but if we are missing something or still have room to improve.pls let us know,your comments,suggestions and questions are the best tools we have serving you better.

Thanks for your time and support!
