Automatic double triple glazing window glass making machine

Product Overview

Description

Automatic double triple glazing window glass making machine

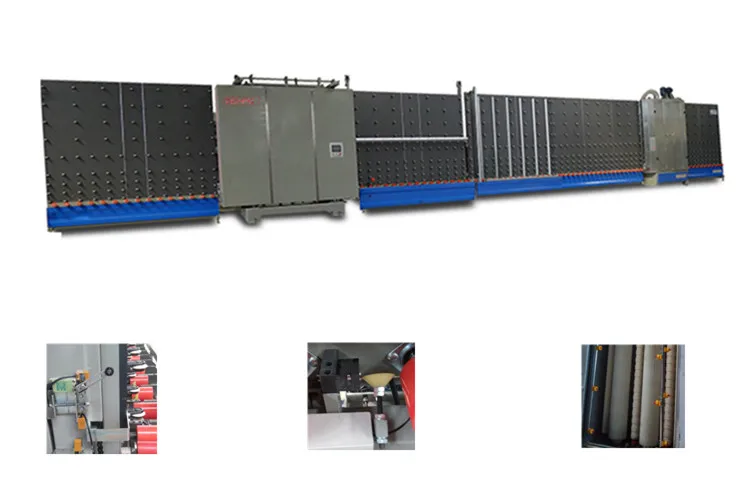

Automatic Insulating glass production line   LB2510W

Features:

1.Automatically distinguish the coating side of coated glass and low-E glass.

2. PLC control system with touch screen operation.

3. Machine work and fault dynamic display.

4. Outside assembly lines can produce standard double layer IG and three layers IG.

5. Lines are available for both of inside and outside panel press, which can produce stepped IG, standard double layer IG and three layers IG (optional).

6. Designed for curtain wall glass, double layer IG and three layer IG glass.

7. IG press design-gear and chain synchronous device driven by hydraulic station.

8. Frequency control designed for glass transmission.

9. Output: 800 units-single shift 8 hours (double layer IG, size 1m).

10. Panel press open able, easy for maintenance.

  window glass making machine

Parameter:

1. Power: 27.25kw

2. Max. glass size: 2500*3000

3. Min. glass size: 200*450mm

4. Pane glass thickness: 3-15mm

5. Max. IG unit thickness: 12-50mm

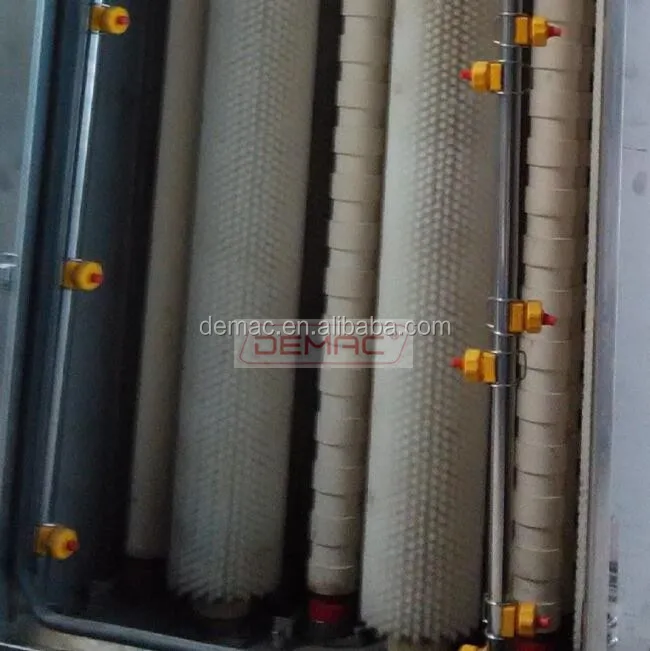

6. Glass washing speed: 0-8m/min

7. Working speed: 0-45m

8. Air soure (Air pressure): 0.8m³/min (1Mpa)

9. Water electrical conductivity: ≤50 uS/cm

10. Overall dimension: 22750x2300x3400mm







Why choose Demac products??

  window glass making machine

1.Demac product is widely used in almost all the materials which you can think of.



2.Demac machine with high precision and high reputation is the most reliable goods you can choose.



3.Demac company has all kinds machines in store, the delivery time is much shorter than other companies.



4.Guarantee the complete machine for 12 months, except the consumable parts.



5.Demac company has international tech service office and provides 24 hours online service and tech support for customers.

  window glass making machine

  window glass making machine

Customer Show

  window glass making machine



   window glass making machine

Services

  window glass making machine

The engineer is available to travel aboard, help the installation, maintenance and training staff.



By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.



We always looking for long term cooperation, not one time deal.

  window glass making machine



  window glass making machine

Packing & Shipping

  window glass making machine

Demac produce high quality machines, also pay attention to package. Wooden case, pallet, and special package to make sure customer will receive the machines they ordered intact.

  window glass making machine



  window glass making machine

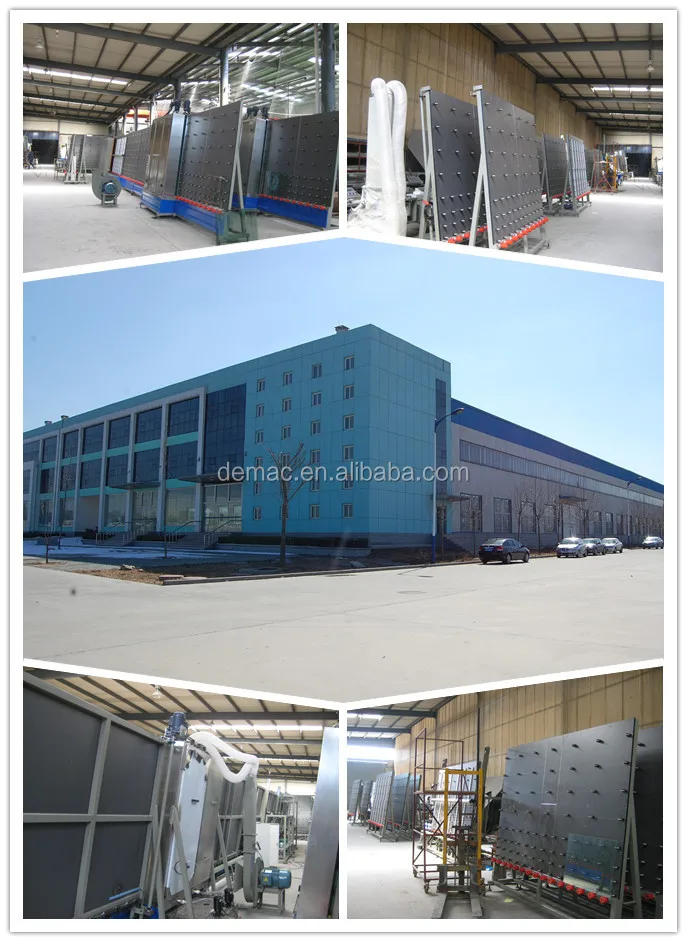

Company View
