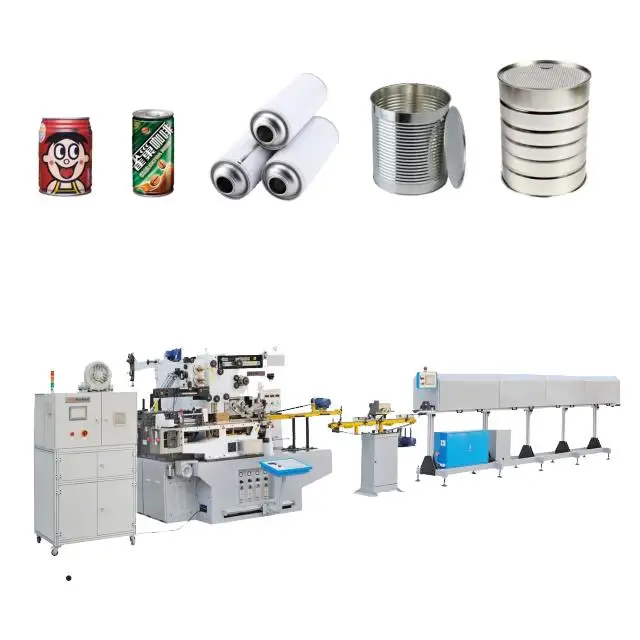

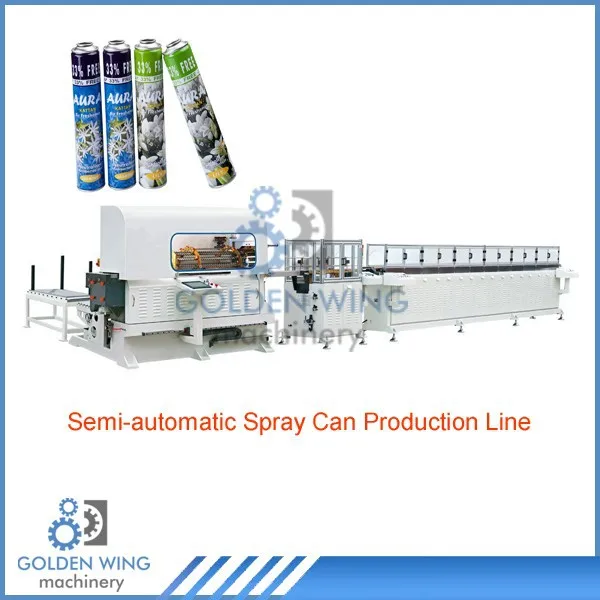

Hair Spray Air Freshener Aerosol Tin Can Making Machine Production Line

Product Overview

Description



Specifications

2. Semi automatic machines.
3. 1 year warranty with technicians door-to-door service.

The Flow Chart:





Name	High-Precise GangSlitter
Usage	It's used for cutting tinplate sheets or other metal sheets
Tinplate Sheet Width	Max.125mm
Tinplate Sheet Thickness	0.16-0.5mm
Power	1.5KW
Weight	1300kg
Dimension	2000*1000*1000mm





Name	Roll Former
Usage	It's used for can body roll forming.
Diameter	65-200mm
Height	≤450mm
Tinplate Sheet Thickness	0.2-0.5mm
Power	0.75KW
Weight	100kg
Dimension	1100*760*850mm





Name	Semi-automatic Welding Machine
Usage	It's used for tin can sideseam welding
Diameter	52-99 mm
Height	70-250mm
Capacity	20-80 Cans/min
Tinplate Sheet Thickness	0.18-0.32mm
Overlap	0.4-0.9m
Welding Frequency	80-260Hz
Copper Wire Diameter	1.38mm  1.5mm
Cooling Water	0.4MPa, ≤20°c
Power	36KVA
Weight	1200kg
Dimension	1300*1100*1800mm



Name	Water Chiller
Usage	It's used for cooling welding machine







Name	Roller Coating + Drying Machine
Usage	It's used for thin can body internal & external coating and drying
Applicable Can Diameter	52-99 mm
Applicable Can Height	70-250 mm
Coating Capacity	20-80 cans/min
Drying Capacity	20-80 cans/min
Coating Width	10-12 mm
Drying Temperature	120-130°c
Power	10 KW
Weight	2000 kg
Dimensions	2200*500*1300mm + 8500*800*1550mm



Name	Aerosol Can Body Necking & Flanging Machine
Usage	It's used for can body necking & flanging.
Capacity	60-160 cans/min
Applicable Can Diameter	40-100 mm
Applicable Can Height	654-280 mm
Power	2.2KW,380V, 50HZ
Weight	1500kg
Dimension	1700*700*1300 mm



Name	Sealing Machine
Usage	It's used for  bottom & dome sealing.
Capacity	10-25 cans/min
Applicable Can Diameter	≤200mm
Applicable Can Height	≤350mm
Power	2KW
Weight	1200 kg
Dimensions	785*650*2000mm





Name	Leak Inspection Machine
Usage	It's used for testing leakage
Capacity	10-25 cans/min
Applicable Can Diameter	38-66 mm
Applicable Can Height	110-320 mm
Compressed Air Consumption	2000 L/hour
Detection Pressure	0.4-1.2MPa





Name	16T Press Machine
Usage	It's used for lids making (Top:4 sets. Bottom:1 set)



Name Usage	Curling Machine
Usage	It's usad for covers curling
Capacity	40 covers/min
Cover Diameter	30-170 mm
Power	0.37 kw
Weight	150 kg
Dimension	740*1100*590 mm



Name	Lining Machine
Usage	It's used for coves lining
Capacity	50-160 covers/min
Cover Diameter	50-170 mm
Power	0.75 KW
Weight	550 kg
Dimension	990*700*1500 mm





name	Tunnel Drying Machine
Usage	It's used for drying covers.
Capacity	1500-30000 cover/hour
Total Power	28 KW
Weight	1800 kg
Dimension	6440*1000*1800 mm









Zhoushan Golden Wing Machinery Co.,Ltd., is a professional manufacturer & exporter specialized in various tin cans making machinery.



As a rich experienced manufacturer & exporter in this field, we always make the most suitable solutions for customers in tin cans / ends making.



‘High quality, competitive price & superior after-sale service’ is our principle.



We are always ready to develop long-term and good relationship with overseas customers.



We provide the following series of products:



Automatic Lid / Ring / Bottom Production Lines

Automatic EOE (easy open ends) Production Lines

Automatic Aerosol Cone / Dome Production Lines

Automatic Twist-off Lug Cap Production Lines



CNC Feeding System

Automatic Palletizer

Automatic Depalletizer

Wrapping Machine

Conveyor Device



Automatic Aerosol Tin Can Production Lines

Automatic Food Tin Can Production Lines

Automatic Beverage Tin Can Production Lines

Automatic Chemical Tin Can Production Lines



Semi-automatic 1-5L Round / Square / Rectangular Tin Can Production Lines

Semi-automatic 10-20L Paint Bucket Production Lines

Semi-automatic 15-18L Square Tin Can Production Lines

Semi-automatic 40-60L Bucket Production Lines



Press Dies



And so on......



‘To be the best supplier’ is the attitude of our company.



We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.



If you want to know more about us, please don’t hesitate to contact us at any time.



Welcome to our company!
