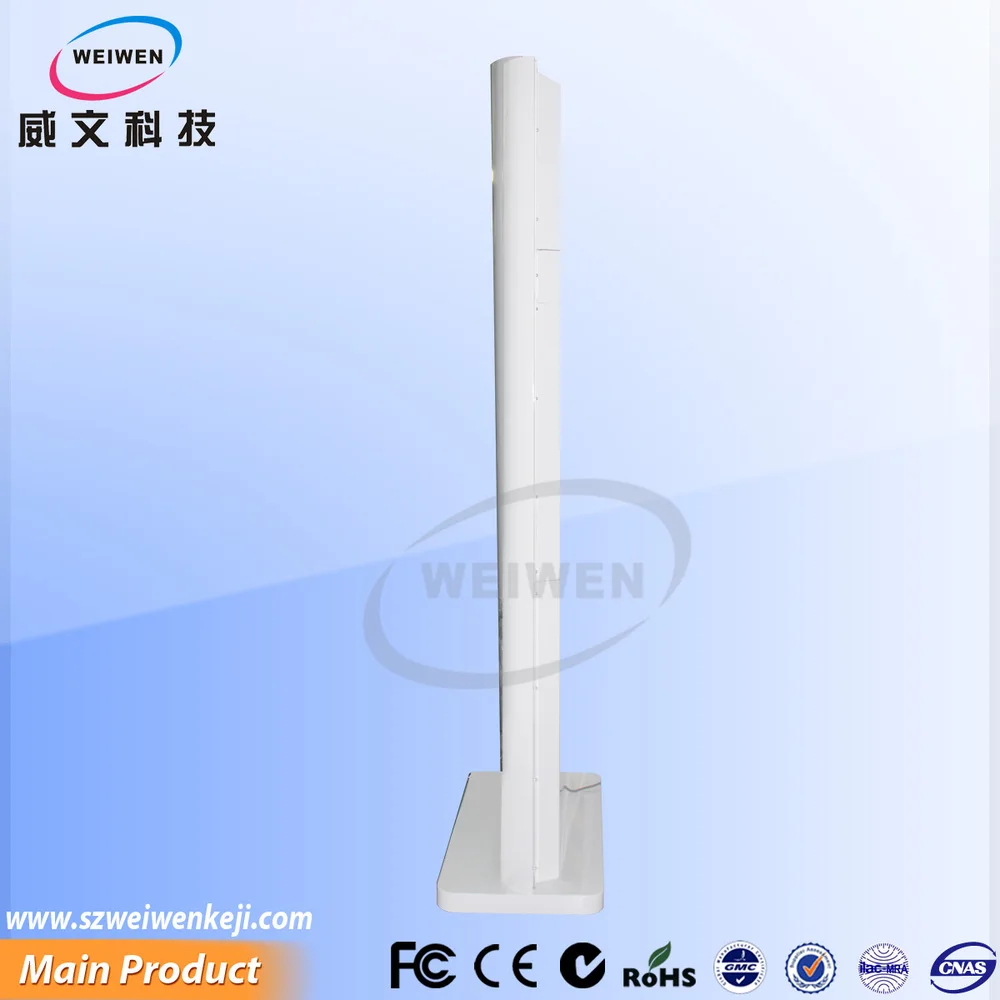

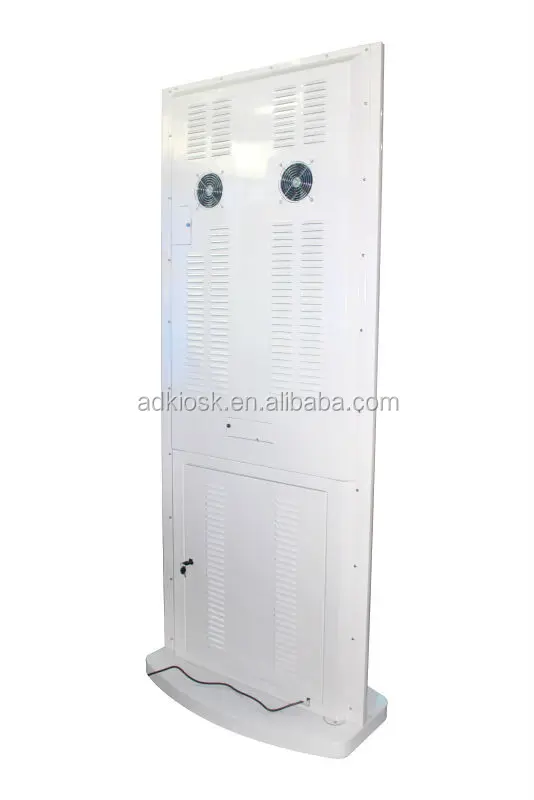

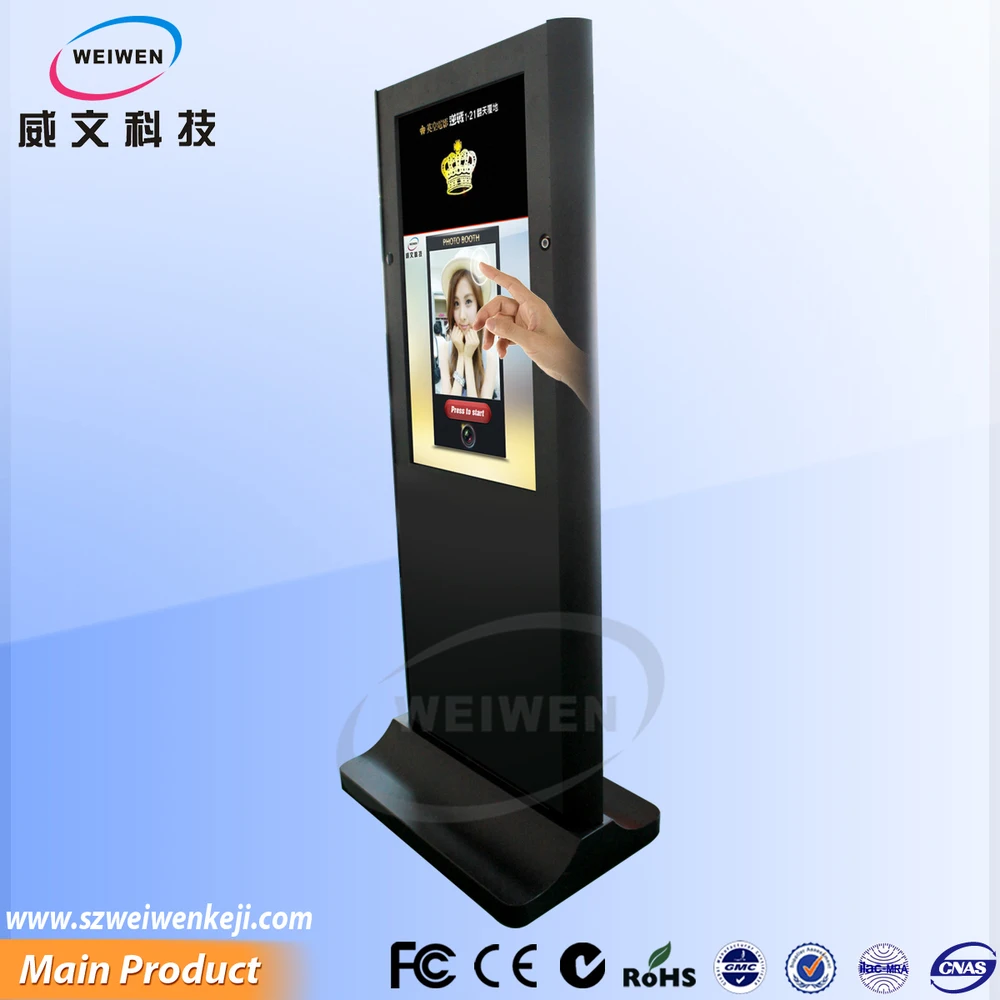

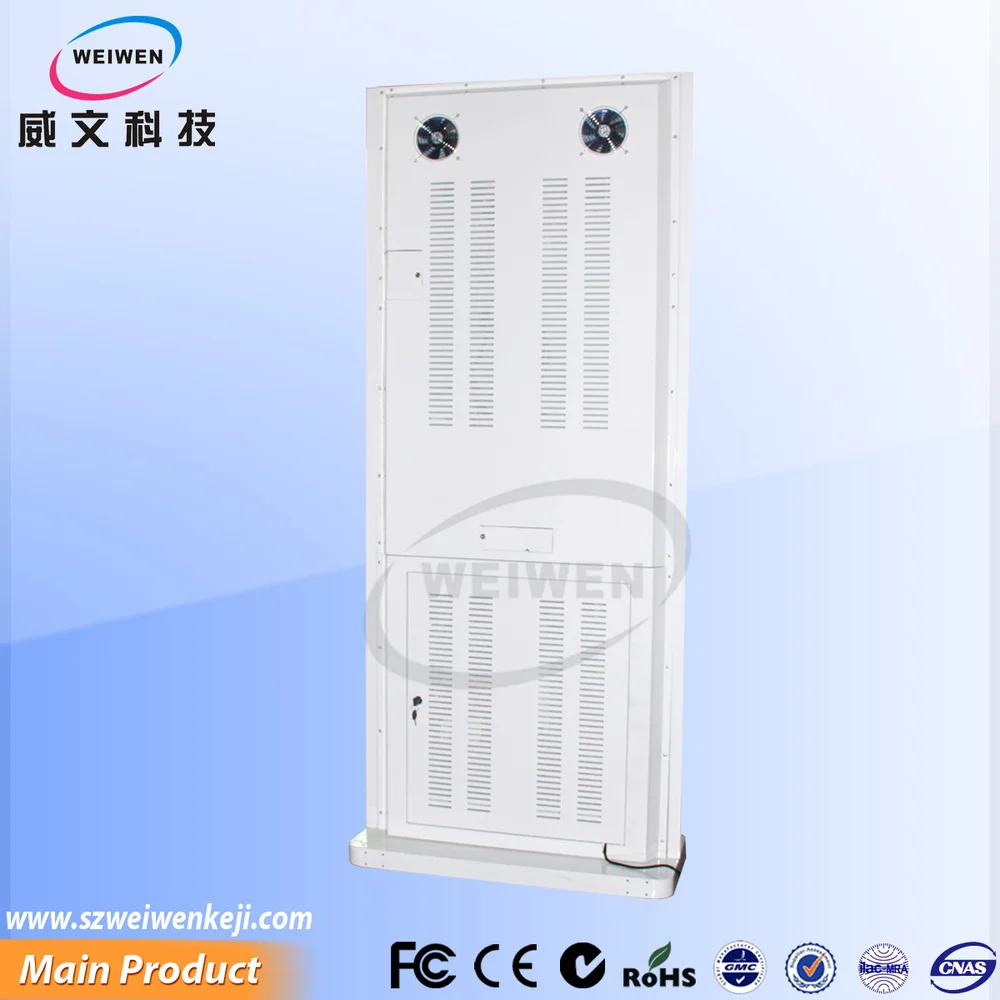

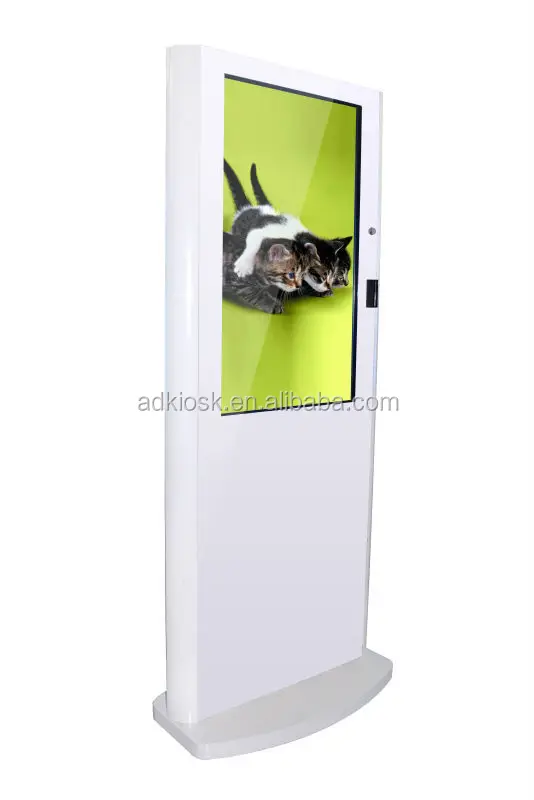

42inch super popular China manufacturer kiosk photo booth coin operated interactive touch screen

Product Overview

Description

42inch super popular China manufacturer kiosk photo booth coin operated interactive touch screen



 Detials

Panel Specification
Model Number	WW-SNTPC-4209
Panel Size	42inch
Display area	523.3*930.2MM
Brand	Lg/Samsung/Auo A grade new panel
Resolution	1920*1080
Display Color	16.7M
Pixel Pitch	0.4835(H)*0.4835(V)mm
Brightness	360cd/m*2
Back Light	LED
Aspect ratio	16:09
Response time	6.5MS
Contrast	4000:1
View angle	178°/178°(H/V)
Life time	>60,000 hours
Touch Panel
size	42inch
Type	infrared double touch
Brand	Fi-Touch/QiTuo brand
Positioning Accuracy	±2mms
Transmittance	≥92%
Hardness	7H
Click Maner	double point, multipoint(optional)
Response time	<=10ms
Resolution	4096*4096
Life time	Single point of more than 60 million
PC Specification
CPU	IntelG3220/2.9GHZ/LGA1155/Dual core (Can expaned to I3/I5/I7)
Mainboard	H81
HDD	S-ATAII 500GB/16MB/7200rpm
Memory	DDR3-1333 , 2GB (Can expanded to 4GB/8GB/24GB)
PC I/O Connectors	4 * USB 2.0, 2*PS/2,1 * RJ45, 1 * Line-in, 1 * Earphone, 1 *  Microphone, 1*HDMI
Network	Realtek RTL8103EL
Video Card	Intergrated video card on the mainboard
Audio	built-in HD audio 8(Realtek ALC888) audio system
Operating System	Compatible with Window7,Window8,XP, Linux etc
WiFi model	802.11N Home using Version
OSD Language
Menu Language	Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Environment
Working Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Working Humidity	20%-80%
Storage humidity	5%~95%
Power
Power Supply	AC 110V~240V,50/60HZ
Maximum power consumption	<=55W
Standby power consumption	<=1W
Appearance
Dimension	1850(H)mm*640(W)mm*90(D)mm
NetWeight	70kgs/pcs
Color	White, Black, Silver, Golden, Customize based on Pantone number
Material	Cold Rolled Steel, Aluminum, Stainless Steel
Installation	Floor standing
Certificcates	CE/FCC/ROHS/C-TICK/BV/SASO
Accessories	CD, Screws, Keys, Power Cable, Warranty Card, User Manual
Package
Package Step	Foam+Carton box+Wooden box
Package Dimension	215*28*105cm/pcs/wooden box;                            215*49*105cm/2pcs/wooden box
Gross Weight	110kgs/pcs/wooden box;                                                  180kgs/2pcs/wooden box

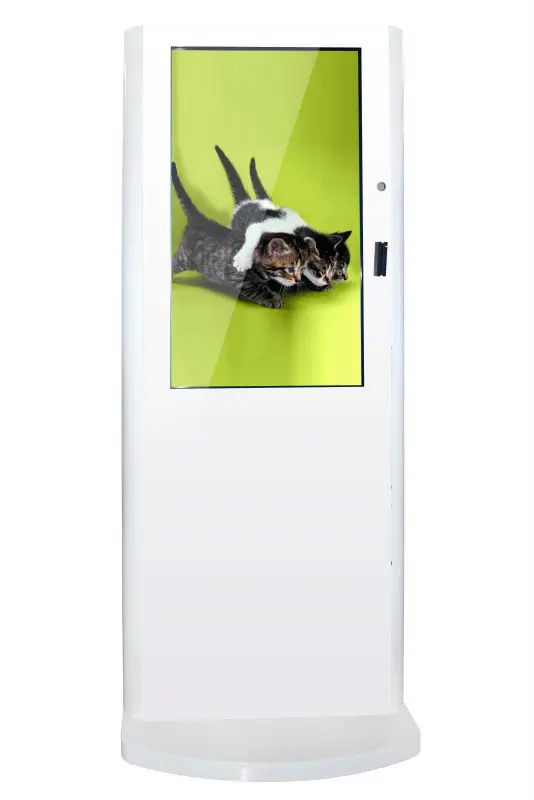

other models
