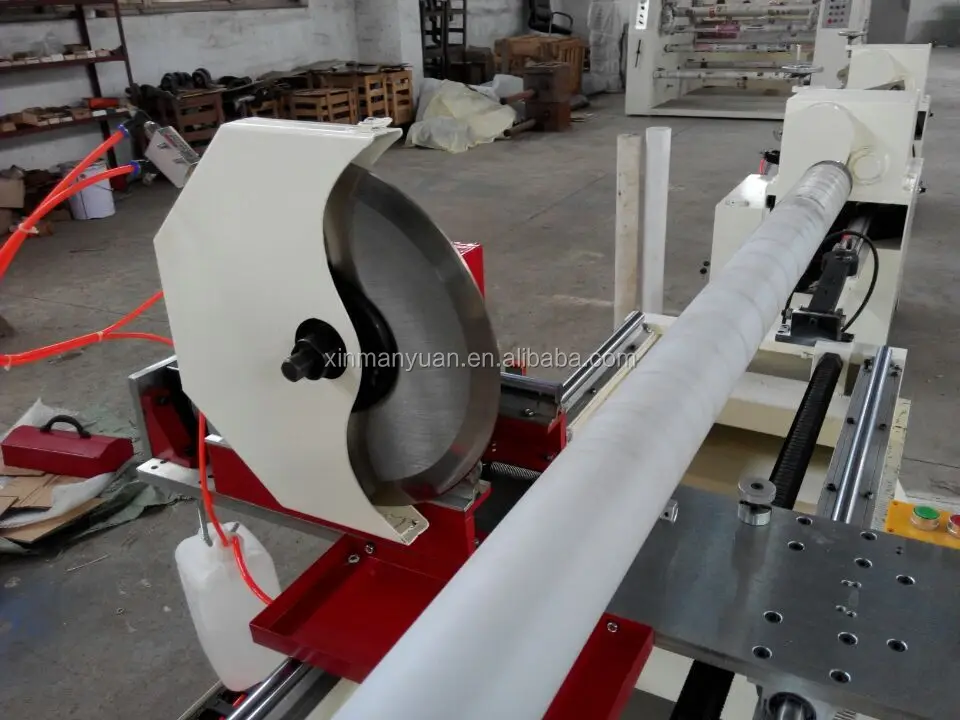

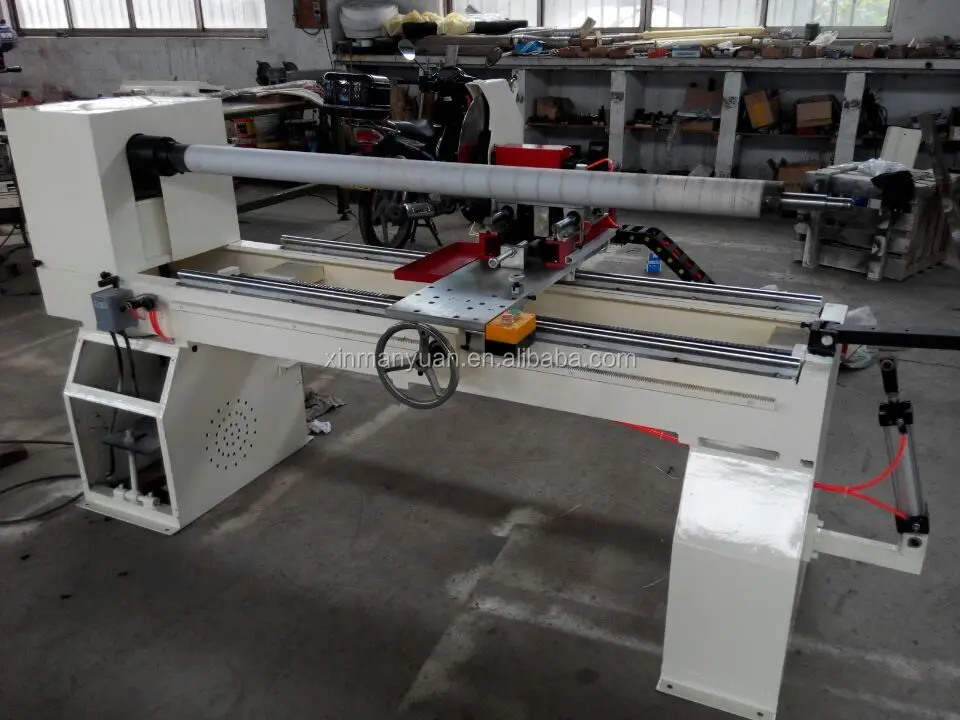

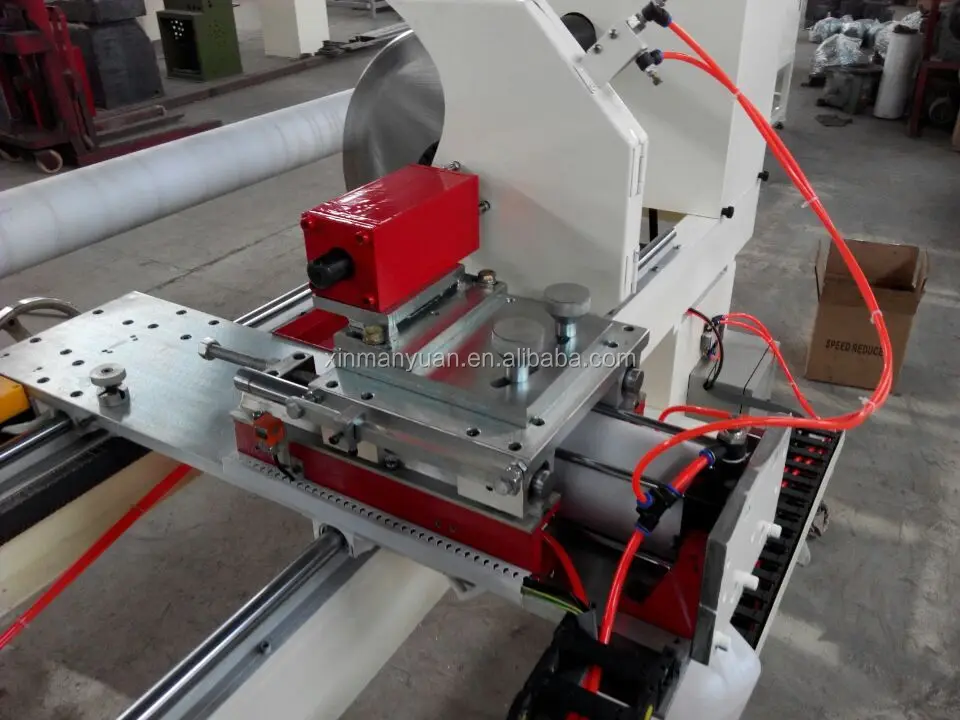

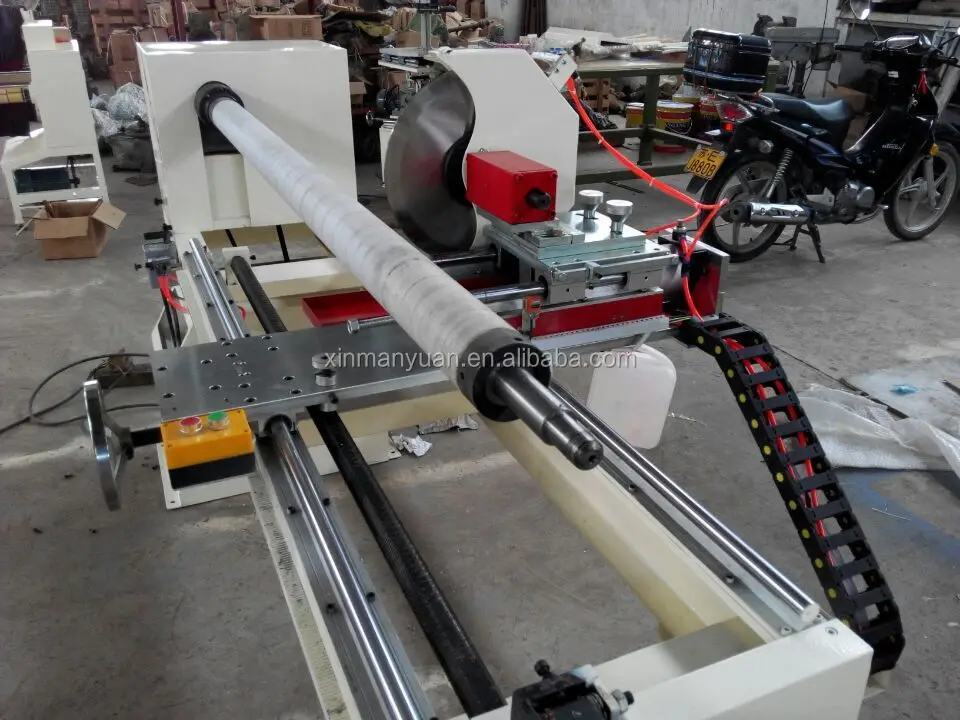

Manual Garments / Fabrics / Ribbon Adhesive Tapes Cutting Machine(Manual Roll Cutter,Log Slitter,Roll Converter)

Product Overview

Description

 XMY005   Manual Garments / Fabrics / Ribbon Tapes Cutting Machine(Manual Roll Cutter,Log Slitter,Roll Converter)



Application:

It is apply for the adhesive tape, protective film, fabric, non woven, so on roll stock materails.



Feature:

1. With full-manual cutting and simple operation, it enjoys great cutting efficiency.

2. Circular blade cutting and pneumatic blade feeding are employed to ensure smooth cutting surface.

3. Its equipped with cutting width gage for quick and stable positioning.

4. With small volume and simple maintenance, it's economical and efficient.



Main Technical Parameters:

effective width	1300mm, 1600mm
max. cutting diameter	150mm other size as the customer request.we can made.
cutting width	3-1600mm
I.D. of paper core	3",6''
motor power	2HP
total power	3kw



We welcome the OEM service, we can make the nonstandard machine according to our customer different materail and different size.for example: change the diameter of the knife, change the width, and also for this machine, we also can make the semi automatic type for the servo motor control.
