GM 0.20 Basic Oilless mini diaphragm vacuum pump
- Category: >>>
- Supplier: Shanghai Yanhe Instrument Equipment Co. Ltd.
Share on (60256945151):
Product Overview
Description

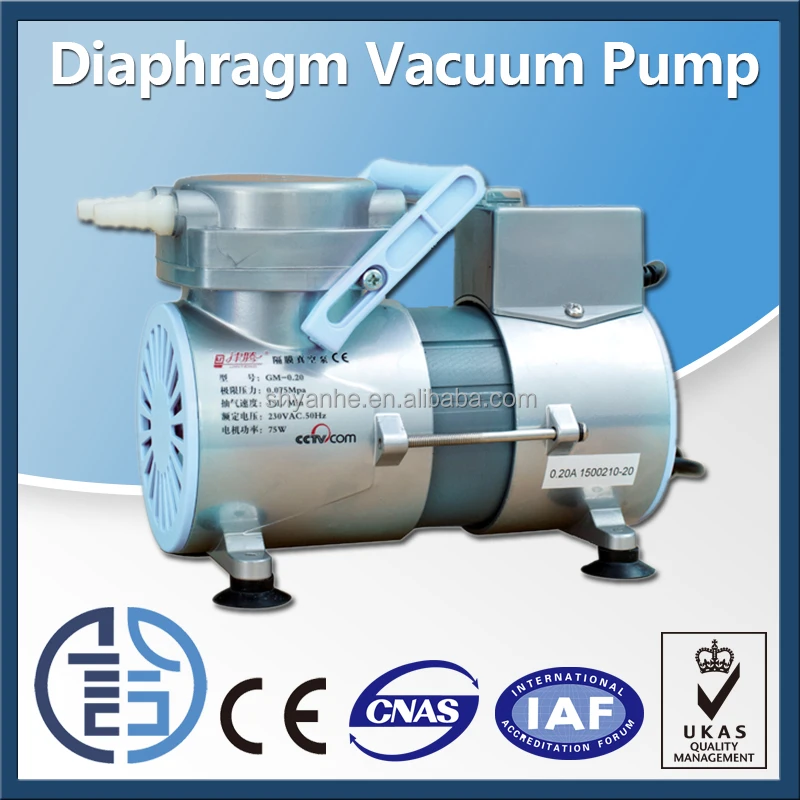

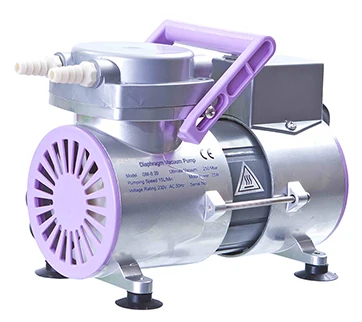

GM-0.20 Basic Oilless mini diaphragm vacuum pump
Product Description
GM-0.20 Oilless electric diaphragm vacuum pump
Introduction
GM-0.20 electric diaphragm vacuum pump has features of more advanced design, higher efficiency, longer operating life. It is an all new product engaging in the new and high technology. It is mainly used in medicinal products analysis, tenuously chemical engineering, biochemical pharmacy, food examination, investigating and solving criminal case, etc. It is an ideal product used with the high-accuracy chromatogram apparatus and HPLC solvent filter, and it is the essential equipment in the laboratory.
The body of “Jinteng” GM-0.20 diaphragm vacuum pump is made of aluminum alloy through die casting. It is antiseptic, sprayed, agile and beautiful. It has the features of higher antisepsis, wider working range. It can be used in all kinds of working environments.
pumps diaphragm pump
Technique parameter
Model | GM-0.2 | GM-1.0A | GM-0.33A | GM-0.5A | GM-0.5B |
Speed of Evacuation(L/Min) | 15 | 60 | 20 | 30 | 30 |
Ultimate pressure Vacuum | ≥0.075Mpa 250mbar | ≥0.08Mpa 200mbar | ≥0.08Mpa 200mbar | ≥0.08Mpa 200mbar | ≥0.095Mpa 50mbar |
Pressure | ≥30 Psi | ≥30 Psi | / | ≥30 Psi | / |
Inlet (mm) Outlet (mm) | φ6 φ6 | φ6 φ6 | φ6 φ6 | φ6 φ6 | φ6 φ6 |
Motor Power(w) | 75 | 160 | 160 | 160 | 160 |
Temperature of working environment(℃) | 7—40 | 7—40 | 7—40 | 7—40 | 7—40 |
Temp of the body(℃) | <55 | <55 | <55 | <55 | <55 |
Dimensions (L x B x H)(mm) | 195×98×156 | 300x160x235 | 215x120x235 | 210x160x235 | 300x120x235 |
| Noise Level(DB) | <50 | <50 | <50 | <50 | <50 |
| Weight(Kg) | 4 | 10 | 7.5 | 8 | 10 |
| Pump Head | / | 2 | 1 | 1 | 2 |
| Function | Vacuum & Pressure | Vacuum & Pressure | Vacuum & Pressure | Vacuum & Pressure | Vacuum & Pressure |
The Normal Standard Set
+

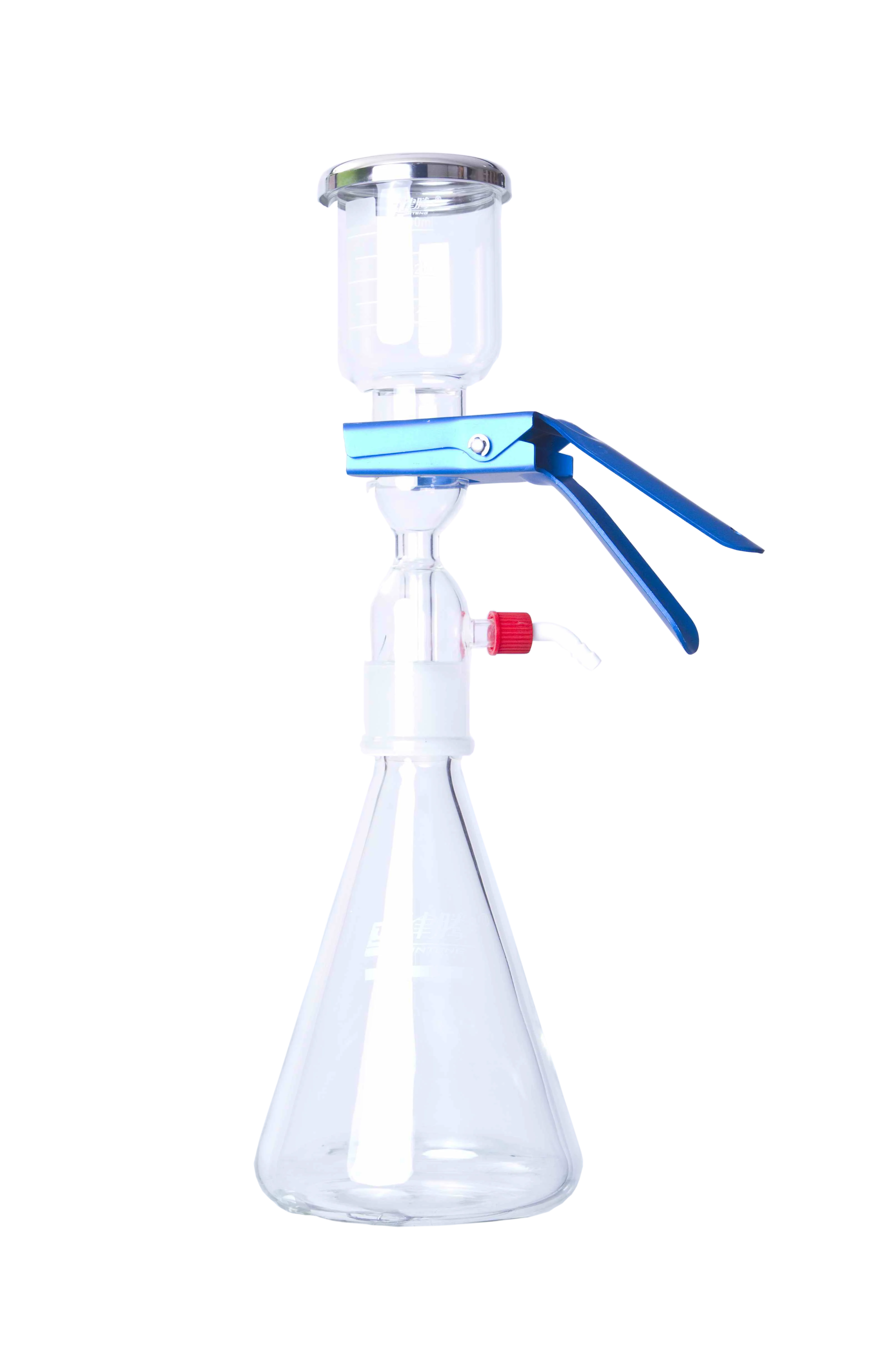

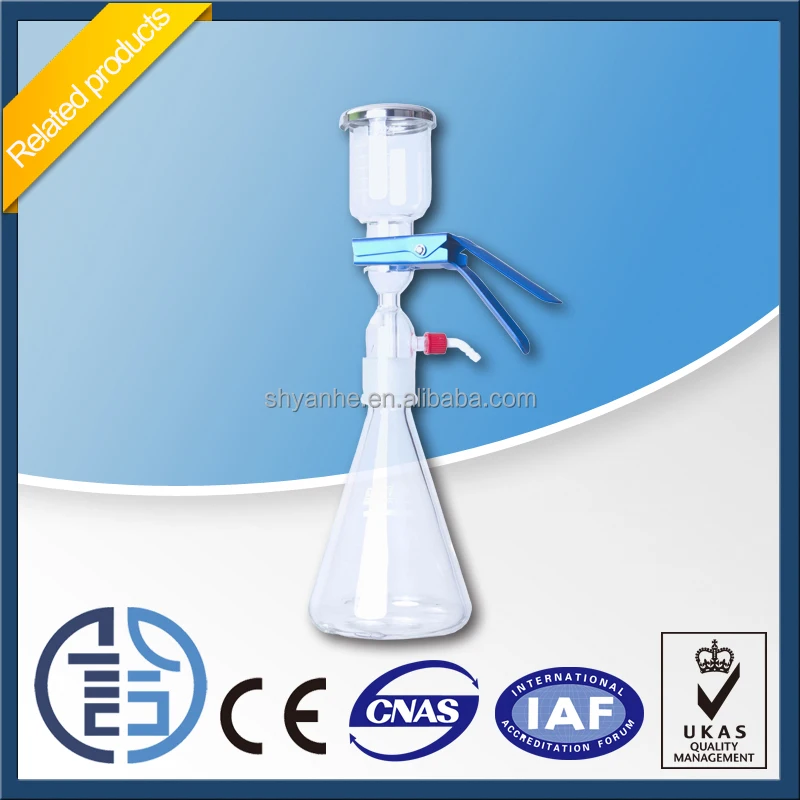

Filter system: Two options
300ml(cup)+1L(Conical flask)
500ml(cup)+2L(Conical flask)
Connecting rubber pipe(Φ7mm*Φ12mm*800mm) 1 piece
