6.0x95m rotary kiln for clinker cement production line

Product Overview

Description



 I. Φ6.0×95m rotary kiln technical parameter

1. Specification: Φ6.0x95m

2. Capacity: 10000t/d

3. Slope of kiln shell: 4%

4. No. of support: 3

5. Type of thrust roller: hydraulic

6. Rotary speed of kiln

    Main driving: Max. 5r/min

    Auxiliary driving: 9.2r/h

7. Main driving

    Motor model: zsn4-500-092

    Rated power: 950x2KW

    Speed regulation range: 100-1000r/min

    Rated voltage: 660V

    Reducer model: JH900C-SW305-28

    Total speed ratio: 26.646

8. Auxiliary driving

    Motor model: Y315M1-4

    Rated power: 132KW

    Rated rotaing speed: 1490r/min

    Rated voltage: 380V

    Reducer model: ZSY450-35.5-I

    Total speed ratio: 35.795

9. Total wight (excluding refractory brick): 1580t



II. Scope of Supply

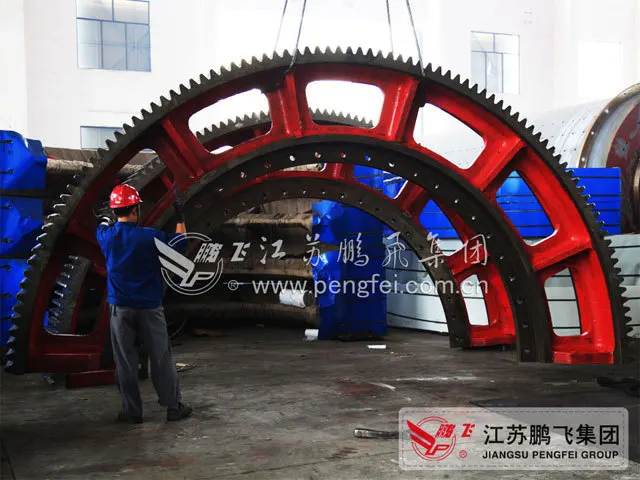

Including main driving device, auxiliary driving device, girth gear and pinion, shaft and bearing, gear cover, shell sections, kiln outlet cold air cover, kiln ouelt guard plate and bolt & nut, tyre, supporting device, hydraulic thrust roller, thrust rooler hydraulic station, kiln outlet sealing device, kiln inlet sealing device, kiln outlet cooling air duct, reducer lubrication system, feed cover, discharge cover, installation tool, instruments, electric control cabinet ect.



Shell: standard sea packaging



Accessories: wooden and steel case



Machining part: grease+linen+water proof paper+iron sheet



Jiangsu Pengfei Group is the largeset manufacturing and export base in chinese coastal area.



As a professional manufacturer and supplier of cement rotary kiln in China, Jiangsu Pengfei Group Co., Ltd can also provide you with various other machines, such as lime rotary kiln, active lime production line, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. Most of our products have passed the certification of ISO9001 and CE, and they are quite popular with customers from 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia etc.



If you need cement rotary kiln, please don't hesitate to contact me.



 Company overview

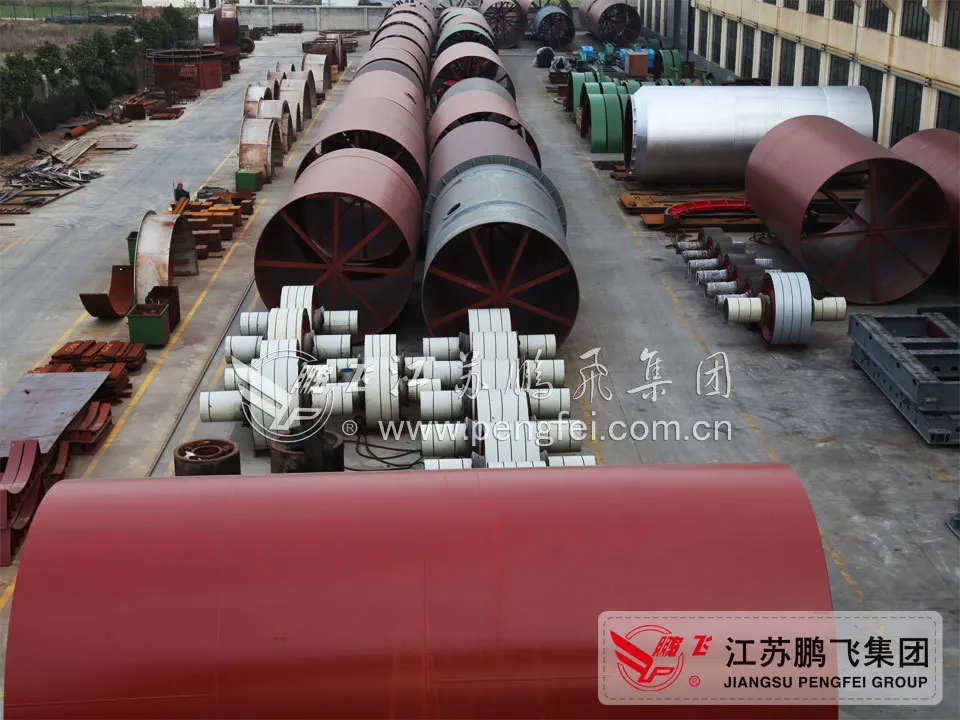

Rotary kiln manufacturing workshop
