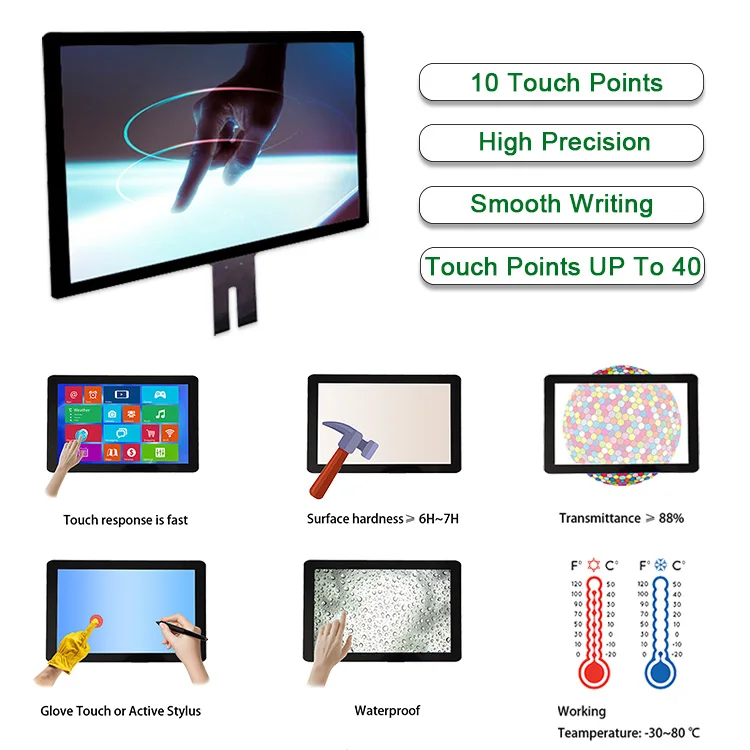

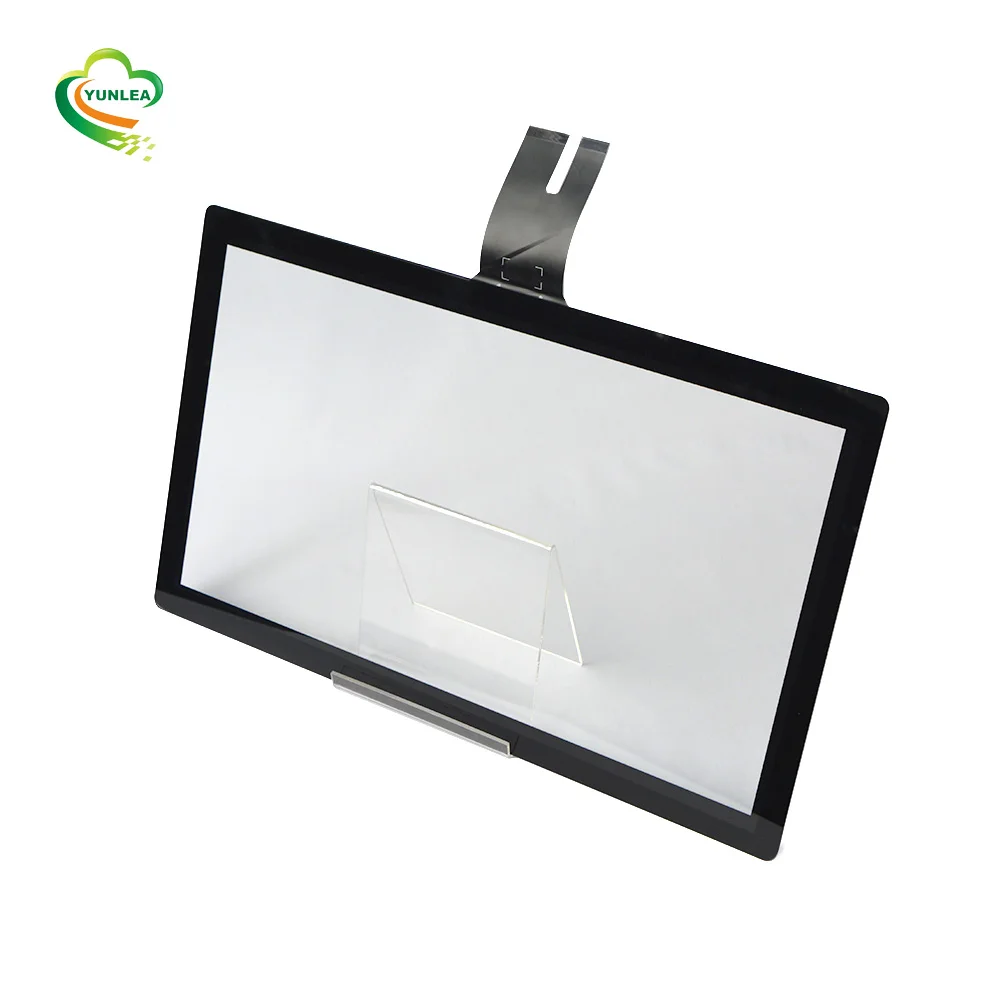

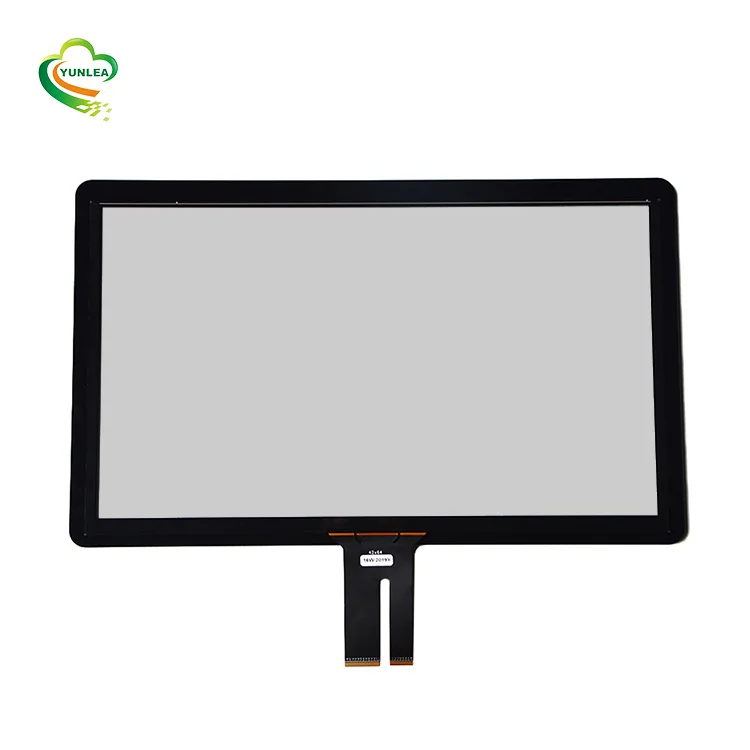

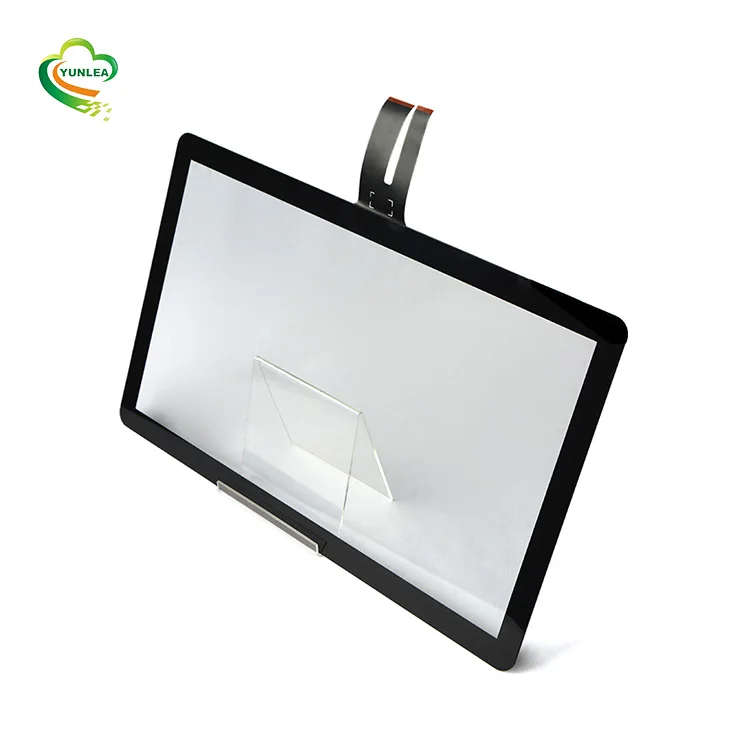

ILITEK 27 inch Touchscreen Transparent Tempered Glass Multi USB PCAP Capacitive Touch Screen Panel Kit
- Category: >>>
- Supplier: Shenzhen Yunlea Electronics Co. Ltd.
Share on (60258051240):
Product Overview
Description
Details Images
Overview
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The Yunlea projected capacitive touch screen is designed for strict industrial, medical, and automotive applications.
Product Specifications
Product name | 27 inch Touch screen |
Model Number | YL 8245270 V01 |
Type | CTP |
Struture | Glass+Glass |
Sensor OD | 619x362mm |
Sensor Thickness | 1.1mm |
Silk-printing color | Black |
Lens OD | 646x384mm |
Lens thiskness | 3mm |
Window VA | 598x336mm |
Touch controller | EETI/ILITEK chip |
Interface of CTP | I2C/USB/RS232 |
Touch points | 10 |
Operating system | Win7/8/10, Wince, Andriod, Linux, Mac, QNX |
Surface hardness | 6-7 H |
Transparency | 88% min |
Customized available | AR/AF/AG,Water proof/Glove/Stylus Touch and so on. |
Application Area
All kinds of precision production equipment involve a wide range, and have high requirements for touch screen waterproof, explosion-proof and high temperature resistance.
Such as syringe pumps, ECG monitors, fetal heart rate monitors, ventilators, etc, require screens with ultra-wide viewing angles and long life.
Central control equipment: ultra wide operating temperature, impact resistance, ultra wide viewing angle, high brightness and high definl-tion are required.

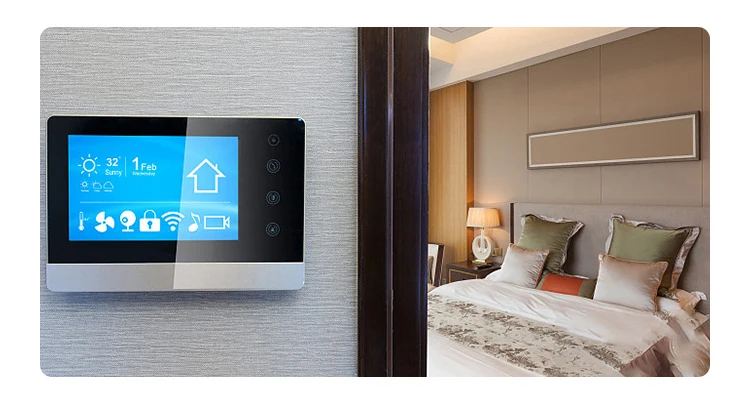

Sensitive touch technology is required for applications such as lighting, coffee stoves, computer equipment, security systems, air conditioning systems, video and audio systems.
Please let me know your needs and we will provide you with the best solution!

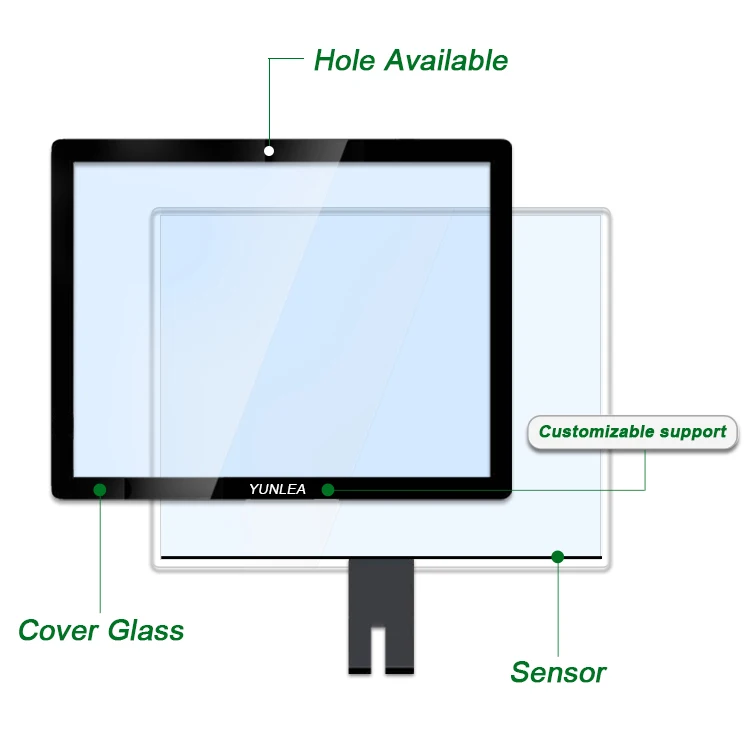

Customized Solution
Customizable
Cover Glass
1. Shape: Special size and hole
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA

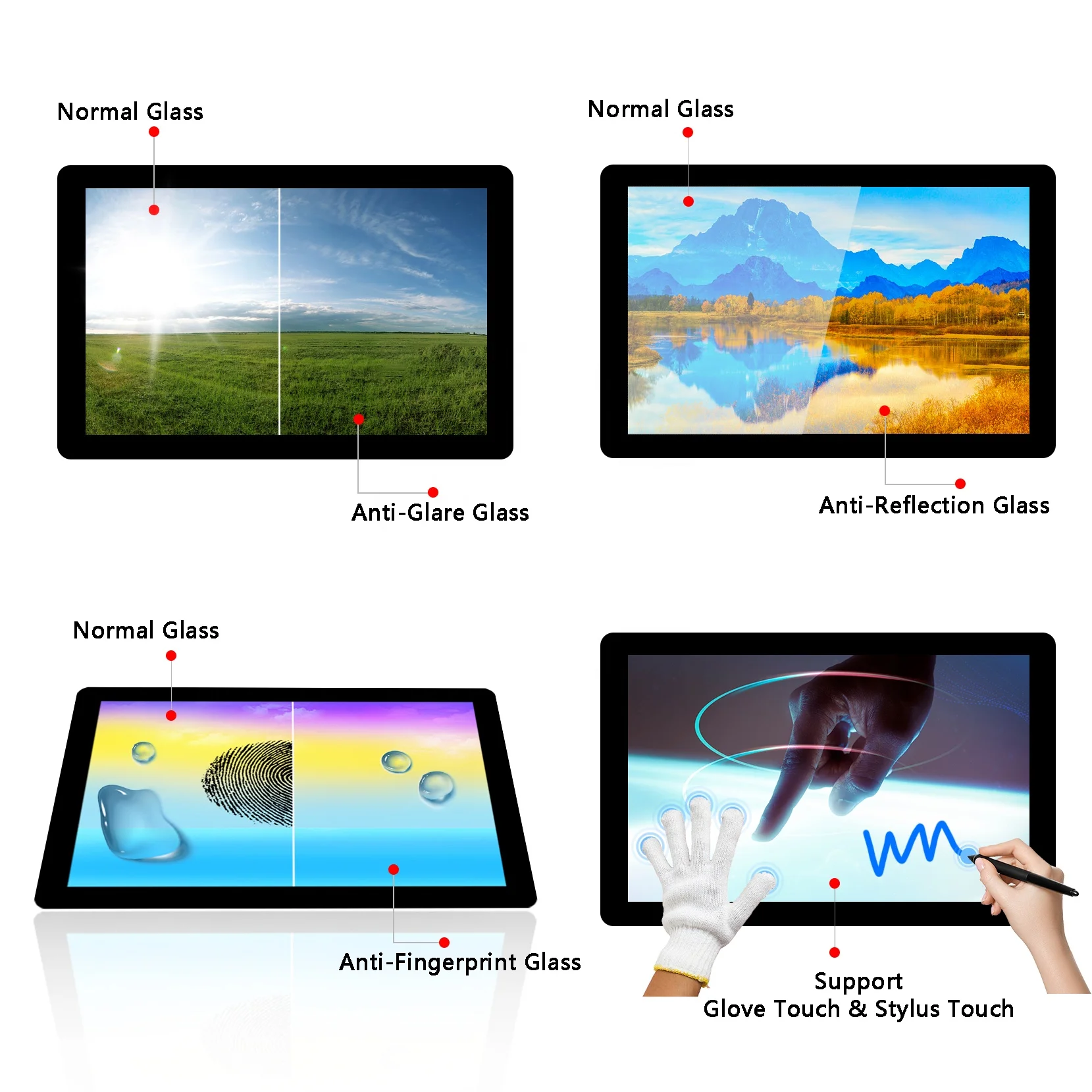

4. Treatments: Mirror, AG, AR, AF

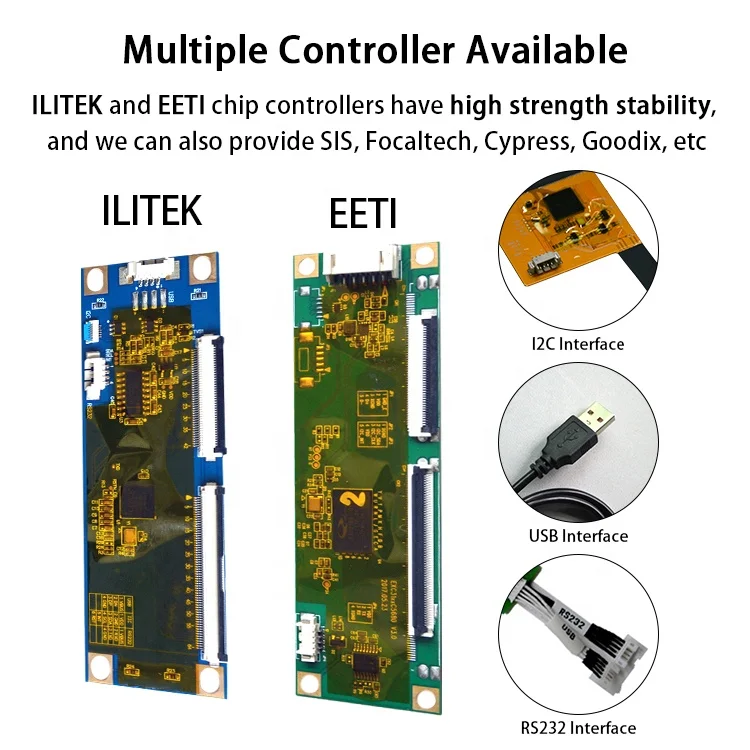

Sensor
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix
4. Interface: I2C, USB, RS232
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix
4. Interface: I2C, USB, RS232
Note：

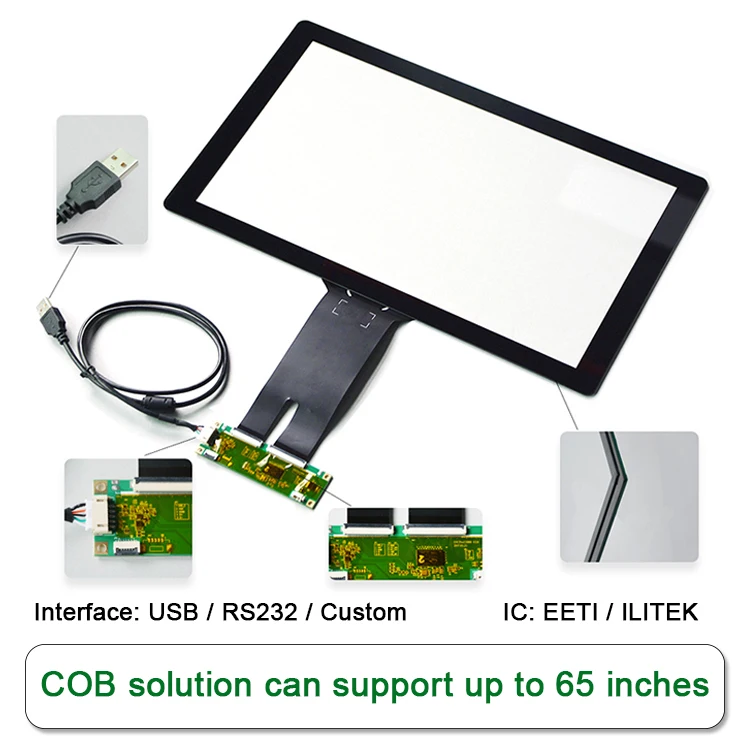

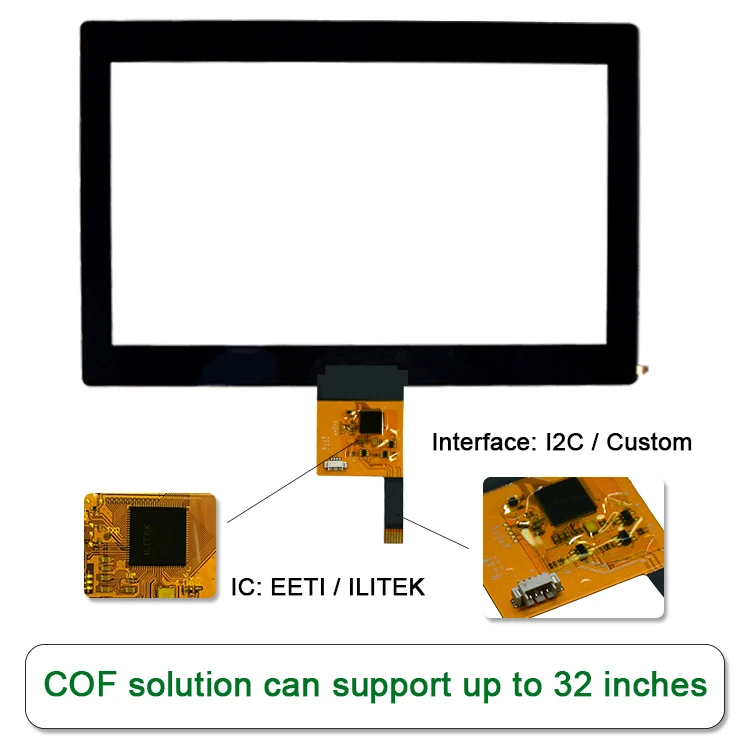

COB (Controller IC mounted on a stand alone printed circuit board)COF (Chip on Flex - Controller IC mounted on a flex tail)
Product Catalogue
Size | Lens OD (mm) | Cover glass(T) | Window VA(mm) | Touch Controller |
3.5" | 94.94x66.86 | 0.7mm | 74.94x50.36 | Mstar 2133A |
4.3" | 114x77 | 0.7mm | 96.04x53.86 | FT5346 |
5" | 127X85.80 | 0.7mm | 109X65.8 | FT5436 |
7" | 164.90x100 | 0.7mm | 154.08x85.92 | FT5436 |
8.4" | 207×166 | 1.1mm | 170.4×127.8 | EETI/ILITEK |
10.1" | 254.96×172.6 | 1.1mm | 217.96×136.6 | EETI/ILITEK |
10.4" | 259.10×206.3 | 1.1mm | 213.1×160.3 | EETI/ILITEK |
220.5×290 | 1.1mm | 246×184.5 | ILITEK | |
293×237 | 1.1mm | 246×184.5 | EETI/ILITEK | |
12.3'' | 316x139.5 | 3mm | 292.03x109.51 | EETI/ILITEK |
339.9×263.9 | 3mm | 304×228 | ILITEK | |
339.9×263.9 | 3mm | 304×228 | EETI/ILITEK | |
387×231 | 3mm | 344×194 | ILITEK | |
387×231 | 1.1mm | 344×194 | EETI/ILITEK | |
377×309 | 3mm | 338.92×271.34 | ILITEK | |
377×309 | 3mm | 338.92×271.34 | EETI/ILITEK | |
17.3" | 423.21×256.2 | 3mm | 383.21×216.2 | ILITEK |
458×283 | 3mm | 410.8×231.4 | ILITEK | |
440.8×271.4 | 1.1mm | 410.80×231.4 | EETI/ILITEK | |
421×346 | 3mm | 377.32×302.06 | ILITEK | |
421×346 | 2mm | 377.32×302.06 | EETI/ILITEK | |
19.5" | 473.5×281.26 | 3mm | 433.5×241.26 | ILITEK |
524×321.8 | 3mm | 477.6×269.10 | ILITEK | |
524×321.8 | 1.8mm | 477.6×269.10 | EETI/ILITEK | |
23.6" | 573×349 | 3mm | 523.3×295.2 | ILITEK |
23.8" | 573×349 | 3mm | 525.5×297 | ILITEK |
646×384 | 3mm | 598×336 | ILITEK | |
646×384 | 3mm | 598×336 | EETI/ILITEK | |
32" | 746.7×441.3 | 3mm | 698.7×393.3 | ILITEK |
746.7×441.3 | 3mm | 698.7×393.3 | EETI/ILITEK | |
43" | 994.2×587.3 | 4mm | 943.2×531.4 | ILITEK |
55" | 1287.6x758.4 | 4mm | 1209.6x680.4 | ILITEK |
65‘’ | 1524.54x914.46 | 4mm | 1434.54x809.06 | ILITEK |
Certificate & Partner Brands
Company Profile
Shenzhen Yunlea Electronics Co., Ltd.
Shenzhen Yunlea Electronics Co., Ltd. is a established in 2008 touch screen company, which is a leading designer and manufacturer of Capacitive Touch Panel. With expertise in medical, industrial, and home automation sectors, we provide tailored solutions and professional support.
Based in Shenzhen, our team has 15 years of experience. We stay updated with global touch display advancements and have established strong partnerships with top manufacturers and suppliers.
Choose Yunlea for reliable touch panels that meet your specific needs. Trust us as your preferred partner for high-quality, customizable solutions.
Choose Yunlea for reliable touch panels that meet your specific needs. Trust us as your preferred partner for high-quality, customizable solutions.

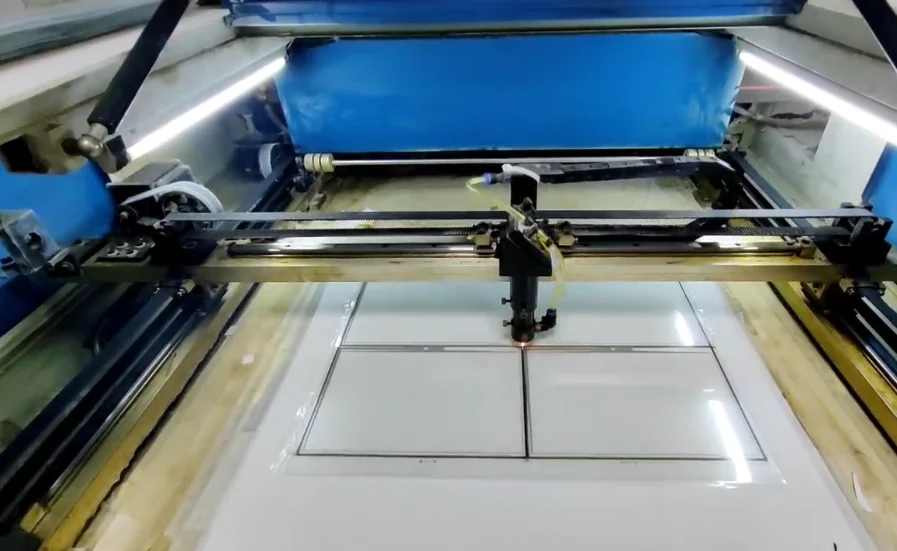

Professional Design Team

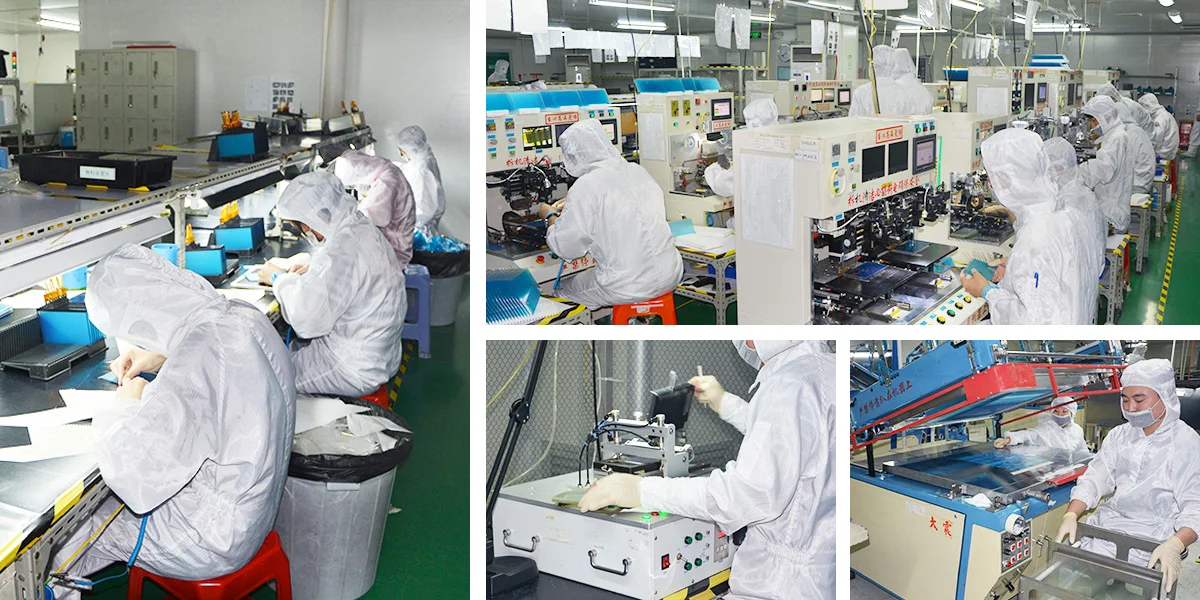

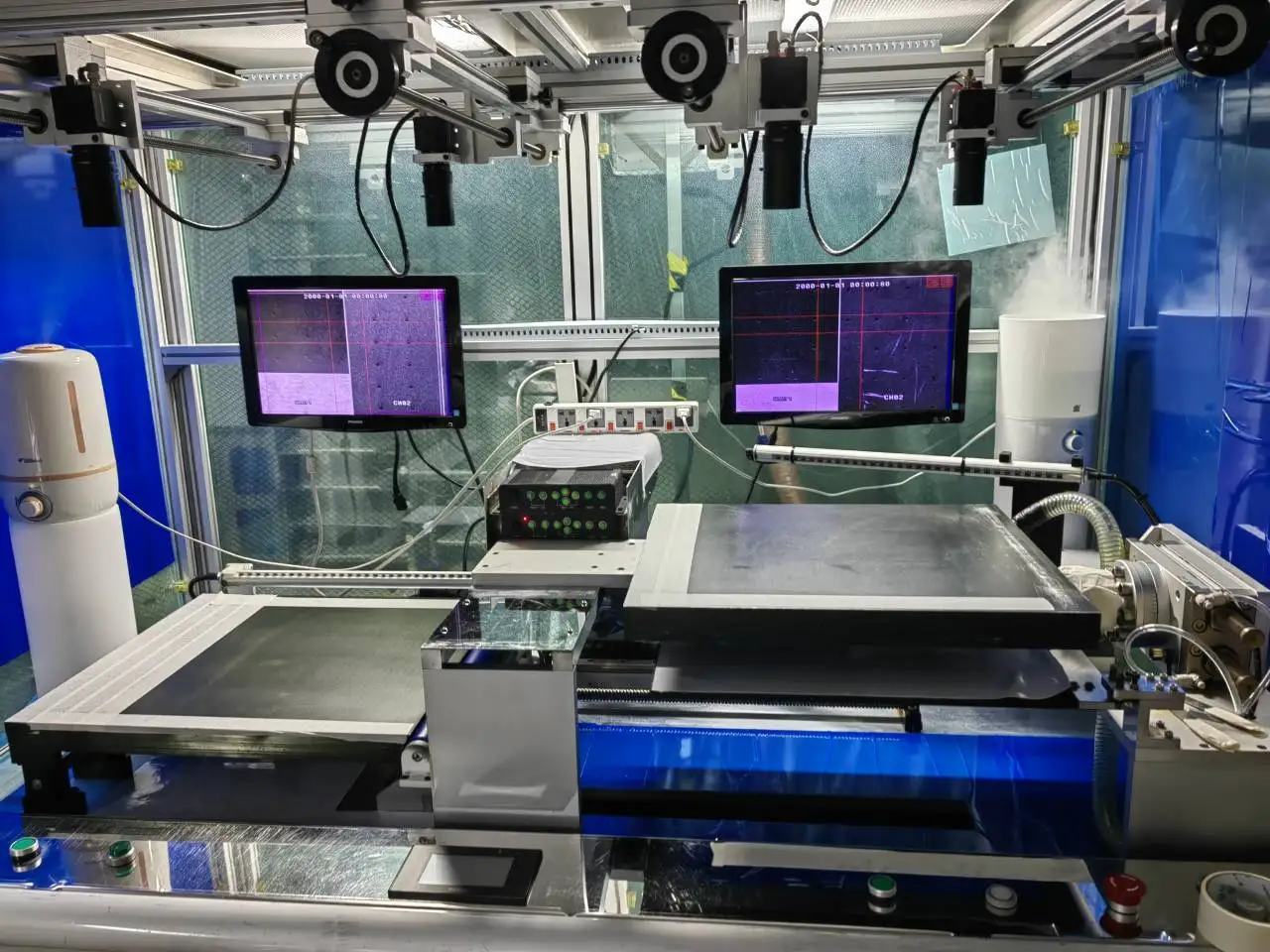

Yunlea has over 15 years of experience in OEM, ODM, and quality control. Our factory has passed ISO 9001, ISO14001 certification and 7S quality management. We have a factory area of 5000 m2, 10 production lines, and a monthly production capacity of 1 million pieces.
Our professional R&D team to handle technical questions within 12 hours.

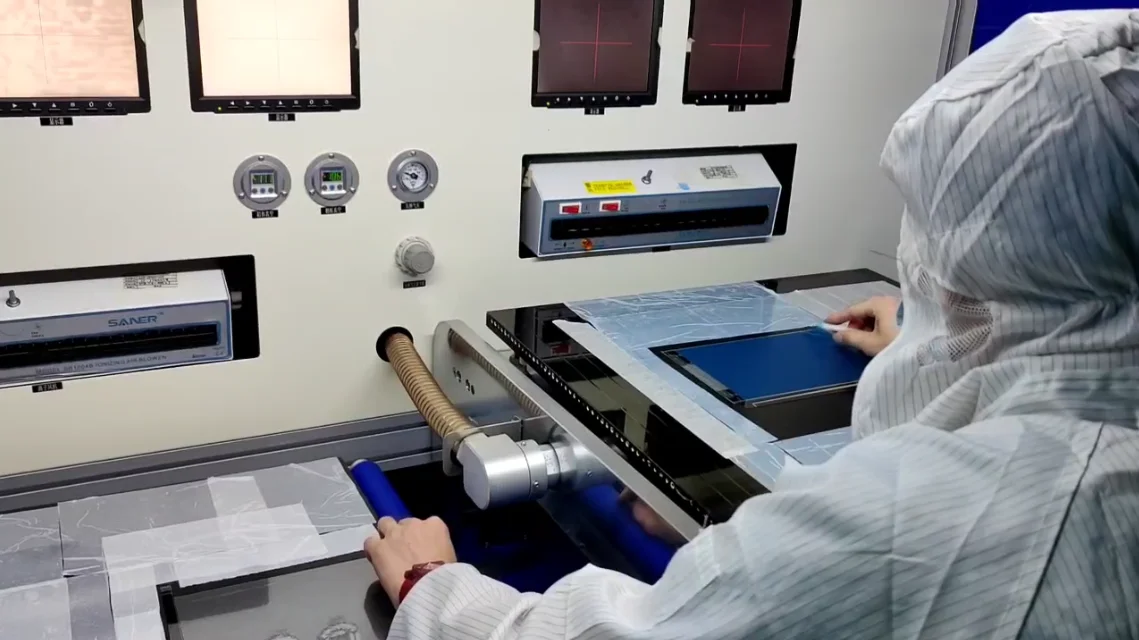

Our complete product will be inspected more than 8 times before shipment ,including incoming material inspection, 100% function inspection, QC sport shock, NG test and OQC test. And we aim to provide our clients the satisfied quality of products.
FAQ
We Can Customize The Packaging According To Your Needs！
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields
