4wd mini front end loader TAIAN DY840 small lawn mower tractor with Ripper

Share on (60258111832):


Price:$15,000.00 - $20,000.00

Quantity:


Product Overview

Description

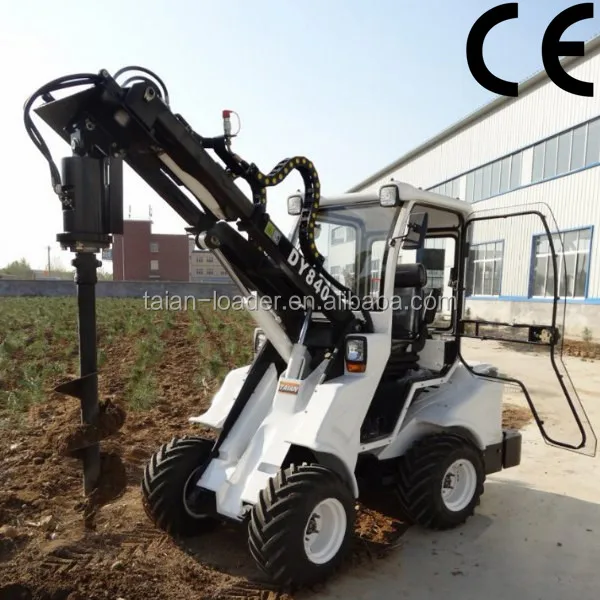

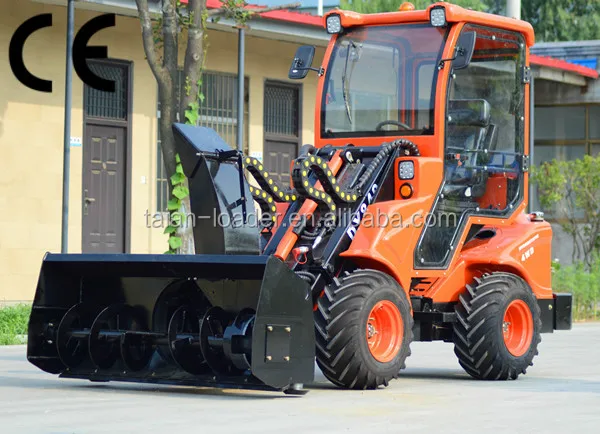

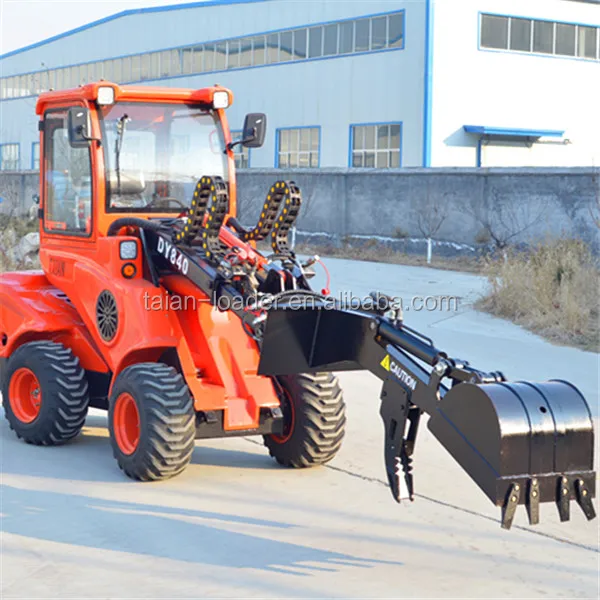

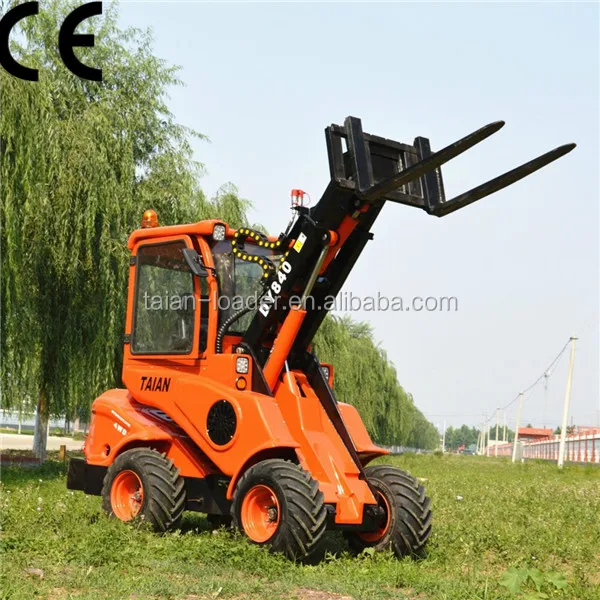

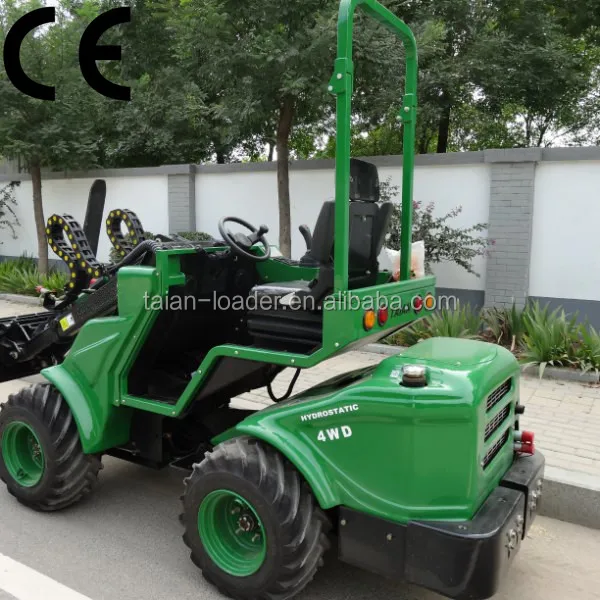

4wd mini front end loader TAIAN DY840 small lawn mower tractor with Ripper






Company Information


Our company was established in 2001, and since then we have been focus on all kinds of loaders development, good innovation ability enable us to keep developing and stand out from other similar products. We have been awarded with 4 patents till now, variable products can meet customers different requirements.





features


1.Compact design


2.Hydrostatic four wheel drive


3.Telescopic boom


4.Self levering.


5.Differential lock.


6.Boom floating


7.European standard quick coupling plate


8.Front articulated structure makes the turning radius much smaller.








advantages


1.Unique telescopic design, widely increase its usage, and also this new design bring something fresh to the loader business, big advantage for re-sell also.





2.Quick coupling system and compatible attachments enable the loaders can do many different kind of work. you can find all what you need here in our factory.





3.Many options enable you to make the ideal machine in your mind, and also offer much choices about the cost.





4.Another big advantage compared with other normal loaders, ours can be equipped with rear hydraulic output & 3 point hitch, which makes it can turn into a tractor. So you spent the money for a loader and get both loader and tractor.




main components


1.The engine is original Perkins or Kubota;


2.The pump, joystick, are Italian Hansa brand;


3.The valves are Italian Hydro Control brand;


4.The seals are from German B+Sbrand;


5.European standard quick coupling system.



 Standard specifications as below. But if you have any special requirement, please feel free to brin up, our company has more than 10 years experience with all kinds of loaders, and is the first one who start manufacturer compact telescopic loaders, our engineers has rich experience with customers' special requirements, we'll try our best to satisfy you.


































































































Model



DY840



Dimension (LxWxH)



2600 X1240 X 2100mm



Max. reach(boom extended)



3000mm



Max. reach(boom retracted)



2480mm



Bucket capacity



450L



Rated loading capacity



850kg



Tipping load



1300kg



Min. turning radius



2065mm



Turning angle



450



Speed



0-12 km/h



Weight



1600 kg



Standard tire



26X12-12



Tire pressure



2.8 bar



Oil tank capacity



40L



Pressure



190bar



Working oil flow



33.5L/minx2



Tracking oil flow



78L/min



Oil model(mineral oil)



L-HL46



Engine brand



Kubota V1505-E3B



Engine type






4 cylinder, water cooling



Rated power/speed



24.5 Kw/2800 r/min



Fuel tank capacity



23L



Battery



60Ah, 12V

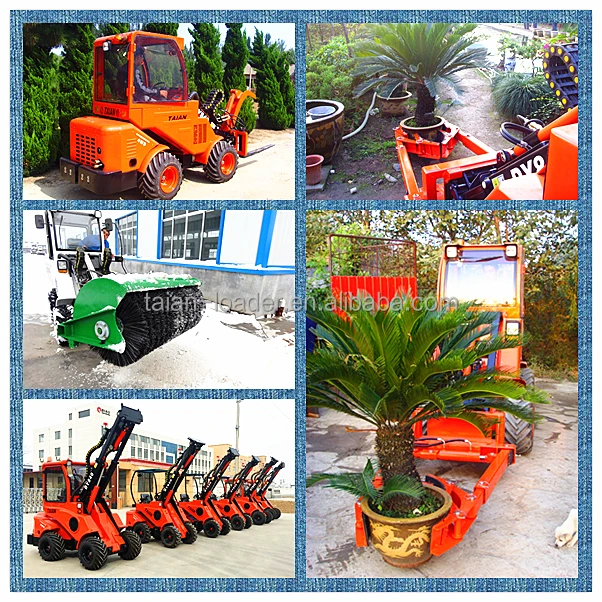

Detailed Images


 20

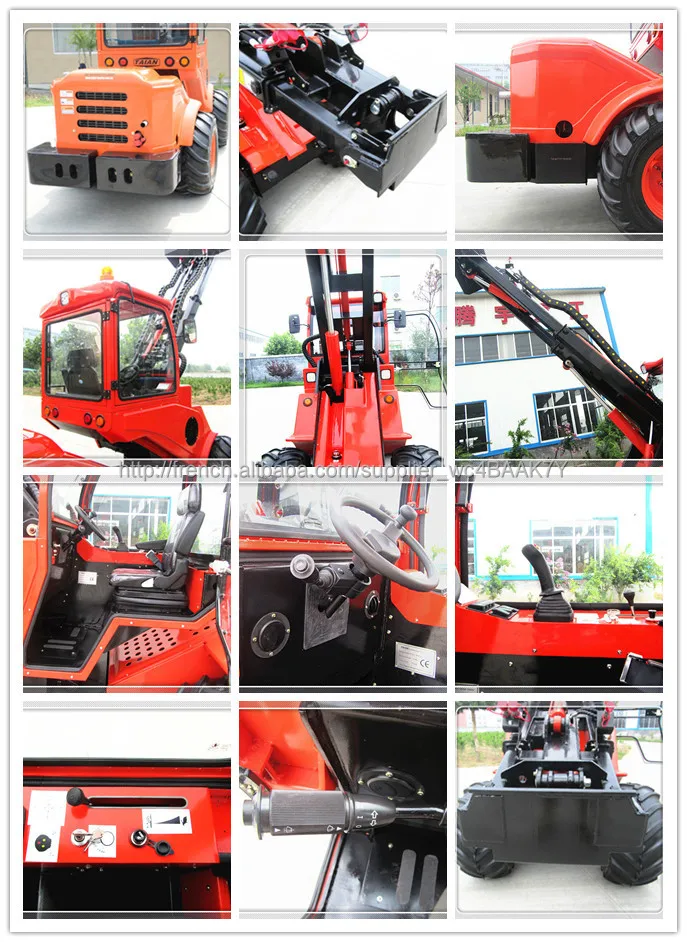

 details images

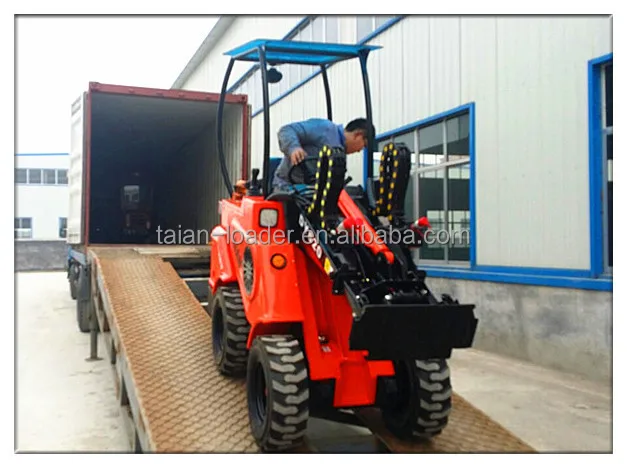

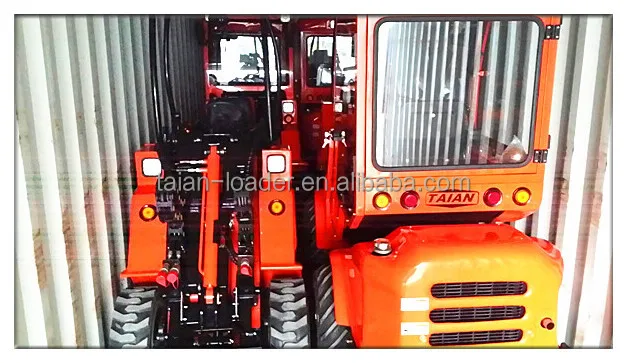

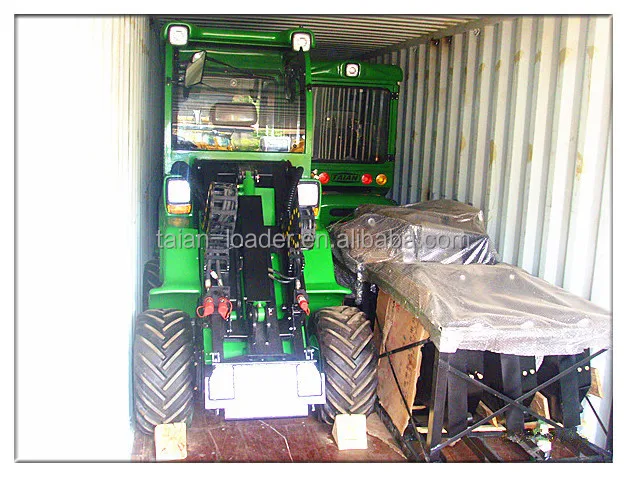

Packaging & Shipping


  (10) (2) (5)
