Product Overview

Description

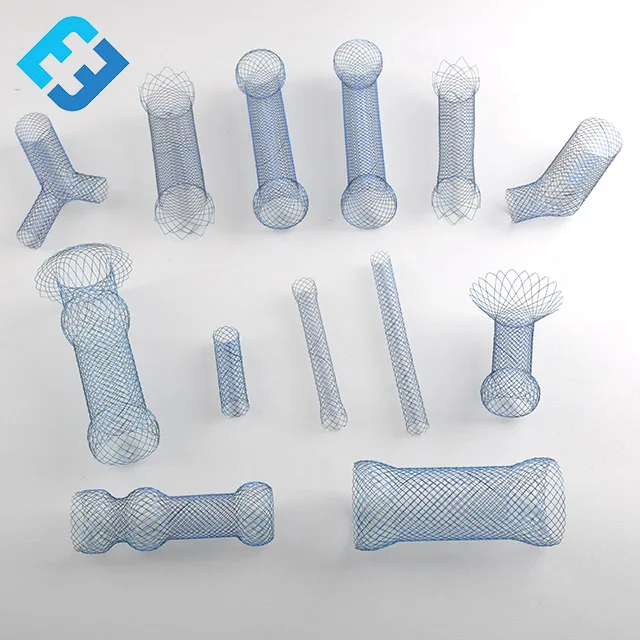

Intestinal stent

 Characteristic



1.Continued gentle radial tensile force, effectively expands the stenosis, reducing the patients’      discomfort.



2.Imaging markers of the stents are clear visible under image equipment. Positioning is more   accurate.



1.Pylorus stent



Usage



Used for malignant lesions caused by gastric outlet stenosis or obstruction, suitable for ministry of pyloric stenosis.

Characteristic



Conform to the pylorus of physiological anatomy port design.

Specification table (for pylorus stents):

Stent diameter (mm)	Port diameter (middle/near-end)	Length(mm)	Specification of Introducer system (Pipe diameter Fr x effective working length  mm)	Head end shape
18	18/45	60/80	18Fr x1350	Single ball-single horn
20	20/45	60/80	18Fr x1350

 Stent System Structure Sketch

2.Duodenal stent(OTW/TTS)





Usage

Used for duodenal stenosis or obstruction caused by malignant lesions.

Characteristics

Excellent flexibility, physiological bending conforms to the duodenum.

Specification table (for duodenal stents):



Stent diameter (mm)	Middle/end (mm)	Length(mm)	Specification of Introducer system (Pipe diameter Fr x effective working length  mm)
18	18/25	60/80/100/120	18Fr x 1350(OTW)
20	20/25	60/80/100/120	18Fr x 1350(OTW)
18	18/25	60/80/100	10Fr x 1850(TTS)
20	20/25	60/80/100	10Fr x 1850(TTS)



  Stent System Structure Sketch

3.Colon stent

Usage

Used to treat colon narrow or obstruction caused by malignant lesions.

Characteristics

Spherical structure design, reduces the stimulation, not easy to shift.

Specification table (for colon stents):

Stent diameter (mm)	Port diameter (middle/near-end)	Length(mm)	Specification of Introducer system (Pipe diameter Fr x effective working length  mm)
20	20/26	60/80/100	10Fr x2400(TTS)
25	25/30	60/80/100	10Fr x2400(TTS)
28	28/36	60/80/100	10Fr x 1000(OTW)
30	30/36	60/80/100	10Fr x 1000(OTW)



Stent System Structure Sketch



4.Rectum stent (OTW/TTS)



Usage

Used to treat colon narrow or obstruction caused by malignant lesions.



Characteristics



Spherical structure design, reduces the stimulation, not easy to shift.

Specification table (for rectum stents):

Stent diameter (mm)	Port diameter (middle/near-end)	Length(mm)	Specification of Introducer system (Pipe diameter Fr x effective working length  mm)
20	20/26	60/80/100	10Fr x2400(TTS)
25	25/30	60/80/100	10Fr x2400(TTS)
28	28/36	60/80/100	10Fr x 1000(OTW)
30	30/36	60/80/100	10Fr x 1000(OTW)



Stent System Structure Sketch



  The code of stent shape(for intestinal stents)







A.Straight ends              F. Double ball ends                      G. Single cup end



C. Single tulip end           K. Tulip end-ball end                    H. Double cup ends



D. Double tulip ends        P. Tulip end-cup end                    W. Segmented with double cup ends



E. Single ball end             Q. Cup end-ball end



package:



 single packed with white box(box size:680*260*30mm)

 17 sets packed into a carton(carton size:685*280*515mm)

 palletized



Our products

             Disposable Biopsy Forceps   Disposable Bite Block    Balloon Dilation Catheter

                          Esophagus Stent              Cytology Brush           Disposable Cleaning Brush



                   Bougie Dilator Set            Ligatures Endoscopic Loop         Biliary Stent

  OEM orders are also welcomed



CE certificates:

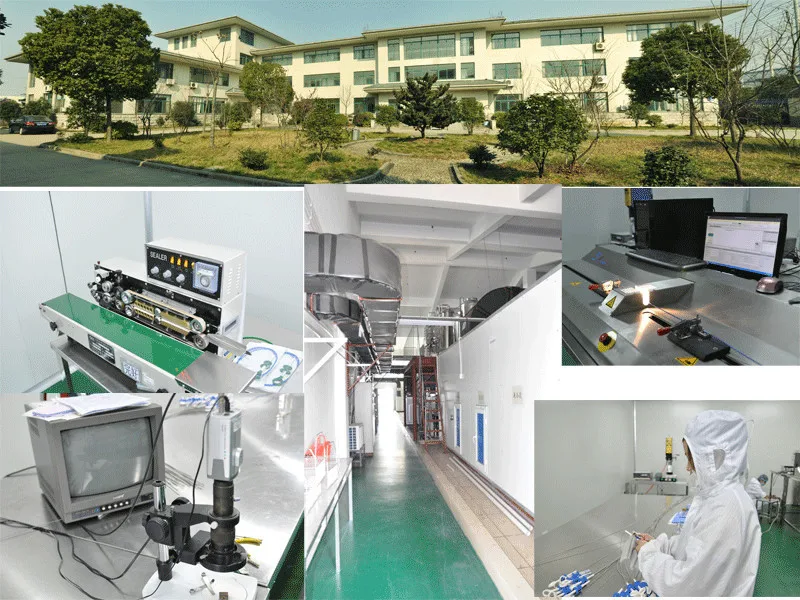

Our factory

Main Products: Disposable Biopsy Forceps, Disposable Balloon Dilatation Catheter, Ni-Ti  Alloy  Medical S tent  and  Introducer  System,  Disposable Cytology  Brush,  Ligatures  Endoscopic  Loop,  Disposable  Injection needle, etc

Number of Employees: 100 - 200 People

Main Markets: Domestic Market,South Asia,Southern Europe,Northern Europe,Central America

Factory Size: 12,000 square meters of building area,more than 800 square meter ISO certified manufacturing area

Test Equipment and Facilities : The mould manufacturing center is equipped with processing center(6 sets), Sodick slow walking wire cutting equipment (4 sets), quick walking wire cutting equipment (8 sets), Sodick mirror EDM equipment (1 set), common EDM equipment (6 sets), and general machine tools (turning, milling, grinding, drilling, etc. More than 10 sets). Our testing center has the ability of conventional biological detection and physical detection. In addition of that, we also have Germany Zeiss three coordinates measuring instrument, Image instrument, projector and other precision testing equipment.

No. of Production Lines : Above 10

No. of R&D Staff : 10 People

Contract Manufacturing:OEM Service Offered   Design Service Offered   Buyer Label Offered Address: Heng'an Road 8#, Heping Industrial Area, Changzhou, Jiangsu



Our factory





Welcome to come and visit our factory
