XLK5030 China cheap small cnc milling machine for metal cutting
- Category: CNC Milling Machines >>>
- Supplier: Tengzhou Hising Machine Tools Co. Ltd.
Share on (60258664320):
Product Overview
Description
MAIN FEATURES OF XLK5030 China cheap small cnc milling machine for metal cutting :
1. CAST IRON OF HIGH RIGIDITY.
2. GUIDEWAYS QUENCHED AND FINE GRINDED.
3. BRAND OF CNC CONTROLLER CAN BE SELECTED.
4. DIFFERENT VOLTAGES REQUESTS ACCEPTABLE.
5. DIFFERENT COLORS REQUESTS ACCEPTABLE.
6. OEM SERVICE PROVIDED
MAIN SPECIFICATION OF XLK5030 China cheap small cnc milling machine for metal cutting:
Specification | Unit | XLK5030 |
Table size | mm | 1370X300 |
Table Travel (X/Y/Z) | mm | 820/300/400 |
Spindle nose to work surface | mm | 35-435 |
Spindle hole taper | --- | 7:24 ISO40 |
Rapid speed of table (X/Y/Z) | mm/min | 4000/4000/3000 |
T-slots(No./Width/Pitch) | mm | 3/14/80 |
Spindle speed range | r/min | 1235-1500 |
Stroke of spindle quill | mm | 70 |
Distance between spindle axis and column guideway | mm | 285 |
Swivel angle of Vertical milling head | --- | ±30° |
Main motor power | kw | 3 |
Torque of X/Y/Z axis AC servo motor | N.m | 7.7/7.7/15 |
Overall size | mm | 1850X1680X1900 |
Net weight | kg | 1850 |

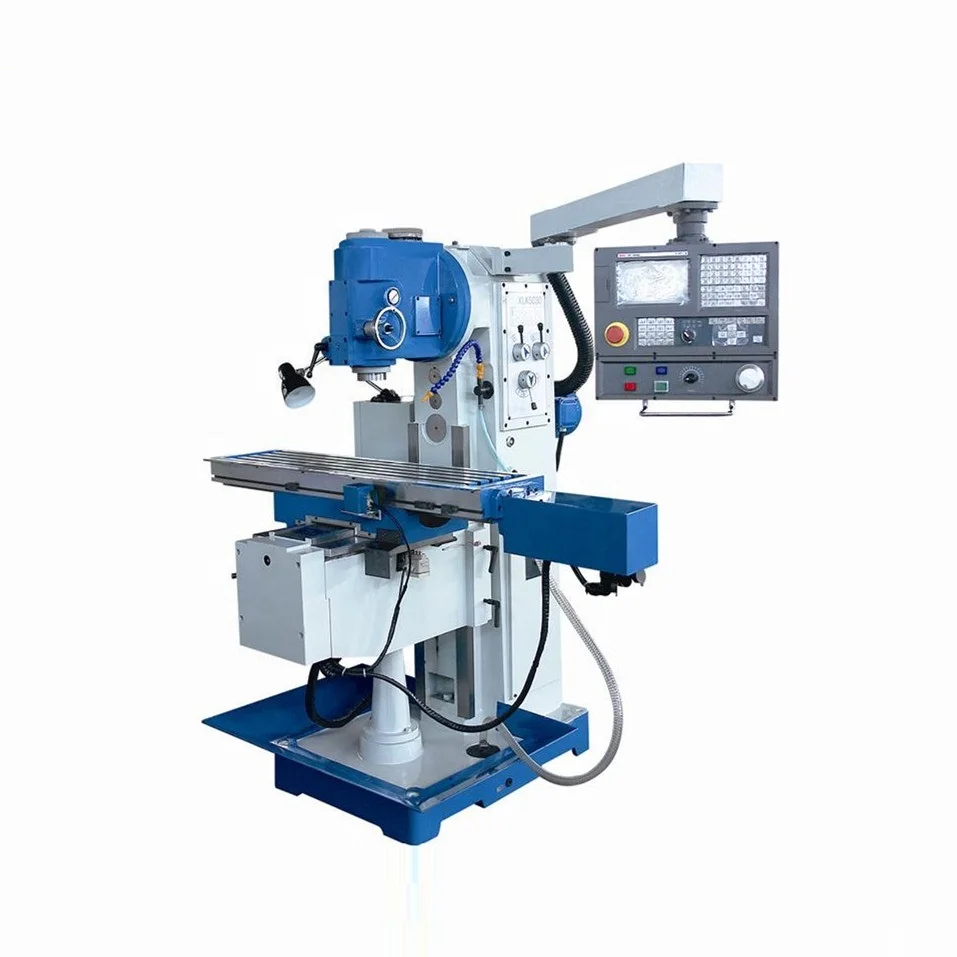

PHOTO OF XLK5030 China cheap small cnc milling machine for metal cutting:
