Competitive price FM 200 fire suppression system with high quality
- Category: >>>
- Supplier: Guangzhou Xingjin Fire Equipment Co. Ltd.
Share on (60258746984):
Product Overview
Description
Product Description
Competitive price FM200 fire suppression system with high quality
NO. | Specifications | 4.2Mpa system | 5.6Mpa system | |
1 | Cylinder Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr | |
2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 | |
3 | Filling pressure | 4.2Mpa | 5.6Mpa | |
4 | Max filling rate | 0.95kg/L | 1.08kg/L | |
5 | Discharge time | ≤10s | ||
6 | Power | DC24V/1.6A | ||
7 | Nitrogen driving device | 6.0±1.0Mpa | ||
8 | Storage surroundings | Temperature:-10~50℃ Relative humidity:≤97% | ||
9 | Proportion | ≤800m² | ||
10 | Volume | ≤3600m³ | ||
Though Fm200 is a new and small part of the gas fire-fighting, it becomes more and more popular all over the world. Because of its born advantages-odorless, colorless and nontoxic, fm200 fire suppression system is considered as the best substitute of the popular series of halon type fire suppression system. The most attractive point is that the fm200 fire suppression system has no damage to the ozone layer, even just 1% possibility. Though the whole system looks very complicated, actually it is easy installation.
This fm200 fire fighting equipment only fits the occupied room or places, because it uses whole flooding way to extinguish the fire.
This fm200 fire fighting equipment only fits the occupied room or places, because it uses whole flooding way to extinguish the fire.

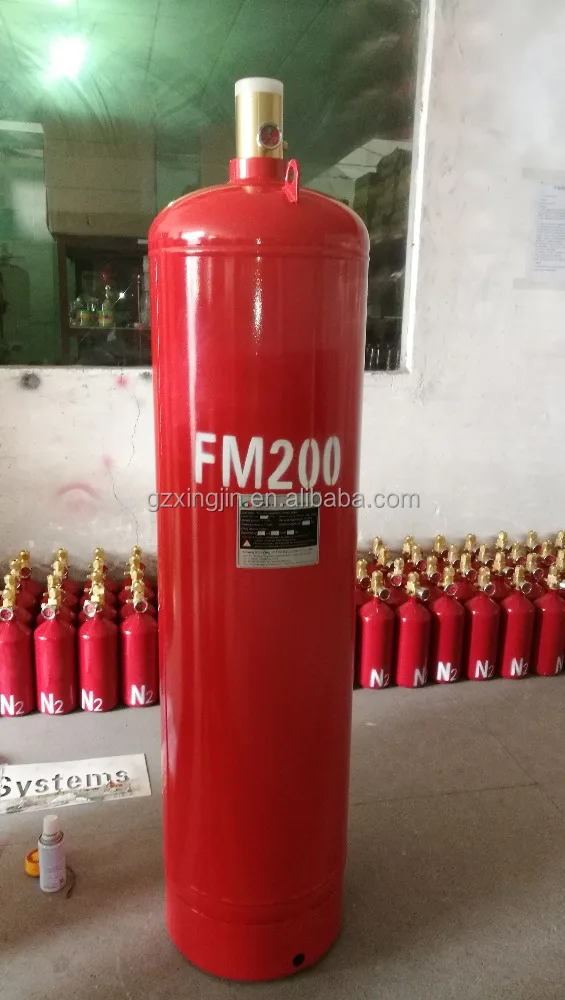

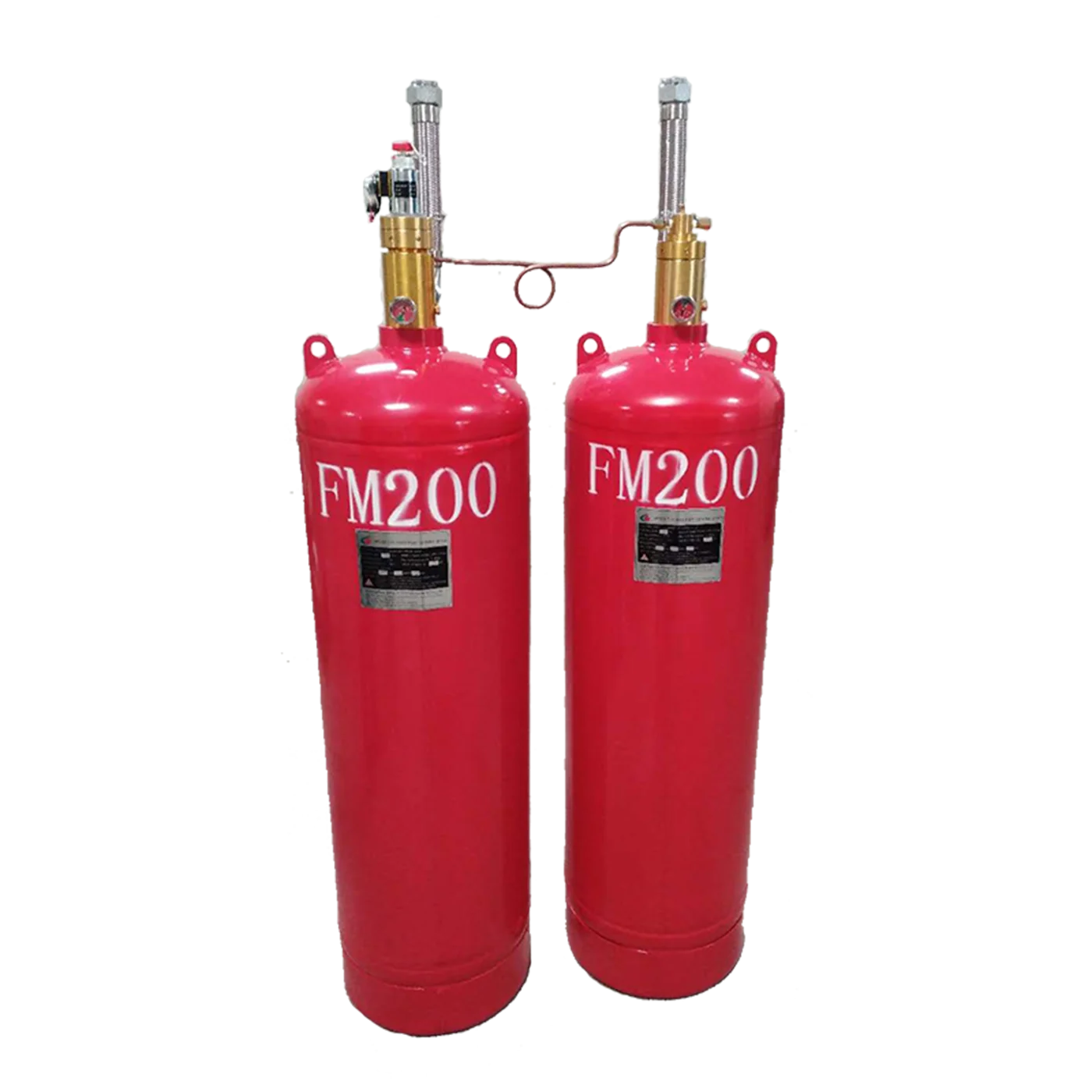

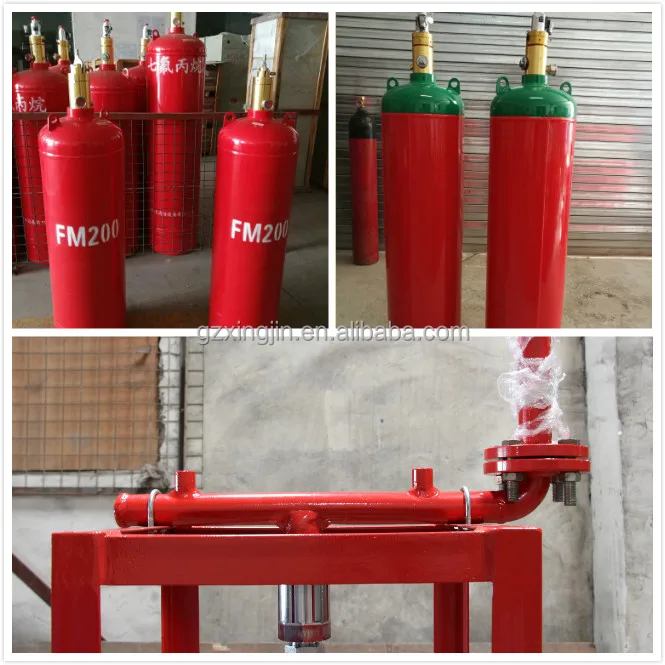

Detailed Images
Components
The pipe network type fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.

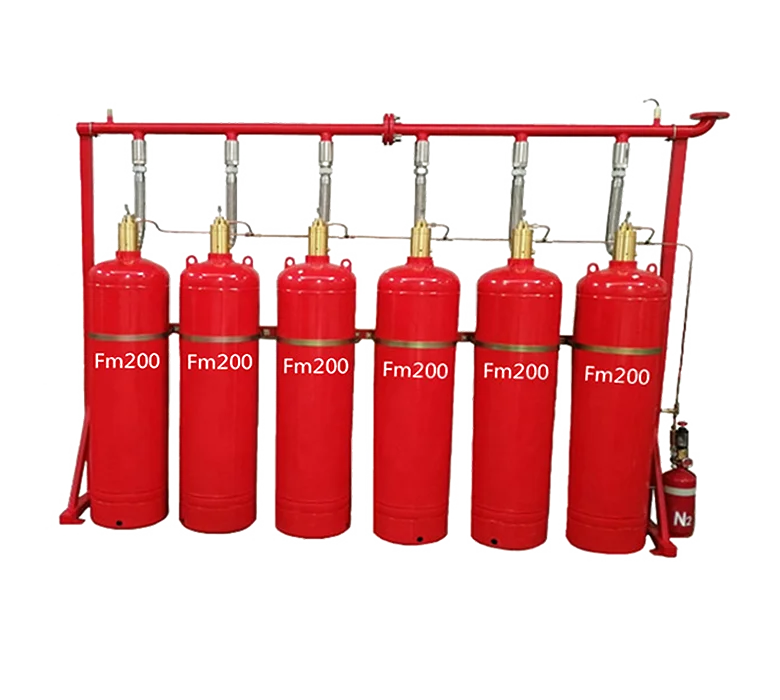

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
Application
The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Related Products
Certificate
Environmental Management System Certificate
Occupational Health and Safety Management System Certificate
Quality Management System Certificate
Certificate for China Compulsory Product Certification (4.2Mpa system)
Certificate for China Compulsory Product Certification (5.6Mpa system)
Packing&Shipping

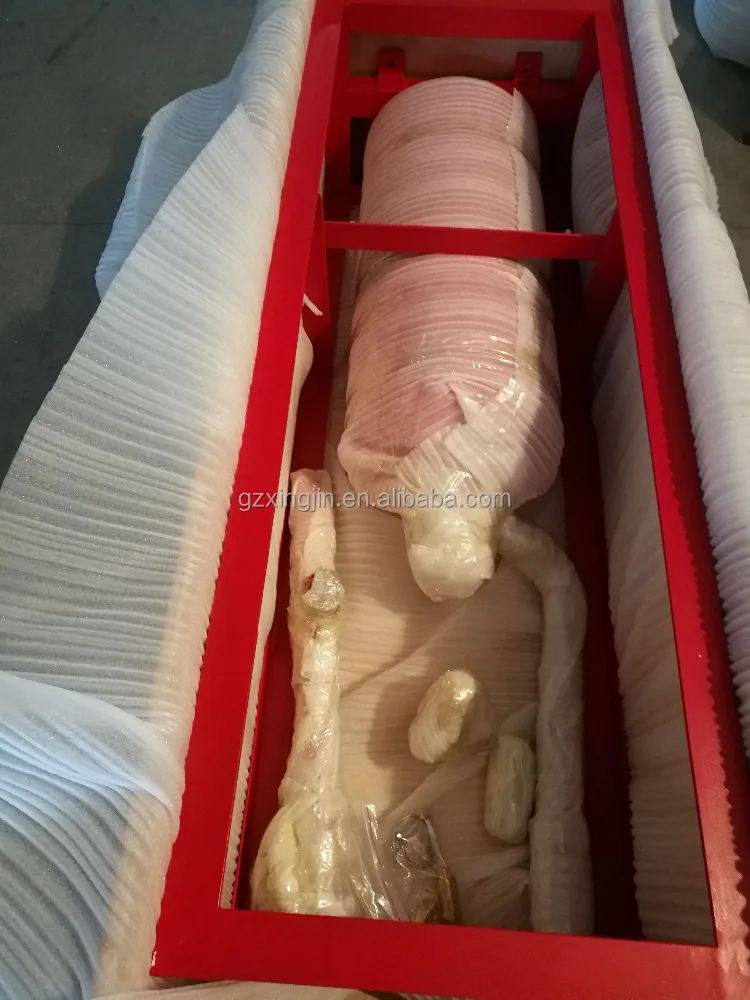

We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
After-Sale Service
