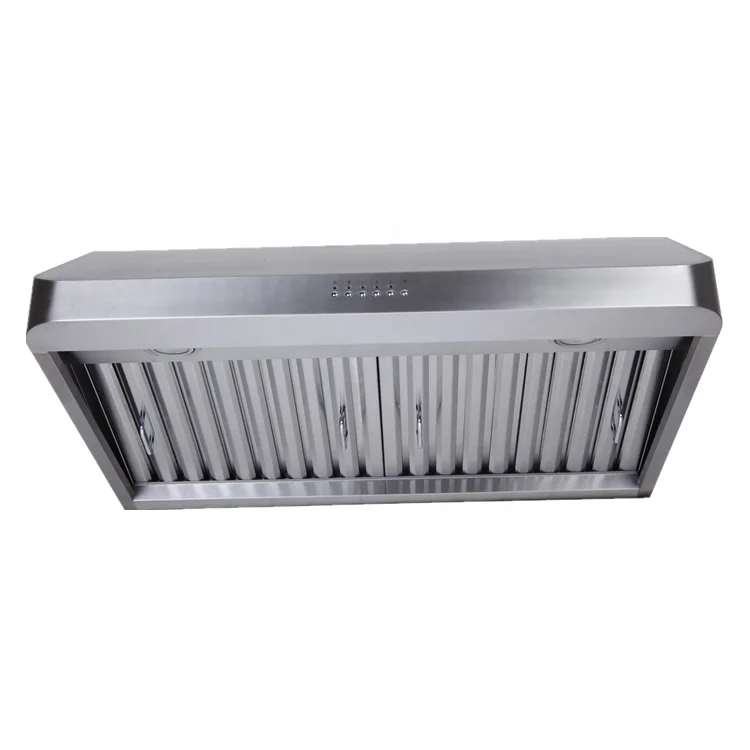

1500mm width BBQ commercial range hoods twin motors

1500mm width BBQ commercial range hoods twin motors

Built for the most demanding applications this hood is Designed to be used! Stainless Baffle Filters that are easy to remove, and the quietest 385 CFM setting in the industry. (Based on comparable size and dual local blower capacity). 1000cfm total capacity with Elegant and Efficient "Time Delay" Touch Controls. This Range Hood comes with blower and fan completely installed, and factory tested. This makes the installation one of the easiest in the industry.

*This range hood is ETL/CETL certified for safety approvals within US and CANADA;

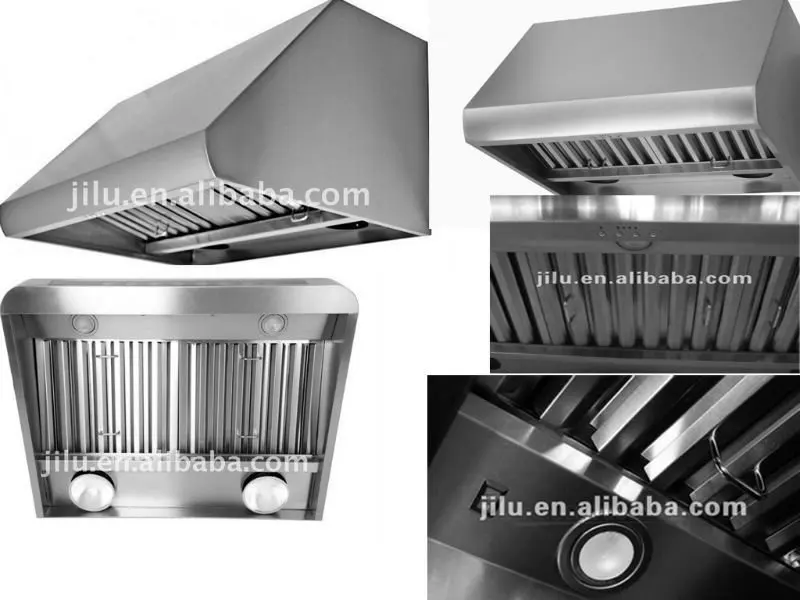

Model: CXW-298-A09 Optional Size: 30" 36" 42" 48"

Delay Controls: The time delay system features a 3 minuet delay shut off (1 push on/off) or immediately shutdown( 2 puch on/off)

Bright Halogen Light: 2 bright 12V 20W halogen lights for 30" 36" ; 3 lights for 42" 48"

Baffle Filters: This hood includes Baffle filter; 2 for 30" 36" & 3 for 42" 48"

Material: 18- Gauge Commercial Grade Stainless Steel.

Optioal Duct cover

Specification:

Voltage: 120 60Hz or 220V 50Hz

Motor type: Twin Centrifugal Squirrel Cage

Exhaust: Top Transition Rectangular to 7" round X1

Controls: Six Electronic Buttons with Exposed LED indicator lights

Halogen Light: 12V 20W X2(30" 36" ) 12V 20WX3 (42" 48")

Hood Dimension: 30" 29-3/4" X 22" X10"

36" 35-3/4" X 22" X10"

42" 41-3/4" X 22" X10"

48" 47-3/4" X 22" X10"

Weight(lbs) : 30" Net: 50 Gross: 61 36" Net: 53 Gross: 66

42" Net: 61 Gross: 76 48" Net: 67 Gross: 85
