Pillow covers making machine

Product Overview

Description

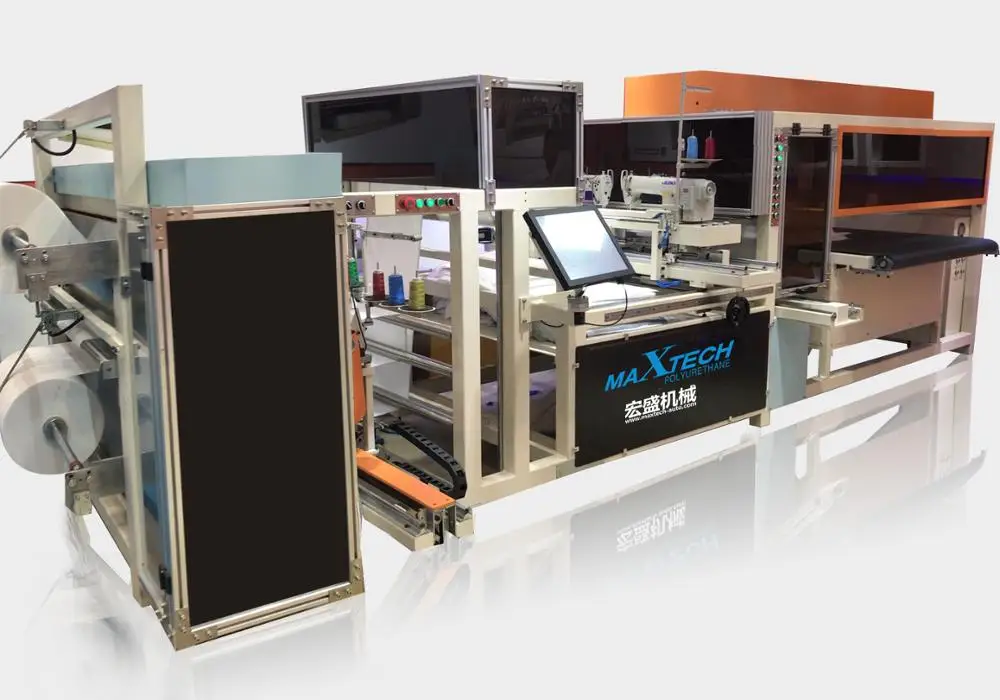

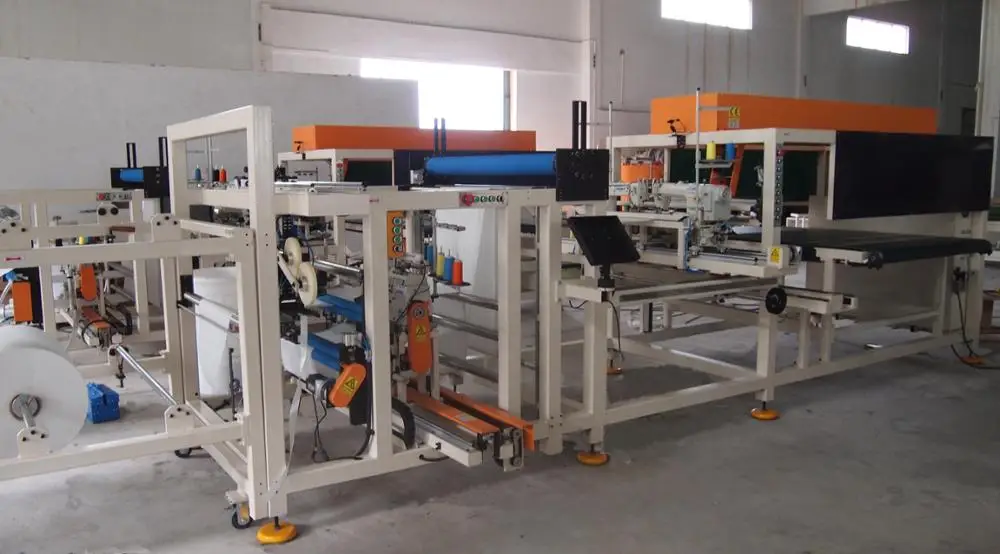

Auto Pillow covers Making Machine

This pillow covers making machine is mainly used for manufacturing cases for pillows and cushions. Highly automated, controlled by PLC with high precision touch screen.



This machine has certificate of Utility Model Patent, with CE certification.









Automatic cycle: in-feed, lateral sewing, transversal sewing, measurement, cutting and stacking. Optionally, the machine half-closes the open mouth for filling. Cycle controlled by PLC.



Vacuum equipments for thread clips and cloth clips, which will insure cutting smoothly.



Low labor, which only needs one person to change the roll, easy and fast.



Automatic detection of thread breakage. Minimum waste and energy savings.





Pillow bags (three sides: overlock, the 4th side: lock stitch, half-closed and full opened)





Main technical specifications

Pillow case length	300-1200mm
Pillow case width	200-800mm
Max. Cloth diameter	Ø420mm
Machine dimensions	5600x2140x1880mm
Power supply	7Kw
Air supply	0.6-0.8Mpa
